Overview
Features and Benefits
- Extremely Compact Triple-Rail Solution
- Burst Mode® Operation, IQ = 15μA
- 1.5MHz Fixed Frequency Operation
- Power Good Indicators
- 700mA Synchronous Step-Up DC/DC
- 0.65V to 5V VIN Range
- 1.5V to 5.25V VOUT Range
- 94% Peak Efficiency
- VIN > VOUT Operation
- Output Disconnect
- 0.65V to 5V VIN Range
- 250mA Synchronous Step-Down DC/DC
- 1.8V to 5.5V VIN Range
- 0.6V to 5.5V VOUT Range
- 1.8V to 5.5V VIN Range
- LDO (VIN Internally Tied to VBST)
- 0.6V to 5.25V VOUT Range
- 200mV Dropout Voltage at 100mA
- 0.6V to 5.25V VOUT Range
- Available in a 16-Lead 3mm × 3mm QFN Package
Product Details
The LTC3100 combines a high efficiency 700mA synchronous step-up converter, a 250mA synchronous stepdown converter and a 100mA LDO regulator. The LTC3100 features a wide input voltage range of 0.65V to 5V. The step-down converter can be powered by the output of the step-up converter or from a separate power source between 1.8V and 5.5V. The LDO can also be used as a sequencing switch on the output of the boost.
A switching frequency of 1.5MHz minimizes solution footprint by allowing the use of tiny, low profile inductors and ceramic capacitors. The switching regulators use current mode control and are internally compensated, reducing external parts count. Each converter automatically transitions to Burst Mode operation to maintain high efficiency over the full load range. Burst Mode operation can be disabled for low noise applications. The integrated LDO provides a third low noise, low dropout supply.
Anti-ringing circuitry reduces EMI by damping the boost inductor in discontinuous mode. Additional features include shutdown current of under 1μA and overtemperature shutdown. The LTC3100 is housed in a 16-lead 3mm × 3mm 0.75mm QFN package.
Applications
- Bar Code Readers
- Medical Instruments
- Low Power Portable Electronic Devices
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
R415 Reliability Data3/23/2018
-

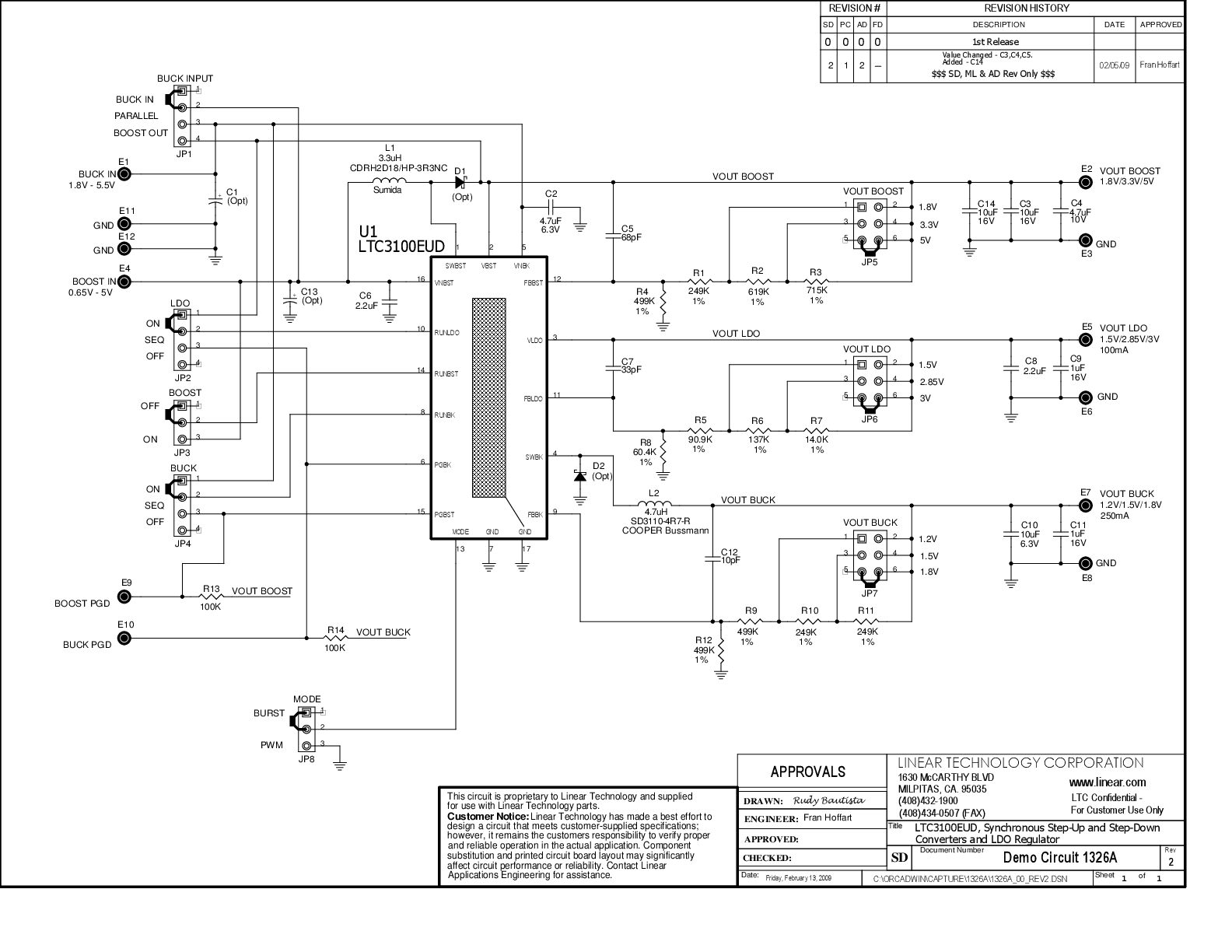

DC1326A - Demo Manual9/24/2009
-
Multi-Rail DC/DC Converter in a 3mm × 3mm QFN Takes Inputs as Low as 0.7V6/1/2008 LT Journal
Tools & Simulations
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
Models for the following parts are available in LTspice:
LTC3100
