LTC2984
Multi-Sensor High Accuracy Digital Temperature Measurement System with EEPROM
Top
Overview
Features and Benefits
- Directly Digitizes 2-, 3-, or 4-Wire RTDs, Thermocouples, Thermistors, and Diodes
- On-Chip EEPROM Stores Channel Configuration Data and Custom Coefficients
- Single 2.85V to 5.25V Supply
- 20 Flexible Inputs Allow Interchanging Sensors
- Automatic Thermocouple Cold Junction Compensation
- Built-In Standard and User-Programmable Coefficients for Thermocouples, RTDs and Thermistors
- Measures Negative Thermocouple Voltages
- Automatic Burn Out, Short-Circuit and Fault Detection
- Buffered Inputs Allow External Protection
- Simultaneous 50Hz/60Hz Rejection
- Includes 15ppm/°C (Max) Reference (I-Grade)
- Demo software with configuration checker and C-code generation tool
Product Details
The LTC2984 measures a wide variety of temperature sensors and digitally outputs the result, in °C or °F, with 0.1°C accuracy and 0.001°C resolution. The LTC2984 can measure the temperature of virtually all standard (type B, E, J, K, N, S, R, T) or custom thermocouples, automatically compensate for cold junction temperatures and linearize the results. The device can also measure temperature with standard 2-, 3-, or 4-wire RTDs, thermistors, and diodes. It has 20 reconfigurable analog inputs enabling many sensor connections and configuration options. The LTC2984 includes excitation current sources and fault detection circuitry appropriate for each type of temperature sensor as well as an EEPROM for storing custom coefficients and channel configuration data.
The LTC2984 allows direct interfacing to ground referenced sensors without the need for level shifters, negative supply voltages, or external amplifiers. All signals are buffered and simultaneously digitized with three high accuracy, 24-bit ΔΣ ADC's, driven by an internal 10ppm/°C (maximum) reference.
Applications
- Direct Thermocouple Measurements
- Direct RTD Measurements
- Direct Thermistor Measurements
- Custom Sensor Applications
Product Categories
Markets and Technologies
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (2)
Documentation & Resources
-
R578 Reliability Data3/23/2018
-

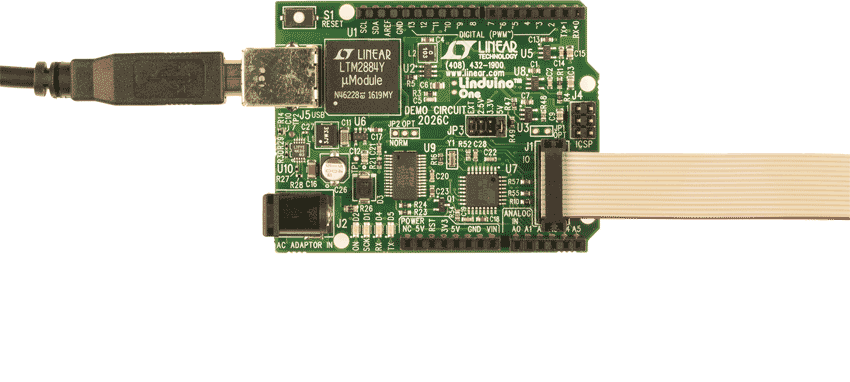

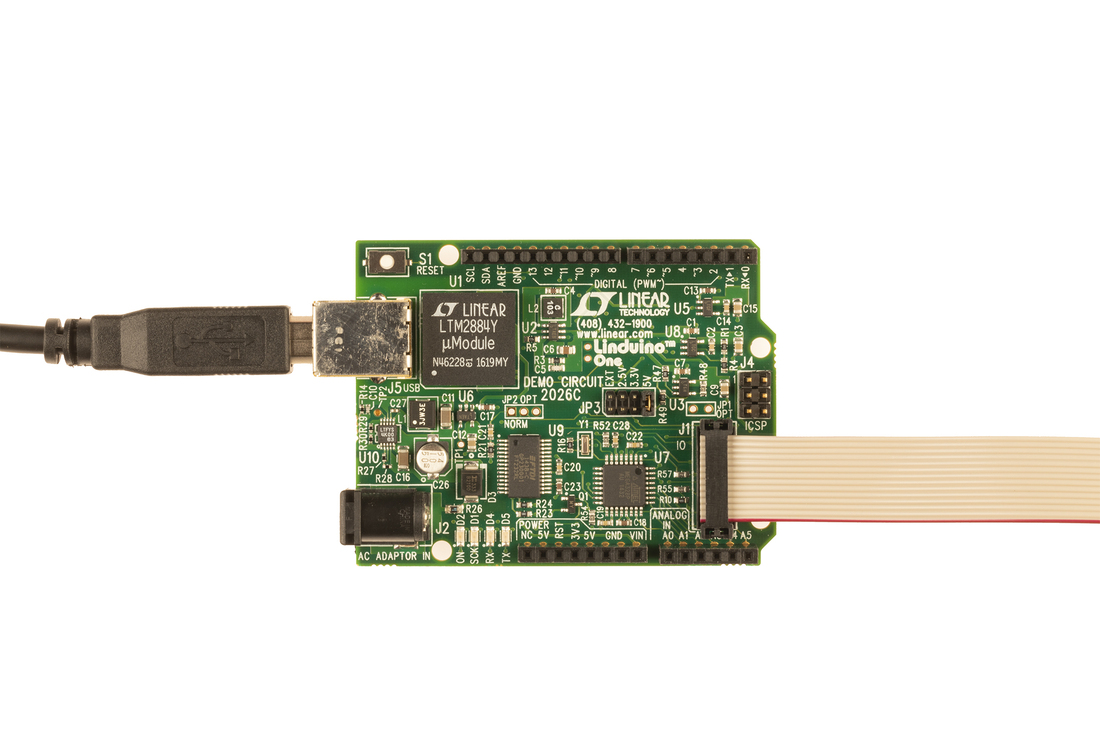

DC2026C Demo Manual3/29/2016
-

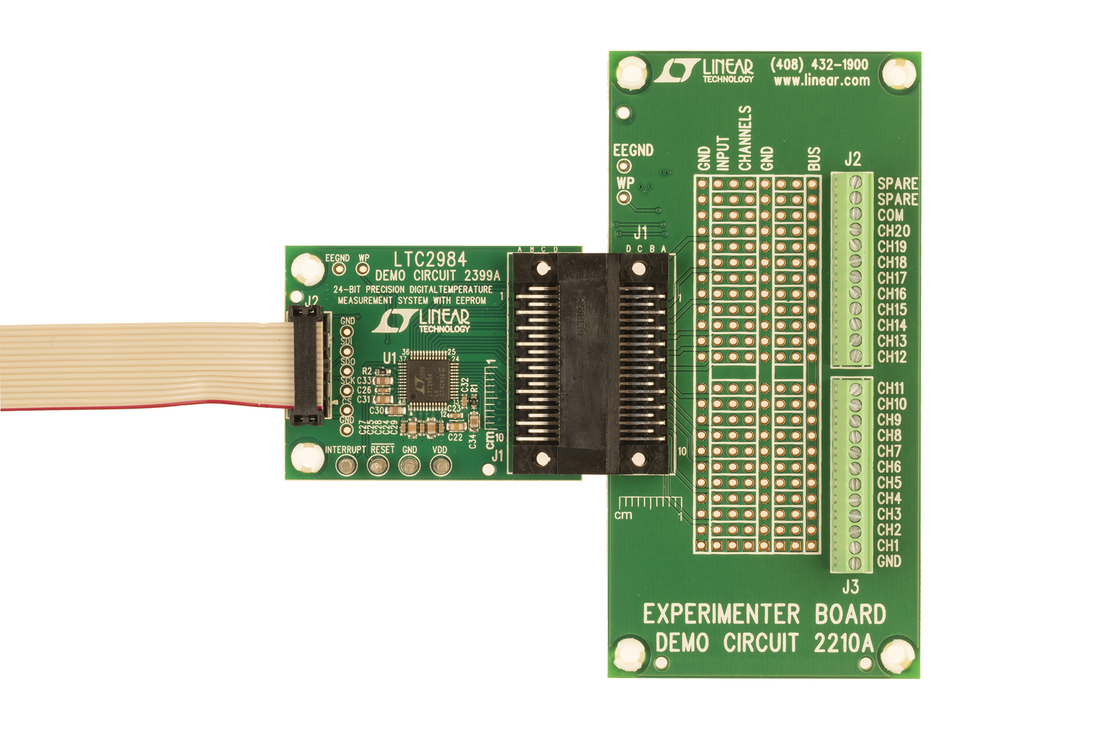

DC2420A - Demo Manual7/8/2015
-
A Precision Temperature Measurement Solution with High EMC Performance Using an RTD9/3/2021 Analog Dialogue
-
Robust Industrial Sensing with the Temperature-to-Bits Family4/19/2017 LT Journal
-
Using Custom Thermistors with the Temp-to-Bits Family3/29/2017
Software & Systems Requirements
Evaluation Software
LTC2984 Demo Software
The LTC2984 demo software is designed to help configure, program and run the LTC2984. It can configure the LTC2984, save the configuration, check for configuration errors, run the conversion results into a text file, and create Linduino-ready C code based on the configuration. The software can be used by itself, or used in conjunction with the DC2399 demo circuit.
Tools & Simulations
Linduino
Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.
Linduino code repository on GitHub and instructions on how to use the code.
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LTC2984CLX#PBF | Material Declaration | Reliability Data | 48-Lead LQFP (7mm x 7mm) | |
| LTC2984HLX#PBF | Material Declaration | Reliability Data | 48-Lead LQFP (7mm x 7mm) | |
| LTC2984ILX#PBF | Material Declaration | Reliability Data | 48-Lead LQFP (7mm x 7mm) | |
| Wafer Fabrication Data | R578 Reliability Data |
