LTC2953
Push Button On/Off Controller with Voltage Monitoring
Top
Overview
Features and Benefits
- Wide Operating Voltage Range: 2.7V to 27V
- Push Button Control of System Power
- Low Supply Current: 14µA
- Power Fail Comparator Generates Warning
- UVLO Comparator Gracefully Latches Power Off
- Adjustable Supply Monitor with 200ms Reset
- Adjustable Power Down Timer
- Low Leakage EN Output (LTC2953-1) Allows DC/DC Converter Control
- High Voltage EN Output (LTC2953-2) Allows Circuit Breaker Control
- Simple Interface Allows Orderly System Power Up and Power Down
- ±1.5% Threshold Tolerances
- ±10kV ESD HBM on PB Input
- 12-Pin 3mm x 3mm DFN
Product Details
The LTC2953 is a push button On/Off controller that manages system power via a push button interface. An enable output toggles system power while an interrupt output provides debounced push button status. The interrupt output can be used in menu driven applications to request a system power down.
The LTC2953 also features input and output power supply monitors. An uncommitted power fail comparator provides real time input monitor information, while a de-glitched under voltage lockout comparator gracefully initiates a system power down. The under voltage lockout comparator prevents the system from powering from a low power supply.
The adjustable supply monitor input is compared against an accurate internal 0.5V reference. The reset output remains low until the supply monitor input has been in compliance for 200ms.
The LTC2953 operates over a wide 2.7V to 27V input voltage range and draws only 14µA of current. Two versions of the part accommodate either positive or negative enable polarities.
Applications
- Push Button Power Path Control
- Battery Power Supervisor
- Portable Instrumentation, PDA
- Blade Servers
- Desktop and Notebook Computers
Product Categories
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)
Documentation & Resources
-
R536 Reliability Data3/26/2018
-

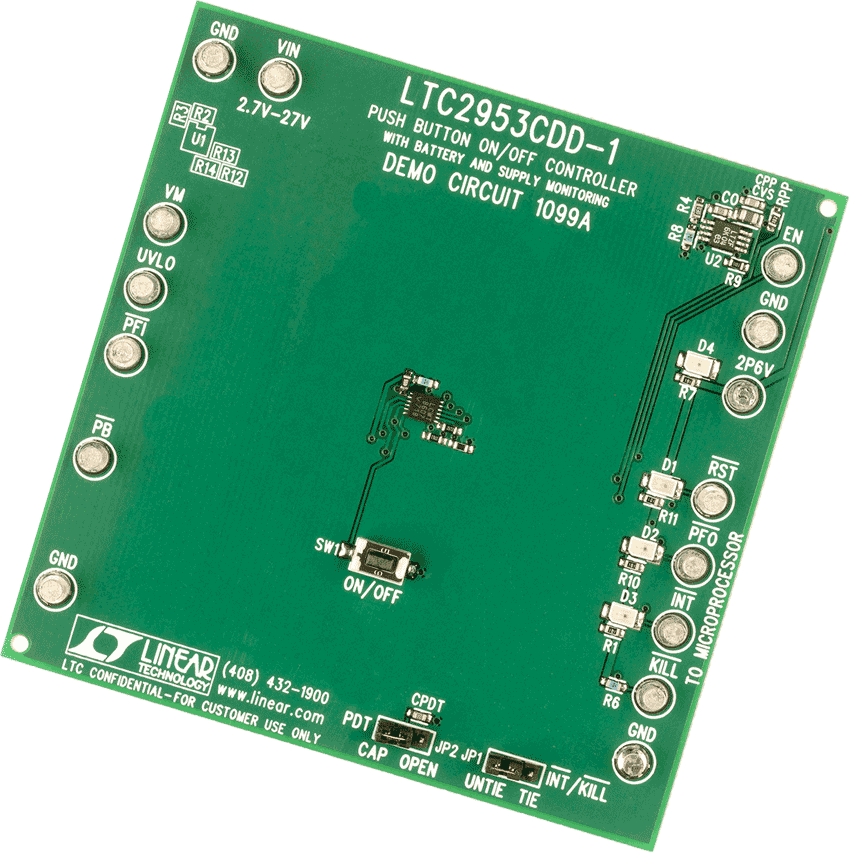

DC1099A - Demo Manual9/24/2009
-
Pushbutton Controllers1/8/2015
Tools & Simulations
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Models for the following parts are available in LTspice:
LTC2953-1
LTC2953-2
