LTC2949

Current, Voltage, and Charge Monitor for High Voltage Battery Packs

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 4
1ku List Price Starting From $24.22
Features
  • Measures Battery Stack Voltage, Current and Power
  • Indicates Accumulated Battery Charge and Energy
  • 20-Bit Current Measurement with <1μV Offset
  • Built-In Isolated isoSPI or SPI Interface
  • LTC68xx/ADBMS68xx Compatible, Supports Synchronous Measurements with Cell Monitors
  • Up to 12 Buffered Voltage Measurement Inputs
  • Up to 5 GPIOs, Configurable to Drive Ground, Supply or Toggling at 400kHz
  • High or Low Side Current Sense
  • 0.3% Current and Voltage Accuracy
  • 1% Energy and Charge Accuracy
  • True Average ADCs
  • I2C EEPROM Interface to Store Board Calibration Factors
  • Threshold Registers for all Measured Quantities
  • Engineered for ISO26262 Compliant Systems
  • Open Wire Detection on Input Pins

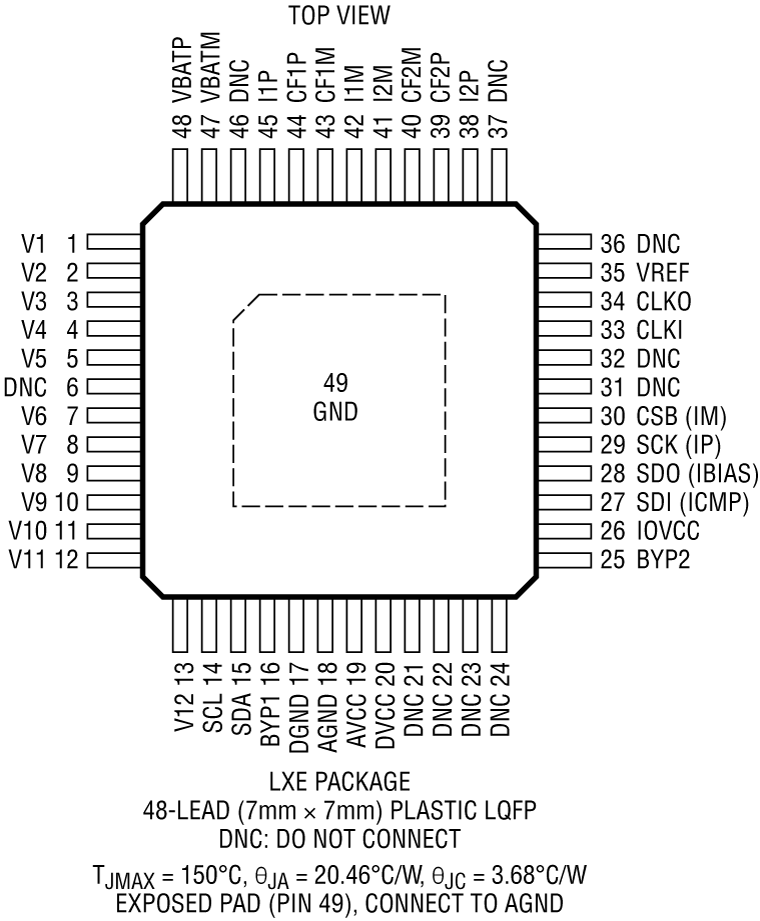

  • Available in 48-Lead LQFP Package
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

The LTC2949 is a high precision current, voltage, temperature, charge and energy meter for electrical and hybrid vehicles and other isolated current sense applications. It infers charge and energy flowing in and out of the battery pack by monitoring simultaneously the voltage drop over up to two sense resistors and the battery pack voltage.

Low offset ΔΣ ADCs ensure accurate measurement of voltage and current with insignificant power loss. Continuous integration of current and power ensures lossless tracking of charge and energy delivered or received by the battery pack.

The built-in serial interface can be configured to support isolated isoSPI communication to the host or as SPI interface.

The LTC2949 features 12 internally buffered high impedance inputs (V1 to V12) for measuring voltages from external sensors or resistor dividers allowing to measure temperatures, HV-Link voltages, chassis isolation and supervise contactor states. LTC2949 has up to five programmable digital outputs which can be set to ground, supply or toggling at 400kHz.

Programmable threshold and tracking registers reduce digital traffic to the host.

Applications

  • Electric and Hybrid Vehicles
  • Isolated Current Sensing
  • Backup Battery Systems
  • High Power Portable Equipment
Part Models 4
1ku List Price Starting From $24.22

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC2949HLXE#3ZZPBF
  • HTML
  • HTML
LTC2949HLXE#3ZZTRPBF
  • HTML
  • HTML
LTC2949ILXE#3ZZPBF
  • HTML
  • HTML
LTC2949ILXE#3ZZTRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

May 4, 2022

- 22_0092

LTC2949 Die Revision Change

LTC2949HLXE#3ZZPBF

PRODUCTION

LTC2949HLXE#3ZZTRPBF

PRODUCTION

LTC2949ILXE#3ZZPBF

PRODUCTION

LTC2949ILXE#3ZZTRPBF

PRODUCTION

Oct 12, 2020

- 20_0273

LTC2949 Datasheet Change

LTC2949HLXE#3ZZPBF

PRODUCTION

LTC2949HLXE#3ZZTRPBF

PRODUCTION

LTC2949ILXE#3ZZPBF

PRODUCTION

LTC2949ILXE#3ZZTRPBF

PRODUCTION

Aug 27, 2020

- 20_0272

Additional Wafer Fab Location (Vanguard International Semiconductor, Taiwan) for LTC2949 and LTC7821

LTC2949HLXE#3ZZPBF

PRODUCTION

LTC2949HLXE#3ZZTRPBF

PRODUCTION

LTC2949ILXE#3ZZPBF

PRODUCTION

LTC2949ILXE#3ZZTRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

May 4, 2022

- 22_0092

arrow down

LTC2949 Die Revision Change

LTC2949HLXE#3ZZPBF

PRODUCTION

LTC2949HLXE#3ZZTRPBF

PRODUCTION

LTC2949ILXE#3ZZPBF

PRODUCTION

LTC2949ILXE#3ZZTRPBF

PRODUCTION

Oct 12, 2020

- 20_0273

arrow down

LTC2949 Datasheet Change

LTC2949HLXE#3ZZPBF

PRODUCTION

LTC2949HLXE#3ZZTRPBF

PRODUCTION

LTC2949ILXE#3ZZPBF

PRODUCTION

LTC2949ILXE#3ZZTRPBF

PRODUCTION

Aug 27, 2020

- 20_0272

arrow down

Additional Wafer Fab Location (Vanguard International Semiconductor, Taiwan) for LTC2949 and LTC7821

LTC2949HLXE#3ZZPBF

PRODUCTION

LTC2949HLXE#3ZZTRPBF

PRODUCTION

LTC2949ILXE#3ZZPBF

PRODUCTION

LTC2949ILXE#3ZZTRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 3

reference details image

DC2617A

LTC6820 Demo Board | Arduino Interface for isoSPI or Isolated CAN

zoom

DC2617A

LTC6820 Demo Board | Arduino Interface for isoSPI or Isolated CAN

LTC6820 Demo Board | Arduino Interface for isoSPI or Isolated CAN

Product Detail

Demonstration circuit 2617A implements the isoSPI and isolated CAN interface hardware on a single Arduino shield. It allows Arduino-compatible controller boards to communicate with isoSPI and/or CAN bus networks.

reference details image

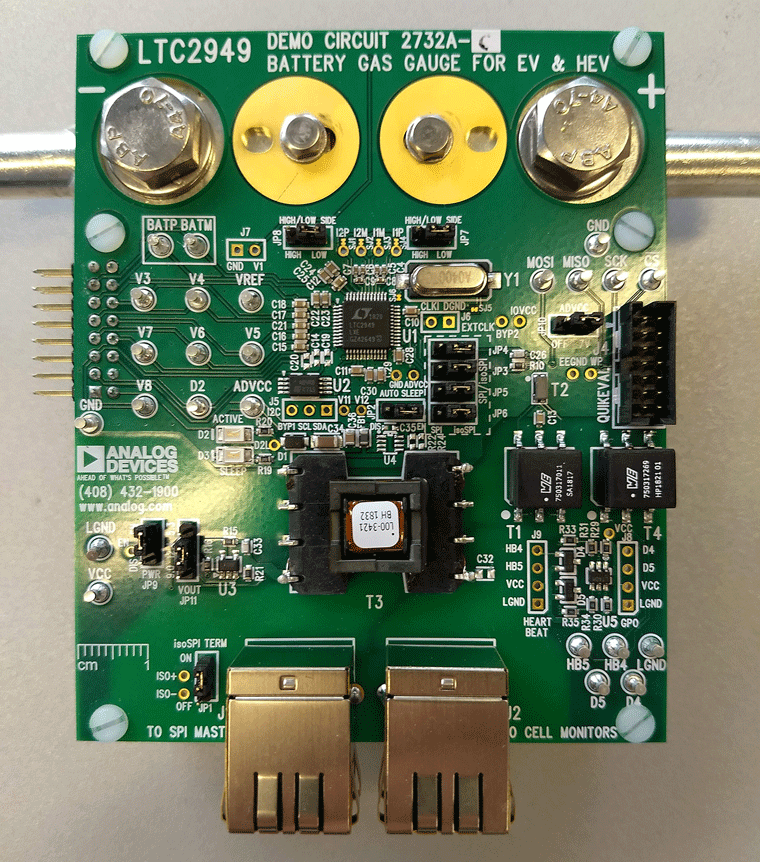

DC2732A

LTC2949 Demo Board | Current, Voltage & Charge Monitor for High Voltage Battery Packs

zoom

DC2732A

LTC2949 Demo Board | Current, Voltage & Charge Monitor for High Voltage Battery Packs

LTC2949 Demo Board | Current, Voltage & Charge Monitor for High Voltage Battery Packs

Product Detail

The DC2732A demonstrates a high voltage battery pack monitor based on the LTC2949. The LTC2949 is a high precision current, voltage, temperature, charge and energy meter for electrical and hybrid vehicles and other isolated current sense applications. It infers charge and energy flowing in and out of the battery pack by simultaneously monitoring the voltage across two sense resistors and the battery pack voltage.

Due to its compatible protocol, the LTC2949 can share the same communication bus with ADI battery stack monitors that contain the isoSPI interface.

The LTC2949 is typically powered from an isolated supply and directly connected to the battery stack on the low or high side depending on the shunt position. Resistive high voltage dividers provide connections to high voltage terminals that need to be supervised.


All registered trademarks and trademarks are the property of their respective owners. Protected by U.S. patents, including Patents 8908779, 9182428, 92701.

reference details image

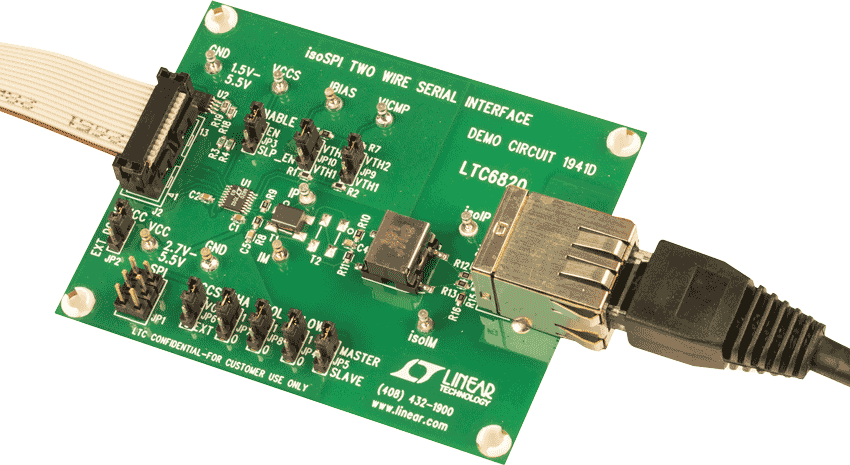

DC1941D

LTC6820 isoSPI Demoboard (DC590B required)

zoom

DC1941D

LTC6820 isoSPI Demoboard (DC590B required)

LTC6820 isoSPI Demoboard (DC590B required)

Product Detail

Demonstration circuit 1941 is an isoSPI™ transceiver board, based on Linear Technology’s LTC6820. The LTC6820 provides a method of interconnecting standard serial peripheral interface (SPI) devices using a single twisted pair connection. This proprietary 2-wire interface is called isoSPI. The LTC6820 encodes SPI signals, up to 1Mbps, into a differential isoSPI signal which is transmitted via a simple pulse transformer through a twisted pair. At the other end of the twisted pair, the isoSPI signal can be translated back to SPI (using another LTC6820).
