Features
  • Measures Accumulated Battery Charge and Discharge
  • 3.6V to 20V Operating Range for Multiple Cells
  • Integrated 50mΩ High Side Sense Resistor
  • ±1A Current Sense Range
  • 14-Bit ADC Measures Voltage, Current and Temperature
  • 1% Voltage, Current and Charge Accuracy
  • High Side Sense
  • General Purpose Measurements for Any Battery Chemistry and Capacity
  • I2C/SMBus Interface
  • Configurable Alert Output/Charge Complete Input
  • Quiescent Current Less Than 120μA
  • Small 8-Lead 3mm × 3mm DFN Package
Additional Details
show more Icon

The LTC2943-1 measures battery charge state, battery voltage, battery current and its own temperature in portable product applications. The wide input voltage range allows use with multicell batteries up to 20V. A precision coulomb counter integrates current through a sense resistor between the battery’s positive terminal and the load or charger. Voltage, current and temperature are measured with an internal 14-bit No Latency ΔΣ™ ADC. The measurements are stored in internal registers accessible via the onboard I2C/SMBus Interface.

The LTC2943-1 features programmable high and low thresholds for all four measured quantities. If a programmed threshold is exceeded, the device communicates an alert using either the SMBus alert protocol or by setting a flag in the internal status register.

Applications

  • Power Tools
  • Portable Medical Equipment
  • Video Cameras
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
Linduino LTC2943 - DC1812A Linduino.INO File Download 40.00KB Linduino LTC2943 Linduino.CPP Download 6.00KB Linduino LTC2943 Linduino Header File Download 13.00KB
Part Models 4
1ku List Price
price unavailable
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC2943-1

Documentation

4
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 12/14/2015
English

LTC2943-1: 1A Multicell Battery Gas Gauge with Temperature, Voltage and Current Measurement Data Sheet

Open PDF File

redirect
555.00K
download

Download PDF

PDF Vector

PDF

UPDATED 09/19/2016
Japanese

LTC2943-1: 温度、電圧、電流を測定する1Aマルチセル・バッテリ・ガスゲージ データシート

Open PDF File

redirect
1.00M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 12/08/2015
English
DC1812A - Demo Manual redirect icon

500.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/23/2018
English
R567 Reliability Data redirect icon

122.1 K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC2943CDD-1#PBF 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2943CDD-1#TRPBF 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2943IDD-1#PBF 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2943IDD-1#TRPBF 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 29, 2020

- 20_0067

Obsolescence of LTC2941-1, LTC2942-1 and LTC2943-1 products

LTC2943CDD-1#PBF

Obsolete

LTC2943CDD-1#TRPBF

Obsolete

LTC2943IDD-1#PBF

Obsolete

LTC2943IDD-1#TRPBF

Obsolete

pdf

PDN20_0067_Form

external-icon

xls

Material_Report

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 29, 2020

- 20_0067

arrow down

Obsolescence of LTC2941-1, LTC2942-1 and LTC2943-1 products

LTC2943CDD-1#PBF

Obsolete

LTC2943CDD-1#TRPBF

Obsolete

LTC2943IDD-1#PBF

Obsolete

LTC2943IDD-1#TRPBF

Obsolete

pdf

PDN20_0067_Form

external-icon

xls

Material_Report

Download

Software & Part Ecosystem

Parts Product Life Cycle Description

Battery Fuel Gauge and Coulomb Counter1
LTC2944
popup image
Cart

PRODUCTION

60V Battery Gas Gauge with Temperature, Voltage and Current Measurement

Parts Product Life Cycle Description
LTC2943
popup image
Cart

PRODUCTION

Multicell Battery Gas Gauge with Temperature, Voltage and Current Measurement

Evaluation Kits 1

reference details image

DC1812A-C

LTC2943-1 Demo Board | 20VIN, 1A Battery Gas Gauge w/ Internal RSENSE (requires DC2026)

zoom

DC1812A-C

LTC2943-1 Demo Board | 20VIN, 1A Battery Gas Gauge w/ Internal RSENSE (requires DC2026)

download icon

Download

 print icon

Print
DC1812A-C
LTC2943-1 Demo Board | 20VIN, 1A Battery Gas Gauge w/ Internal RSENSE (requires DC2026)
Buy Now View Details

Product Detail

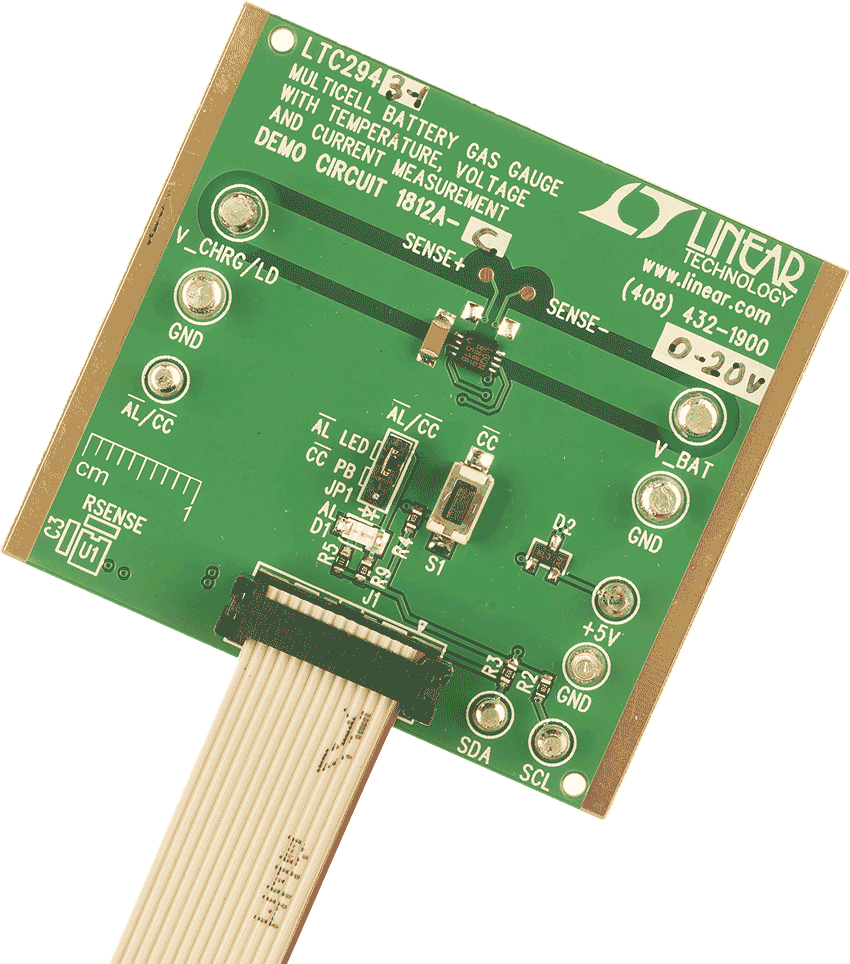

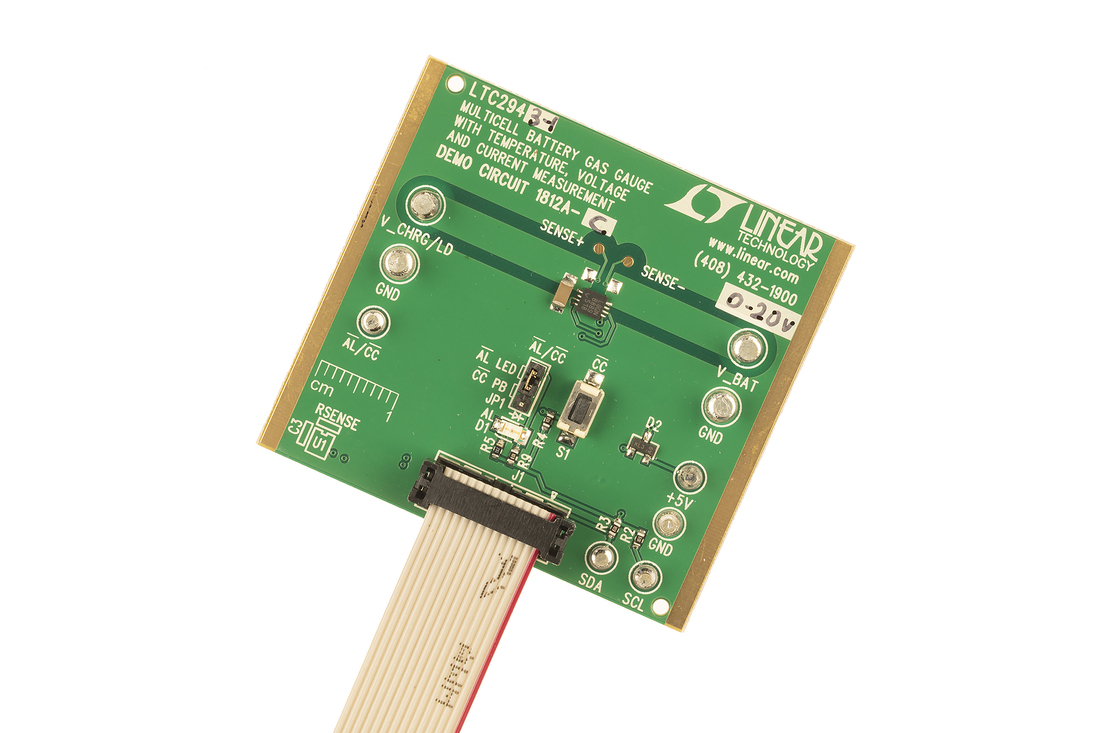

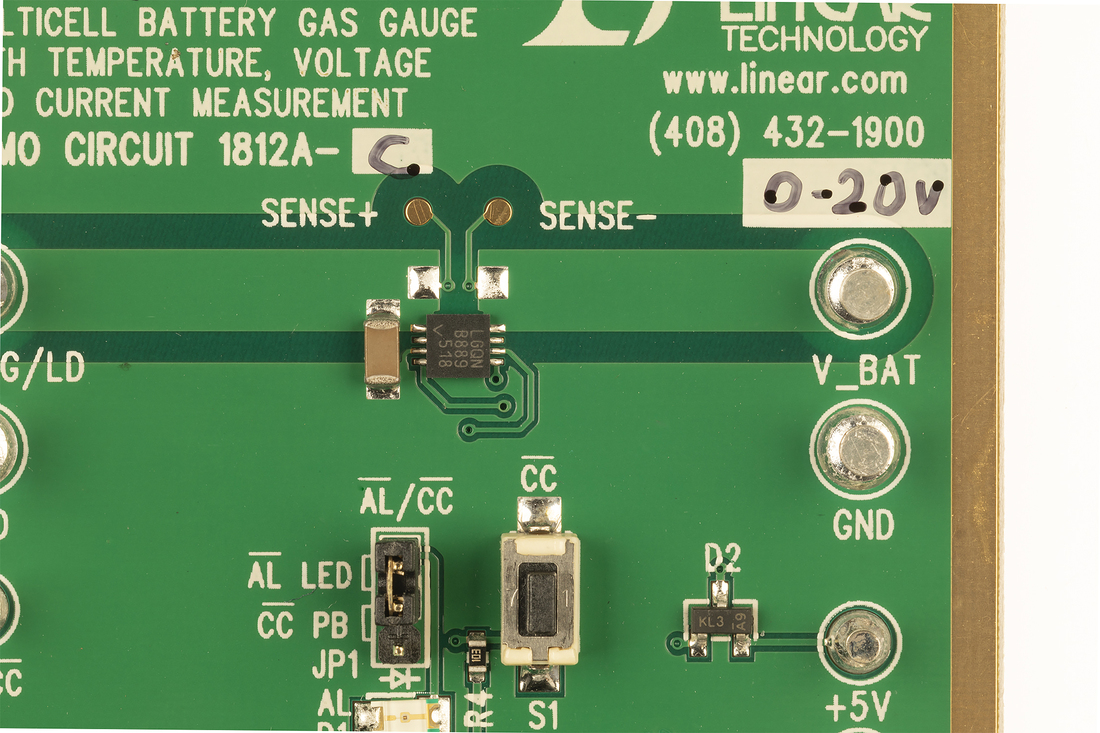

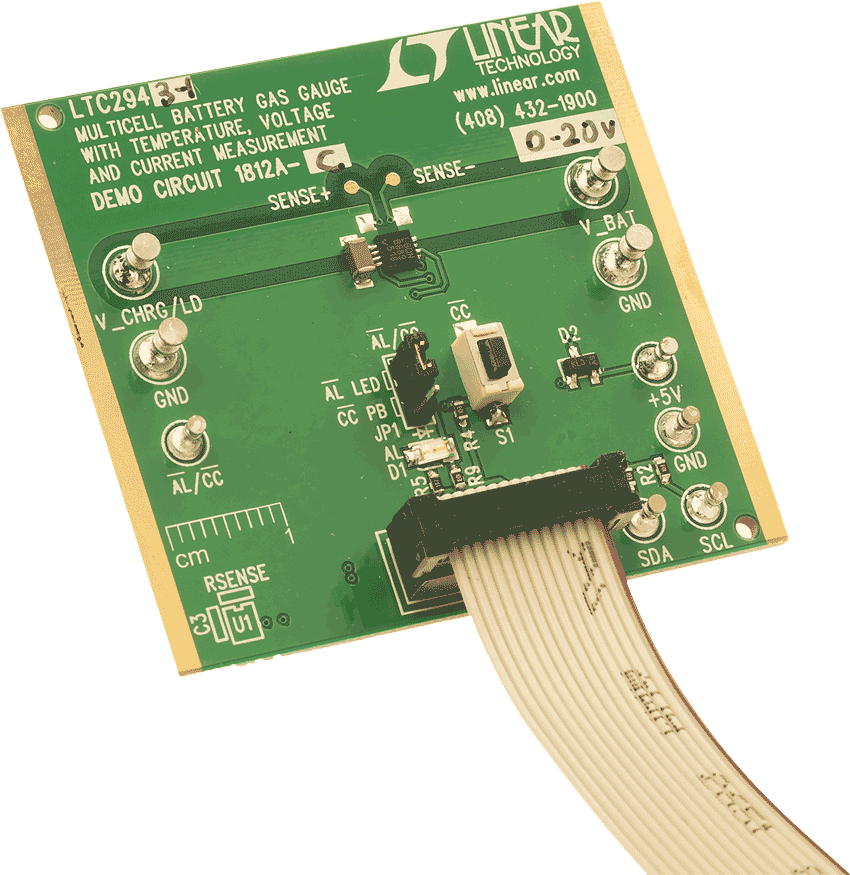

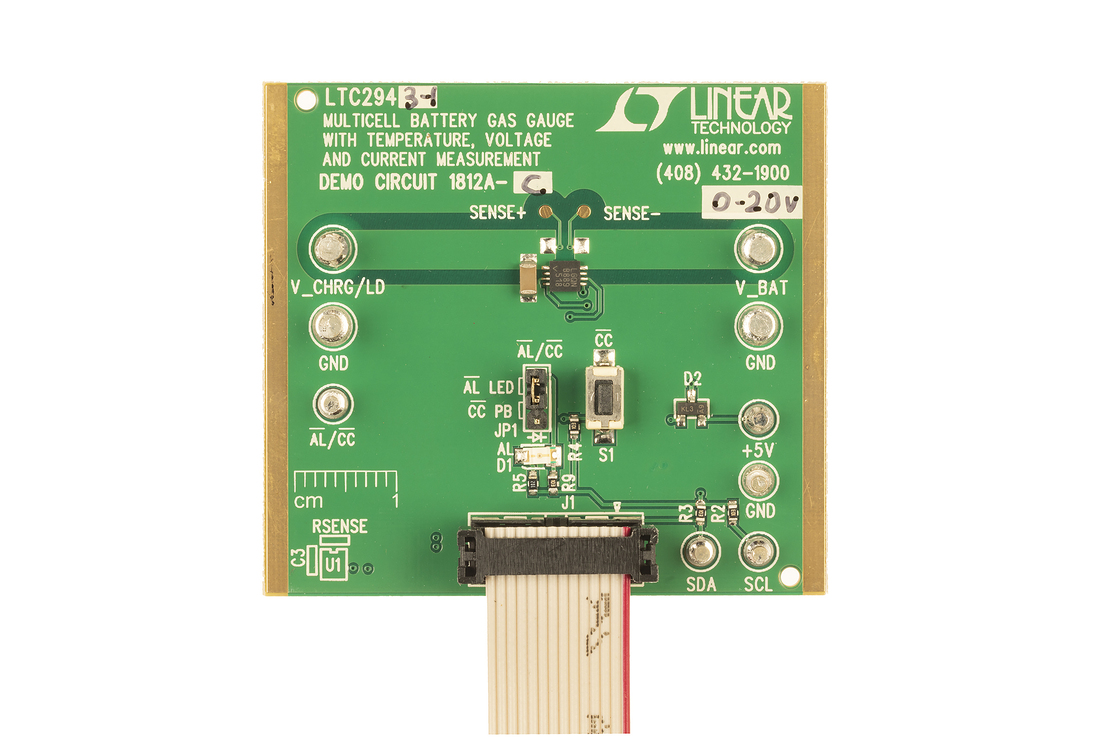

Demonstration circuit 1812A-C features the LTC2943-1. The LTC2943-1 has an operating range of 3.6V to 20V making it perfectly suited for multicell battery applications. A precision analog coulomb counter integrates current measured through the internal sense resistor. The LTC2943-1 measures voltage, current and temperature with an internal 14-bit No Latency ΔΣ™ ADC. The measurements are stored in internal registers accessible via the onboard SMBus/I2C interface.
