Overview

Features and Benefits

  • Indicates Accumulated Battery Charge and Discharge
  • SMBus/I2C Interface
  • Integrated 50mΩ High Side Sense Resistor
  • ±1A Sense Current Range
  • High Accuracy Analog Integration

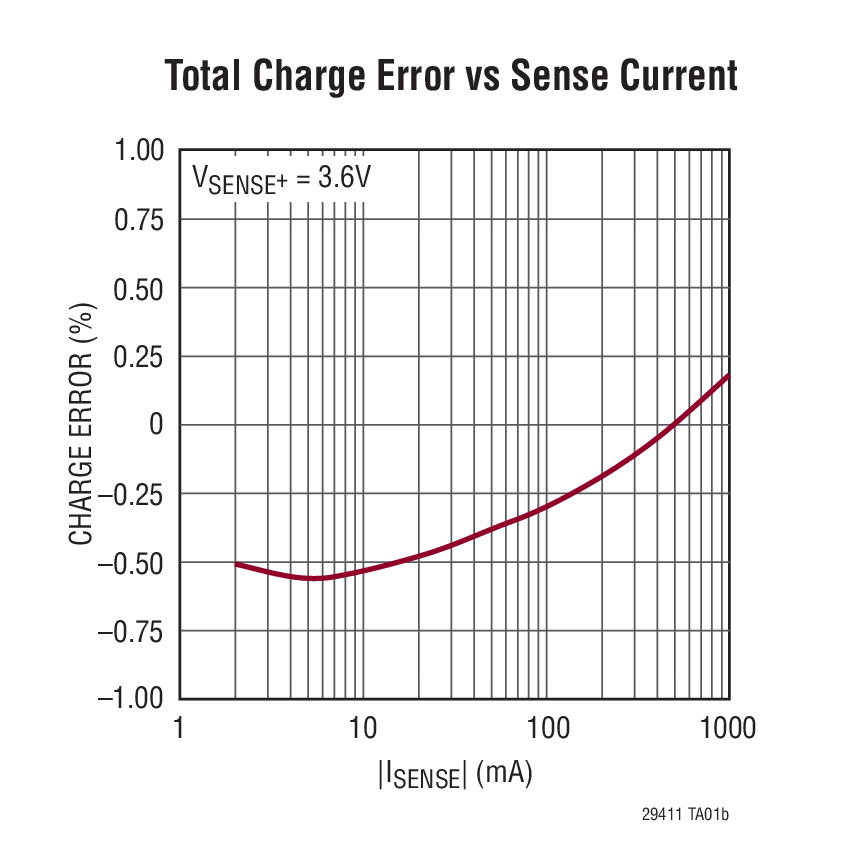

  • 1% Charge Accuracy
  • Configurable Alert Output/Charge Complete Input
  • 2.7V to 5.5V Operating Range
  • Quiescent Current Less than 100μA

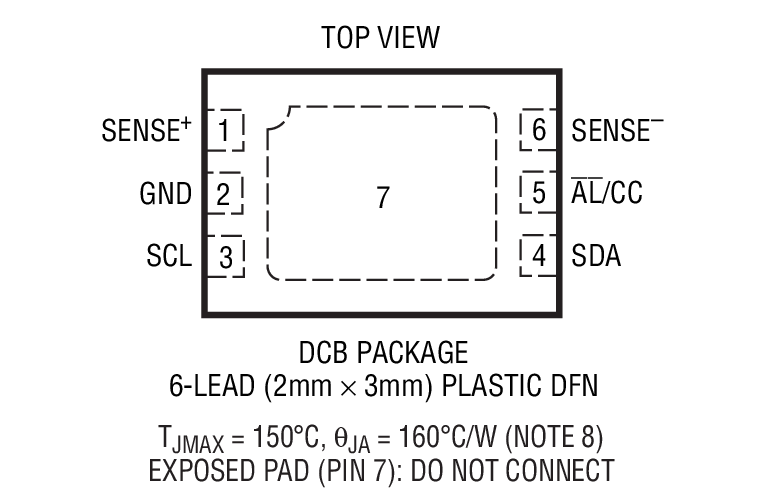

  • Small 6-Pin 2mm × 3mm DFN package

Product Details

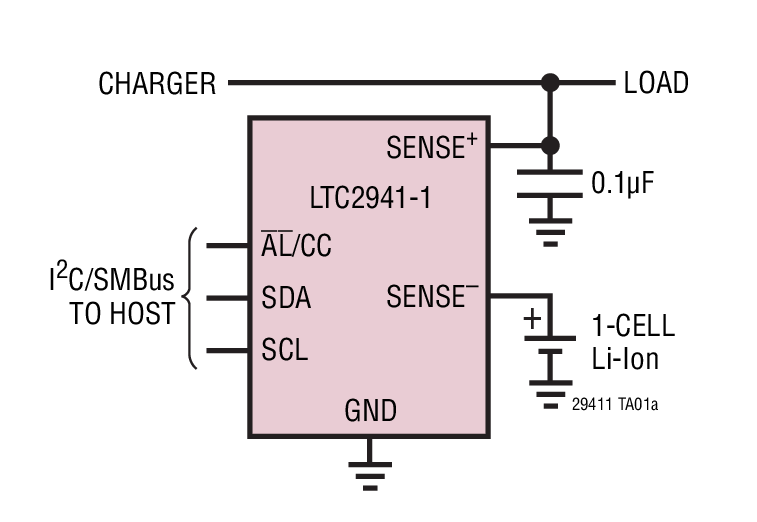

The LTC2941-1 measures battery charge state in battery-powered handheld PC and portable product applications. Its operating range is perfectly suited for single cell Li-Ion batteries. A precision coulomb counter integrates current through an internal sense resistor between the battery’s positive terminal and the load or charger. The measured charge is stored in internal registers. An SMBus/I2C interface accesses and configures the device.

The LTC2941-1 features programmable high and low thresholds for accumulated charge. If a threshold is exceeded, the device communicates an alert using either the SMBus alert protocol or by setting a flag in the internal status register.

Integrated Sense Resistor
LTC2941 No
LTC2941-1 Yes

Applications

  • Low Power Handheld Products
  • Cellular Phones
  • MP3 Player
  • Cameras
  • GPS

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

Evaluation Kits (1)

Tools & Simulations

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

LTspice

Models for the following parts are available in LTspice:

LTC2941
LTC2941-1

Linduino

Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits.

Linduino
