Overview

Features and Benefits

  • Flexible Power Supply Tracking and Sequencing
  • Adjustable Ramp Rates, Offsets and Time Delays
  • Controls Three Supplies with Series MOSFETs
  • Integrated Remote Sense Switching
  • FAULT Input/Output
  • STATUS Output/Power Good Input
  • Available in 20-Lead Narrow SSOP and 20-Lead QFN (4mm × 5mm) Packages

Product Details

The LTC2926 provides a simple solution for tracking and sequencing up to three power supply rails. An N-channel MOSFET and a few resistors per channel configure the load voltages to ramp up and down together, with voltage offsets, with time delays or with different ramp rates.

Automatic remote sense switching compensates for voltage drops across the MOSFETs. The LTC2926 provides two integrated switches as well as a signal to control optional additional external N-channel MOSFET sense switches.

The LTC2926 includes I/O signals for communication with other devices. The status output asserts after tracking and sequencing have completed. A low voltage on the power good input after an adjustable timeout period causes load disconnect. A low voltage on the fault I/O causes immediate load disconnect. Until it is reset, a fault latch prevents tracking and keeps the loads disconnected.

Applications

  • VCORE and VI/O Supply Tracking
  • Microprocessor, DSP and FPGA Supplies
  • Servers
  • Communications Systems



Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

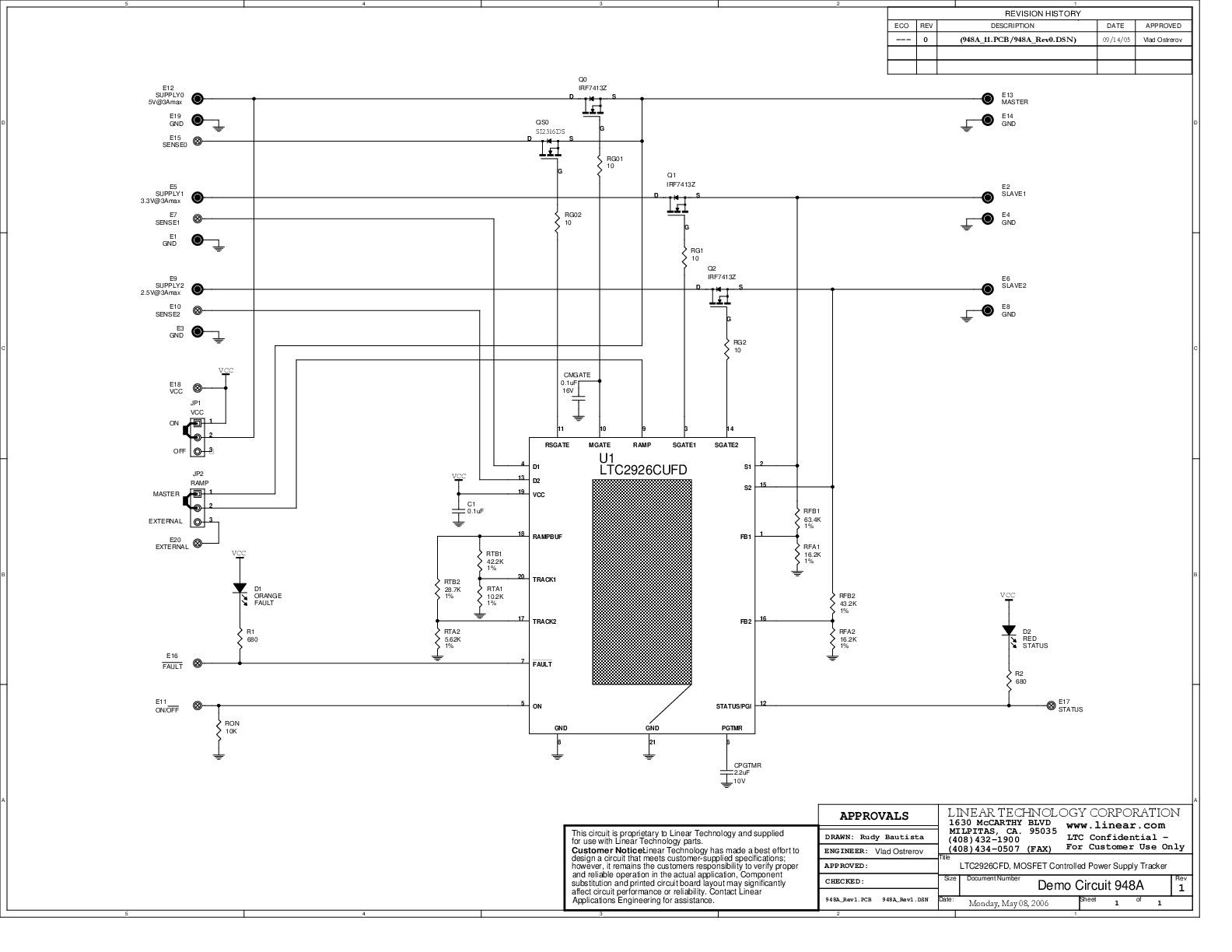

Evaluation Kits (1)

Documentation & Resources

  • View All (4)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Technical Articles (1)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    LTC2926

    Product Recommendations

    LTC2926 Companion Parts

    Recommended Related Parts

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LTC2926CGN#PBF Material Declaration Reliability Data 20-Lead SSOP (Narrow 0.15 Inch)
    LTC2926CGN#TRPBF Material Declaration Reliability Data 20-Lead SSOP (Narrow 0.15 Inch)
    LTC2926CUFD#PBF Material Declaration Reliability Data 20-Lead QFN (4mm x 5mm x 0.75mm w/ EP)
    LTC2926CUFD#TRPBF Material Declaration Reliability Data 20-Lead QFN (4mm x 5mm x 0.75mm w/ EP)
    LTC2926IGN#PBF Material Declaration Reliability Data 20-Lead SSOP (Narrow 0.15 Inch)
    LTC2926IGN#TRPBF Material Declaration Reliability Data 20-Lead SSOP (Narrow 0.15 Inch)
    LTC2926IUFD#PBF Material Declaration Reliability Data 20-Lead QFN (4mm x 5mm x 0.75mm w/ EP)
    LTC2926IUFD#TRPBF Material Declaration Reliability Data 20-Lead QFN (4mm x 5mm x 0.75mm w/ EP)
