Overview

Features and Benefits

  • Tracks Multiple Supplies with MOSFET Switches
  • Monitors 5 Input Voltages Including VCC
  • Guaranteed Threshold Accuracy: ±1% at 0.5V
  • Automatic Remote Sense Switching
  • Adjustable Supply Ramp Rate
  • Overvoltage Monitor
  • Adjustable Electronic Circuit Breaker
  • Adjustable Power-Good Delay
  • Available for VCC Supply Voltages of 5V, 3.3V and 2.5V
  • Available in 16-Pin Narrow SSOP (LTC2921 Series) and 20-Pin TSSOP (LTC2922 Series)

Product Details

The LTC2921 and LTC2922 monitor up to five supplies and force them to track on power-up in multiple supply systems. Using external N-channel pass transistors, the supplies can be ramped up at an adjustable rate. Automatic remote sense switching allows the DC/DC converters to compensate for series voltage drops in the wiring. An incorrect level on one or more of the supplies triggers disconnect of all supplies. Tight 1% accuracy and glitch immunity on the low 0.5V monitoring level ensure no false error disconnects.

The LTC2921 and LTC2922 each feature an adjustable electronic circuit breaker to protect the VCC supply against short circuits. Capacitance at the TIMER pin programs the delays in the monitoring sequence.

The LTC2921 includes three remote sense switches in a 16-pin narrow SSOP package, while the LTC2922 includes five remote sense switches in a 20-pin TSSOP package. Both parts are available for VCC supply voltages of 5V, 3.3V, and 2.5V.

Applications

  • Desktop Computers
  • Plug-In Cards
  • Telecom Infrastructure
  • Supply Sequencing
  • Instruments

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

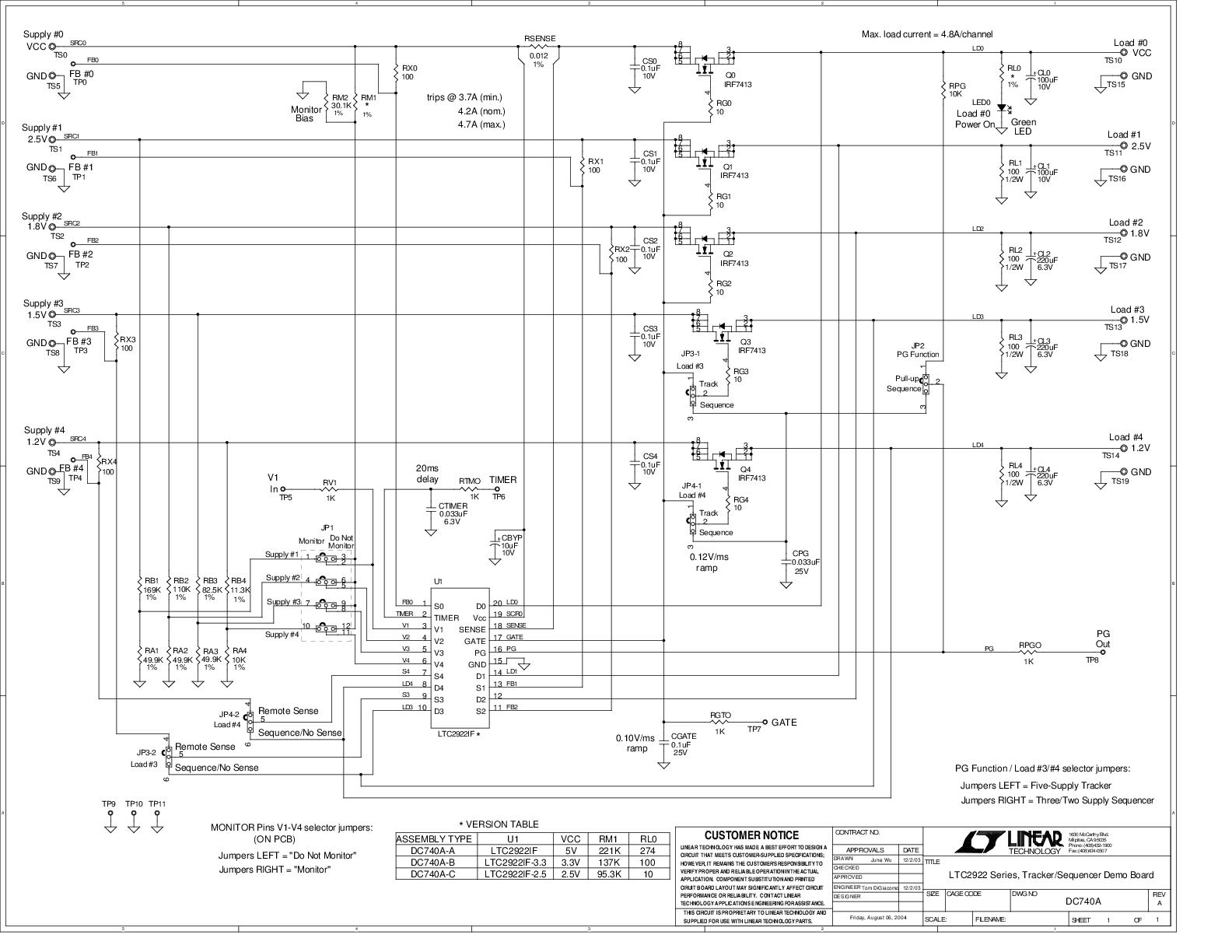

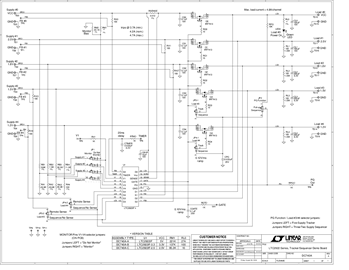

Evaluation Kits (3)

Documentation & Resources

  • View All (5)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Technical Articles (2)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    LTC2922
    LTC2922-2.5
    LTC2922-3.3
