LTC2910

Octal Positive/Negative Voltage Monitor

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC2910 - Supervisory Circuits Download 5.89 KB
Part Models 12
1ku List Price Starting From $3.84
Features
  • 8 Low Voltage Adjustable Inputs (0.5V)
  • Guaranteed Threshold Accuracy: ±1.5%
  • Input Glitch Rejection
  • Pin Selectable Input Polarity Allows Negative and OV Monitoring
  • Buffered 1V Reference Output
  • Adjustable Reset Timeout with Timeout Disable
  • 50µA Quiescent Current
  • Open Drain RST and RST Outputs
  • Guaranteed RST and RST for VCC ≥ 1V

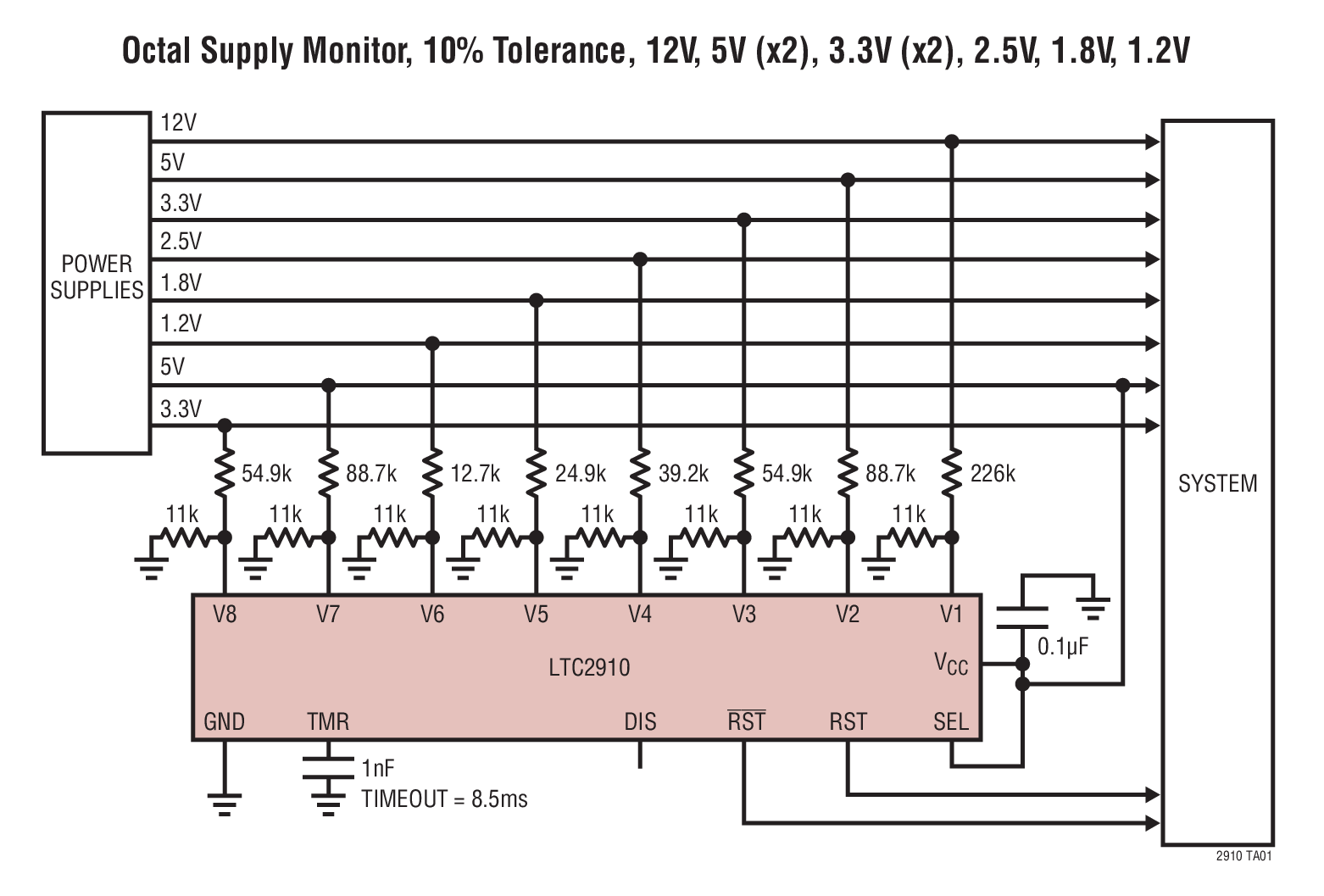

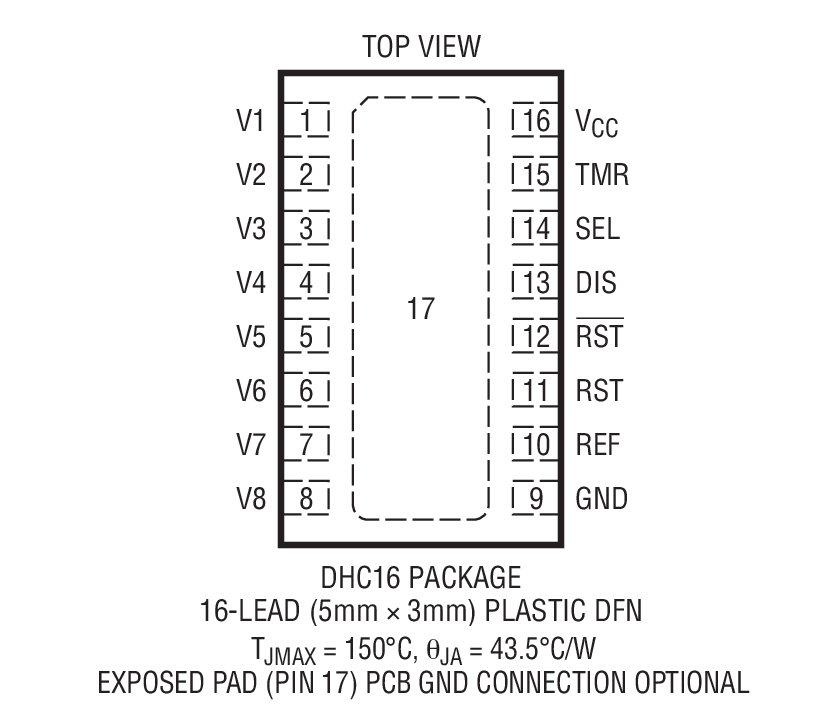

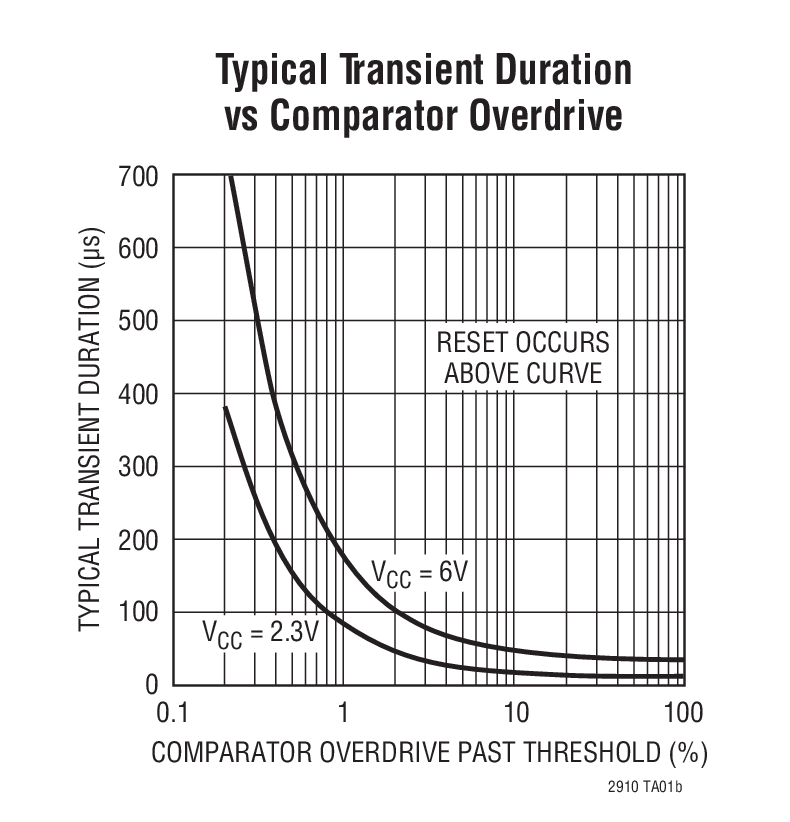

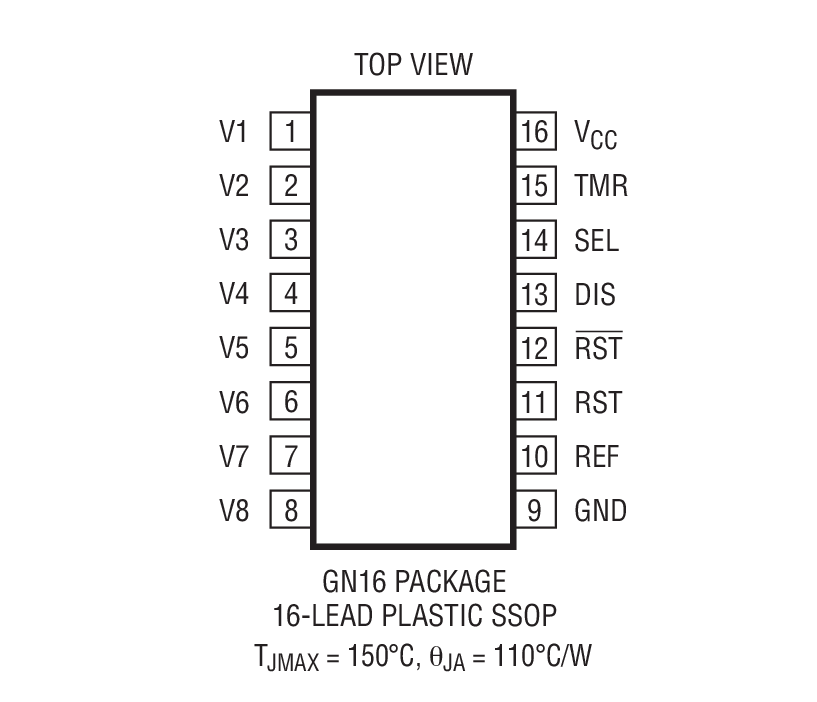

  • Available in 16-Lead SSOP and 16-Lead (5mm × 3mm) DFN Packages
Additional Details
show more Icon

The LTC2910 is an octal input voltage monitor intended for monitoring multiple voltages in a variety of applications. Each input has a nominal 0.5V threshold, featuring 1.5% tight threshold accuracy over the entire operating temperature range. Glitch filtering ensures reliable reset operation without false or noisy triggering.

Polarity selection and a buffered reference allow monitoring up to two separate negative voltages. A three state input pin allows setting the polarity of two inputs without requiring any external components.

The LTC2910 provides a precise, versatile, space-conscious, micropower solution for voltage monitoring.
