LTC2900
LTC2900
PRODUCTIONProgrammable Quad Supply Monitor with Adjustable Reset Timer
- Part Models
- 16
- 1ku List Price
- Starting From $3.14
Viewing:
Overview
- Simultaneously Monitors Four Supplies
- 16 User Selectable Combinations of 5V, 3.3V, 3V, 2.5V, 1.8V, 1.5V and/or ±Adjustable Voltage Thresholds
- Guaranteed Threshold Accuracy: ±1.5% of Monitored Voltage Over Temperature
- Low Supply Current: 43µA Typ
- Adjustable Reset Time

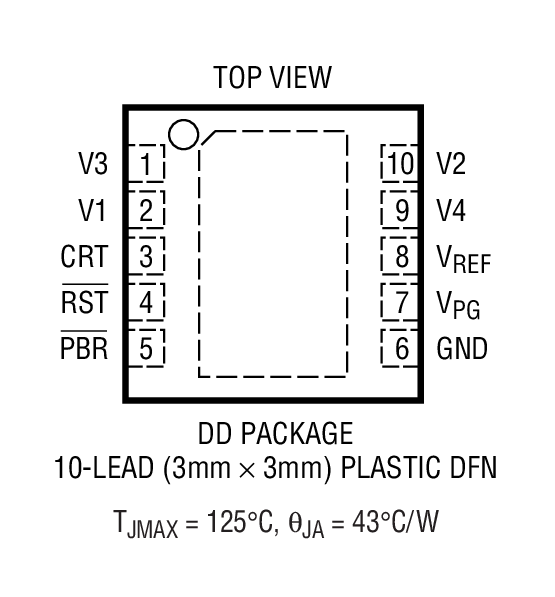

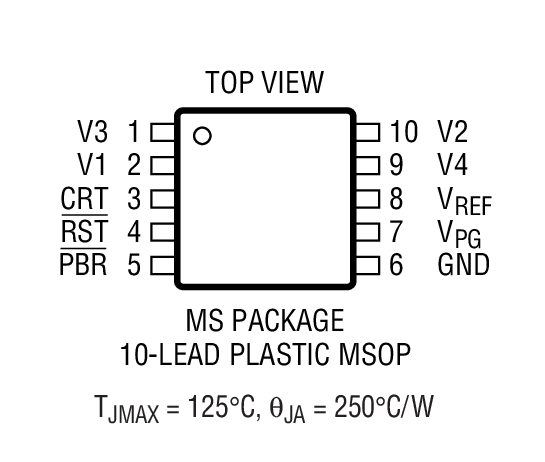

- Small MSOP and 3mm × 3mm DFN Packages
- Manual Reset Pin
- Open-Drain RST Output (LTC2900-1)
- Push-Pull RST Output (LTC2900-2)
- Power Supply Glitch Immunity
- Guaranteed RST for VCC ≥ 1V

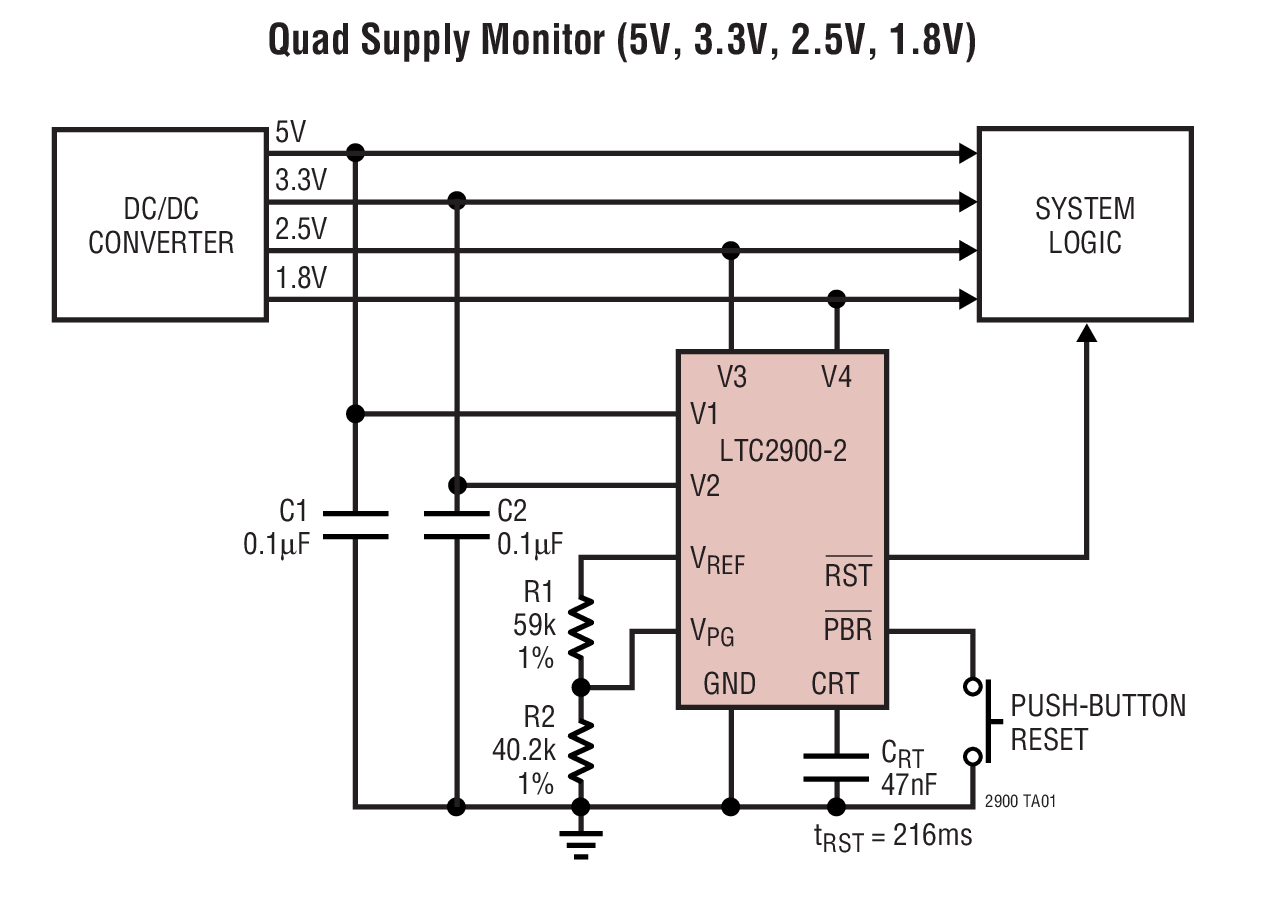

The LTC2900 is a programmable supply monitor for systems with up to four supply voltages. One of 16 preset or adjustable voltage monitor combinations can be selected using an external resistor divider connected to the program pin. The preset voltage thresholds are accurateto ±1.5% over temperature.
The reset delay time is adjustable using an external capacitor and the manual reset input may be used with a momentary switch to issue reset pulses with programmed duration. Tight voltage threshold accuracy and glitch immunity ensure reliable reset operation without false triggering. The RST output is guaranteed to be in the correct state for VCC down to 1V. The LTC2900-1 features an open-drain RST output, while the LTC2900-2 has a push-pull RST output.
The 43µA supply current makes the LTC2900 ideal for power conscious systems and it may be configured to monitor less than four inputs. The parts are available in the 10-lead MSOP and the 10-lead 3mm × 3mm DFN packages.
Applications
- Desktop and Notebook Computers
- Multivoltage Systems
- Telecom Equipment
- Portable Battery-Powered Equipment
- Network Servers
Documentation
Data Sheet 1
Technical Articles 1
Product Selector Card 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC2900-1CDD#PBF | 10-Lead DFN (3mm x 3mm w/ EP) | ||
| LTC2900-1CDD#TRPBF | 10-Lead DFN (3mm x 3mm w/ EP) | ||
| LTC2900-1CMS#PBF | 10-Lead MSOP | ||
| LTC2900-1CMS#TRPBF | 10-Lead MSOP | ||
| LTC2900-1IDD#PBF | 10-Lead DFN (3mm x 3mm w/ EP) | ||
| LTC2900-1IDD#TRPBF | 10-Lead DFN (3mm x 3mm w/ EP) | ||
| LTC2900-1IMS#PBF | 10-Lead MSOP | ||
| LTC2900-1IMS#TRPBF | 10-Lead MSOP | ||
| LTC2900-2CDD#PBF | 10-Lead DFN (3mm x 3mm w/ EP) | ||
| LTC2900-2CDD#TRPBF | 10-Lead DFN (3mm x 3mm w/ EP) | ||
| LTC2900-2CMS#PBF | 10-Lead MSOP | ||
| LTC2900-2CMS#TRPBF | 10-Lead MSOP | ||
| LTC2900-2IDD#PBF | 10-Lead DFN (3mm x 3mm w/ EP) | ||
| LTC2900-2IDD#TRPBF | 10-Lead DFN (3mm x 3mm w/ EP) | ||
| LTC2900-2IMS#PBF | 10-Lead MSOP | ||
| LTC2900-2IMS#TRPBF | 10-Lead MSOP |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Jun 5, 2024 - 24_0004 Epoxy Change from Henkel 8290 to 8290A for MSOP (3) |
||
| LTC2900-1CMS#PBF | PRODUCTION | |
| LTC2900-1CMS#TRPBF | PRODUCTION | |
| LTC2900-1IMS#PBF | PRODUCTION | |
| LTC2900-1IMS#TRPBF | PRODUCTION | |
| LTC2900-2CMS#PBF | PRODUCTION | |
| LTC2900-2CMS#TRPBF | PRODUCTION | |
| LTC2900-2IMS#PBF | PRODUCTION | |
| LTC2900-2IMS#TRPBF | PRODUCTION | |
|
Feb 4, 2020 - 20_0130 Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC |
||
| LTC2900-1CMS#PBF | PRODUCTION | |
| LTC2900-1CMS#TRPBF | PRODUCTION | |
| LTC2900-1IMS#PBF | PRODUCTION | |
| LTC2900-1IMS#TRPBF | PRODUCTION | |
| LTC2900-2CMS#PBF | PRODUCTION | |
| LTC2900-2CMS#TRPBF | PRODUCTION | |
| LTC2900-2IMS#PBF | PRODUCTION | |
| LTC2900-2IMS#TRPBF | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareHardware Ecosystem
| Parts | Product Life Cycle | Description |
|---|---|---|
| Power System Management (PSM) & Sequencers 1 | ||
| LTC2974 | RECOMMENDED FOR NEW DESIGNS | 4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement |
| Temperature Sensors 1 | ||
| LTC2991 | RECOMMENDED FOR NEW DESIGNS | Octal I2C Voltage, Current, and Temperature Monitor |
Tools & Simulations
LTspice
Models for the following parts are available in LTspice:
- LTC2900-1
- LTC2900-2
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
