Overview

Features and Benefits

  • Smallest Pin-Compatible Dual DACs:
    • LTC2602: 16-Bits
    • LTC2612: 14-Bits
    • LTC2622: 12-Bits
  • Guaranteed 16-Bit Monotonic Over Temperature
  • Wide 2.5V to 5.5V Supply Range
  • Low Power Operation: 300µA per DAC at 3V
  • Individual Channel Power-Down to 1µA, Max
  • Ultralow Crosstalk between DACs (30µV)
  • High Rail-to-Rail Output Drive (±15mA)
  • Double-Buffered Data Latches
  • Pin-Compatible 10-Bit Version (LTC1661)
  • Tiny 8-Lead MSOP Package

Product Details

The LTC2602/LTC2612/LTC2622 are dual 16-,14- and 12-bit, 2.5V-to-5.5V rail-to-rail voltage-output DACs, in a tiny 8-lead MSOP package. They have built-in high performance output buffers and are guaranteed monotonic.

These parts establish advanced performance standards for output drive, crosstalk and load regulation in single-supply, voltage output multiples.

The parts use a simple SPI/MICROWIRE™ compatible 3-wire serial interface which can be operated at clock rates up to 50MHz.

The LTC2602/LTC2612/LTC2622 incorporate a power-on reset circuit. During power-up, the voltage outputs rise less than 10mV above zero scale, and after power-up, they stay at zero scale until a valid write and update take place.

Applications

  • Mobile Communications
  • Process Control and Industrial Automation
  • Instrumentation
  • Automatic Test Equipment

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

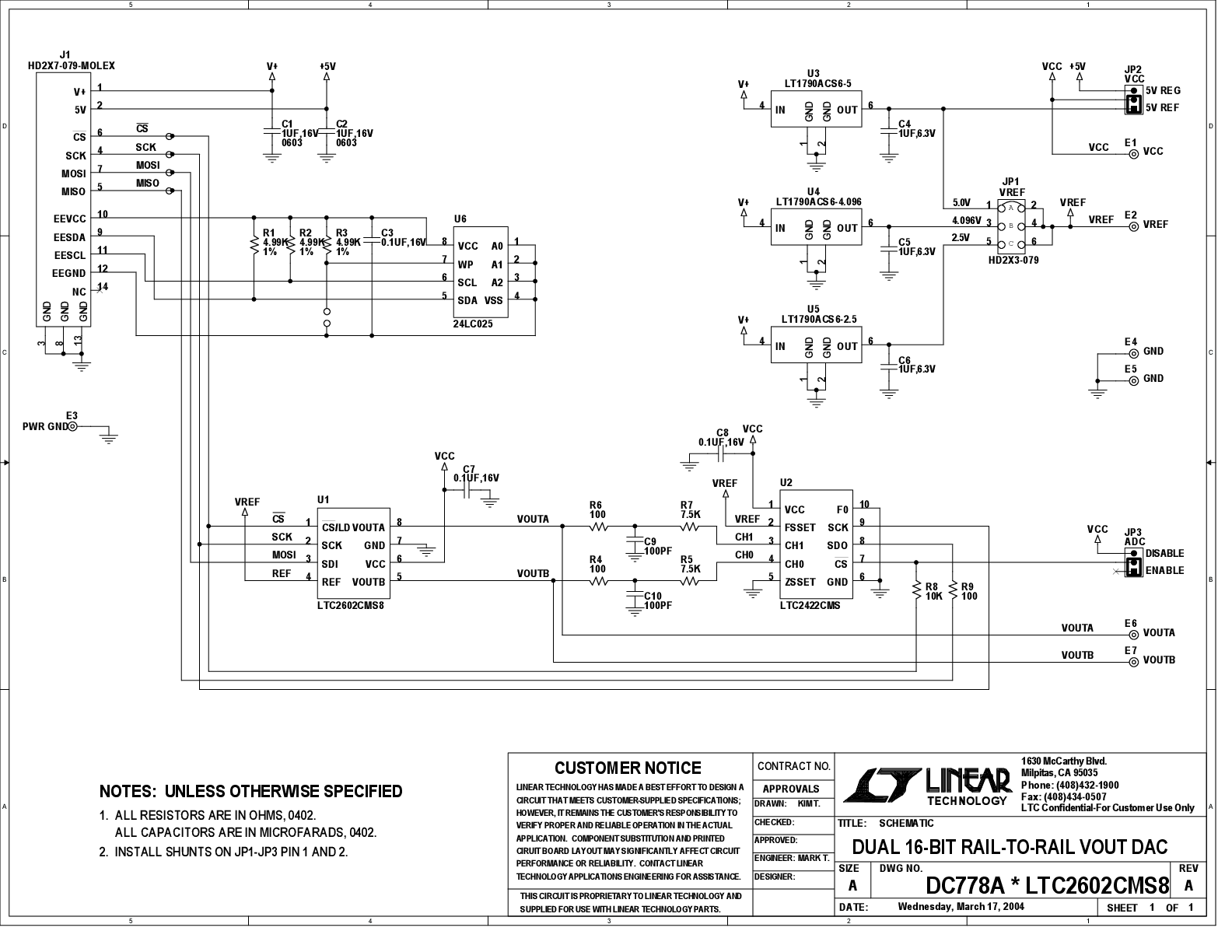

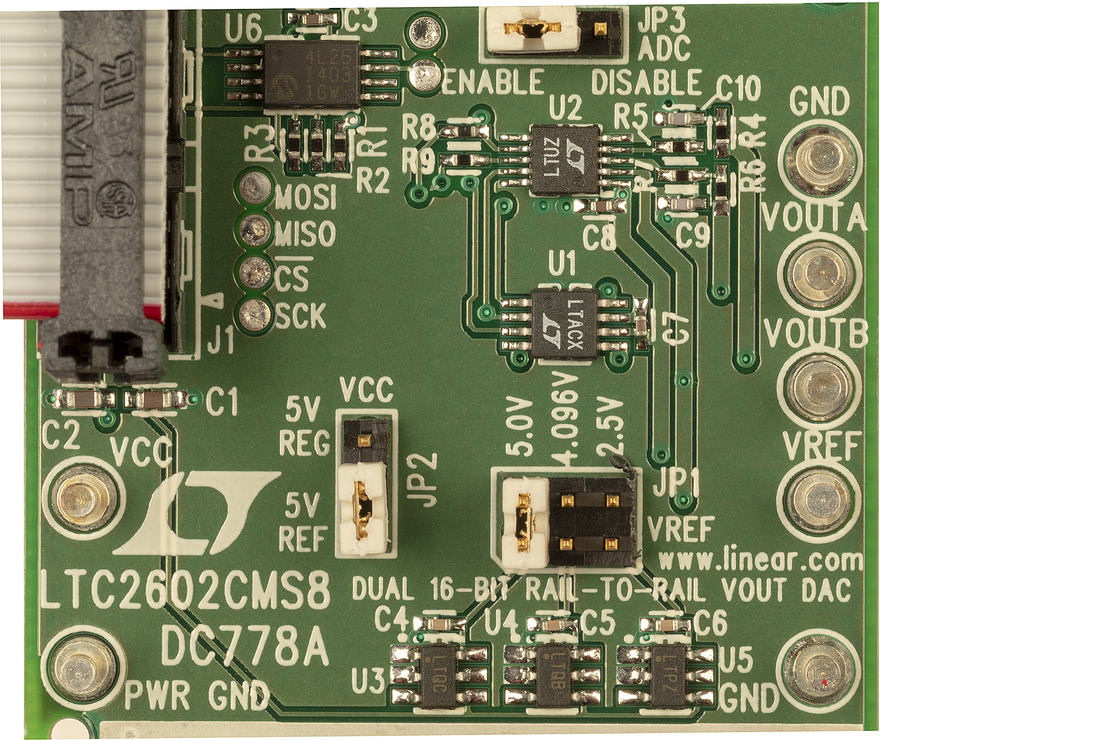

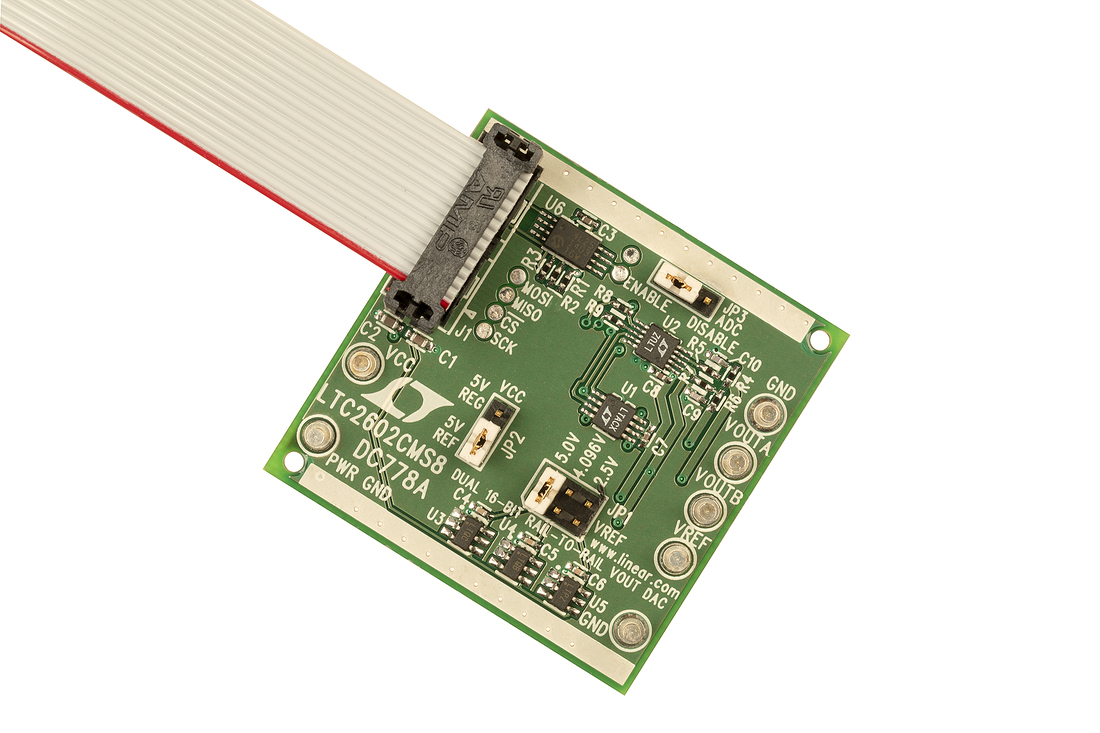

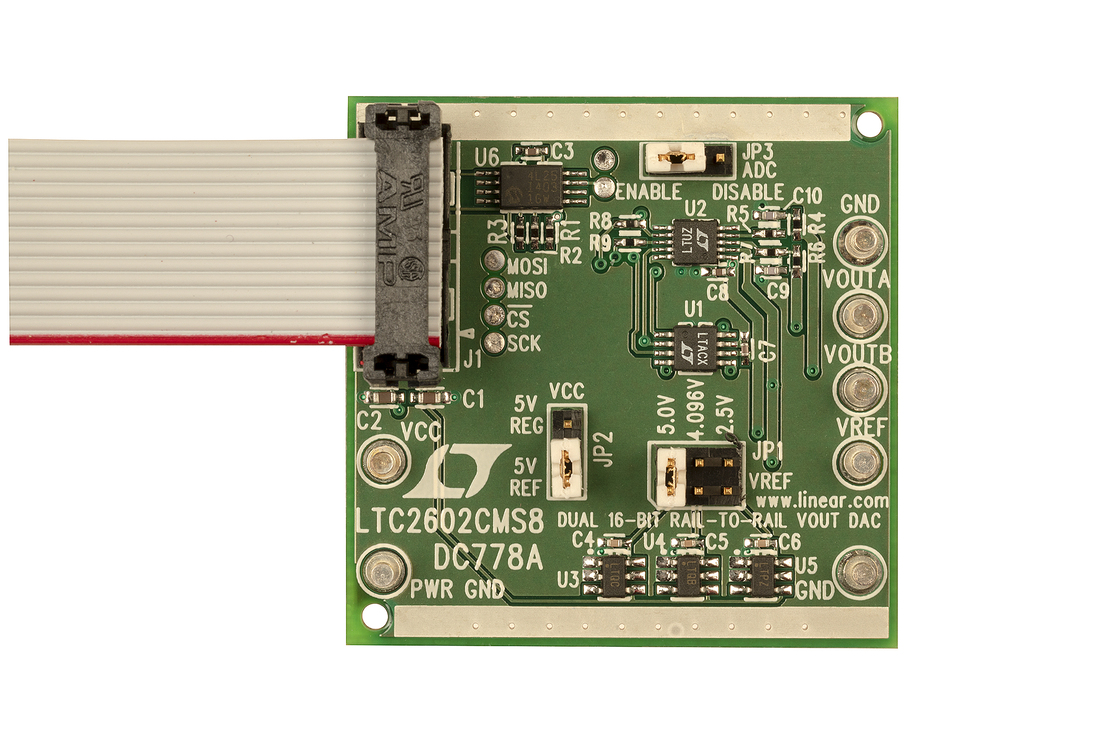

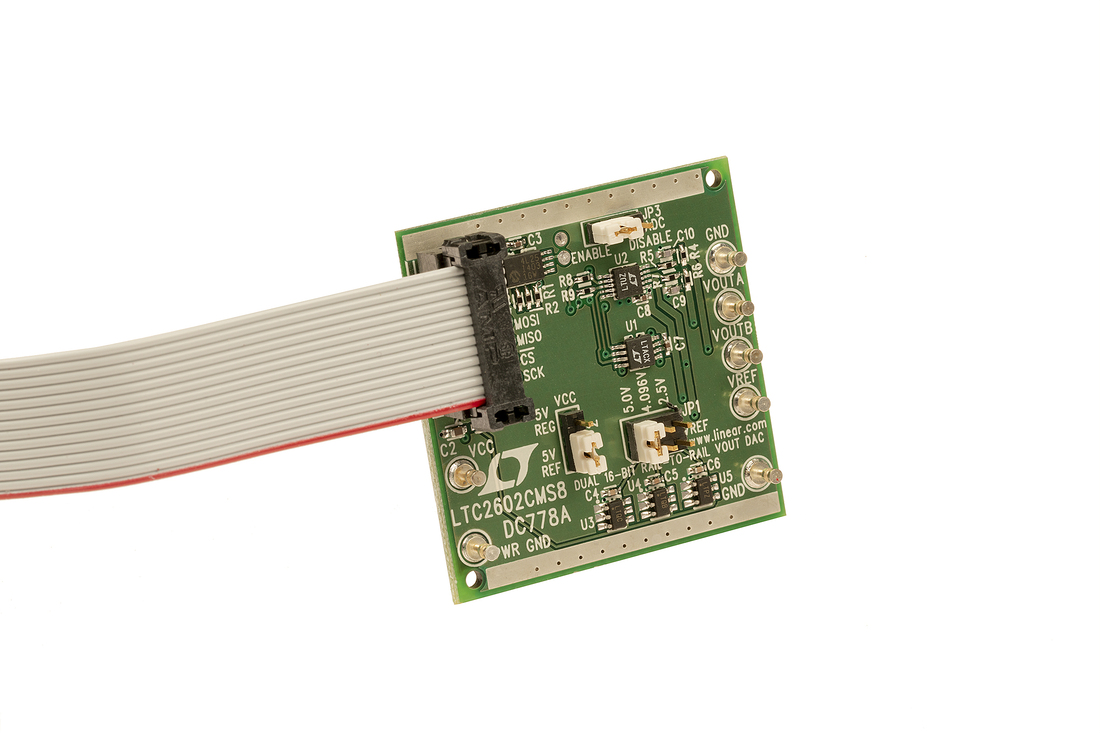

Evaluation Kits (1)

Documentation & Resources

  • View All (6)
  • Data Sheet (1)
  • Reliability Data (1)
  • User Guide (1)
  • Product Selector Card (3)
    • Document Type

    Tools & Simulations

    Precision DAC Error Budget Tool

    The Precision DAC Error Budget Tool is a web application that calculates the DC Accuracy of precision DAC signal chains. It shows how the static errors accumulate throughout your signal chain to quickly evaluate the design tradeoffs. Calculations include the DC errors introduced by Voltage References, Operation Amplifiers and Precision DACs.
