LTC1877

PRODUCTION

High Efficiency Monolithic Synchronous Step-Down Regulator

Part Models: 4
1ku List Price: Starting From $3.64

Viewing:

Overview

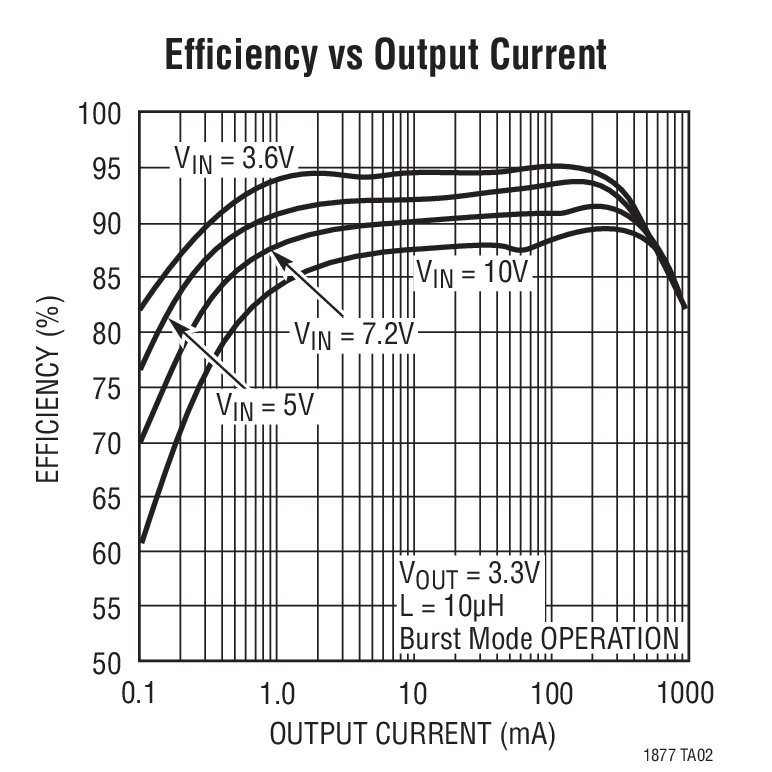

High Efficiency: Up to 95%
Very Low Quiescent Current: Only 10μA During Operation
600mA Output Current at V_IN = 5V
2.65V to 10V Input Voltage Range
550kHz Constant-Frequency Operation
No Schottky Diode Required
Low Dropout Operation: 100% Duty Cycle
Synchronizable from 400kHz to 700kHz
Selectable Burst Mode^® Operation or Pulse-Skipping Mode
0.8V Reference Allows Low Output Voltages
Shutdown Mode Draws < 1μA Supply Current
±2% Output Voltage Accuracy
Current Mode Control for Excellent Line and Load Transient Response
Overcurrent and Overtemperature Protected

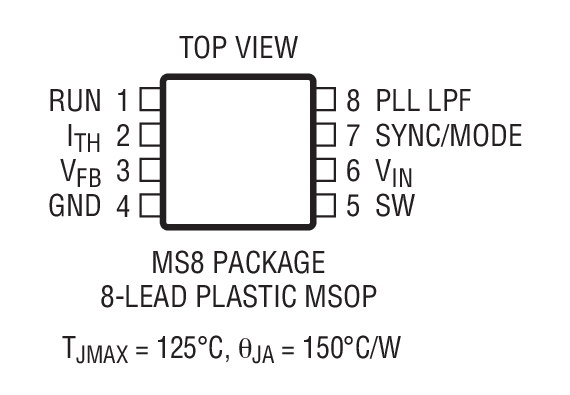

Available in 8-Lead MSOP Package

The LTC1877 s a high efficiency monolithic synchronous buck regulator using a constant-frequency, current mode architecture. Supply current during operation is only 10μA and drops to < 1μA in shutdown. The 2.65V to 10V input voltage range makes the LTC1877 ideally suited for both single and dual Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems.

Switching frequency is internally set at 550kHz, allowing the use of small surface mount inductors and capacitors. For noise sensitive applications the LTC1877 can be externally synchronized from 400kHz to 700kHz. Burst Mode operation is inhibited during synchronization or when the SYNC/MODE pin is pulled low, preventing low frequency ripple from interfering with audio circuitry.

The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. Low output voltages are easily supported with the 0.8V feedback reference voltage. The LTC1877 is available in a space saving 8-lead MSOP package. Lower input voltage applications (less than 7V abs max) should refer to the LTC1878 data sheet.

Applications

Cellular Telephones
Wireless Modems
Personal Information Appliances
Portable Instruments
Distributed Power Systems
Battery-Powered Equipment

Part Models: 4
1ku List Price: Starting From $3.64

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC1877EMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1877EMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1877IMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1877IMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jan 29, 2023 - 22_0244 Epoxy Change from Henkel 8290 to 8290A for MSOP Package
		PCN22_0244_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC1877EMS8#PBF	PRODUCTION
LTC1877EMS8#TRPBF	PRODUCTION
Feb 3, 2020 - 20_0128 Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0128_Form Material_Report
LTC1877EMS8#PBF	PRODUCTION
LTC1877EMS8#TRPBF	PRODUCTION
LTC1877IMS8#PBF	PRODUCTION
LTC1877IMS8#TRPBF	PRODUCTION
Jun 5, 2024 - 24_0004 Epoxy Change from Henkel 8290 to 8290A for MSOP (3)
		PCN24_0004_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC1877IMS8#PBF	PRODUCTION
LTC1877IMS8#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Circuit Monitors 1
LTC2960	RECOMMENDED FOR NEW DESIGNS	36V Nano-Current Two-Input Voltage Monitor
Oscillators 2
LTC6908		Resistor Set SOT-23 Oscillator with Spread Spectrum Modulation
LTC6909	PRODUCTION	1 to 8 Output, Multiphase Silicon Oscillator with Spread Spectrum Modulation
Power System Management (PSM) & Sequencers 1
LTC2974	RECOMMENDED FOR NEW DESIGNS	4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

LTC1877

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

LTC1877EMS8 Demo Board | 2.65V to 10V Input, 1.5V to 3.3VOUT @ 600mA

Buy Now View Details

Product Details

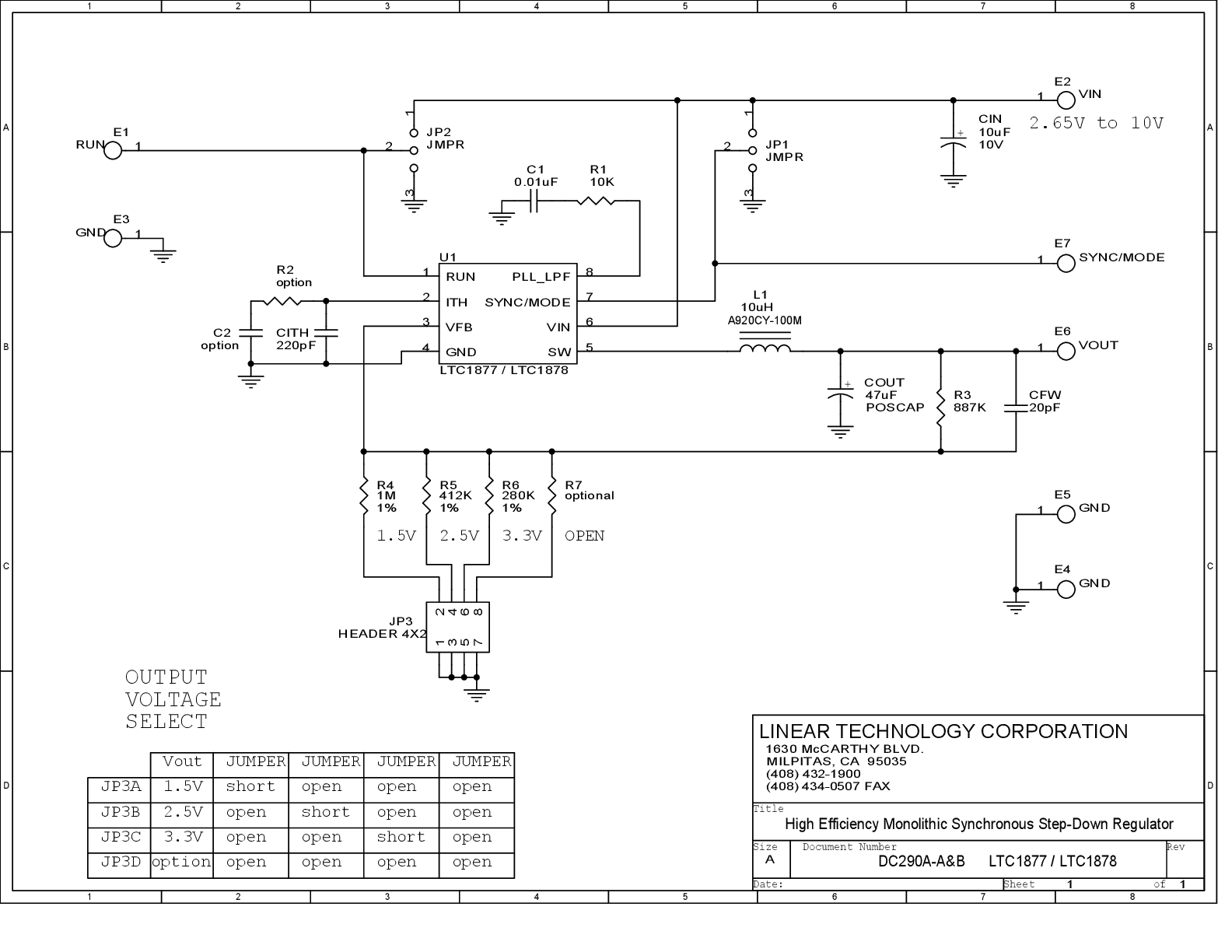

Demonstration circuit DC290 is a constant-frequency step-down converter using an LTC1877 or an LTC1878 monolithic synchronous regulator. The LTC1878 has an input voltage range of 2.65V < V_IN < 6V and the LTC1877 has an input voltage range of 2.65V < V_IN < 10V. The LTC1878 is optimized for low voltage operation and is ideally suited for single Li-Ion cell or 3-NiCd/NiMH cell applications. The LTC1877, with its higher voltage capability, is ideally suited for two Li-Ion cells or 4- to 6-NiCd/NiMH cell applications.
