    Precision 300MHz to 7GHz RF Detector with Gain and Offset Adjustment


Features and Benefits

  • Dual Band RF Power Amplifier Control (LTC1758-2)
  • Internal Schottky Diode Detector with Improved Dynamic Range vs LTC1757A
  • Wide Input Frequency Range: 850MHz to 2GHz
  • Autozero Loop Cancels Offset Errors and Temperature Dependent Offsets
  • Wide VIN Range: 2.7V to 6V Allows Direct Connection to Battery
  • RF Output Power Set by External DAC
  • 250kHz Control Loop Bandwidth
  • Fast Acquire After Transmit Enable
  • Internal Frequency Compensation
  • Rail-to-Rail Power Control Outputs
  • Power Control Signal Overvoltage Protection
  • Low Operating Current: 1mA
  • Very Low Shutdown Current: <1µA

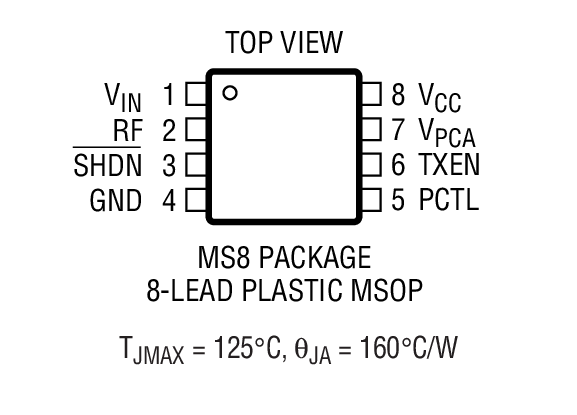

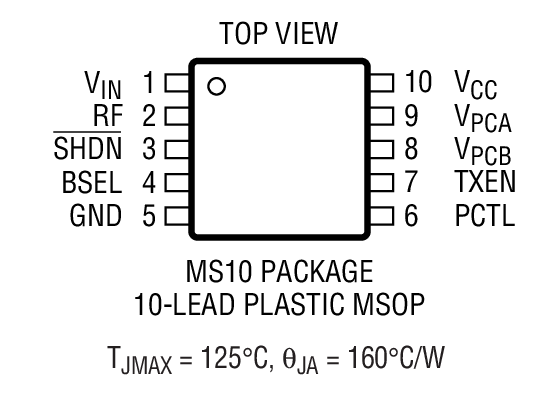

  • Available in 8-PIn MSOP (LTC1758-1) and 10-Pin MSOP (LTC 1758-2) Packages
  • Improved Start Voltage Accuracy
  • Improved PCTL Input Filtering
  • Pin Compatible with LTC1757A-X

Product Details

The LTC1758-2 is a dual band RF power controller for RF power amplifiers operating in the 850MHz to 2GHz range. The loop bandwidth reduction to 250kHz improves frequency stability when controlling slow turn-on PAs such as the Philips BGY280, Conexant RM009/CX77302, Anadigics AWT6102/AWT6107 and the Hitachi PF08107/PF08123B.

The LTC1758-1 is a single output RF power controller that is identical in performance to the LTC1758-2 except that one output (VPCA) is provided. The LTC1758-1 can be used to drive a single RF or dual channel module with integral multiplexer. This part is available in an 8-pin MSOP package.

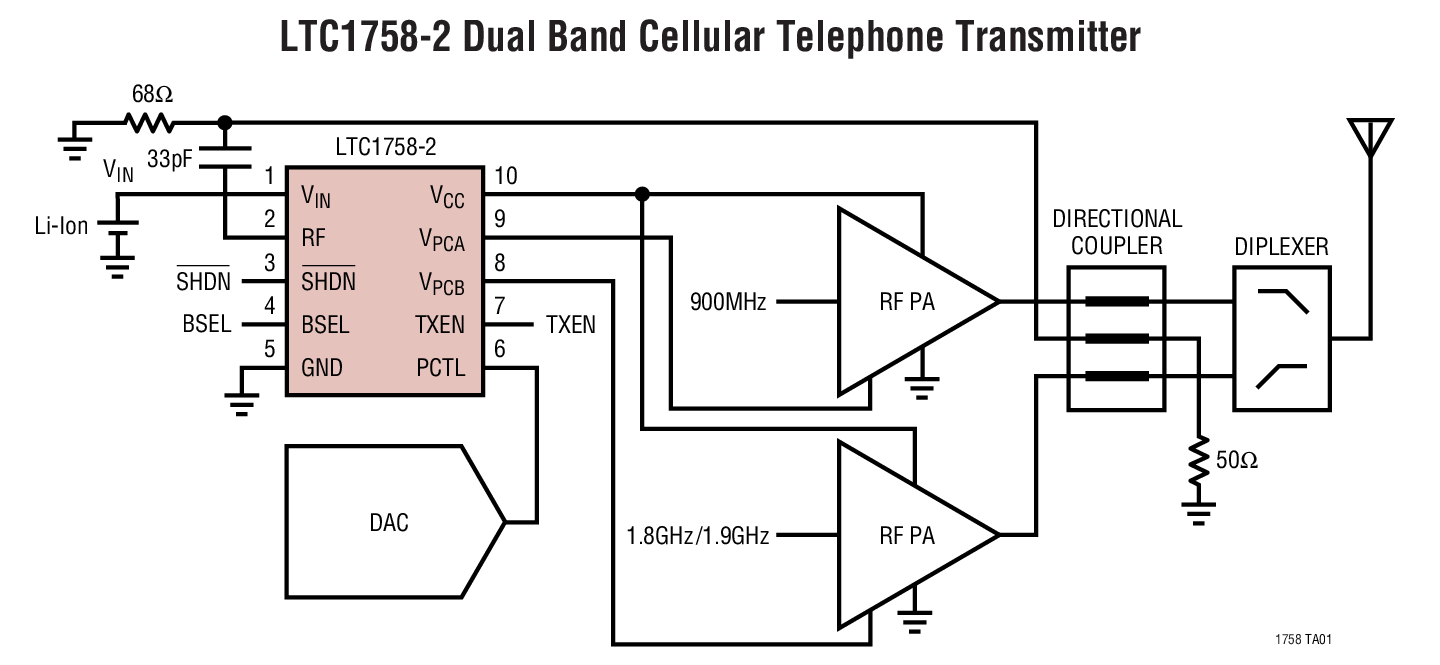

RF power is controlled by driving the RF amplifier power control pins and sensing the resultant RF output power via a directional coupler. The RF sense voltage is peak detected using an on-chip Schottky diode. This detected voltage is compared to the DAC voltage at the PCTL pin to control the output power. The RF power amplifier is protected against high supply current and high power control pin voltages.

Internal and external offsets are cancelled over temperature by an autozero control loop, allowing accurate low power programming. The shutdown feature disables the part and reduces the supply current to <1µA.


  • Single and Dual Band GSM/GPRS Cellular Telephones
  • PCS Devices
  • Wireless Data Modems
  • U.S. TDMA Cellular Phones

Product Lifecycle icon-recommended Last Time Buy

All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.
