LTC1734: Lithium-Ion Linear Battery Charger in ThinSOT Data Sheet9/17/2015209K
Features and Benefits
- Low Profile (1mm) ThinSOT™
- No Blocking Diode Required
- No Sense Resistor Required
- 1% Accurate Preset Voltages: 4.1V or 4.2V
- Charge Current Monitor Output
for Charge Termination
- Programmable Charge Current: 200mA to 700mA
- Automatic Sleep Mode with Input Supply Removal
- Manual Shutdown
- Negligible Battery Drain Current in Shutdown
- Undervoltage Lockout
- Self Protection for Overcurrent/Overtemperature
The LTC1734 is a low cost, single cell, constant-current/constant-voltage Li-Ion battery charger controller. When combined with a few external components, the SOT-23 package forms a very small, low cost charger for single cell lithium-ion batteries.
The LTC1734 is available in 4.1V and 4.2V versions with 1% accuracy. Constant current is programmed using a single external resistor between the PROG pin and ground. Manual shutdown is accomplished by floating the program resistor while removing input power automatically puts the LT1734 into sleep mode. Both the shutdown and sleep modes drain near zero current from battery.

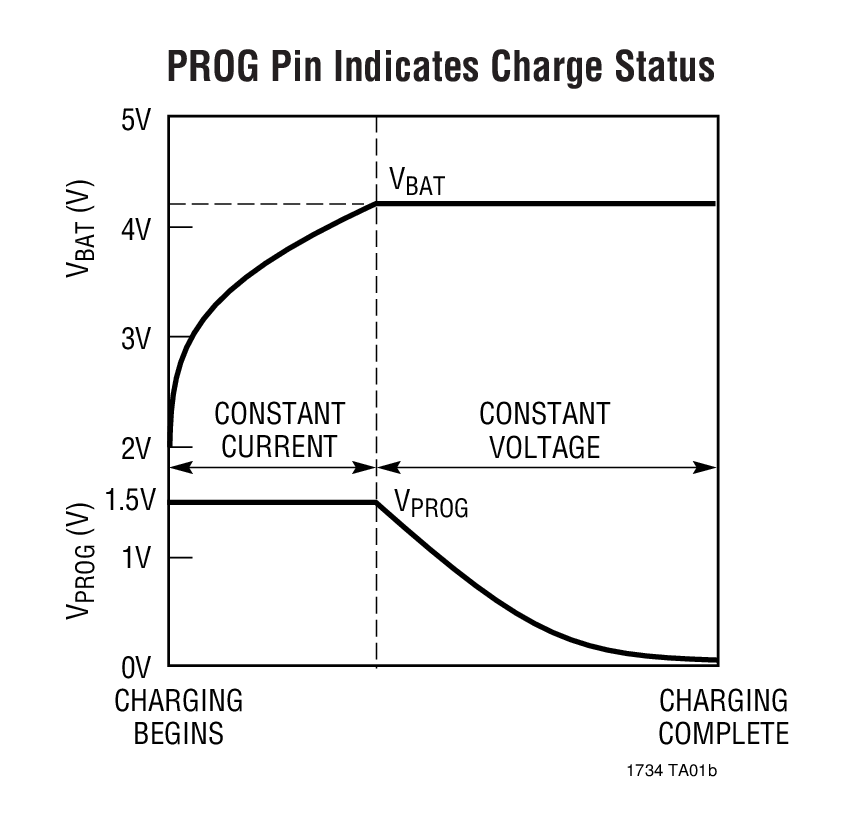

Charge current can be monitored via the voltage on the PROG pin allowing a microcontroller or ADC to read the current and determine when to terminate the charge cycle. The output driver is both current limited and thermally protected to prevent the LTC1734 from operating outside of safe limits. No external blocking diode is required.
The LTC1734 can also function as a general purpose current source or as a current source for charging nickel-cadmium (NiCd) and nickel-metal-hydride (NiMH) batteries using external termination.
|LTC1734||180mA to 700mA||4.1V or 4.2V|
|LTC1734L||50mA to 180mA||4.2V|
- Cellular Telephones
- Handheld Computers
- Digital Cameras
- Charging Docks and Cradles
- Low Cost and Small Size Chargers
- Programmable Current Source
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (2)
DC370A-B: Demo Board for the LTC1734 Lithium-Ion Linear Battery Charger in ThinSOT.
DC370A-A: Demo Board for the LTC1734 Lithium-Ion Linear Battery Charger in ThinSOT.
Documentation & Resources
R402 Reliability Data3/27/2018111 K
DC370A - Demo Manual9/24/2009182K
Very Low Cost Li-Ion Battery Charger Requires Little Area and Few Components2/1/2001 LT Journal
Tools & Simulations
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Models for the following parts are available in LTspice:
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|

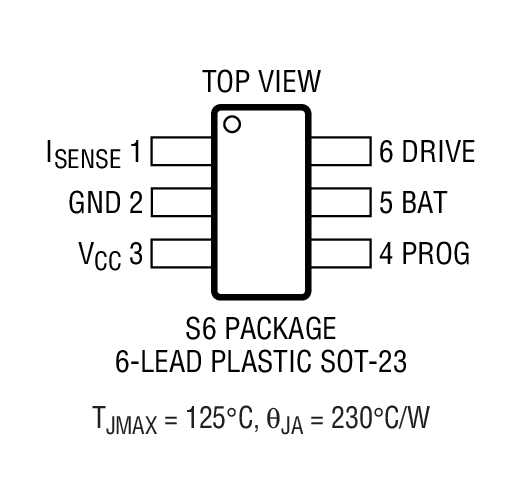

|LTC1734ES6-4.1#TRMPBF||Material Declaration||Reliability Data||6-Lead TSOT-23|
