Features and Benefits
- Tiny: 4 DACs in the Board Space of an SO-8
- Micropower: 59µA per DAC Plus 1µA Sleep Mode for Extended Battery Life
- Wide 2.7V to 5.5V Supply Range
- Rail-to-Rail Voltage Outputs Drive 1000pF
- Reference Range Includes Supply for Ratiometric 0V to VCC Output
- Reference Input Impedance is Code-Independent —Eliminates External Reference Buffer
- Individually Addressable DACs
- Differential Nonlinearity: ≤ ±0.75LSB Max
- Pin-Compatible Octal Version Available (LTC1660)
The LTC1664 integrates four accurate, serially addressable 10-bit digital-to-analog converters (DACs) in a tiny 16-pin Narrow SSOP package. Each buffered DAC draws just 59µA total supply current, yet is capable of supplying DC output currents in excess of 5mA and reliably driving capacitive loads of up to 1000pF. Sleep mode further reduces total supply current to 1µA.
Proprietary, inherently monotonic voltage interpolation architecture provides excellent linearity while allowing for an exceptionally small external form factor.
Ultralow supply current, power-saving Sleep mode and extremely compact size make the LTC1664 ideal for battery-powered applications, while its ease of use, high performance and wide supply range make it an excellent choice as a general-purpose converter.
- Mobile Communications
- Remote Industrial Devices
- Automatic Calibration for Manufacturing
- Portable Battery-Powered Instruments
- Trim/Adjust Applications
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)

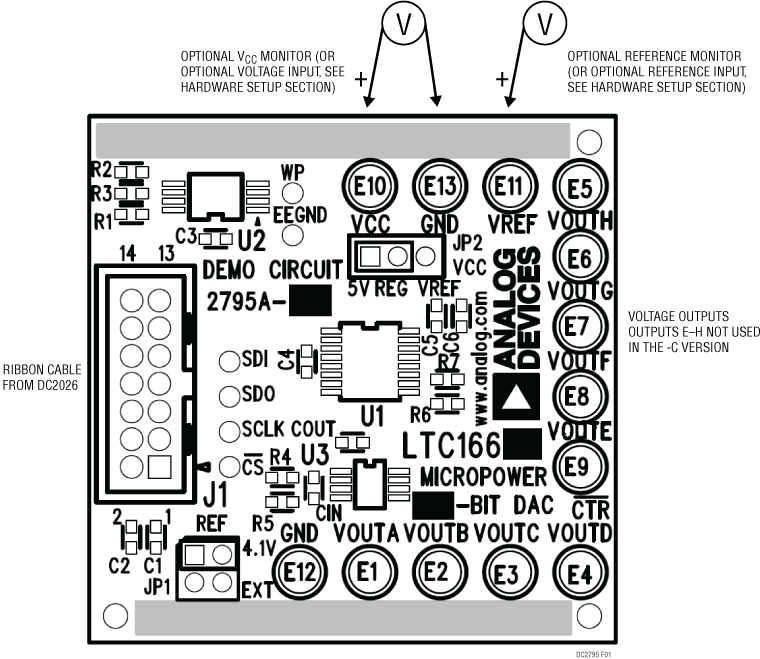

Demonstration circuit 2795 features the LTC®1660/ LTC1665 and LTC1664. The 8-bit LTC1665 and 10-bit LTC1660 integrate eight accurate, serially addressable digital-to-analog converters (DACs) in tiny 16-pin narrow SSOP packages. The LTC1664 is a 10-bit quad DAC.
Each buffered DAC draws just 56μA total supply current yet is capable of supplying DC output currents in excess of 5mA and reliably driving capacitive loads to 1000pF. Sleep mode further reduces total supply current to 1μA.
Documentation & Resources
R392 Reliability Data3/22/2018
Power Op Amp Protects Load Circuitry with Precise Current Limiting8/1/2002 LT Journal
Tools & Simulations
Precision DAC Error Budget Tool
The Precision DAC Error Budget Tool is a web application that calculates the DC Accuracy of precision DAC signal chains. It shows how the static errors accumulate throughout your signal chain to quickly evaluate the design tradeoffs. Calculations include the DC errors introduced by Voltage References, Operation Amplifiers and Precision DACs.
LTC1664 Companion Parts
Recommended µModule Isolator
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|LTC1664CGN#PBF||Material Declaration||Reliability Data||16-Lead SSOP (Narrow 0.15 Inch)|
|LTC1664CGN#TRPBF||Material Declaration||Reliability Data||16-Lead SSOP (Narrow 0.15 Inch)|
|LTC1664CN#PBF||Material Declaration||Reliability Data||16-Lead PDIP (Narrow 0.30 Inch)|
|LTC1664IGN#PBF||Material Declaration||Reliability Data||16-Lead SSOP (Narrow 0.15 Inch)|
|LTC1664IGN#TRPBF||Material Declaration||Reliability Data||16-Lead SSOP (Narrow 0.15 Inch)|
|LTC1664IN#PBF||Material Declaration||Reliability Data||16-Lead PDIP (Narrow 0.30 Inch)|
|Wafer Fabrication Data||R392 Reliability Data|
