Overview

Features and Benefits

  • True 16-Bit Performance Over Industrial Temperature Range

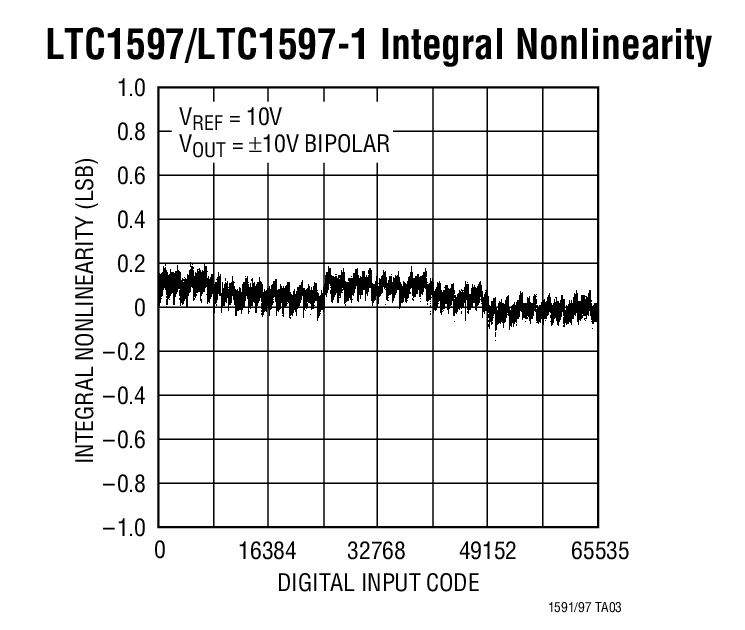

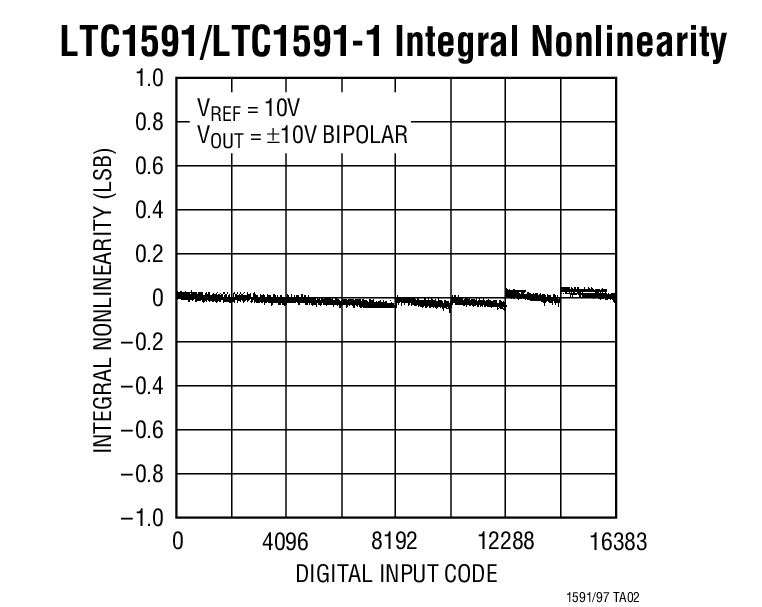

  • DNL and INL: 1LSB Max
  • On-Chip 4-Quadrant Resistors Allow Precise 0V to 10V, 0V to −10V or ±10V Outputs
  • Pin Compatible 14- and 16-Bit Parts
  • Asynchronous Clear Pin
    • LTC1591/LTC1597: Reset to Zero Scale
    • LTC1591-1/LTC1597-1: Reset to Midscale
  • Glitch Impulse < 2nV-s

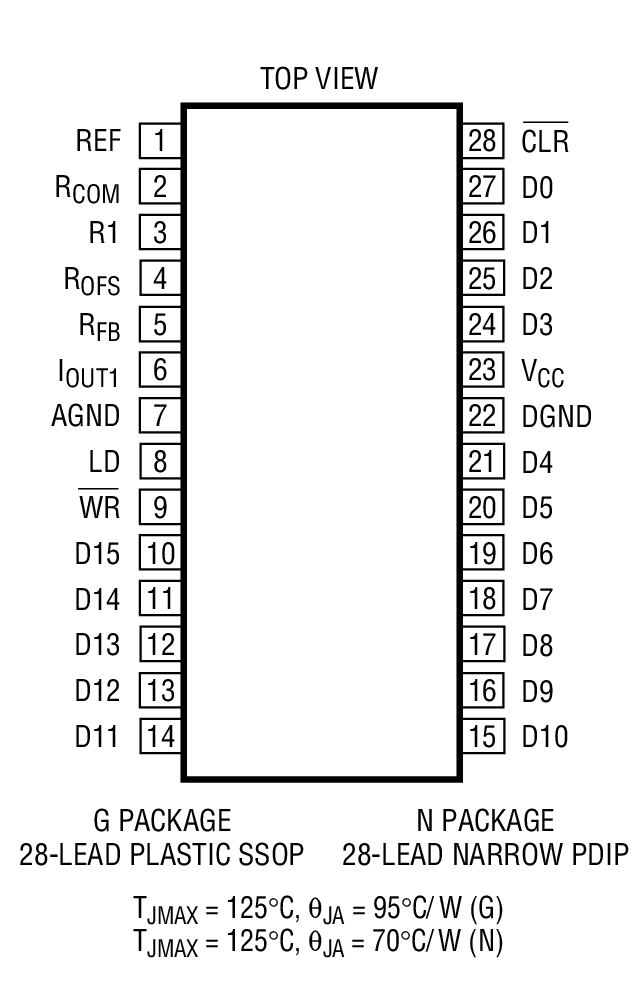

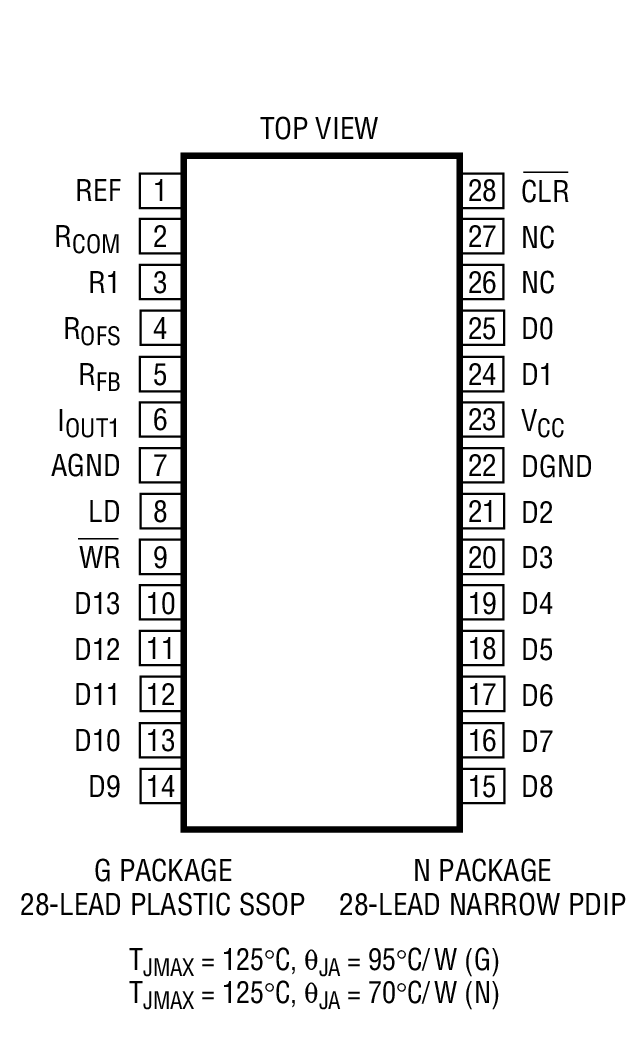

  • 28-Lead SSOP Package
  • Low Power Consumption: 10µW Typ
  • Power-On Reset

Product Details

The LTC1591/LTC1597 are pin compatible, parallel input 14-bit and 16-bit multiplying current output DACs that operate from a single 5V supply. INL and DNL are accurate to 1LSB over the industrial temperature range in both 2- and 4-quadrant multiplying modes. True 16-bit 4-quadrant multiplication is achieved with on-chip 4-quadrant multiplication resistors.

These DACs include an internal deglitcher circuit that reduces the glitch impulse to less than 2nV-s (typ). The asynchronous CLR pin resets the LTC1591/LTC1597 to zero scale and LTC1591-1/LTC1597-1 to mid-scale.

The LTC1591/LTC1597 are available in 28-pin SSOP and PDIP packages and are specified over the industrial temperature range.

For serial interface 16-bit current output DACs refer to the LTC1595/LTC1596 data sheet.

Applications

  • Process Control and Industrial Automation
  • Direct Digital Waveform Generation
  • Software-Controlled Gain Adjustment
  • Automatic Test Equipment

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
