Features
- Continuous Time—No Clock
- Four 2nd Order Filter Sections, 10kHz to 150kHz Center Frequency
- ±0.5% Typical Center Frequency Accuracy
- ±0.3% Typical Center Frequency Accuracy (A Grade)
- Wide Variety of Response Shapes
- Lowpass, Bandpass and Highpass Responses
- 103dB Typical S/N, ±5V Supply (Q = 1)
- 97dB Typical S/N, Single 5V Supply (Q = 1)
- 96dB Typical S/(N + THD) at ±5V Supply, 20kHz Input
- Rail-to-Rail Input and Output Voltages
- DC Accurate to 3mV (Typ)
- “Zero-Power” Shutdown Mode
- Single or Dual Supply, 5V to 10V Total
- Resistor-Programmable fO, Q, Gain
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The LTC1562 is a low noise, low distortion continuous-time filter with rail-to-rail inputs and outputs, optimized for a center frequency (fO) of 10kHz to 150kHz. Unlike most monolithic filters, no clock is needed. Four independent 2nd order filter blocks can be cascaded in any combination, such as one 8th order or two 4th order filters. Each block’s response is programmed with three external resistors for center frequency, Q and gain, using simple design formulas. Each 2nd order block provides lowpass and bandpass outputs. Highpass response is available if an external capacitor replaces one of the resistors. Allpass, notch and elliptic responses can also be realized.

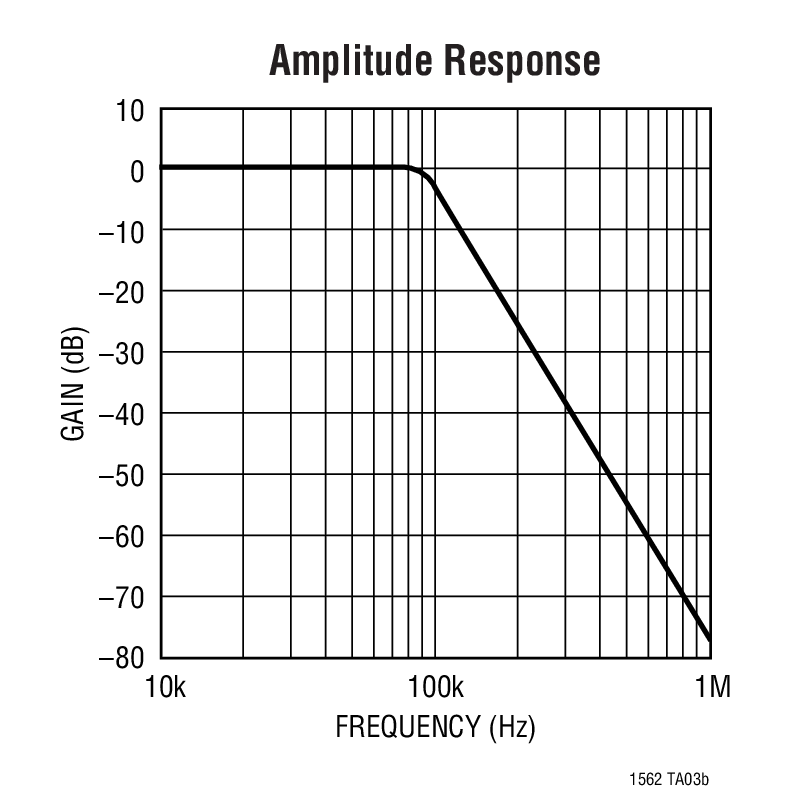

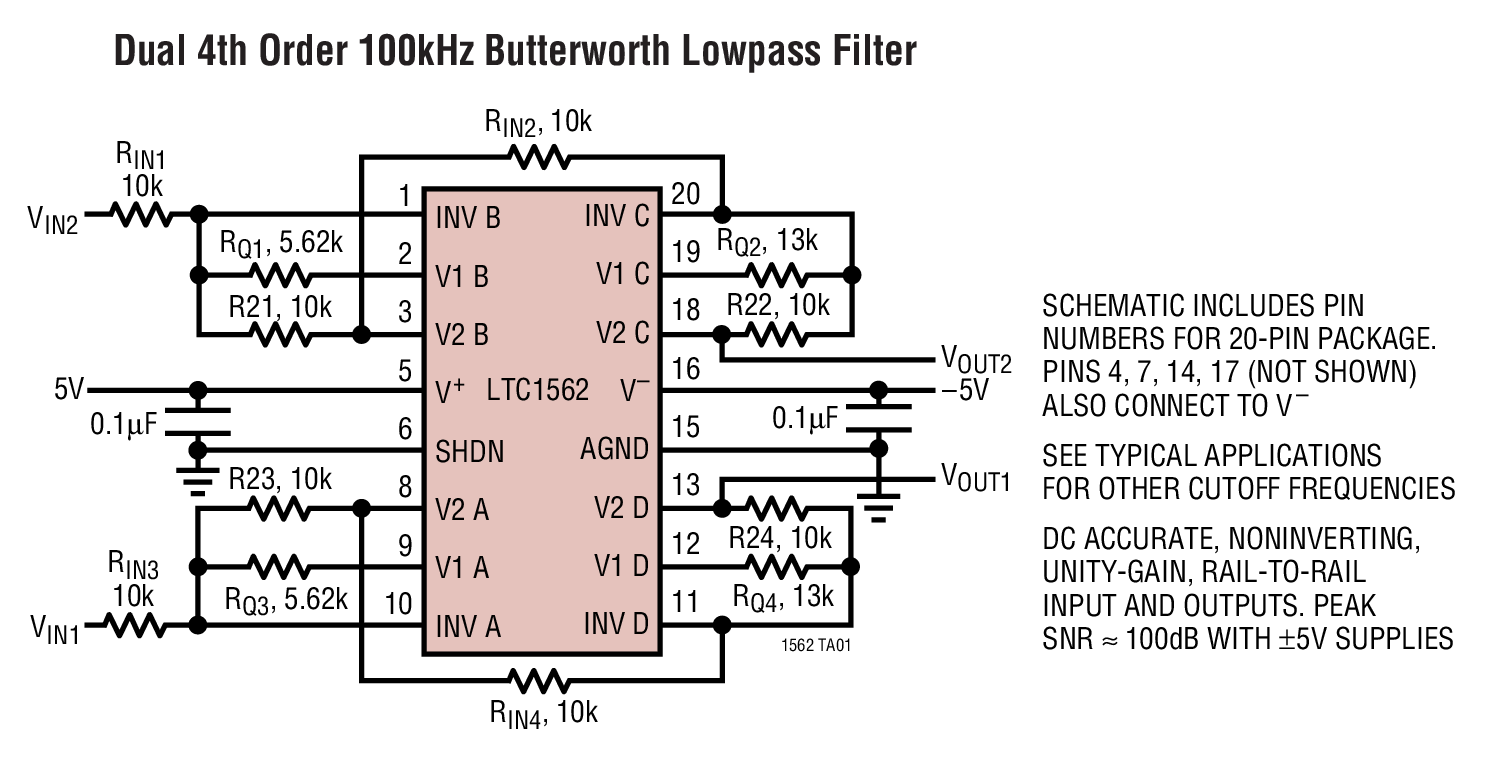

The LTC1562 is designed for applications where dynamic range is important. For example, by cascading 2nd order sections in pairs, the user can configure the IC as a dual 4th order Butterworth lowpass filter with 94dB signal-to-noise ratio from a single 5V power supply. Low level signals can exploit the built-in gain capability of the LTC1562. Varying the gain of a section can achieve a dynamic range as high as 118dB with a ±5V supply.
Other cutoff frequency ranges can be provided upon request. Please contact LTC Marketing.
Applications
- High Resolution Systems (14 Bits to 18 Bits)
- Antialiasing/Reconstruction Filters
- Data Communications, Equalizers
- Dual or I-and-Q Channels (Two Matched 4th Order Filters in One Package)
- Linear Phase Filtering
- Replacing LC Filter Modules
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
LTC1562
Documentation
Filters
1 Applied
-
All
-
User Guide
-
Application Note
-
Data Sheet
-
Reliability Data
-
Technical Articles
-
Design Note
-
All
-
English
-
Japanese
Data Sheet
2
User Guide
1
754.00K
Application Note
1
Reliability Data
1
20.42 K
Technical Articles
6
HTML
HTML
HTML
HTML
HTML
HTML
Design Note
2
HTML
HTML
Documentation
Data Sheet 1
Reliability Data 1
User Guide 1
Application Note 1
Design Note 1
Technical Articles 6
How to Design High Order Filters with Stopband Notches Using the LTC1562 Quad Operational Filter (Part 1)
DC Accurate, Rail-to-Rail Active RC Lowpass Filter Replaces Discrete Designs—One Resistor Value Sets the Cutoff Frequency
How to Design High Order Filters with Stopband Notches Using the LTC1562 Operational Filter (Part 2)
Universal Continuous-Time Filter Challenges Discrete Designs
New Universal Continuous-Time Filter with Extended Frequency Range
Sharp Gain Roll-Offs Using the LTC1562 Quad Operational Filter IC (Part 3)
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC1562ACG#PBF |

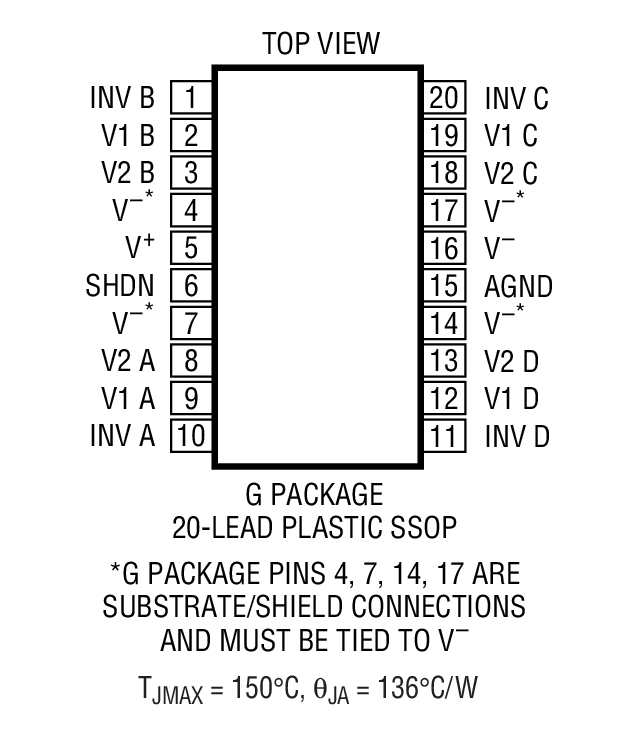

20-Lead SSOP
|
|
|
| LTC1562ACG#TRPBF |
20-Lead SSOP
|
|
|
| LTC1562AIG#PBF |
20-Lead SSOP
|
|
|
| LTC1562AIG#TRPBF |
20-Lead SSOP
|
|
|
| LTC1562CG#PBF |
20-Lead SSOP
|
|
|
| LTC1562CG#TRPBF |
20-Lead SSOP
|
|
|
| LTC1562CN#PBF |

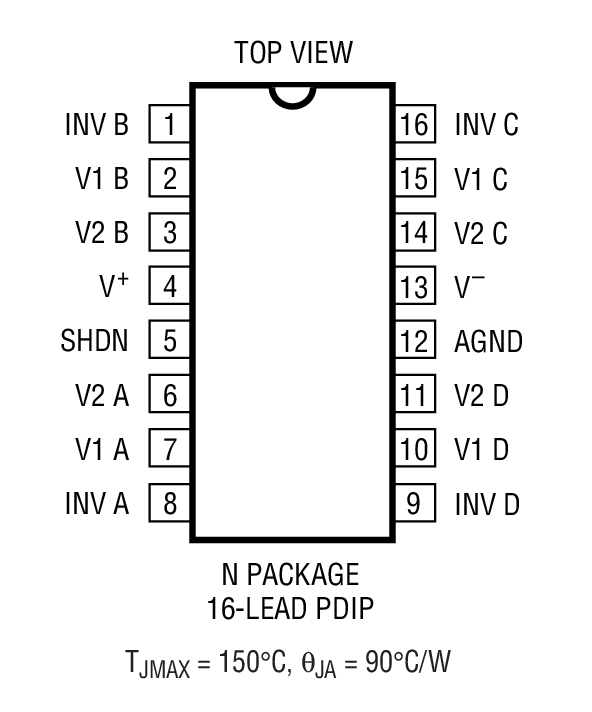

16-Lead PDIP (Narrow 0.30 Inch)
|
|
|
| LTC1562IG#PBF |
20-Lead SSOP
|
|
|
| LTC1562IG#TRPBF |
20-Lead SSOP
|
|
- LTC1562ACG#PBF
- Pin/Package Drawing
-
20-Lead SSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC1562ACG#TRPBF
- Pin/Package Drawing
-
20-Lead SSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC1562AIG#PBF
- Pin/Package Drawing
-
20-Lead SSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC1562AIG#TRPBF
- Pin/Package Drawing
-
20-Lead SSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC1562CG#PBF
- Pin/Package Drawing
-
20-Lead SSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC1562CG#TRPBF
- Pin/Package Drawing
-
20-Lead SSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC1562CN#PBF
- Pin/Package Drawing
-
16-Lead PDIP (Narrow 0.30 Inch)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC1562IG#PBF
- Pin/Package Drawing
-
20-Lead SSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC1562IG#TRPBF
- Pin/Package Drawing
-
20-Lead SSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Aug 6, 2022
- 22_0171
Laser Top Mark Conversion for SSOP Packages Assembled in PNG
LTC1562ACG#PBF
LTC1562ACG#TRPBF
LTC1562AIG#PBF
LTC1562AIG#TRPBF
LTC1562CG#PBF
PRODUCTION
LTC1562CG#TRPBF
PRODUCTION
LTC1562IG#PBF
PRODUCTION
LTC1562IG#TRPBF
PRODUCTION
Oct 11, 2022
- 22_0241
Epoxy Change from Henkel 8290 to 8290A for PDIP Package
LTC1562CN#PBF
PRODUCTION
Aug 6, 2022
- 22_0172
Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]
LTC1562CN#PBF
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Aug 6, 2022
- 22_0171
Laser Top Mark Conversion for SSOP Packages Assembled in PNG
LTC1562ACG#PBF
LTC1562ACG#TRPBF
LTC1562AIG#PBF
LTC1562AIG#TRPBF
LTC1562CG#PBF
PRODUCTION
LTC1562CG#TRPBF
PRODUCTION
LTC1562IG#PBF
PRODUCTION
LTC1562IG#TRPBF
PRODUCTION
Oct 11, 2022
- 22_0241
Epoxy Change from Henkel 8290 to 8290A for PDIP Package
Aug 6, 2022
- 22_0172
Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]
Software & Part Ecosystem
Evaluation Kits 1
DC266B-B
LTC1562CG-2 | Very-Low-Noise, Low Distortion Quad Universal Filter
Product Detail

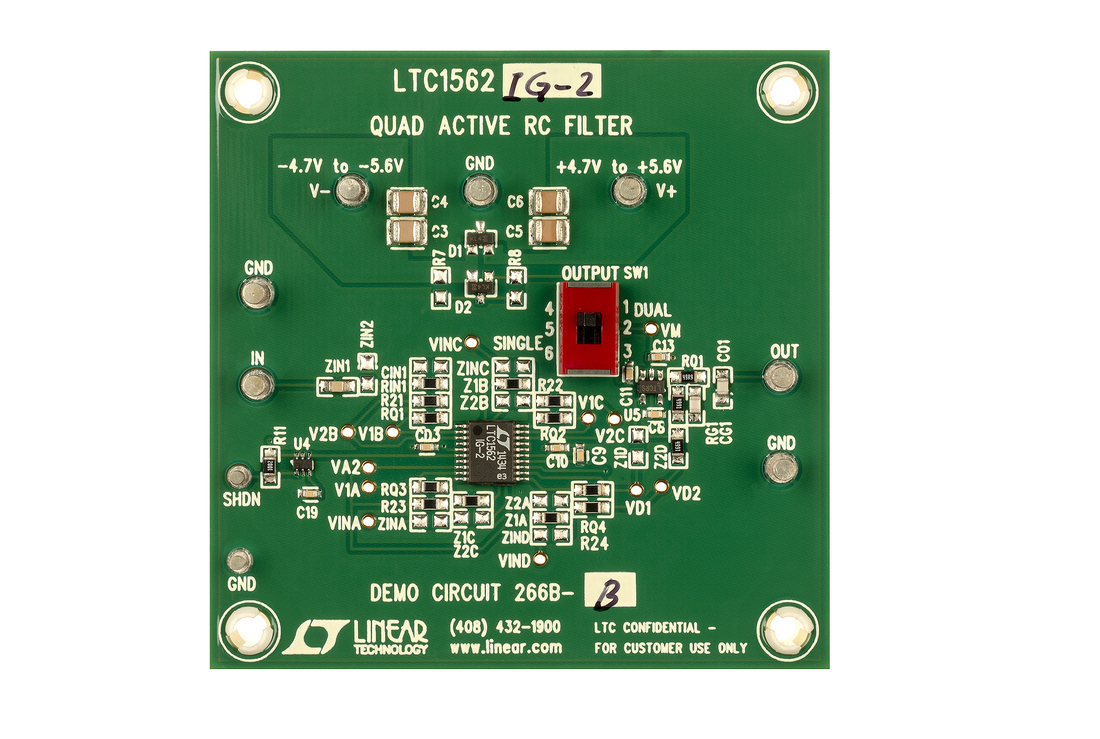

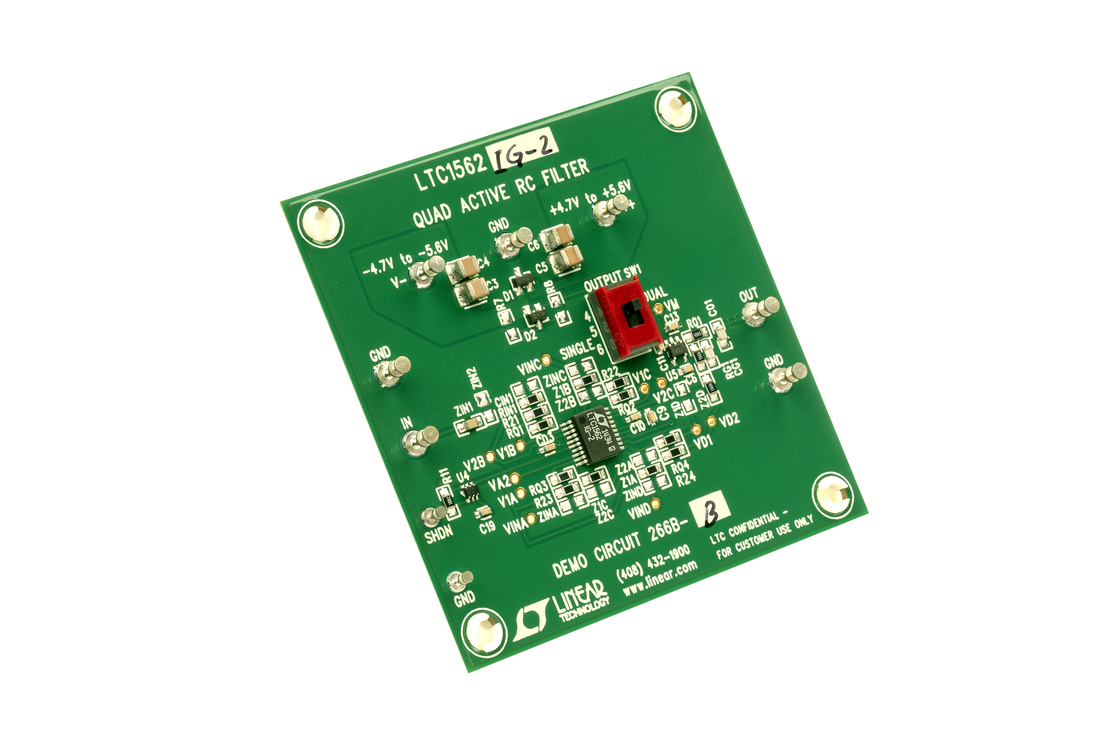

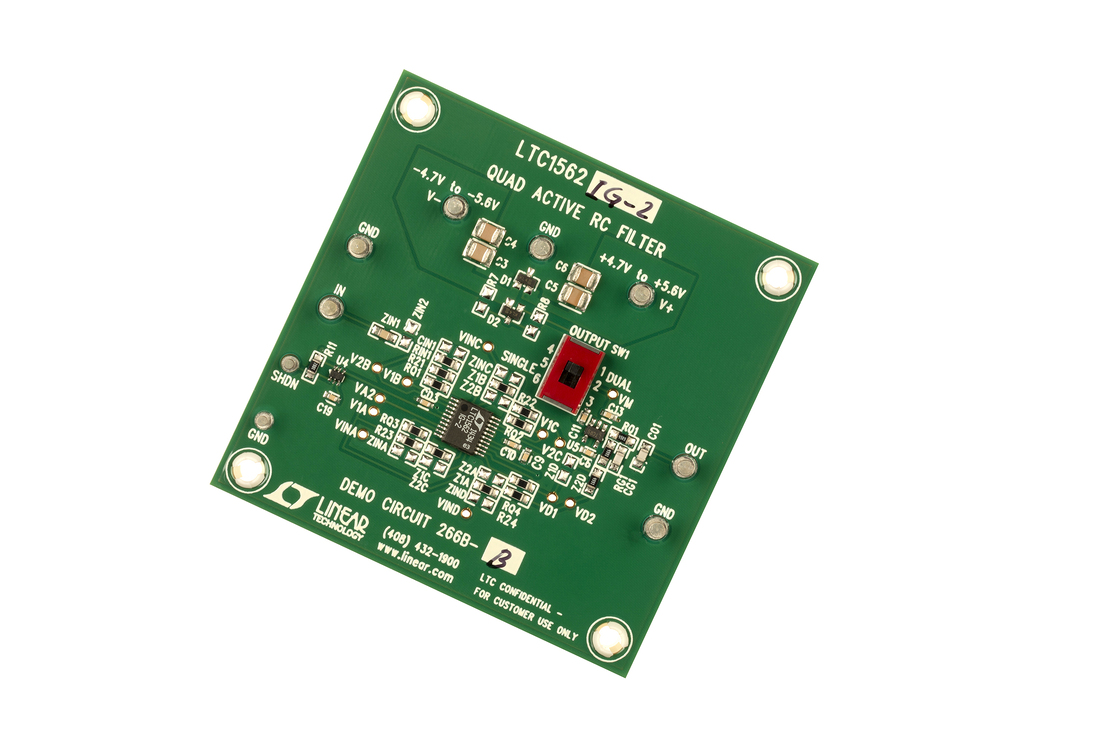

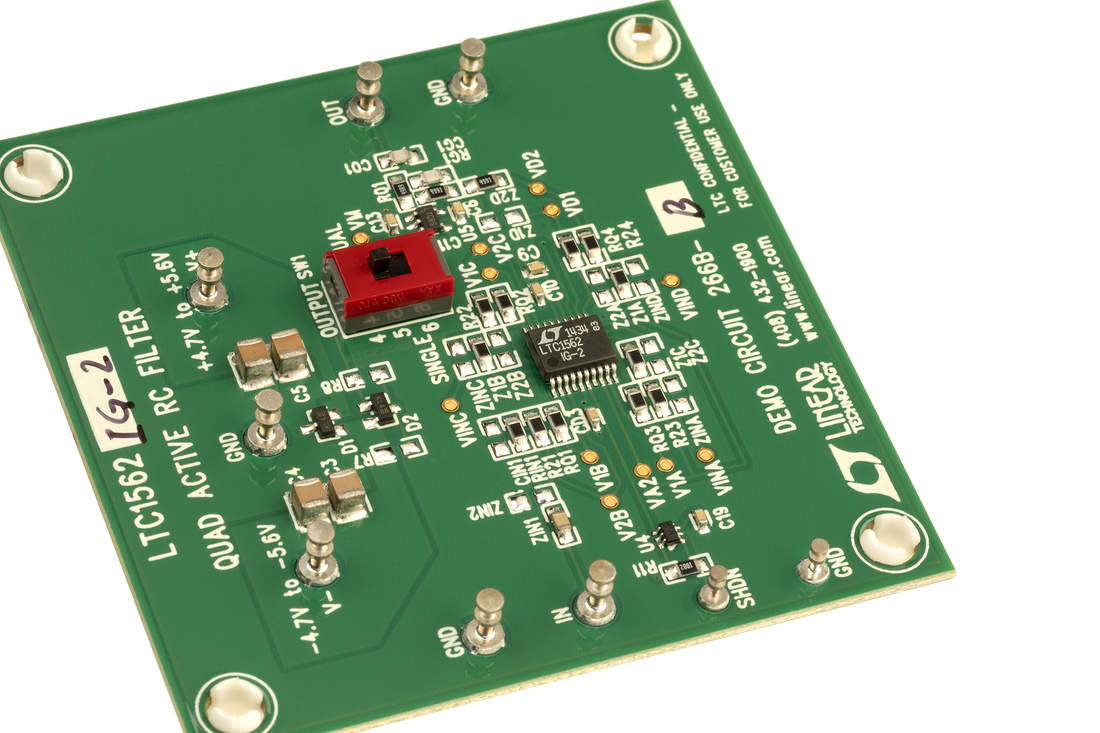

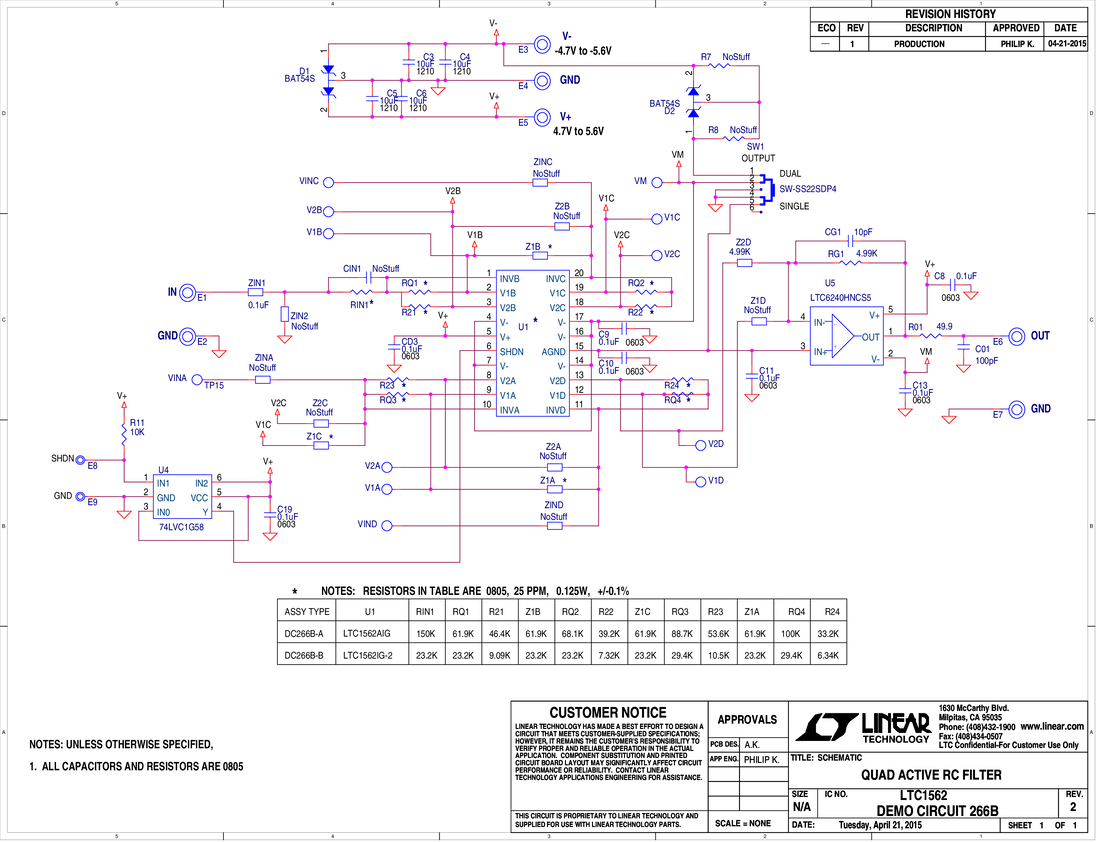

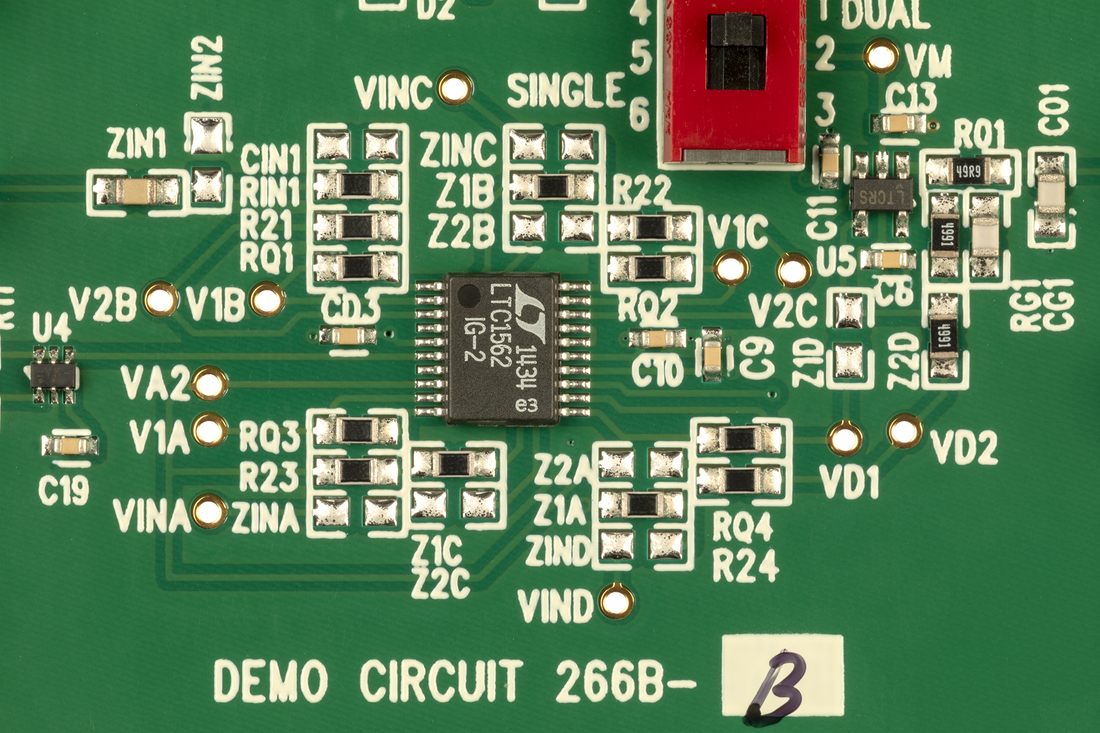

Demonstration circuit DC266B-A is for the evaluation of 8th order filter circuits using an LTC1562 (no dash) and DC266B-B for an LTC1562-2. LTC1562 and LTC1562-2 are quad 2nd order active-RC filter building blocks. Each 2nd order section has an integrator trimmed with internal capacitors and resistors to 100kHz and 200 kHz for the LTC1562 and LTC1562-2 respectively. The trimmed frequency error is ±0.6% for the LTC1562A and ±1.5% for the LTC1562-2. The LTC1562 or LTC1562-2 2nd order sections can be configured with external resistors to implement lowpass, bandpass or highpass filters.
Resources
Tools & Simulations 1
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
