LTC1430A

High Power Step-Down Switching Regulator Controller

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC1430A - Step-Down (Buck) Regulators Download 3.64 KB
Part Models 8
1ku List Price Starting From $4.42
Features
  • High Power 5V to 1.xV-3.xV Switching Controller: Can Exceed 10A Output
  • Maximum Duty Cycle > 90% Permits 3.3V to 2.xV Conversion Using a Low Power 5V Supply
  • All N-Channel External MOSFETs
  • Fixed Frequency Operation—Small L
  • Excellent Output Regulation: ±1% Over Line, Load and Temperature Variations

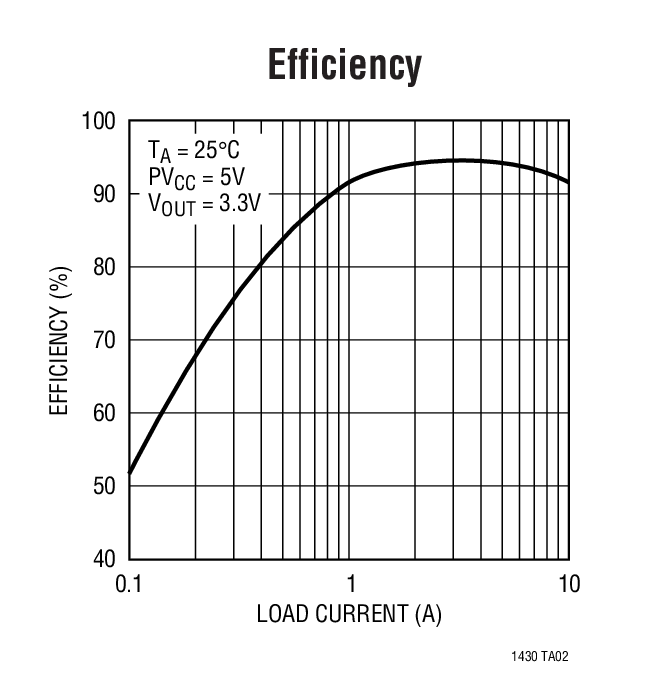

  • High Efficiency: Over 95% Possible
  • No Low Value Sense Resistor Needed
  • Outputs Can Drive External FETs with Up to 10,000pF Gate Capacitance
  • Quiescent Current: 350µA Typ, 1µA in Shutdown
  • Fast Transient Response
  • Adjustable or Fixed 3.3V Output

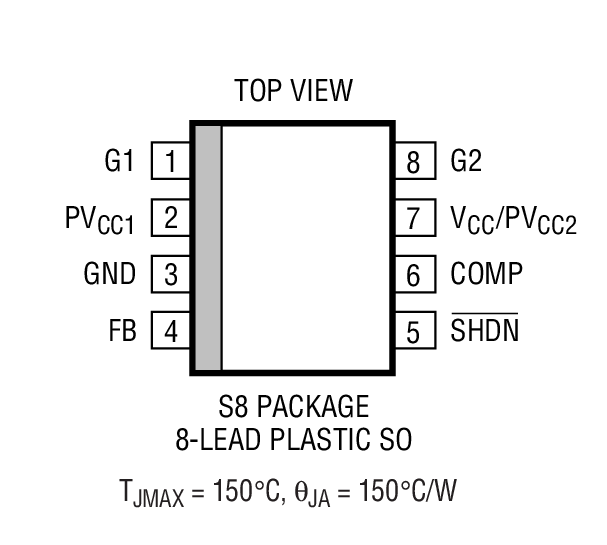

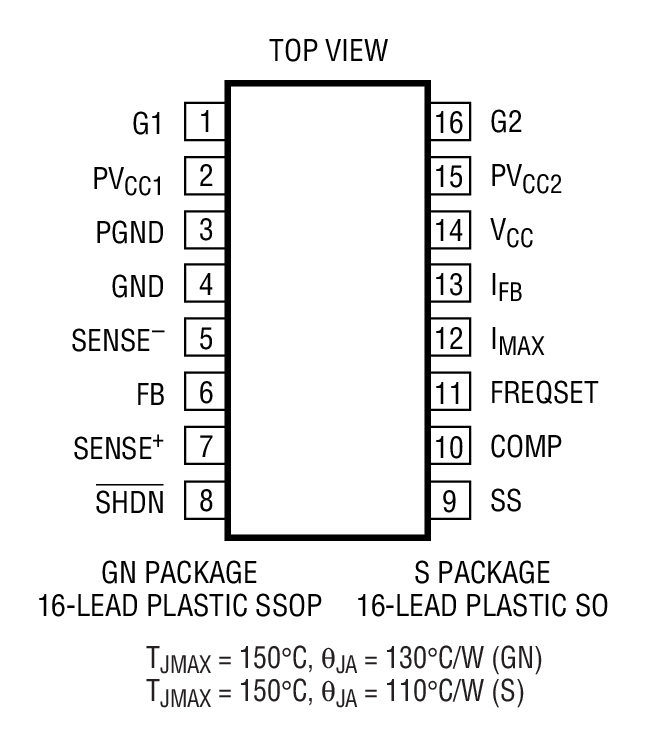

  • Available in 8-Lead SO and 16-Lead GN and SO Packages
Additional Details
show more Icon

The LTC1430A is a high power, high efficiency switching regulator controller optimized for 5V to 1.xV-3.xV applications. It includes a precision internal reference and an internal feedback system that can provide output regulation of ±1% over temperature, load current and line voltage shifts. The LTC1430A uses a synchronous switching architecture with two N-channel output devices, eliminating the need for a high power, high cost P-channel device. Additionally, it senses output current across the drain-source resistance of the upper N-channel FET, providing an adjustable current limit without an external low value sense resistor.

The LTC1430A includes a fixed frequency PWM oscillator for low output ripple under virtually all operating conditions. The 200kHz free-running clock frequency can be externally adjusted from 100kHz to above 500kHz. The LTC1430A’s maximum duty cycle is typically 93.5% compared to 88% for the LTC1430. This permits 3.3V to 2.xV conversion using a low power 5V supply. The LTC1430A features low 350µA quiescent current, allowing greater than 90% efficiency operation in converter designs from 1A to greater than 50A output current. Shutdown mode drops the LTC1430A supply current to 1µA.

For new designs, refer to the LTC3830.

Applications

  • Power Supply for Pentium® II and AMD-K6® Microprocessors
  • High Power 5V to 3.xV Regulators
  • Local Regulation for Dual Voltage Logic Boards
  • Low Voltage, High Current Battery Regulation
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTC1430A - Step-Down (Buck) Regulators Download 3.64 KB
Part Models 8
1ku List Price Starting From $4.42
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC1430A

Documentation

6
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • Technical Articles
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 08/24/2007
English

LTC1430A: High Power Step-Down Switching Regulator Controller Data Sheet

Open PDF File

redirect
290.00K
download

Download PDF

PDF Vector

PDF

UPDATED 05/25/2005
Japanese

LTC1430A: 高電力降圧スイッチングレギュレータ・コントローラ データシート

Open PDF File

redirect
346.00K
download

Download PDF

User Guide

2

PDF Vector

PDF

UPDATED 09/24/2009
English
DC201A - Demo Manual redirect icon

1.00M

download

Download PDF

PDF Vector

PDF

UPDATED 09/24/2009
English
DC156A - Demo Manual redirect icon

236.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/23/2018
English
R320 Reliability Data redirect icon

20.34 K

download

Download PDF

Technical Articles

1

PDF Vector

HTML

UPDATED 02/01/1999
English
High Current Step-Down Conversion from Low Input Voltages redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC1430ACGN#PBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC1430ACGN#TRPBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC1430ACS#PBF 16-Lead SOIC (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC1430ACS#TRPBF 16-Lead SOIC (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC1430ACS8#PBF 8-Lead SOIC (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC1430ACS8#TRPBF 8-Lead SOIC (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC1430AIGN#PBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC1430AIGN#TRPBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 3, 2024

- 24_0235

(QSOP/SSOP PKG) Migrating Bottom Trace Code Marking to Top Side Laser Marking

LTC1430ACGN#PBF

PRODUCTION

LTC1430ACGN#TRPBF

PRODUCTION

LTC1430AIGN#PBF

PRODUCTION

LTC1430AIGN#TRPBF

PRODUCTION

pdf

PCN24_0235_Form

external-icon

xls

Material_Report

Download

pdf

Other

external-icon

xlsm

Delta Qualification Matrix

Download

Oct 11, 2022

- 22_0235

Epoxy Change from Henkel 8290 to 8290A for GN Package

LTC1430ACGN#PBF

PRODUCTION

LTC1430ACGN#TRPBF

PRODUCTION

LTC1430AIGN#PBF

PRODUCTION

LTC1430AIGN#TRPBF

PRODUCTION

pdf

PCN22_0235_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Apr 6, 2022

- 22_0066

Laser Top Mark for 16QSOP Assembled in ADPG [PNG]

LTC1430ACGN#PBF

PRODUCTION

LTC1430ACGN#TRPBF

PRODUCTION

LTC1430AIGN#PBF

PRODUCTION

LTC1430AIGN#TRPBF

PRODUCTION

pdf

PCN22_0066_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Oct 24, 2024

- 24_0246

Migrating Bottom Trace Code Marking to Top Side Laser Marking for SOIC_N Package

LTC1430ACS#PBF

PRODUCTION

LTC1430ACS#TRPBF

PRODUCTION

pdf

PCN24_0246_Form

external-icon

xls

Material_Report

Download

pdf

Marking Comparison

external-icon

xlsm

Delta Qualification Matrix

Download

Oct 12, 2022

- 22_0252

Epoxy Change from Henkel 8290 to 8290A for 16-Lead SOIC Package

LTC1430ACS#PBF

PRODUCTION

LTC1430ACS#TRPBF

PRODUCTION

pdf

PCN22_0252_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

Aug 6, 2022

- 22_0173

Laser Top Mark Conversion for SOICN14 and SOICN16 Packages Assembled on ADPG [PNG]

LTC1430ACS#PBF

PRODUCTION

LTC1430ACS#TRPBF

PRODUCTION

pdf

PCN22_0173_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Dec 14, 2023

- 22_0255

Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)

LTC1430ACS8#PBF

PRODUCTION

LTC1430ACS8#TRPBF

PRODUCTION

pdf

PCN22_0255_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Jun 16, 2021

- 21_0026

Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM

LTC1430ACS8#PBF

PRODUCTION

LTC1430ACS8#TRPBF

PRODUCTION

pdf

PCN21_0026_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 3, 2024

- 24_0235

arrow down

(QSOP/SSOP PKG) Migrating Bottom Trace Code Marking to Top Side Laser Marking

LTC1430ACGN#PBF

PRODUCTION

LTC1430ACGN#TRPBF

PRODUCTION

LTC1430AIGN#PBF

PRODUCTION

LTC1430AIGN#TRPBF

PRODUCTION

pdf

PCN24_0235_Form

external-icon

xls

Material_Report

Download

pdf

Other

external-icon

xlsm

Delta Qualification Matrix

Download
Oct 11, 2022

- 22_0235

arrow down

Epoxy Change from Henkel 8290 to 8290A for GN Package

LTC1430ACGN#PBF

PRODUCTION

LTC1430ACGN#TRPBF

PRODUCTION

LTC1430AIGN#PBF

PRODUCTION

LTC1430AIGN#TRPBF

PRODUCTION

pdf

PCN22_0235_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Apr 6, 2022

- 22_0066

arrow down

Laser Top Mark for 16QSOP Assembled in ADPG [PNG]

LTC1430ACGN#PBF

PRODUCTION

LTC1430ACGN#TRPBF

PRODUCTION

LTC1430AIGN#PBF

PRODUCTION

LTC1430AIGN#TRPBF

PRODUCTION

pdf

PCN22_0066_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download
Oct 24, 2024

- 24_0246

arrow down

Migrating Bottom Trace Code Marking to Top Side Laser Marking for SOIC_N Package

LTC1430ACS#PBF

PRODUCTION

LTC1430ACS#TRPBF

PRODUCTION

pdf

PCN24_0246_Form

external-icon

xls

Material_Report

Download

pdf

Marking Comparison

external-icon

xlsm

Delta Qualification Matrix

Download
Oct 12, 2022

- 22_0252

arrow down

Epoxy Change from Henkel 8290 to 8290A for 16-Lead SOIC Package

LTC1430ACS#PBF

PRODUCTION

LTC1430ACS#TRPBF

PRODUCTION

pdf

PCN22_0252_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon
Aug 6, 2022

- 22_0173

arrow down

Laser Top Mark Conversion for SOICN14 and SOICN16 Packages Assembled on ADPG [PNG]

LTC1430ACS#PBF

PRODUCTION

LTC1430ACS#TRPBF

PRODUCTION

pdf

PCN22_0173_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download
Dec 14, 2023

- 22_0255

arrow down

Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)

LTC1430ACS8#PBF

PRODUCTION

LTC1430ACS8#TRPBF

PRODUCTION

pdf

PCN22_0255_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Jun 16, 2021

- 21_0026

arrow down

Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM

LTC1430ACS8#PBF

PRODUCTION

LTC1430ACS8#TRPBF

PRODUCTION

pdf

PCN21_0026_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Software & Part Ecosystem

Parts Product Life Cycle Description
LTC3830
popup image
Cart

PRODUCTION

High Power Step-Down Synchronous DC/DC Controllers for Low Voltage Operation

Evaluation Kits 4

DC156A

LTC1430ACS | Low Cost CPU Supply, Jumper Select Output

DC091B

LTC1430ACS | DC/DC Converter, 5V input/ 3.3V Out @ 10A

DC153A

LTC1430ACS | DC-to-DC Converter 5V to 3.3V @ 6A, Long Life, Small Size

reference details image

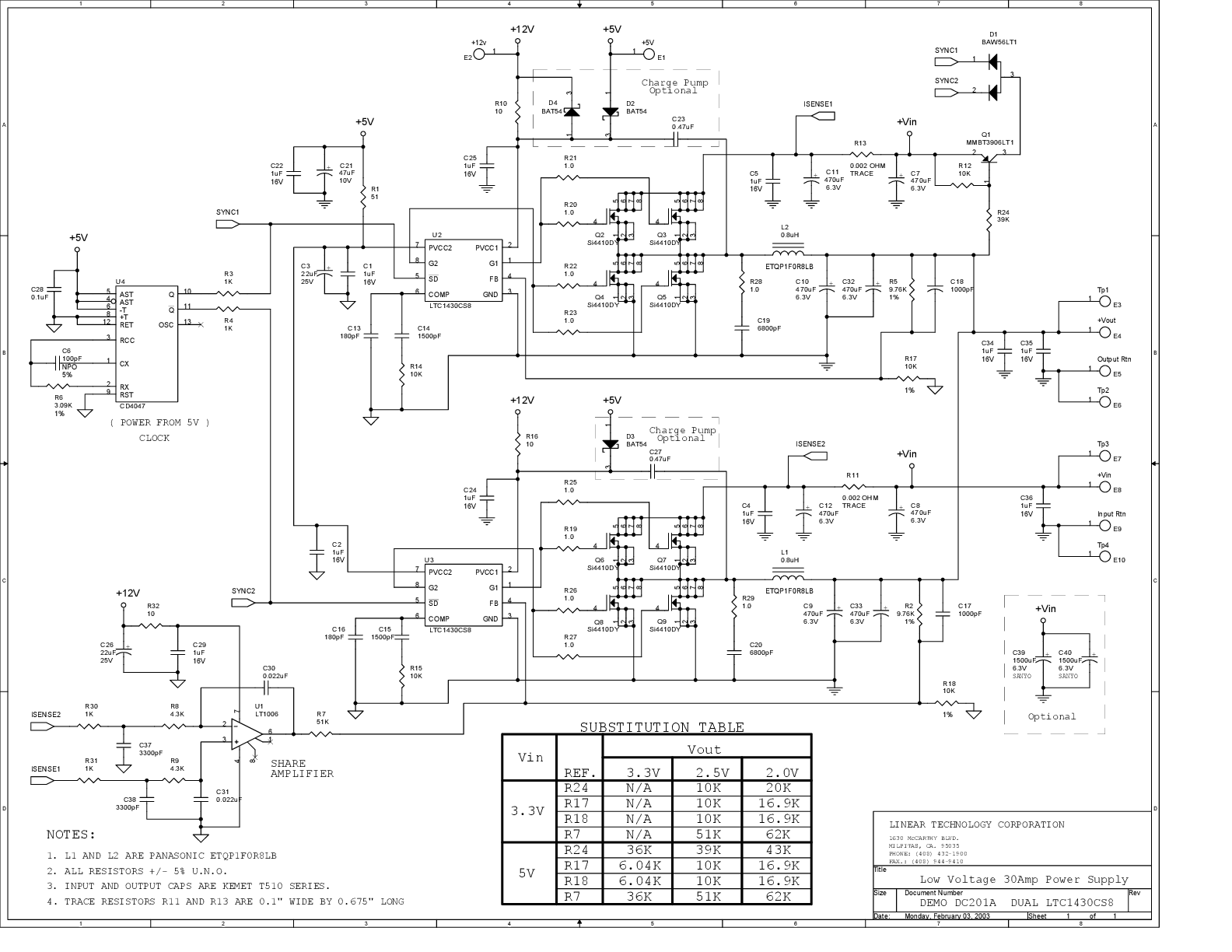

DC201A

LTC1430ACS | Low Voltage 30 Amp Power Supply, 5VIN, 2.5VOUT @ 30A

Evaluation Kits4

DC156A

LTC1430ACS | Low Cost CPU Supply, Jumper Select Output

DC091B

LTC1430ACS | DC/DC Converter, 5V input/ 3.3V Out @ 10A

DC153A

LTC1430ACS | DC-to-DC Converter 5V to 3.3V @ 6A, Long Life, Small Size
evaluation kit item images

DC201A

LTC1430ACS | Low Voltage 30 Amp Power Supply, 5VIN, 2.5VOUT @ 30A

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LTC1430A - Step-Down (Buck) Regulators Download

3.64 K

Recently Viewed

Part Details
Documentation
Software & Part Ecosystem
Evaluation Kit
Tools & Simulations
Latest Discussions
