LTC1164-6
Low Power 8th Order Pin Selectable Elliptic or Linear Phase Lowpass Filter
Show More
Info: :
PRODUCTION
Info: :
PRODUCTION
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Part Models
3
1ku List Price
Starting From $18.23
Features
- 8th Order Pin Selectable Elliptic or Bessel Filter
- 4mA Supply Current with ±5V Supplies

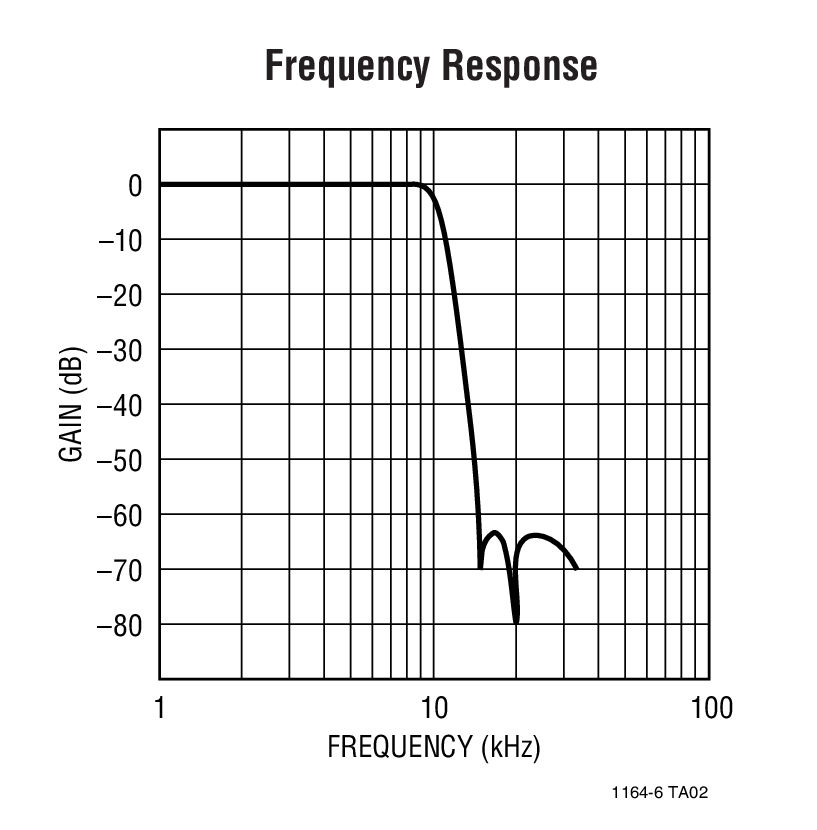

- 64dB Attenuation at 1.44 fCUTOFF (Elliptic Response)
- fCUTOFF Up to 30kHz (50:1 fCLK to fCUTOFF Ratio)
- 110µVRMS Wideband Noise with ±5V Supplies
- Operates at Single 5V Supply with 1VRMS Input Range
- Operates Up to ±8V Supplies
- TTL/CMOS Compatible Clock Input
- No External Components
- Available in 14-Pin Dip and 16-Pin SO Wide Packages
Additional Details
The LTC1164-6 is a monolithic 8th order elliptic lowpass filter featuring clock-tunable cutoff frequency and low power supply current. Low power operation is achieved without compromising noise or distortion performance. At ±5V supplies the LTC1164-6 uses only 4mA supply current while keeping wideband noise below 110µVRMS. With a single 5V supply, the LTC1164-6 can provide up to 10kHz cutoff frequency and 80dB signal-to-noise ratio while consuming only 2.5mA.
The LTC1164-6 provides an elliptic lowpass rolloff with stopband attenuation of 64dB at 1.44 fCUTOFF and an fCLK-to- fCUTOFF ratio of 100:1 (Pin10 to V– ). For a ratio of 100:1, fCUTOFF can be clock-tuned up to 10kHz. For a fCLK-to-fCUTOFF ratio of 50:1 (Pin 10 to V+ ), the LTC1164-6 provides an elliptic lowpass filter with fCUTOFF frequencies up to 20kHz. When Pin 10 is connected to ground, the LTC1164-6 approximates an 8th order linear phase response with 65dB attenuation at 4.5 f–3dB and fCLK/f–3dB ratio of 160:1. The LTC1164-6 is pin compatible with the LTC1064-1.
Applications

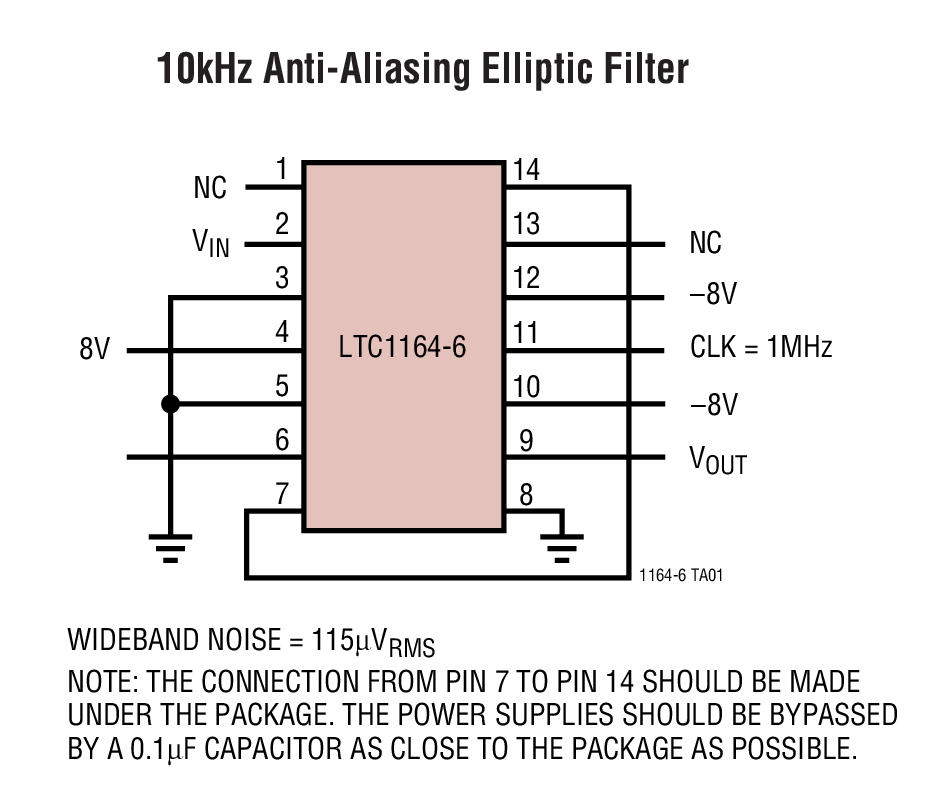

- Antialiasing Filters
- Battery-Operated Instruments
- Telecommunication Filters
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Part Models
3
1ku List Price
Starting From $18.23
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
- {{newProjectText}} {{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
LTC1164-6
Documentation
2
Filters
1 Applied
All
All
Data Sheet
1
Reliability Data
1
UPDATED 03/23/2018
English
R042 Reliability Data
21.25 K
There are no results matching this criteria. Try resetting your filters or searching for a different term
Documentation
Technical Documents
2
Data Sheet 1
Reliability Data 1
Design Resources 3
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
---|---|---|---|

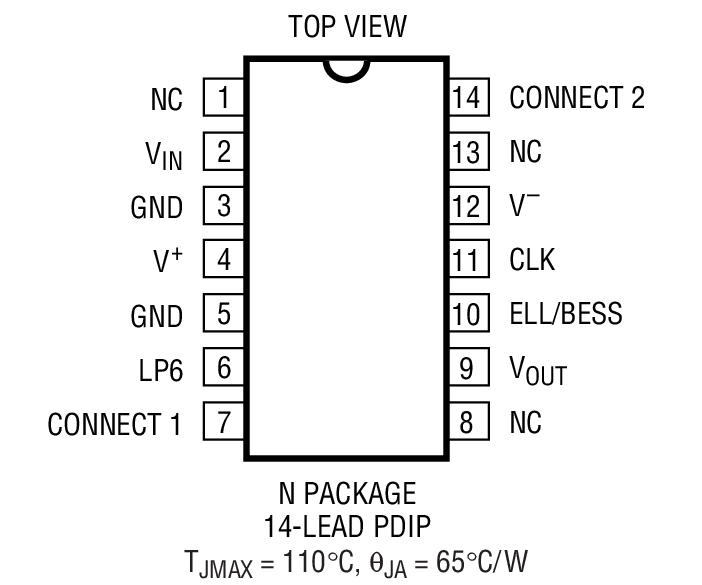

LTC1164-6CN#PBF | 14-Lead PDIP (Narrow 0.3 Inch) |
|
|

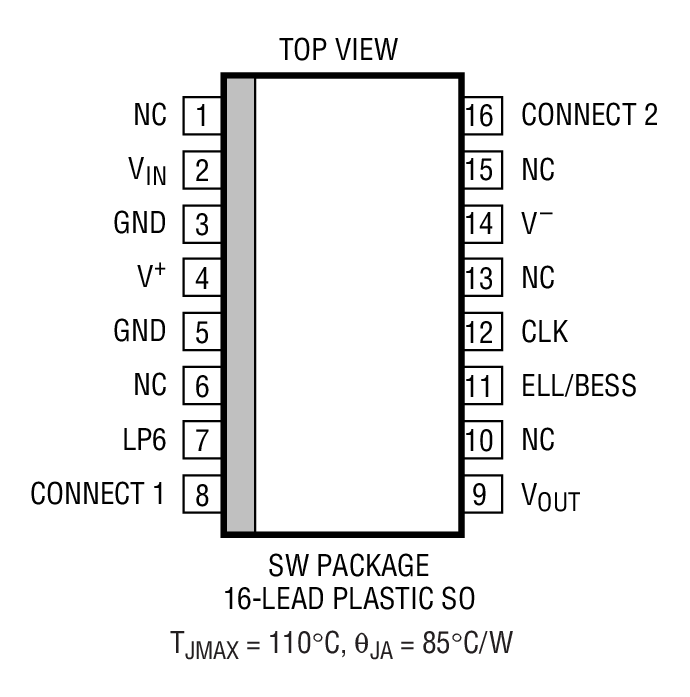

LTC1164-6CSW#PBF | 16-Lead SOIC (Wide 0.3 Inch) |
|
|
