Overview

Features and Benefits

  • Offset Voltage: 10µV Max
  • Offset Voltage Drift: 100nV/°C Max
  • Bias Current: 65pA Max
  • Offset Current: 65pA Max
  • Gain Nonlinearity: 20ppm Max
  • Gain Error: ±0.075% Max
  • CMRR: 90dB
  • 0.1Hz to 10Hz Noise: 1.9µVP-P
  • Single 5V Supply Operation
  • 8-Pin MiniDIP

Product Details

The LTC1100 is a high precision instrumentation amplifier using zero-drift techniques to achieve outstanding DC performance. The input DC offset is typically 1µV while the DC offset drift is typically 5nV/°C; a very low bias current of 65pA is also achieved.

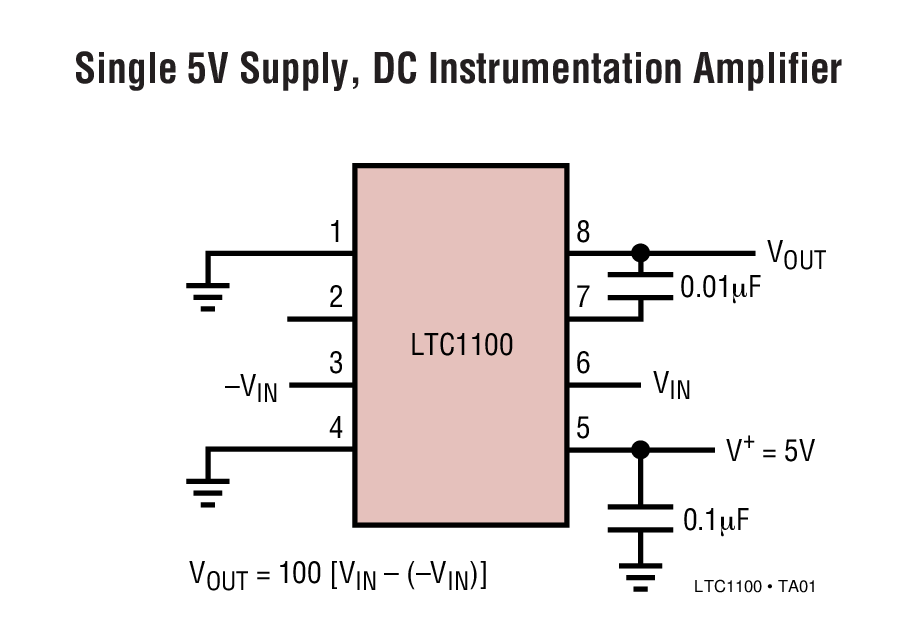

The LTC1100 is self-contained; that is, it achieves a differential gain of 100 without any external gain setting resistor or trim pot. The gain linearity is 20ppm and the gain drift is 4ppm/°C. The LTC1100 operates from a single 5V supply up to ±8V. The output typically swings 300mV from its power supply rails with a 10k load.

An optional external capacitor can be added from Pin 7 to Pin 8 to tailor the device's 18kHz bandwidth and to eliminate any unwanted noise pickup.

The LTC1100 is also offered in a 16-pin surface mount package with selectable gains of 10 or 100.

The LTC1100 is manufactured using our enhanced LTCMOS silicon gate process.

Applications

  • Thermocouple Amplifiers
  • Strain Gauge Amplifiers
  • Differential to Single-Ended Converters

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Tools & Simulations

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

LTspice

Models for the following parts are available in LTspice:

LTC1100
LTC1100A
LTC1100CS

In-Amp Diamond Plot Tool

The Diamond Plot Tool is a web application that generates a configuration-specific Output Voltage Range vs. Input Common-Mode Voltage graph, also known as the Diamond Plot, for Analog Devices Instrumentation Amplifiers. Based on user inputs such as supply voltage, gain, and input signal range, the tool detects saturation and recommends in-amps for which the input signal is in-range and the configuration is valid. Avoid saturation, find the best in-amp for your design, and save time.

In Amp Diamond Tool

Product Recommendations

LTC1100 Companion Parts

Recommended µModule Isolator

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models

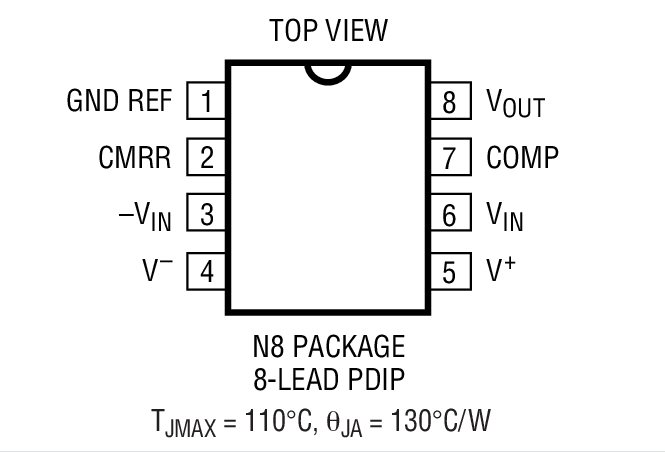

LTC1100CN8#PBF Material Declaration Reliability Data 8-Lead PDIP (Narrow 0.3 Inch)

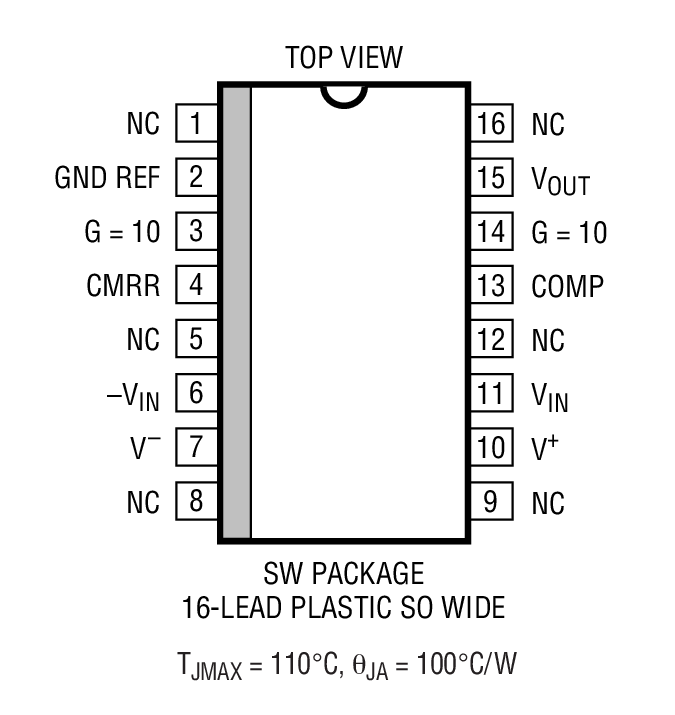

LTC1100CSW#PBF Material Declaration Reliability Data 16-Lead SOIC (Wide 0.3 Inch)
