Overview

Features and Benefits

  • DC Gain Linearity: 14 Bits
  • Maximum DC Offset: ±1.5mV
  • DC Offset TempCo: 7µV/°C
  • Device Fully Tested at fCUTOFF = 80kHz
  • Maximum Cutoff Frequency: 120kHz (VS = ±8V)
  • Drives 1kΩ Load with 0.02% THD or Better
  • Signal-to-Noise Ratio: 90dB
  • Input Impedance: 500MΩ
  • Selectable Elliptic or Linear Phase Response
  • Operates from Single 5V up to ±8V Power Supplies
  • Available in an 18-Pin SO Wide Package

Product Details

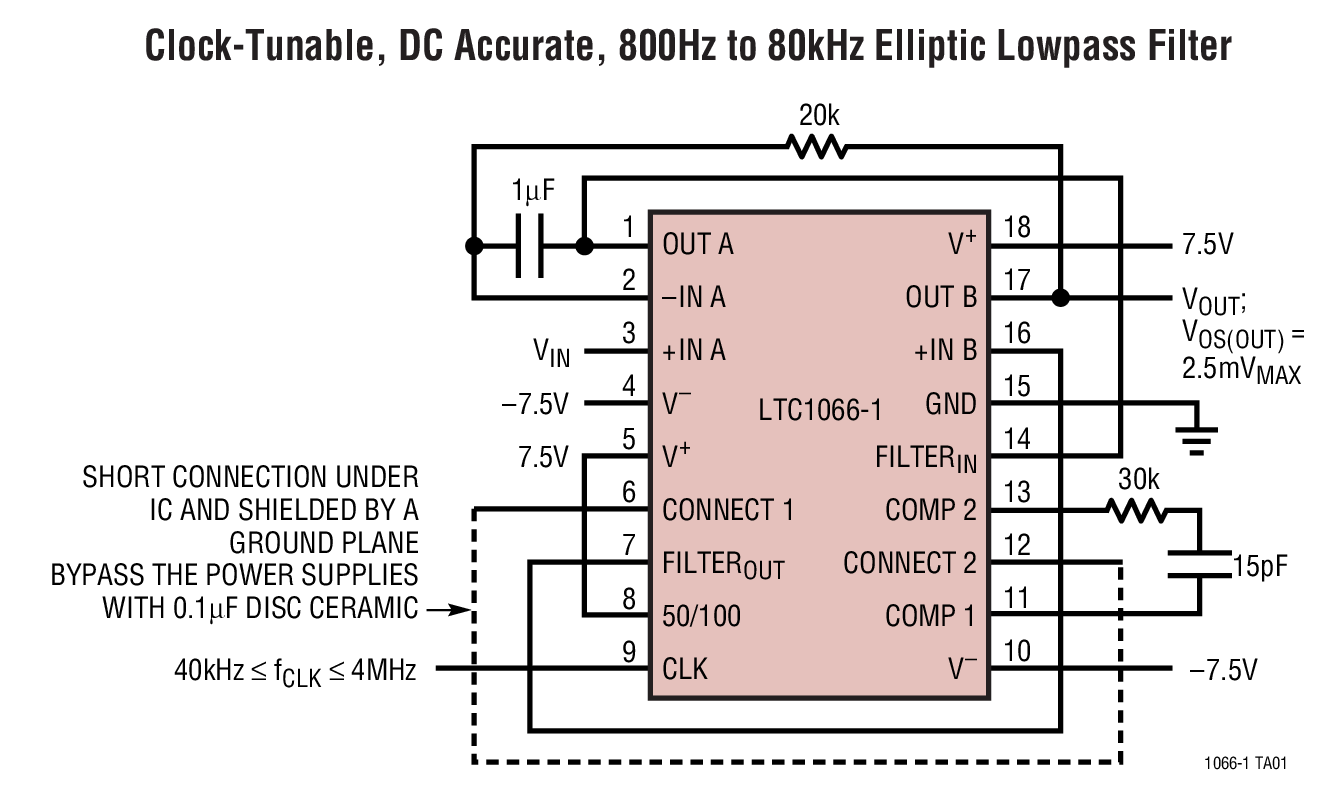

The LTC1066-1 is an 8th order elliptic lowpass filter which simultaneously provides clock-tunability and DC accuracy. The unique and proprietary architecture of the filter allows 14 bits of DC gain linearity and a maximum of 1.5mV DC offset. An external RC is required for DC accurate operation. With ±7.5V supplies, a 20k resistor and a 1µF capacitor, the cutoff frequency can be tuned from 800Hz to 100kHz. A clock-tunable 10Hz to 100kHz operation can also be achieved (see Typical Application section).

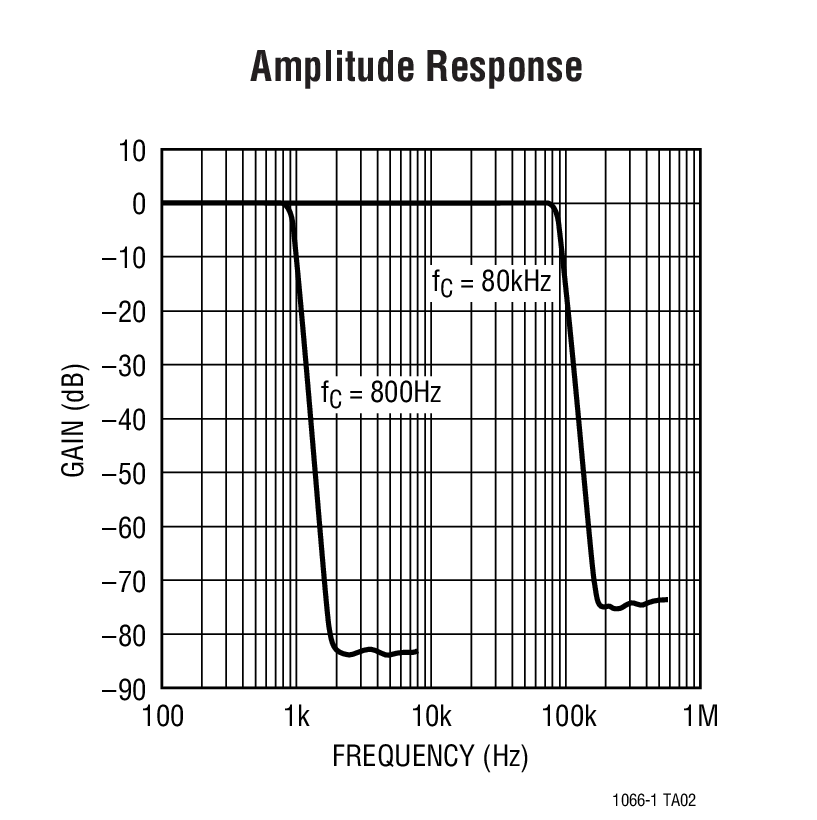

The filter does not require any external active components such as input/output buffers. The input/output impedance is 500MΩ/0.1Ω and the output of the filter can source or sink 40mA. When pin 8 is connected to V+ , the clock-to-cutoff frequency ratio is 50:1 and the input signal is sampled twice per clock cycle to lower the risk of aliasing. For frequencies up to 0.75fCUTOFF , the passband ripple is ±0.15dB. The gain at fCUTOFF is -1dB and the filter’s stopband attenuation is 80dB at 2.3fCUTOFF . Linear phase operation is also available with a clock-to-cutoff frequency ratio of 100:1 when pin 8 is connected to ground.

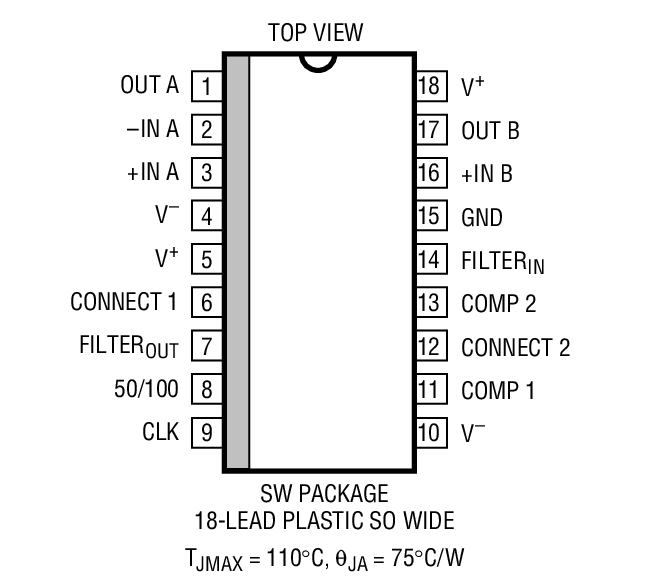

The LTC1066-1 is available in an 18-pin SO Wide package..

Applications

  • Instrumentation
  • Data Acquisition Systems
  • Anti-Aliasing Filters
  • Smoothing Filters
  • Audio Signal Processing
