  5. LTC1064-2


Features and Benefits

  • 8th Order Filter in a 14-Pin Package
  • 140kHz Maximum Corner Frequency
  • No External Components
  • 50:1 and 100:1 Clock to Cutoff Frequency Ratio
  • 80µVRMS Total Wideband Noise
  • 0.03% THD or Better
  • Operates from ±2.37V to ±8V Power Supplies

Product Details

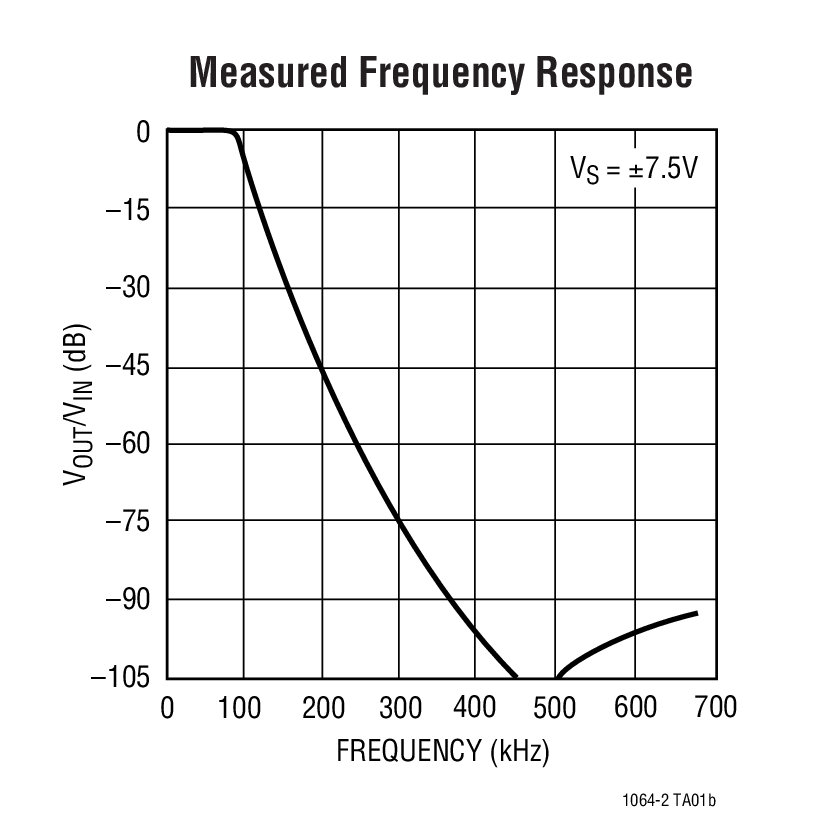

The LTC1064-2 is a monolithic 8th order lowpass Butterworth filter, which provides a maximally flat passband. The attenuation slope is -48dB/octave and the maximum attenuation is in excess of 80dB. An external TTL or CMOS clock programs the filter's cutoff frequency. The clock to cutoff frequency ratio is 100:1 (Pin 10 at V-) or 50:1 (Pin 10 at V+). The maximum cutoff frequency is 140kHz. No external components are needed.

The LTC1064-2 features low wideband noise and low harmonic distortion even for input voltages up to 3VRMS. In fact the LTC1064-2 overall performance competes with equivalent multiple op amp RC active realizations. The LTC1064-2 is available in a 14-pin DIP or 16-pin surface mounted SW package. The LTC1064-2 is fabricated using LTC?s enhanced analog CMOS Si-gate process.

The LTC1064-2 is pin compatible with the LTC1064-1.


  • Antialiasing Filters
  • Smoothing Filters
  • Tracking High Frequency Lowpass Filters

Product Categories

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Product Recommendations

LTC1064-2 Companion Parts

Recommended Suggested Oscillator

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models

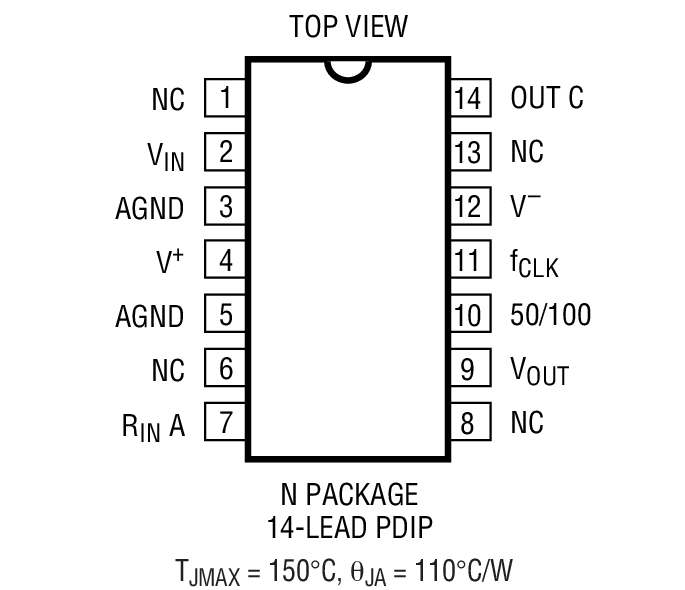

LTC1064-2CN#PBF Material Declaration Reliability Data 14-Lead PDIP (Narrow 0.3 Inch)

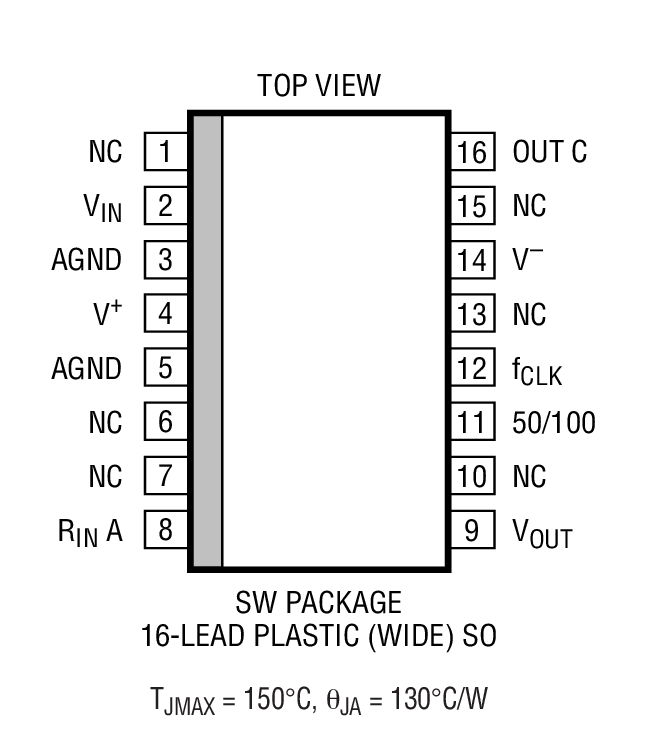

LTC1064-2CSW#PBF Material Declaration Reliability Data 16-Lead SOIC (Wide 0.3 Inch)
