Features
- All Filter Parameters Guaranteed over Temperature

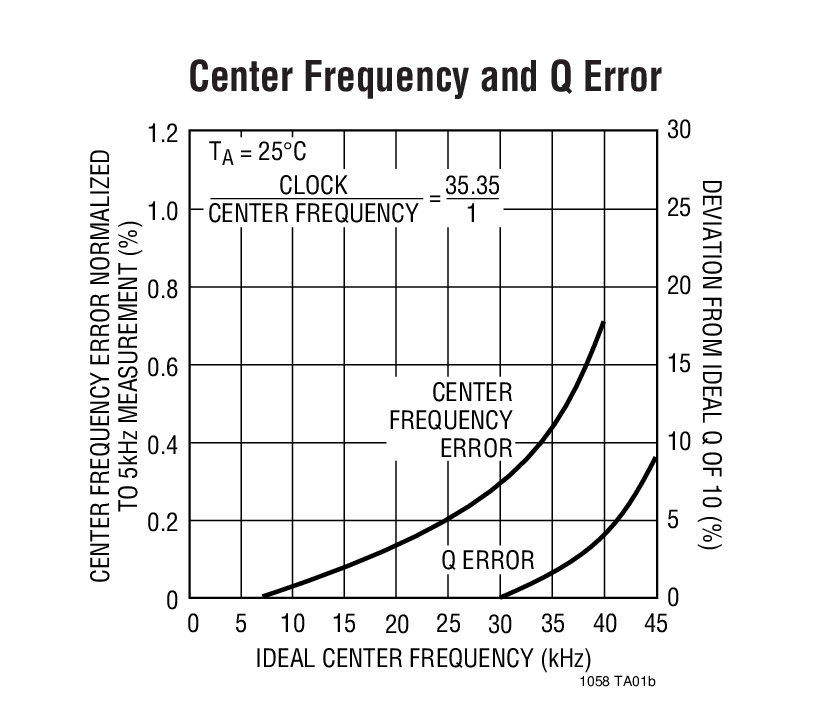

- Wide Center Frequency Range (0.1Hz to 40kHz)
- Low Noise Wide Dynamic Range
- Guaranteed Operation for ±2.37V and ±5V Supply
- Low Power Consumption
- Guaranteed Clock-to-Center Frequency Accuracy of 0.8% (LTC1059A)
- Guaranteed Low Offset Voltages over Temperature
- Very Low Center Frequency and Q Tempco
- Clock Input T2L or CMOS Compatible
- Separate Highpass (or Notch or Allpass), Bandpass, Lowpass Outputs
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The LTC1059 consists of a general purpose, high performance, active filter building block and an uncommitted op amp. The filter building block together with an external clock and 2 to 5 resistors can produce various 2nd order functions which are available at its three output pins. Two out of three always provide lowpass and bandpass functions while the third output pin can produce notch or highpass or allpass. The center frequency of these functions can be tuned from 0.1Hz to 40kHz and is dependent on an external clock or an external clock and a resistor ratio. The filter can handle input frequencies up to 100kHz. The uncommitted op amp can be used to obtain additional allpass and notch functions, for gain adjustment or for cascading techniques.
Higher than 2nd order filter functions can be obtained by cascading the LTC1059 with the LTC1060 dual universal filter or the LTC1061 triple universal filter. Any classical filter realization (such as Butterworth, Cauer, Bessel and Chebyshev) can be formed.
The LTC1059 can be operated with single or dual supplies ranging from ±2.37V to ±8V (or 4.74V to 16V single supply).
The LTC1059 is manufactured by using an enhanced LTCMOS™ silicon gate process.
Applications
- Sinewave Oscillators

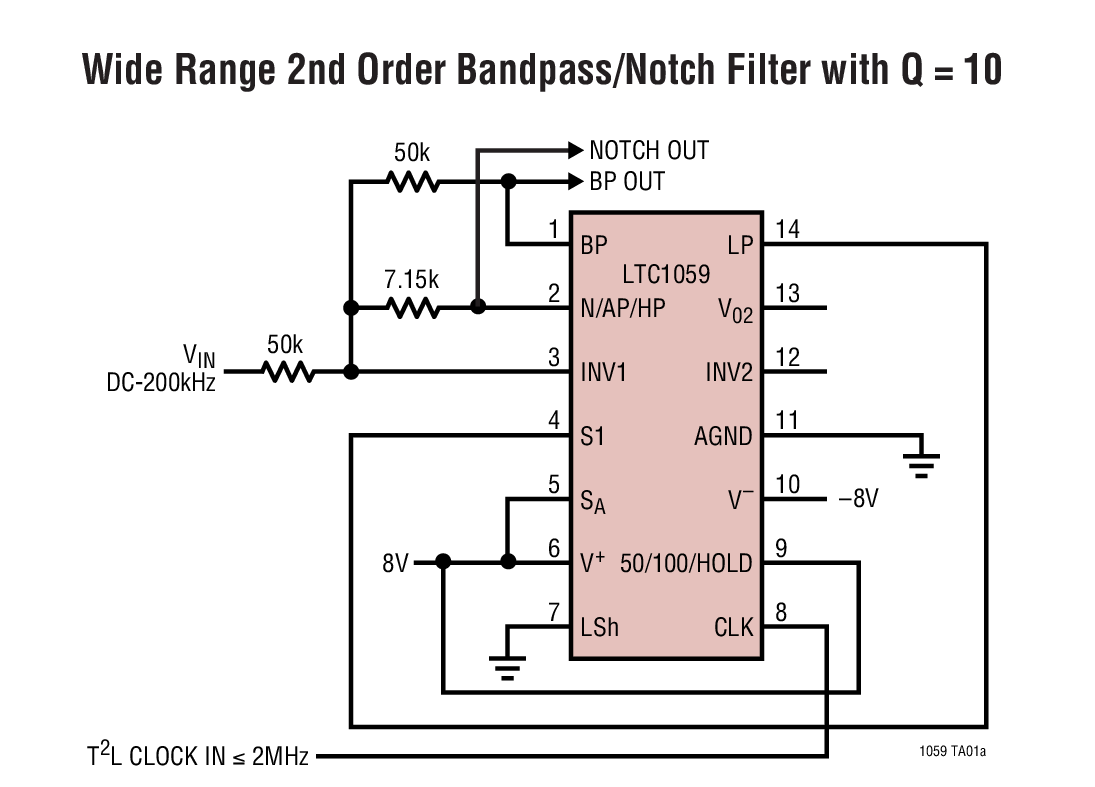

- Sweepable Bandpass/Notch Filters
- Full Audio Frequency Filters
- Tracking Filters
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
LTC1059
Documentation
Filters
1 Applied
-
All
-
Application Note
-
Data Sheet
-
Reliability Data
-
All
-
English
Data Sheet
1
Application Note
2
Reliability Data
1
21.25 K
Documentation
Data Sheet 1
Reliability Data 1
Application Note 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC1059CN#PBF |

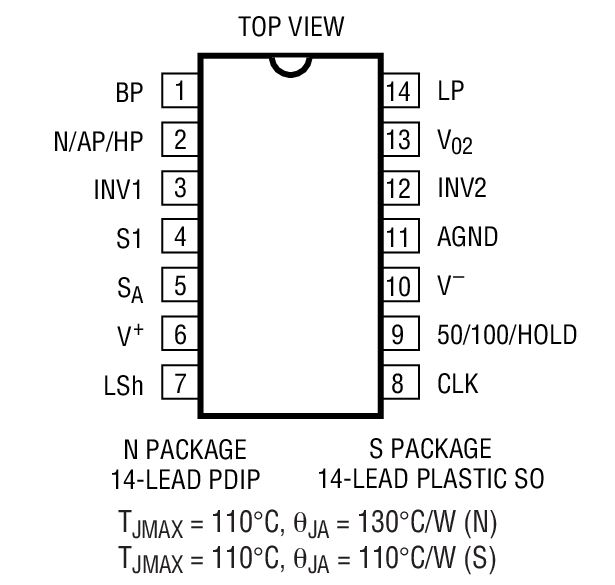

14-Lead PDIP (Narrow 0.3 Inch)
|
|
|
