LT8710

Synchronous SEPIC/Inverting/Boost Controller with Output Current Control

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 4
1ku List Price Starting From $4.09
Features
  • Wide Input Range: 4.5V to 80V
  • Rail-to-Rail Output Current Monitor and Control
  • Input Voltage Regulation for High Impedance Inputs
  • C/10 or Power Good Indication Pin
  • MODE Pin for Forced CCM or Pulse-Skipping Operation
  • Switching Frequency Up to 750kHz
  • Easily Configurable as a Boost, SEPIC, Inverting or Flyback Converter with Single Feedback Pin
  • Can Be Synchronized to External Clock
  • High Gain EN/FBIN Pin Accepts Slowly Varying Input Signals

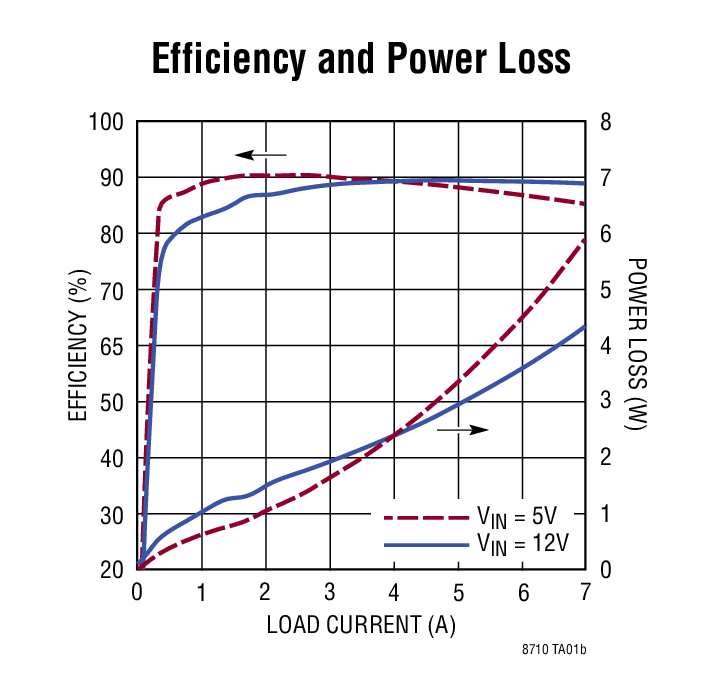

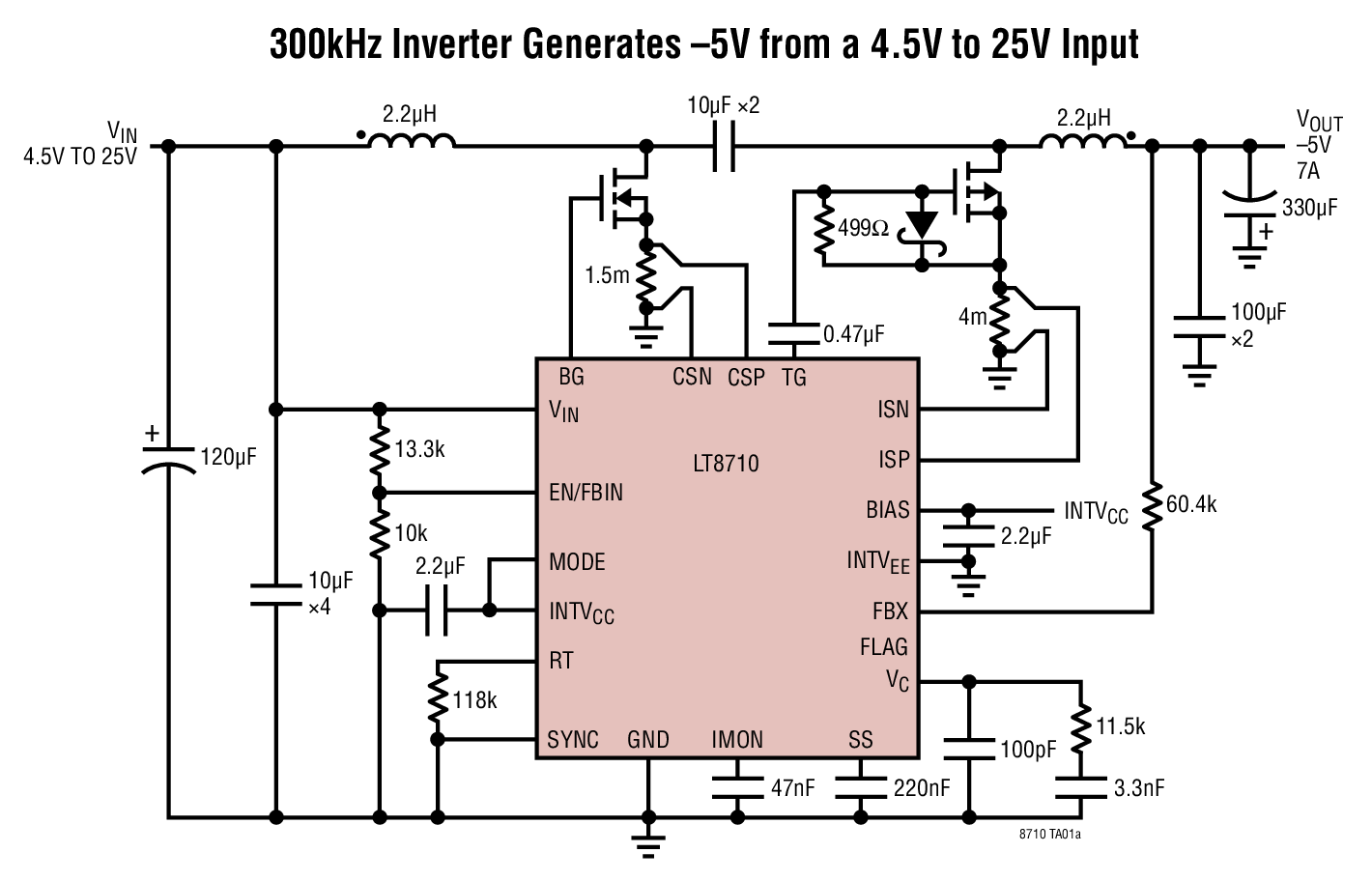

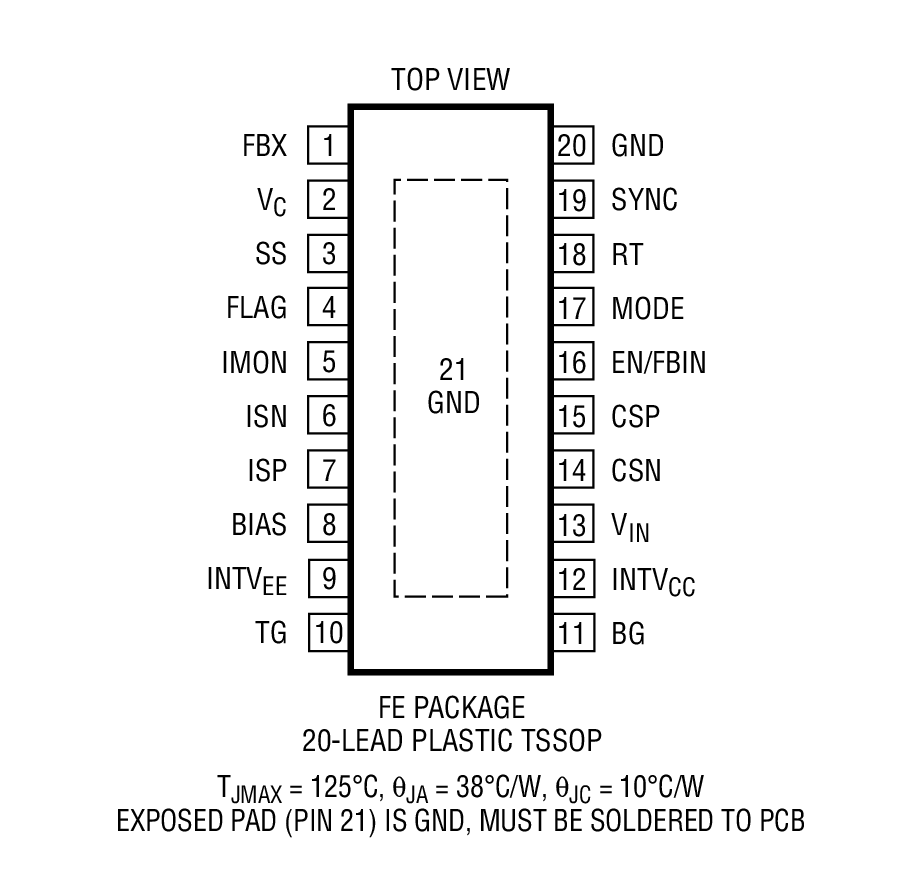

  • 20-Lead TSSOP Package
Additional Details
show more Icon

The LT8710 is a synchronous PWM DC/DC controller with a rail-to-rail output current monitor and control. The LT8710 is ideal for many types of power supply topologies and can be easily configured for boost, SEPIC, inverting, or flyback configurations.

The LT8710’s rail-to-rail output current monitor and control allows the part to be configured in current limited applications such as battery charging. The FLAG pin can be used as a power good indication or C/10 indication allowing for accurate bulk and float battery voltages.

The LT8710’s switching frequency range can be set between 100kHz and 750kHz using an external resistor or synchronized to an external clock.

The LT8710 also features innovative EN/FBIN pin circuitry that allows for slowly varying input signals and an adjustable undervoltage lockout function. The pin is also used for input voltage regulation to avoid collapsing a high impedance input supply. Additional features such as frequency foldback and soft-start are integrated. The LT8710 is available in a 20-lead TSSOP package.

Applications

  • High Power Local Power Supply
  • Wide Input Voltage Range SEPIC/Inverting
  • Lead Acid Battery Charger
  • Automotive Engine Control Unit (ECU) Power
  • Solar Panel Power Converter
Part Models 4
1ku List Price Starting From $4.09

close icon

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT8710EFE#PBF
  • HTML
  • HTML
LT8710EFE#TRPBF
  • HTML
  • HTML
LT8710IFE#PBF
  • HTML
  • HTML
LT8710IFE#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT8710EFE#PBF

PRODUCTION

LT8710EFE#TRPBF

PRODUCTION

LT8710IFE#PBF

PRODUCTION

LT8710IFE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT8710EFE#PBF

PRODUCTION

LT8710EFE#TRPBF

PRODUCTION

LT8710IFE#PBF

PRODUCTION

LT8710IFE#TRPBF

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 1

reference details image

DC2067A

LT8710EFE Inverting Demo Board | 4.5V ≤ VIN ≤ 28V; VOUT: -5V @ 6A

zoom

DC2067A

LT8710EFE Inverting Demo Board | 4.5V ≤ VIN ≤ 28V; VOUT: -5V @ 6A

LT8710EFE Inverting Demo Board | 4.5V ≤ VIN ≤ 28V; VOUT: -5V @ 6A

Product Detail

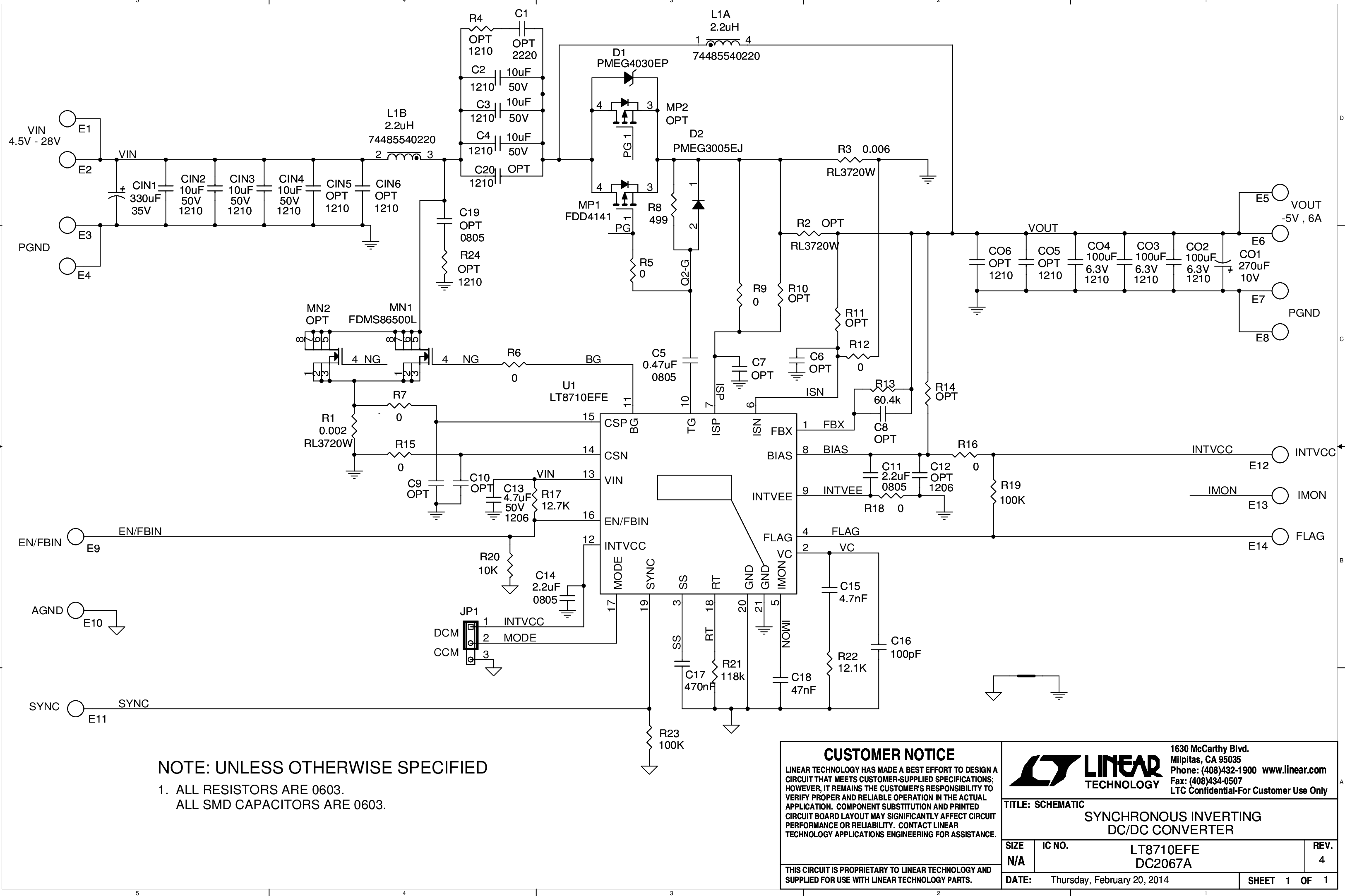

Demonstration circuit 2067A is a synchronous inverting converter (CUK topology) featuring the LT8710 switching controller. It regulates a –5V, 6A output from a 4.5V to 28V input source, and operates at 300kHz switching frequency. The LT8710 features simple negative or positive output voltage programming. The DC2067 programs a –5V output with a single resistor.

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
