LT8630

100V, 0.6A Synchronous Micropower Step-Down High Efficiency Switching Regulator

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 4
1ku List Price Starting From $4.31
Features
  • Ultrawide Input Voltage Range: 3V to 100V
  • Boundary Mode Switching for Highest Efficiency
  • Output Voltage Range: 0.8V to 60V
  • Internal Synchronous Switches
  • Burst Mode® Operation:
    • 16μA IQ at 12VIN to 5VOUT
    • 7μA IQ at 48VIN to 5VOUT
  • Low Dropout: 99% Maximum Duty Cycle
  • Peak Current Mode Control
  • Programmable Undervoltage Lockout
  • Power Good Flag
  • Flexible Output Voltage Tracking
  • Short-Circuit Protection
  • Low Shutdown Current: 5μA
  • Tolerates Pin Open/Short Faults

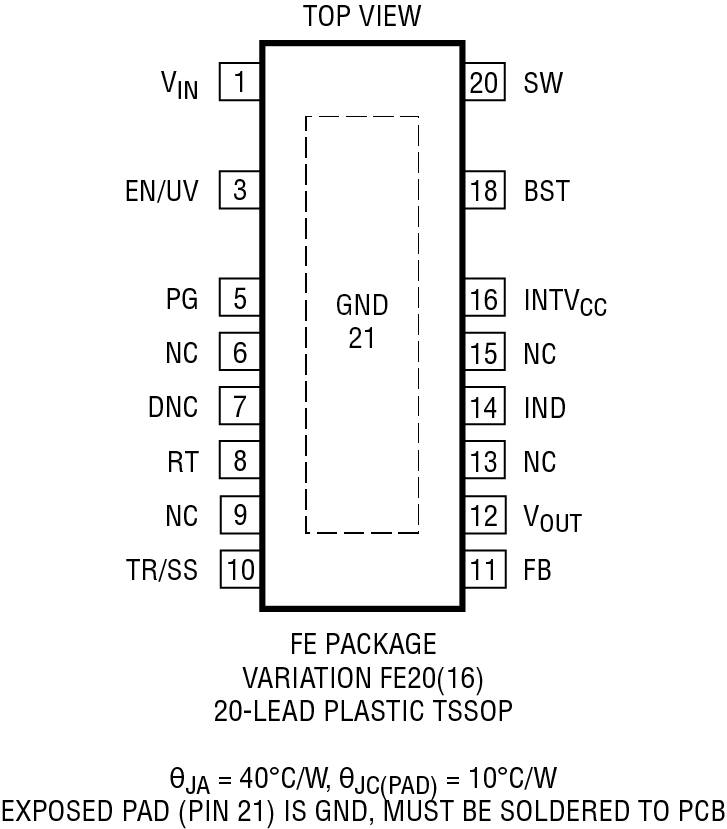

  • Thermally Enhanced 20-Lead TSSOP with High Voltage Lead Spacing
Additional Details
show more Icon

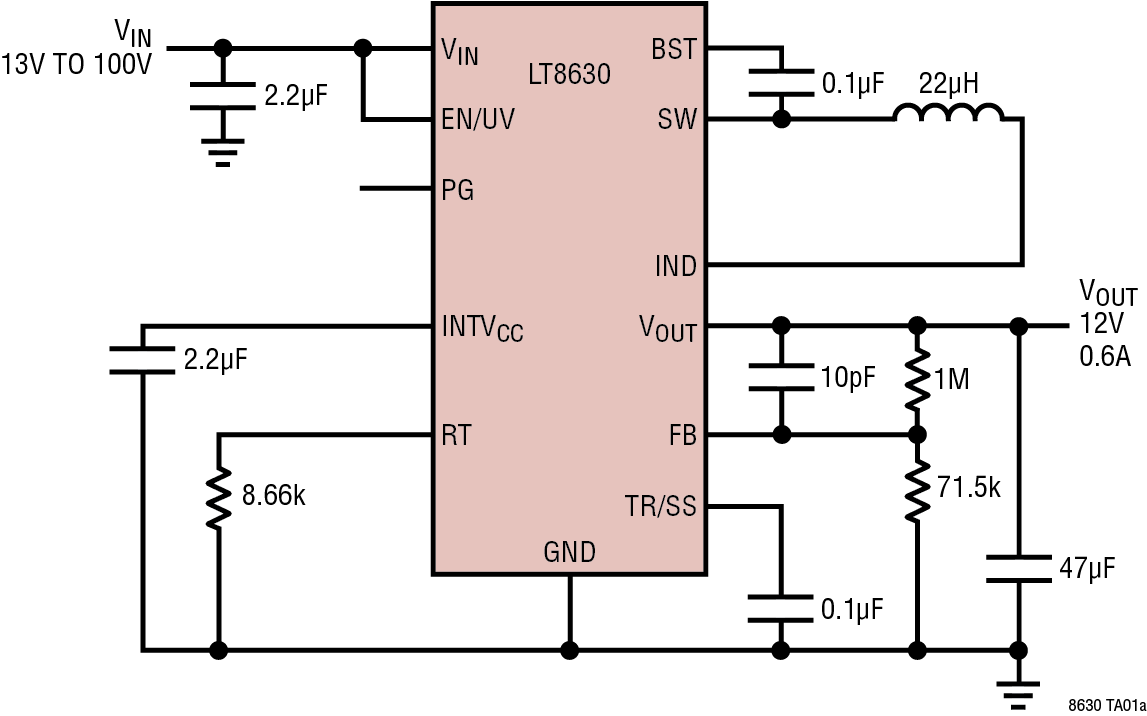

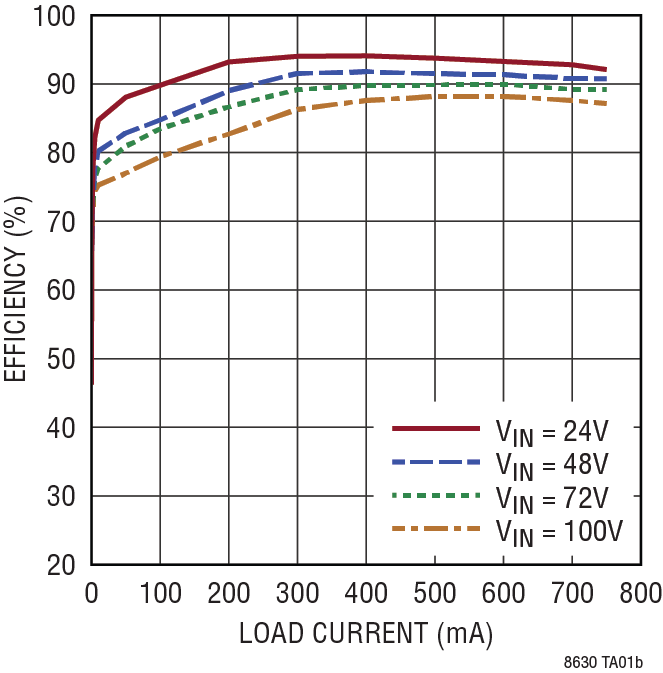

The LT8630 is a current mode PWM step-down DC/DC converter with internal synchronous switches that provide current for output loads up to 0.6A. The wide input range of 3V to 100V makes the LT8630 suitable for regulating power from a wide variety of sources, including automotive and industrial systems and 36V to 72V telecom supplies. Variable frequency boundary mode switching maximizes efficiency across a wide range of input voltages. Low ripple Burst Mode operation enables high efficiency operation down to very low output currents while keeping the output ripple below 5mV. The soft-start feature controls the ramp rate of the output voltage, eliminating input current surge during start-up, while also providing output tracking. A power good flag signals when the output voltage is within ±7.5% of the regulated output. Undervoltage lockout can be programmed using the EN/UV pin. Shutdown mode reduces the total quiescent current to < 5μA. The LT8630 is available in a 20-lead TSSOP package with exposed pad for low thermal resistance and high voltage lead spacing.

APPLICATIONS

  • Telecom Supplies
  • Distributed Supply Regulation
Part Models 4
1ku List Price Starting From $4.31

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT8630EFE#PBF
  • HTML
  • HTML
LT8630EFE#TRPBF
  • HTML
  • HTML
LT8630IFE#PBF
  • HTML
  • HTML
LT8630IFE#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT8630EFE#PBF

PRODUCTION

LT8630EFE#TRPBF

PRODUCTION

LT8630IFE#PBF

PRODUCTION

LT8630IFE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT8630EFE#PBF

PRODUCTION

LT8630EFE#TRPBF

PRODUCTION

LT8630IFE#PBF

PRODUCTION

LT8630IFE#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

DC2504A

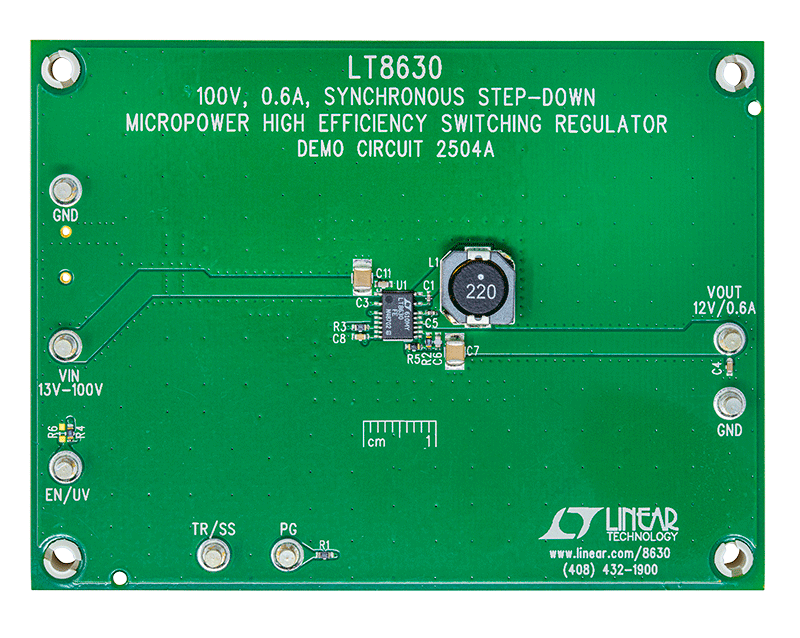

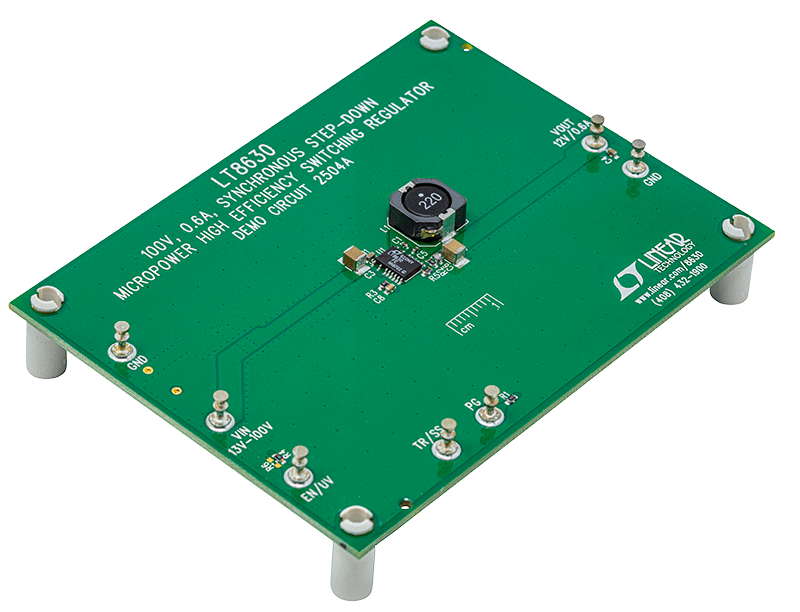

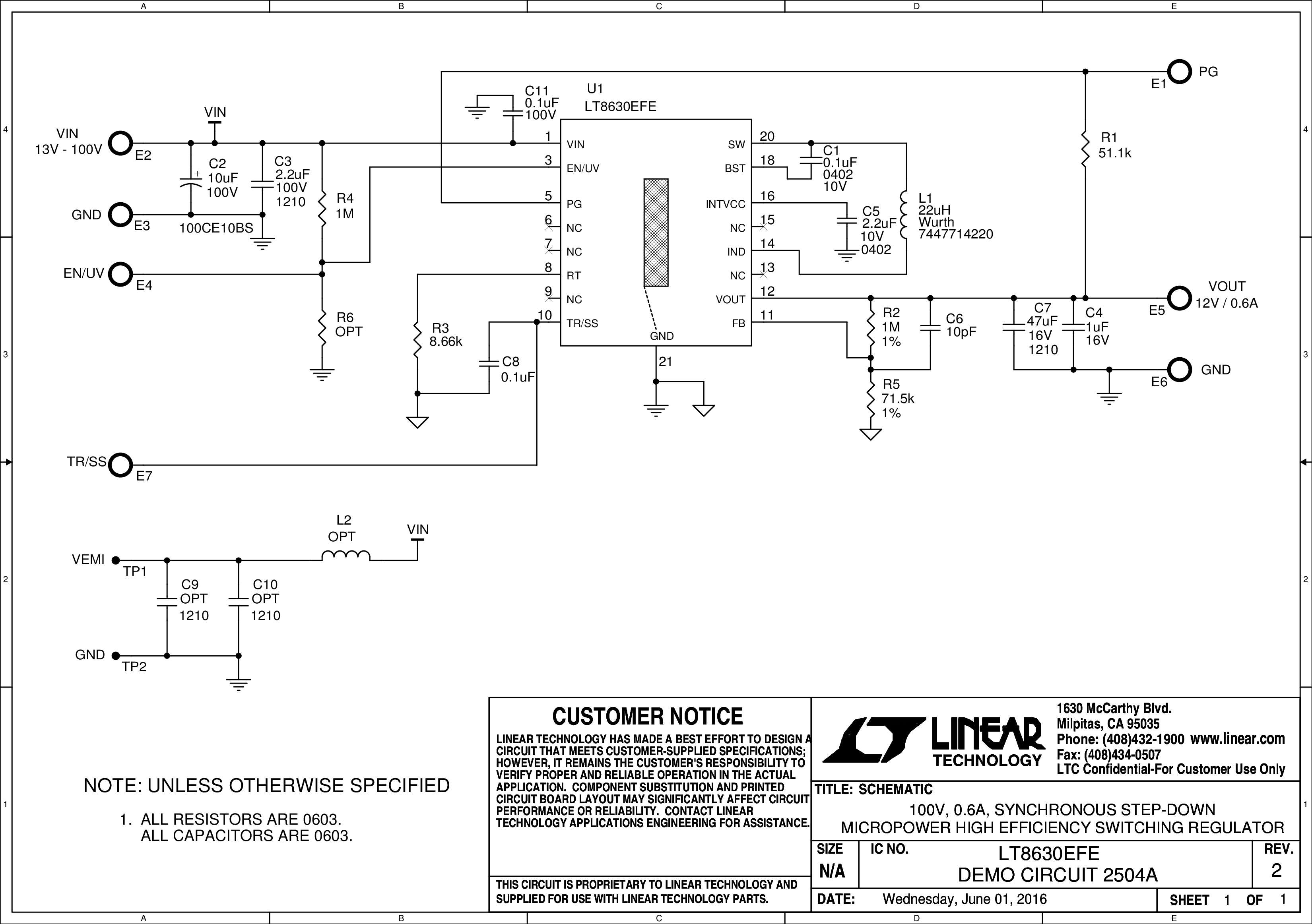

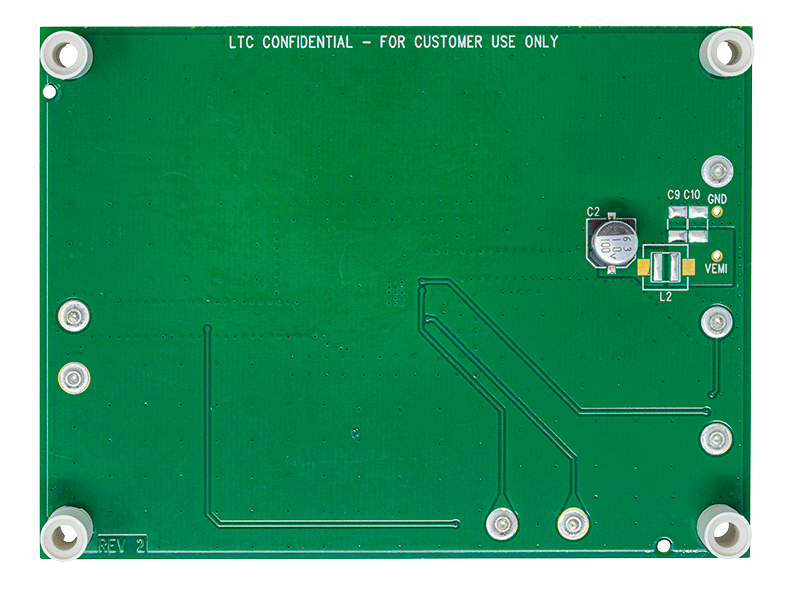

LT8630 Demo Board | Synchronous Buck, 13V ≤ VIN ≤ 100V, VOUT = 12V @ 600mA

zoom

DC2504A

LT8630 Demo Board | Synchronous Buck, 13V ≤ VIN ≤ 100V, VOUT = 12V @ 600mA

LT8630 Demo Board | Synchronous Buck, 13V ≤ VIN ≤ 100V, VOUT = 12V @ 600mA

Product Detail

Demonstration circuit 2504A is a step-down converter featuring LT8630. The LT8630 is a monolithic, variable frequency, current mode synchronous step-down switching regulator. The demo board is designed for 12V output from a 13V to 100V input. The wide input range makes it suitable for regulating power from a variety of sources, including automotive, industrial systems and telecom supplies. The power switch, compensation and other necessary circuits are inside of the LT8630 to minimize external components and simplify design.
