LT8570

Boost/SEPIC/Inverting DC/DC Converter with 65V Switch, Soft-Start and Synchronization

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 24
1ku List Price Starting From $2.72
Features
  • 65V Power Switch
  • Current Limit Options of 0.5A (LT8570) or 0.25A (LT8570-1)
  • Adjustable Switching Frequency
  • Single Feedback Resistor Sets VOUT
  • Synchronizable to External Clock
  • High Gain SHDN Pin Accepts Slowly Varying Input Signals
  • Wide Input Voltage Range: 2.55V to 40V
  • Low VCESAT Switch
  • Integrated Soft-Start Function
  • Easily Configurable as a Boost, SEPIC, or Inverting Converter
  • User Configurable Undervoltage Lockout (UVLO)
  • Pin Compatible with LT3580 and LT8580

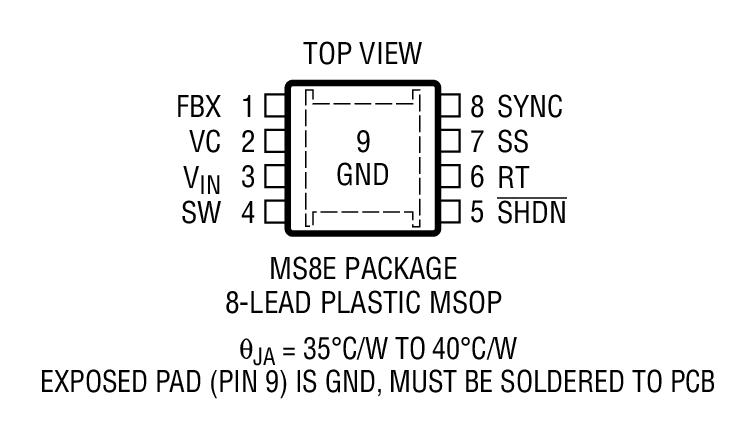

  • Tiny Thermally Enhanced 8-Lead 3mm × 3mm DFN and 8-Lead MSOP Packages
Additional Details
show more Icon

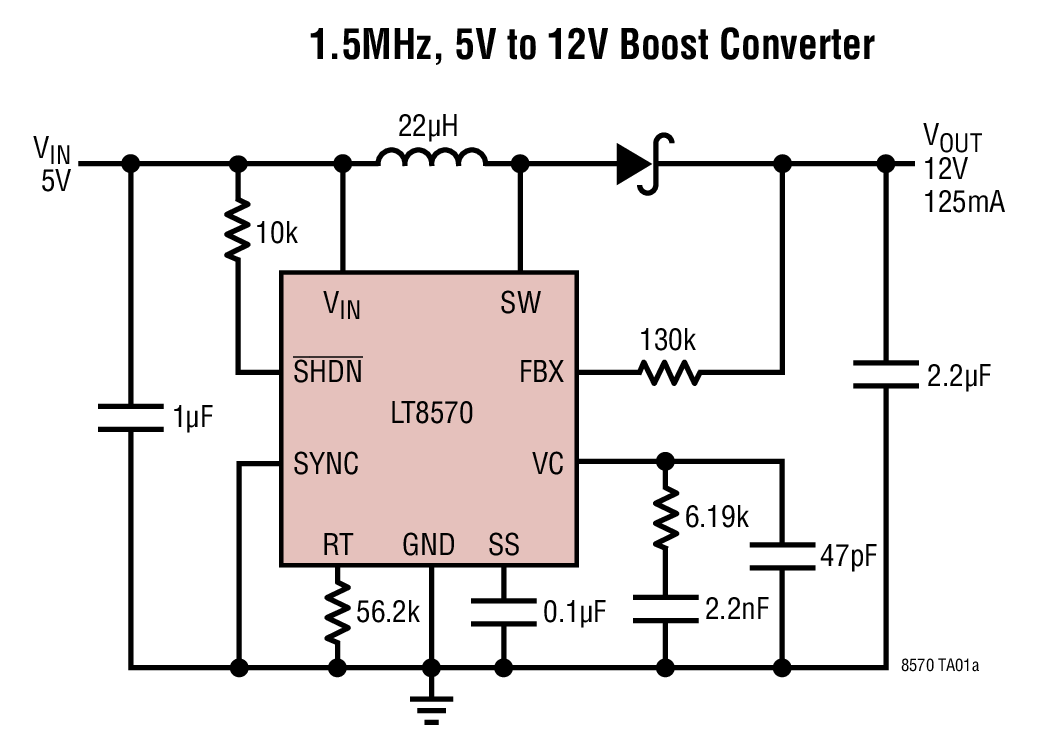

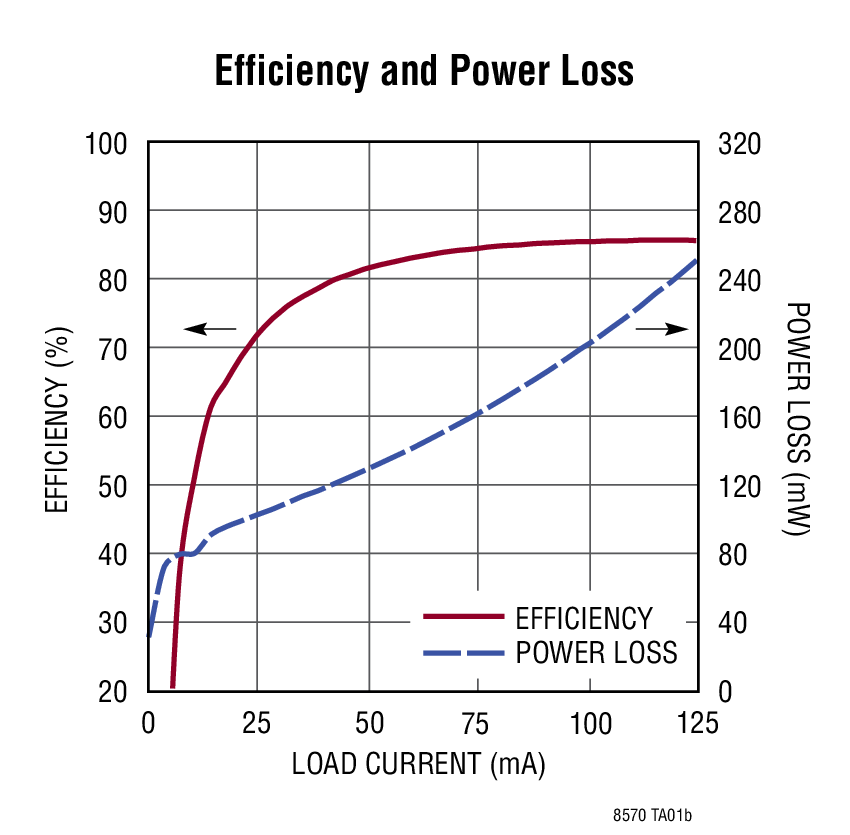

The LT8570 and LT8570-1 are PWM DC/DC converters. The LT8570 contains a 0.5A, 65V power switch, while the LT8570-1 contains a 0.25A, 65V power switch. The LT8570 and LT8570-1 can be configured as either a boost, SEPIC or inverting converter.

The LT8570/LT8570-1 have an adjustable oscillator, set by a resistor from the RT pin to ground. Additionally, the LT8570/LT8570-1 can be synchronized to an external clock. The switching frequency of the part may be free running or synchronized, and can be set between 200kHz and 1.5MHz.

The LT8570/LT8570-1 also feature innovative SHDN pin circuitry that allows for slowly varying input signals and an adjustable undervoltage lockout function.

Additional features such as frequency foldback and softstart are integrated. The LT8570/LT8570-1 are available in tiny thermally enhanced 3mm × 3mm 8-lead DFN and 8-lead MSOP packages.

Applications

  • VFD Bias Supplies
  • TFT-LCD Bias Supplies
  • GPS Receivers
  • DSL Modems
  • Local Power Supply
Part Models 24
1ku List Price Starting From $2.72

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT8570EDD#PBF
  • HTML
  • HTML
LT8570EDD#TRPBF
  • HTML
  • HTML
LT8570EDD-1#PBF
  • HTML
  • HTML
LT8570EDD-1#TRPBF
  • HTML
  • HTML
LT8570EMS8E#PBF
  • HTML
  • HTML
LT8570EMS8E#TRPBF
  • HTML
  • HTML
LT8570EMS8E-1#PBF
  • HTML
  • HTML
LT8570EMS8E-1#TRPBF
  • HTML
  • HTML
LT8570HDD#PBF
  • HTML
  • HTML
LT8570HDD#TRPBF
  • HTML
  • HTML
LT8570HDD-1#PBF
  • HTML
  • HTML
LT8570HDD-1#TRPBF
  • HTML
  • HTML
LT8570HMS8E#PBF
  • HTML
  • HTML
LT8570HMS8E#TRPBF
  • HTML
  • HTML
LT8570HMS8E-1#PBF
  • HTML
  • HTML
LT8570HMS8E-1#TRPBF
  • HTML
  • HTML
LT8570IDD#PBF
  • HTML
  • HTML
LT8570IDD#TRPBF
  • HTML
  • HTML
LT8570IDD-1#PBF
  • HTML
  • HTML
LT8570IDD-1#TRPBF
  • HTML
  • HTML
LT8570IMS8E#PBF
  • HTML
  • HTML
LT8570IMS8E#TRPBF
  • HTML
  • HTML
LT8570IMS8E-1#PBF
  • HTML
  • HTML
LT8570IMS8E-1#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 3, 2020

- 20_0128

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LT8570EMS8E#PBF

PRODUCTION

LT8570EMS8E#TRPBF

PRODUCTION

LT8570EMS8E-1#PBF

PRODUCTION

LT8570EMS8E-1#TRPBF

PRODUCTION

LT8570HMS8E#PBF

PRODUCTION

LT8570HMS8E-1#PBF

PRODUCTION

LT8570IMS8E#PBF

PRODUCTION

LT8570IMS8E#TRPBF

PRODUCTION

LT8570IMS8E-1#PBF

PRODUCTION

LT8570IMS8E-1#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 3, 2020

- 20_0128

arrow down

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LT8570EMS8E#PBF

PRODUCTION

LT8570EMS8E#TRPBF

PRODUCTION

LT8570EMS8E-1#PBF

PRODUCTION

LT8570EMS8E-1#TRPBF

PRODUCTION

LT8570HMS8E#PBF

PRODUCTION

LT8570HMS8E-1#PBF

PRODUCTION

LT8570IMS8E#PBF

PRODUCTION

LT8570IMS8E#TRPBF

PRODUCTION

LT8570IMS8E-1#PBF

PRODUCTION

LT8570IMS8E-1#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

DC2297A-A

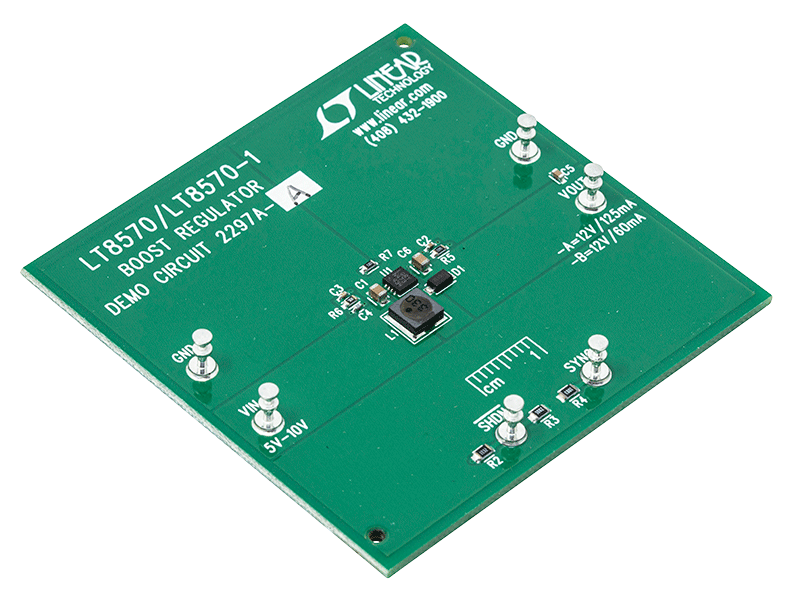

LT8570EDD Demo Board | Boost, 65V Power Switch, 5V ≤ VIN ≤ 10V, VOUT = 12V @ 125mA
