LT8361

Low IQ Boost/SEPIC/Inverting Converter with 2A, 100V Switch

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 12
1ku List Price Starting From $2.43
Features
  • Wide Input Voltage Range: 2.8V to 60V
  • Ultralow Quiescent Current and Low Ripple Burst Mode® Operation: IQ = 9μA
  • 2A, 100V Power Switch
  • Positive or Negative Output Voltage Programming with a Single Feedback Pin
  • Programmable Frequency (300kHz to 2MHz)
  • Synchronizable to an External Clock
  • Spread Spectrum Frequency Modulation for Low EMI
  • BIAS Pin for Higher Efficiency
  • Programmable Undervoltage Lockout (UVLO)
  • Thermally Enhanced 16-lead MSOP packages
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

The LT8361 is a current mode DC/DC converter with a 100V, 2A switch operating from a 2.8V to 60V input. With a unique single feedback pin architecture it is capable of boost, SEPIC or inverting configurations. Burst Mode operation consumes as low as 9μA quiescent current to maintain high efficiency at very low output currents, while keeping typical output ripple below 15mV.

An external compensation pin allows optimization of loop bandwidth over a wide range of input and output voltages and programmable switching frequencies between 300kHz and 2MHz. A SYNC/MODE pin allows synchronization to an external clock. It can also be used to select between burst or pulse-skip modes of operation with or without Spread Spectrum Frequency Modulation for low EMI. For increased efficiency, a BIAS pin can accept a second input to supply the INTVCC regulator. Additional features include frequency foldback and programmable soft-start to control inductor current during startup.

The LT8361 is available in a thermally enhanced 16-lead MSOP package with four pins removed for high voltage pin spacings.

APPLICATIONS

  • Industrial and Automotive
  • Telecom
  • Medical Diagnostic Equipment
  • Portable Electronics
Part Models 12
1ku List Price Starting From $2.43

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT8361EMSE#PBF
  • HTML
  • HTML
LT8361EMSE#TRPBF
  • HTML
  • HTML
LT8361EMSE#WPBF
  • HTML
  • HTML
LT8361EMSE#WTRPBF
  • HTML
  • HTML
LT8361HMSE#PBF
  • HTML
  • HTML
LT8361HMSE#TRPBF
  • HTML
  • HTML
LT8361HMSE#WPBF
  • HTML
  • HTML
LT8361HMSE#WTRPBF
  • HTML
  • HTML
LT8361IMSE#PBF
  • HTML
  • HTML
LT8361IMSE#TRPBF
  • HTML
  • HTML
LT8361IMSE#WPBF
  • HTML
  • HTML
LT8361IMSE#WTRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LT8361EMSE#PBF

PRODUCTION

LT8361EMSE#TRPBF

PRODUCTION

LT8361EMSE#WPBF

LT8361EMSE#WTRPBF

LT8361HMSE#PBF

PRODUCTION

LT8361HMSE#TRPBF

PRODUCTION

LT8361HMSE#WPBF

LT8361HMSE#WTRPBF

LT8361IMSE#PBF

PRODUCTION

LT8361IMSE#TRPBF

PRODUCTION

LT8361IMSE#WPBF

LT8361IMSE#WTRPBF

Feb 4, 2020

- 20_0129

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LT8361EMSE#PBF

PRODUCTION

LT8361EMSE#TRPBF

PRODUCTION

LT8361HMSE#PBF

PRODUCTION

LT8361HMSE#TRPBF

PRODUCTION

LT8361IMSE#PBF

PRODUCTION

LT8361IMSE#TRPBF

PRODUCTION

Dec 9, 2019

- 19_0278

LT8361 Data sheet limit changes.

LT8361EMSE#PBF

PRODUCTION

LT8361EMSE#TRPBF

PRODUCTION

LT8361HMSE#PBF

PRODUCTION

LT8361HMSE#TRPBF

PRODUCTION

LT8361IMSE#PBF

PRODUCTION

LT8361IMSE#TRPBF

PRODUCTION

Apr 11, 2019

- 19_0067

Notification of Wafer Fab Location Change for 0.35 BCD Process

LT8361EMSE#PBF

PRODUCTION

LT8361EMSE#TRPBF

PRODUCTION

LT8361HMSE#PBF

PRODUCTION

LT8361HMSE#TRPBF

PRODUCTION

LT8361IMSE#PBF

PRODUCTION

LT8361IMSE#TRPBF

PRODUCTION

Jun 21, 2022

- 22_0050

UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LT8361EMSE#PBF

PRODUCTION

LT8361EMSE#TRPBF

PRODUCTION

LT8361EMSE#WPBF

LT8361EMSE#WTRPBF

LT8361HMSE#PBF

PRODUCTION

LT8361HMSE#TRPBF

PRODUCTION

LT8361HMSE#WPBF

LT8361HMSE#WTRPBF

LT8361IMSE#PBF

PRODUCTION

LT8361IMSE#TRPBF

PRODUCTION

LT8361IMSE#WPBF

LT8361IMSE#WTRPBF

Feb 4, 2020

- 20_0129

arrow down

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LT8361EMSE#PBF

PRODUCTION

LT8361EMSE#TRPBF

PRODUCTION

LT8361HMSE#PBF

PRODUCTION

LT8361HMSE#TRPBF

PRODUCTION

LT8361IMSE#PBF

PRODUCTION

LT8361IMSE#TRPBF

PRODUCTION

Dec 9, 2019

- 19_0278

arrow down

LT8361 Data sheet limit changes.

LT8361EMSE#PBF

PRODUCTION

LT8361EMSE#TRPBF

PRODUCTION

LT8361HMSE#PBF

PRODUCTION

LT8361HMSE#TRPBF

PRODUCTION

LT8361IMSE#PBF

PRODUCTION

LT8361IMSE#TRPBF

PRODUCTION

Apr 11, 2019

- 19_0067

arrow down

Notification of Wafer Fab Location Change for 0.35 BCD Process

LT8361EMSE#PBF

PRODUCTION

LT8361EMSE#TRPBF

PRODUCTION

LT8361HMSE#PBF

PRODUCTION

LT8361HMSE#TRPBF

PRODUCTION

LT8361IMSE#PBF

PRODUCTION

LT8361IMSE#TRPBF

PRODUCTION

Jun 21, 2022

- 22_0050

arrow down

UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices

Software & Part Ecosystem

Evaluation Kits 1

reference details image

DC2599A

LT8361 Demo Board | SEPIC, VIN = 4.5V to 48, VOUT= 24V @ up to 600mA

zoom

DC2599A

LT8361 Demo Board | SEPIC, VIN = 4.5V to 48, VOUT= 24V @ up to 600mA

LT8361 Demo Board | SEPIC, VIN = 4.5V to 48, VOUT= 24V @ up to 600mA

Product Detail

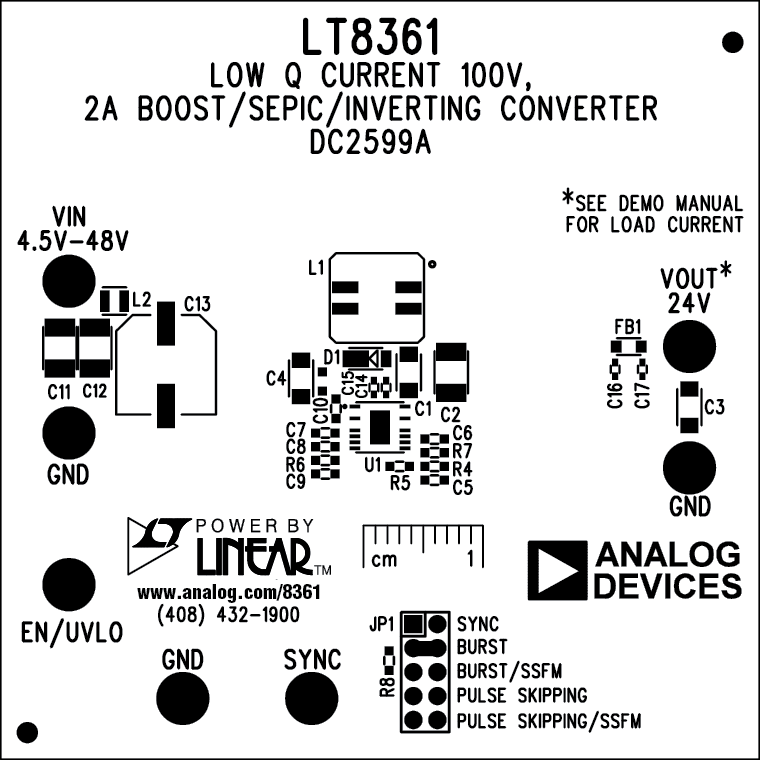

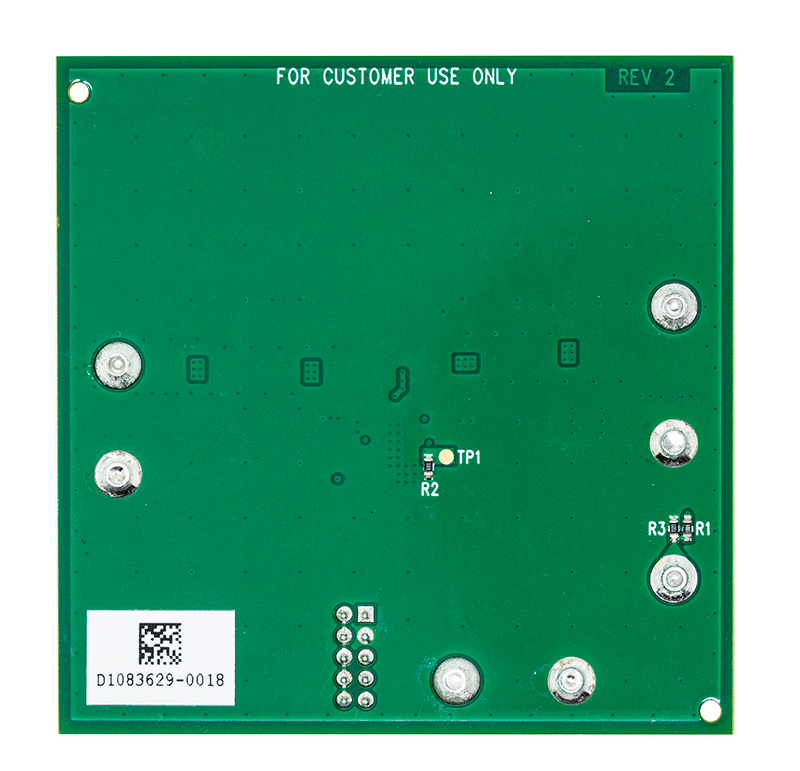

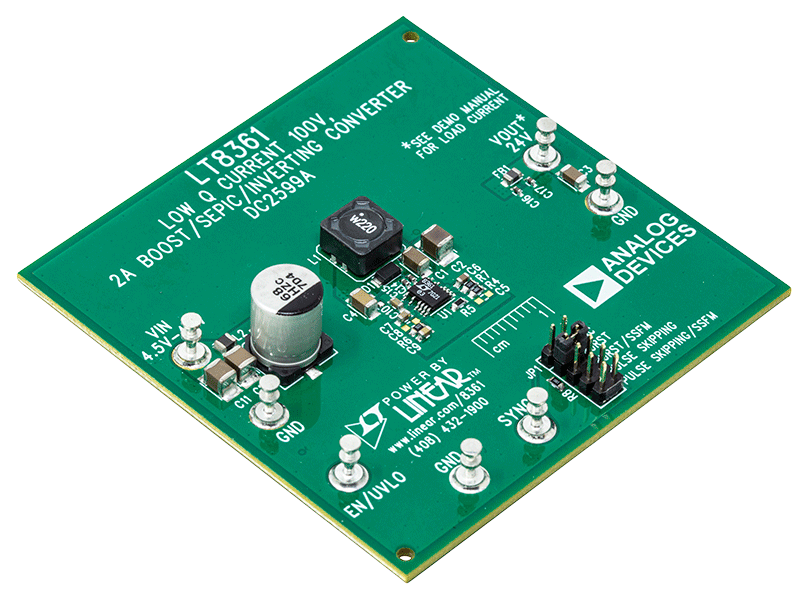

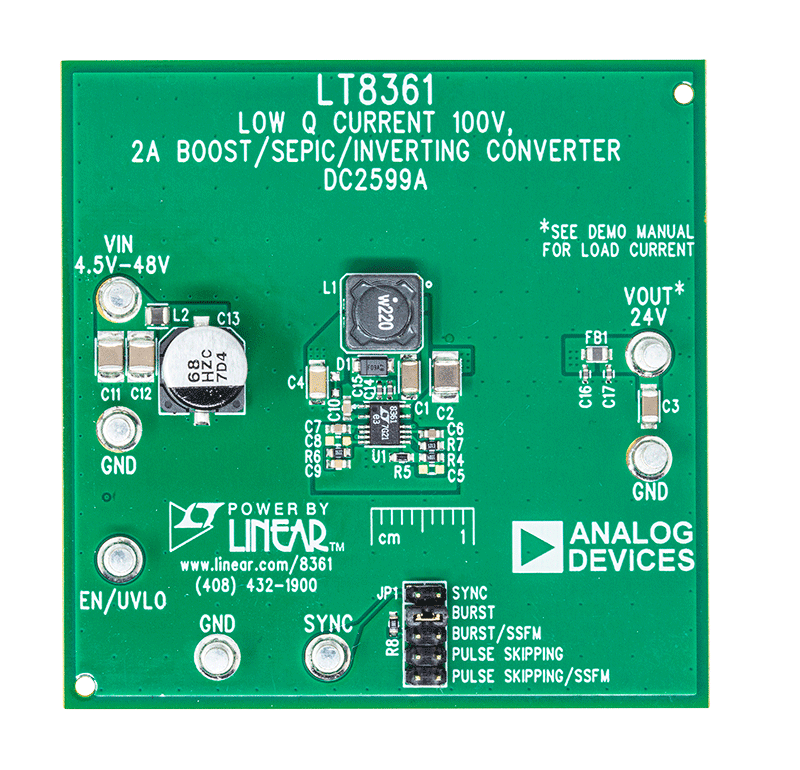

Demonstration circuit 2599A features the LT8361 in a SEPIC configuration. It operates with a switching frequency of 400kHz and is designed to convert a 4.5V to 48V source to 24V, with up to 600mA output current (depending on input voltage).

The LT8361 can operate with inputs as high as 60V. However, in this demo circuit, the input is limited by the voltage rating of the input capacitors.

The demo board contains a selectable jumper, JP1, to aid in the selection of the desired Sync pin mode of operation. The default setting is Burst Mode® operation.

This layout is optimized for good EMI performance and small solution size. Input and output filters and an optimized power switching loop, comprised of C20 and C21 are necessary to pass CISPR 25 Class 5 emissions, and are added by default. These components can be excluded in applications not requiring noise immunity.

The data sheet gives a complete description of the device, operation and application information. The data sheet must be read in conjunction with this demo manual.
