Overview

Features and Benefits

  • 300MHz Bandwidth on Single 5V and ±5V (AV = 1, 2 and –1)
  • 0.1dB Gain Flatness: 150MHz (AV = 1, 2 and –1)
  • High Slew Rate: 800V/µs
  • Wide Supply Range:
    • ±2V to ±6V (Dual Supply)
    • 4V to 12V (Single Supply)
  • 80mA Output Current
  • Low Supply Current: 3.9mA/Amplifier
  • Shutdown Mode
  • Fast Turn-On Time: 30ns
  • Fast Turn-Off Time: 40ns
  • Small 0.75mm Tall 16-Lead 3mm × 3mm QFN Package

Product Details

The LT6559 is a low cost, high speed, triple amplifier that has been optimized for excellent video performance on a single 5V supply, yet fi ts in the small footprint of a 3mm × 3mm QFN package. With a –3dB bandwidth of 300MHz, a 0.1dB bandwidth of 150MHz, and a slew rate of 800V/µs, the LT6559’s dynamic performance is an excellent match for high speed RGB or YPBPR video applications.

 For multiplexing applications such as KVM switches or selectable video inputs, each channel has an independent high speed enable/disable pin. Each amplifier will turn on in 30ns and off in 40ns. When enabled, each amplifier draws 3.9mA from a 5V supply. The LT6559 operates on a single supply voltage ranging from 4V to 12V, and on split supplies ranging from ±2V to ±6V.

 The LT6559 comes in a compact 16-lead 3mm × 3mm QFN package, and operates over a –40°C to 85°C temperature range. The LT6559 is manufactured on Linear Technology’s proprietary complementary bipolar process.

Applications

  • RGB/YPBPR Cable Drivers
  • LCD Projectors
  • KVM Switches
  • A/V Receivers
  • MUX Amplifiers
  • Composite Video Cable Drivers
  • ADC Drivers

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

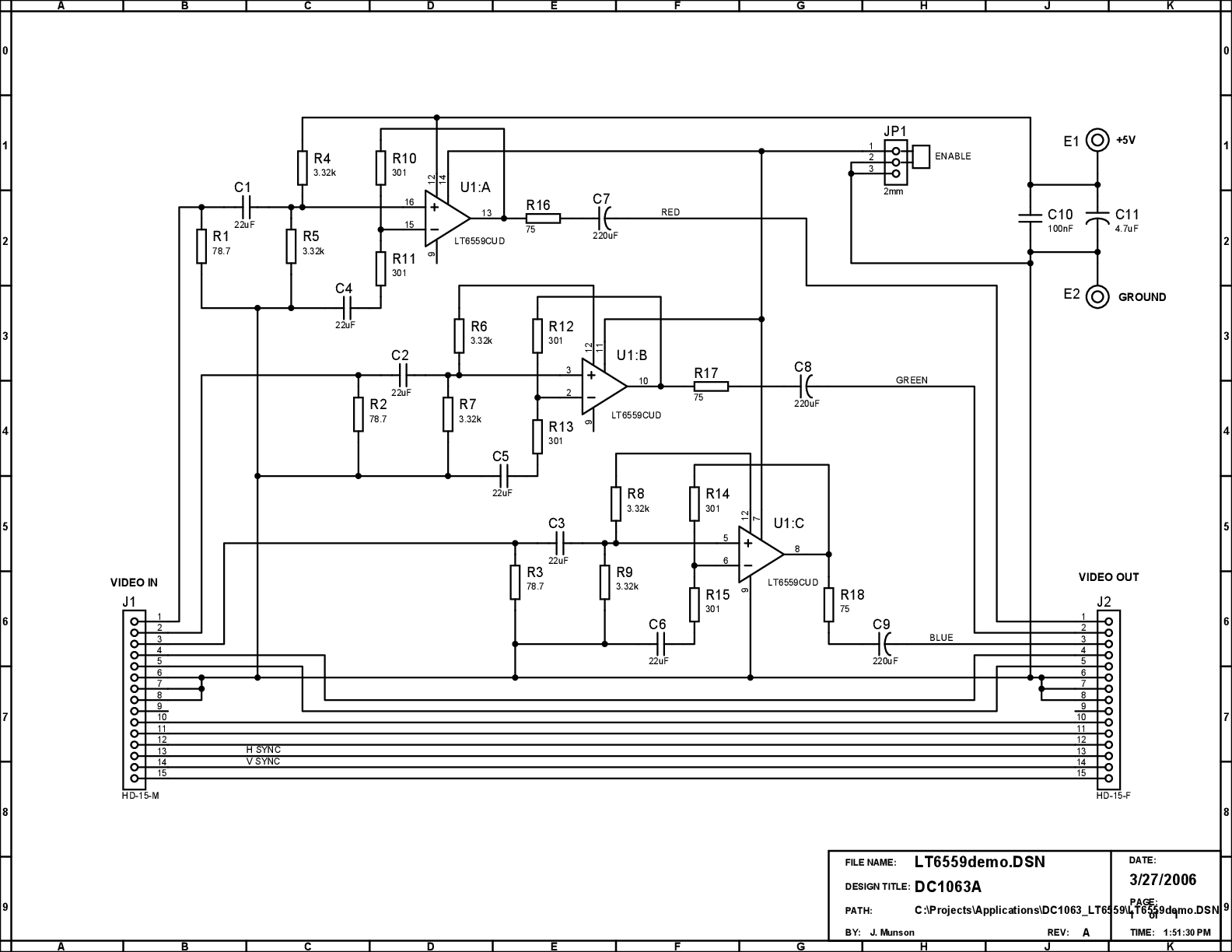

Evaluation Kits (1)

Documentation & Resources

  • View All (3)
  • Data Sheet (1)
  • Reliability Data (1)
  • User Guide (1)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    LT6559

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LT6559CUD#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LT6559CUD#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    Wafer Fabrication Data R273 Reliability Data
