LT6558

550MHz, 2200V/µs Gain of 1, Single Supply Triple Video Amplifier with Input Bias Control

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LT6558 - Operational Amplifiers (Op Amps) Download 1.47 KB
Part Models 8
1ku List Price Starting From $2.73
Features
  • –3dB Small-Signal Bandwidth: 550MHz
  • –3dB 2VP-P Large-Signal Bandwidth: 400MHz
  • Slew Rate: 2200V/µs
  • Fixed Gain of 1, No External Resistors Required
  • AC Coupling with Programmable DC Input Bias
  • Output Swings to 0.8V of Supply Rails
  • Full Video Swing with 5V Single Supply
  • Differential Gain: 0.02%
  • Differential Phase: 0.02°
  • Enable/Shutdown Pin
  • High Output Current: ±90mA
  • Supply Range: 3V to 7.5V
  • Operating Temperature Range: –40°C to 85°C
  • Available in 16-Lead SSOP and 5mm × 3mm DFN Packages
Additional Details
show more Icon

The LT6558 is a high speed triple video amplifier with an internal fixed gain of 1 and a programmable DC input bias voltage. This amplifier features a 400MHz 2VP-P signal bandwidth, 2200V/µs slew rate and a unique ability to drive heavy output loads to 0.8V of the supply rails, making the LT6558 ideal for a single 5V supply, wideband video application. With just one resistor, the inputs of all three amplifiers can be programmed to a common voltage level, simplifying and reducing the need for external circuitry in AC-coupled applications. Without the programming resistor, the input bias circuit becomes inactive, allowing the use of an external clamp circuit or direct coupled input.

The LT6558 has separate power supply and ground pins for each amplifier to improve channel separation and to ease power supply bypassing. The LT6558 provides uncompromised performance in many high speed applications where a low voltage, single supply is required.

The LT6558 is available in 16-lead SSOP and 5mm × 3mm DFN packages.

Applications

  • LCD Video Projectors
  • RGB HD Video Amplifi ers
  • Coaxial Cable Drivers
  • Low Supply ADC Drivers
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LT6558 - Operational Amplifiers (Op Amps) Download 1.47 KB
Part Models 8
1ku List Price Starting From $2.73
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT6558

Documentation

3
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • Data Sheet
  • User Guide
  • All
    TickIcon
  • English
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 11/21/2007
English

LT6558: 550MHz, 2200V/µs Gain of 1, Single Supply Triple Video Amplifier with Input Bias Control Data Sheet

Open PDF File

redirect
210.00K
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R515 Reliability Data redirect icon

35.82 K

download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/24/2009
English
DC1016A - Demo Manual redirect icon

336.00K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT6558CDHC#PBF 16-Lead DFN (5mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT6558CDHC#TRPBF 16-Lead DFN (5mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT6558CGN#PBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT6558CGN#TRPBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT6558IDHC#PBF 16-Lead DFN (5mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT6558IDHC#TRPBF 16-Lead DFN (5mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT6558IGN#PBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT6558IGN#TRPBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0235

Epoxy Change from Henkel 8290 to 8290A for GN Package

LT6558CGN#PBF

PRODUCTION

LT6558CGN#TRPBF

PRODUCTION

LT6558IGN#PBF

PRODUCTION

LT6558IGN#TRPBF

PRODUCTION

pdf

PCN22_0235_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Apr 6, 2022

- 22_0066

Laser Top Mark for 16QSOP Assembled in ADPG [PNG]

LT6558CGN#PBF

PRODUCTION

LT6558CGN#TRPBF

PRODUCTION

LT6558IGN#PBF

PRODUCTION

LT6558IGN#TRPBF

PRODUCTION

pdf

PCN22_0066_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0235

arrow down

Epoxy Change from Henkel 8290 to 8290A for GN Package

LT6558CGN#PBF

PRODUCTION

LT6558CGN#TRPBF

PRODUCTION

LT6558IGN#PBF

PRODUCTION

LT6558IGN#TRPBF

PRODUCTION

pdf

PCN22_0235_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Apr 6, 2022

- 22_0066

arrow down

Laser Top Mark for 16QSOP Assembled in ADPG [PNG]

LT6558CGN#PBF

PRODUCTION

LT6558CGN#TRPBF

PRODUCTION

LT6558IGN#PBF

PRODUCTION

LT6558IGN#TRPBF

PRODUCTION

pdf

PCN22_0066_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

DC1016A-B

LTC6557/LT6558 | 550 MHz Gain of 1 Single Supply Triple Video Amplifier/Differential Driver/Receiver/Programmable Data Acquisition Measurement and Control System

zoom

DC1016A-B

LTC6557/LT6558 | 550 MHz Gain of 1 Single Supply Triple Video Amplifier/Differential Driver/Receiver/Programmable Data Acquisition Measurement and Control System

download icon

Download

 print icon

Print
DC1016A-B
LTC6557/LT6558 | 550 MHz Gain of 1 Single Supply Triple Video Amplifier/Differential Driver/Receiver/Programmable Data Acquisition Measurement and Control System
Buy Now View Details

Product Detail

DC1016A-B Demo Board for:
LT6557 500MHz, 2200V/µs Gain of 2, Single Supply Triple Video Amplifier with Input Bias Control
LT6558 550MHz, 2200V/µs Gain of 1, Single Supply Triple Video Amplifier with Input Bias Control





Resources

pdf icon

PDF

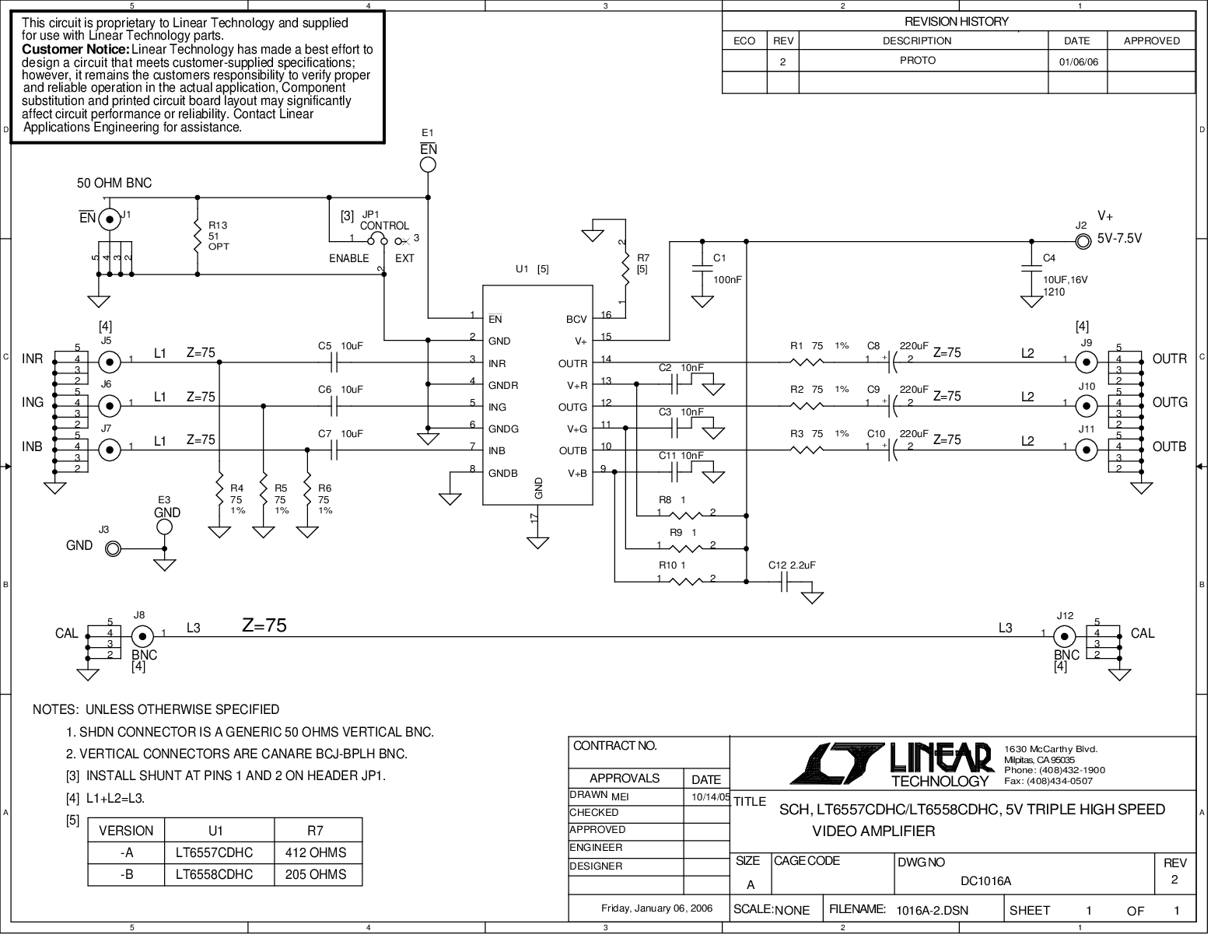

DC1016A - Schematic Download
