  5. LT6300


Features and Benefits

  • Exceeds All Requirements For Full Rate, Downstream ADSL Line Drivers
  • Power Enhanced 16-Lead SSOP Package
  • Power Saving Adjustable Supply Current
  • ±500mA Minimum IOUT
  • ±10.9V Output Swing, VS = ±12V, RL = 100Ω
  • ±10.7V Output Swing, VS = ±12V, IL = 250mA
  • Low Distortion: –82dBc at 1MHz, 2VP-P Into 50Ω
  • 200MHz Gain Bandwidth
  • 600V/µs Slew Rate
  • Specified at ±12V and ±5V

Product Details

The LT6300 is a 500mA minimum output current, dual op amp with outstanding distortion performance. The amplifiers are gain-of-ten stable, but can be easily compensated for lower gains. The extended output swing allows for lower supply rails to reduce system power. Supply current is set with an external resistor to optimize power dissipation. The LT6300 features balanced, high impedance inputs with low input bias current and input offset voltage. Active termination is easily implemented for further system power reduction. Short-circuit protection and thermal shutdown insure the device's ruggedness.

The outputs drive a 100Ω load to ±10.9V with ±12V supplies, and ±10.7V with a 250mA load. The LT6300 is a functional replacement for the LT1739 and LT1794 in xDSL line driver applications and requires no circuit changes.

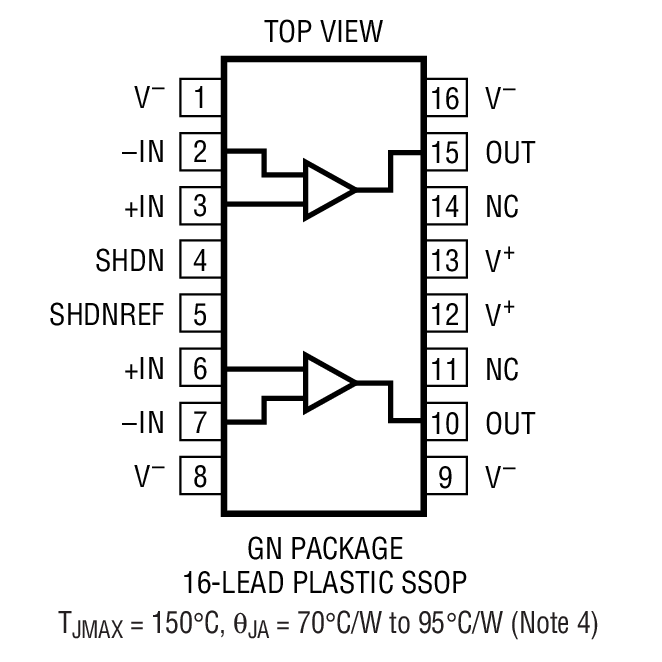

The LT6300 is available in the very small, thermally enhanced, 16-lead SSOP package (same PCB area as the SO-8 package) for maximum port density in line driver applications.


  • High Efficiency ADSL, HDSL2, SHDSL Line Drivers
  • Buffers
  • Test Equipment Amplifiers
  • Cable Drivers

Product Lifecycle icon-not-recommended Not Recommended for New Designs

This designates products ADI does not recommend broadly for new designs.

Tools & Simulations


LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.


Models for the following parts are available in LTspice:


Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
LT6300CGN#PBF Material Declaration Reliability Data 16-Lead SSOP (Narrow 0.15 Inch)
LT6300CGN#TRPBF Material Declaration Reliability Data 16-Lead SSOP (Narrow 0.15 Inch)
LT6300IGN#PBF Material Declaration Reliability Data 16-Lead SSOP (Narrow 0.15 Inch)
LT6300IGN#TRPBF Material Declaration Reliability Data 16-Lead SSOP (Narrow 0.15 Inch)
Wafer Fabrication Data R412 Reliability Data
