Fast Responding, 40MHz to 2.7GHz Mean-Squared Power Detector

NOT RECOMMENDED FOR NEW DESIGNS

NOT RECOMMENDED FOR NEW DESIGNS

40MHz to 2.7GHz Mean-Squared Power Detector slide

Output Voltage, Linearity Error vs Input Power, 25°C (2140 MHz) slide

Product Package 1 slide

40MHz to 2.7GHz Mean-Squared Power Detector

Output Voltage, Linearity Error vs Input Power, 25°C (2140 MHz)

Product Package 1

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Search

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

EngineerZone Icon

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 1

1ku List Price

price unavailable

Features

Frequency Range: 40MHz to 2.7GHz
Accurate RMS Power Measurement of High Crest Factor Modulated Waveforms
Linear DC Output vs Input Power in dBm
Linear Dynamic Range: Up to 60dB
Exceptional Accuracy over Temperature: ±0.3dB
Fast Response Time: 0.5μs Rise Time, 8μs Fall Time
Low Supply Current: 26.5mA
Low Impedance Output Buffer Capable of Driving High Capacitance Load
Small 3mm × 3mm 10-Lead DFN Package

Additional Details

The LT5570 is a 40MHz to 2.7GHz monolithic Logarithmic Mean-Squared RF power detector. It is capable of RMS measurement of an AC signal with wide dynamic range, from –52dBm to 13dBm depending on frequency. The power of the AC signal in an equivalent decibel-scaled value is precisely converted into DC voltage on a linear scale, independent of the crest factor of the waveforms. The LT5570 is suitable for precision RF power measurement and level control for a wide variety of RF standards, including CDMA, W-CDMA, CDMA2000, TD-SCDMA and WiMAX. The DC output is buffered with a low output impedance ampliﬁer capable of driving a high capacitance load.

Applications

RMS Power Measurement
RF Power Control
Receive and Transmit Gain Control
W-CDMA, CDMA2000, TD-SCDMA, WiMAX
RF Instrumentation

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Search

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

EngineerZone Icon

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 1

1ku List Price

price unavailable

{{#if toggleButtonDescription}} {{/if}} {{#if newProjectTitle}} {{/if}}

Technical Documents 3

LT5570: Fast Responding, 40MHz to 2.7GHz Mean-Squared Power Detector Data Sheet 11/13/2007

Show More

DC1077A - Demo Manual 10/06/2009

DC1078A - Demo Manual 09/24/2009

Show More

Design Resources 1

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT5570IDD#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

LT5570IDD#TRPBF
Pin/Package Drawing
10-Lead DFN (3mm x 3mm w/ EP)
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

PCN/PDN Information

Filter by Model

Part Models

Product Lifecycle

PCN

Dec 17, 2021

- 21_0107

Obsolesence of LT5570

LT5570IDD#TRPBF

Obsolete

pdf

PDN21_0107_Form

xls

Material_Report

Filter by Model

Part Models

Product Lifecycle

PCN

Dec 17, 2021

- 21_0107

Obsolesence of LT5570

LT5570IDD#TRPBF

Obsolete

pdf

PDN21_0107_Form

xls

Material_Report

Alternative Parts 1

Parts	Product Life Cycle	Description
LTC5582	PRODUCTION	40MHz to 10GHz RMS Power Detector with 57dB Dynamic Range

reference details image

DC1077A

LT5570IDD | RMS Power Detector for Low Frequency 40MHz to 875MHz

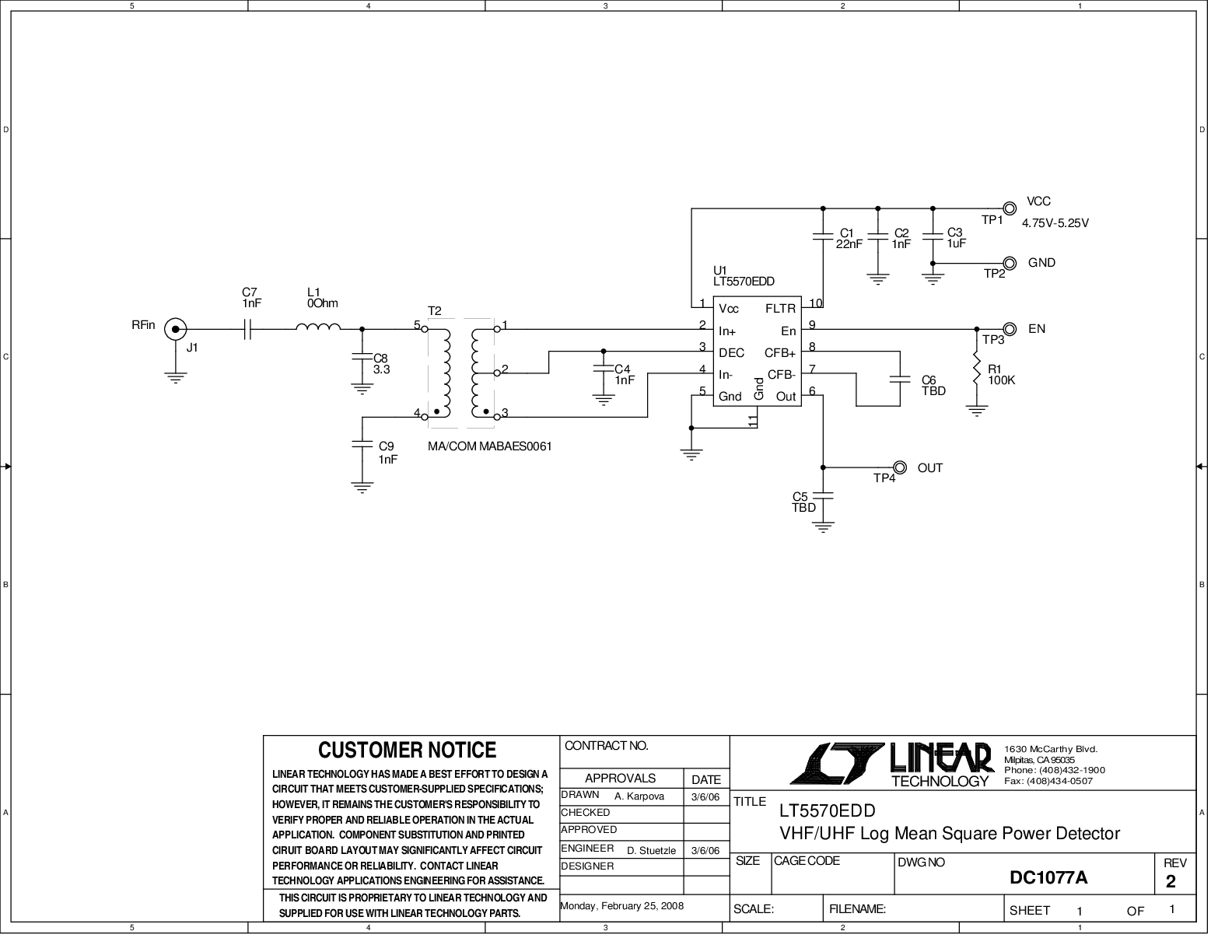

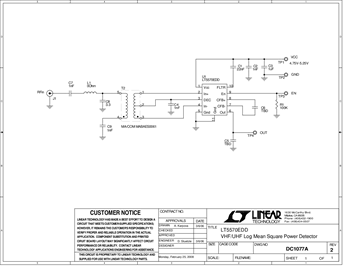

DC1077A - Schematic

DC1077A

LT5570IDD | RMS Power Detector for Low Frequency 40MHz to 875MHz

Buy Now View Details

Product Detail

DC1077A: Demo Board for the LT5570 Fast Responding with 40MHz to 2.7GHz Mean-Squared Power Detector.

Resources

ZIP

DC1077A - Design Files

569.00K

PDF

DC1077A - Schematic

24.00K

PDF

DC1077A - Demo Manual

513.00K

Show More

reference details image

DC1078A

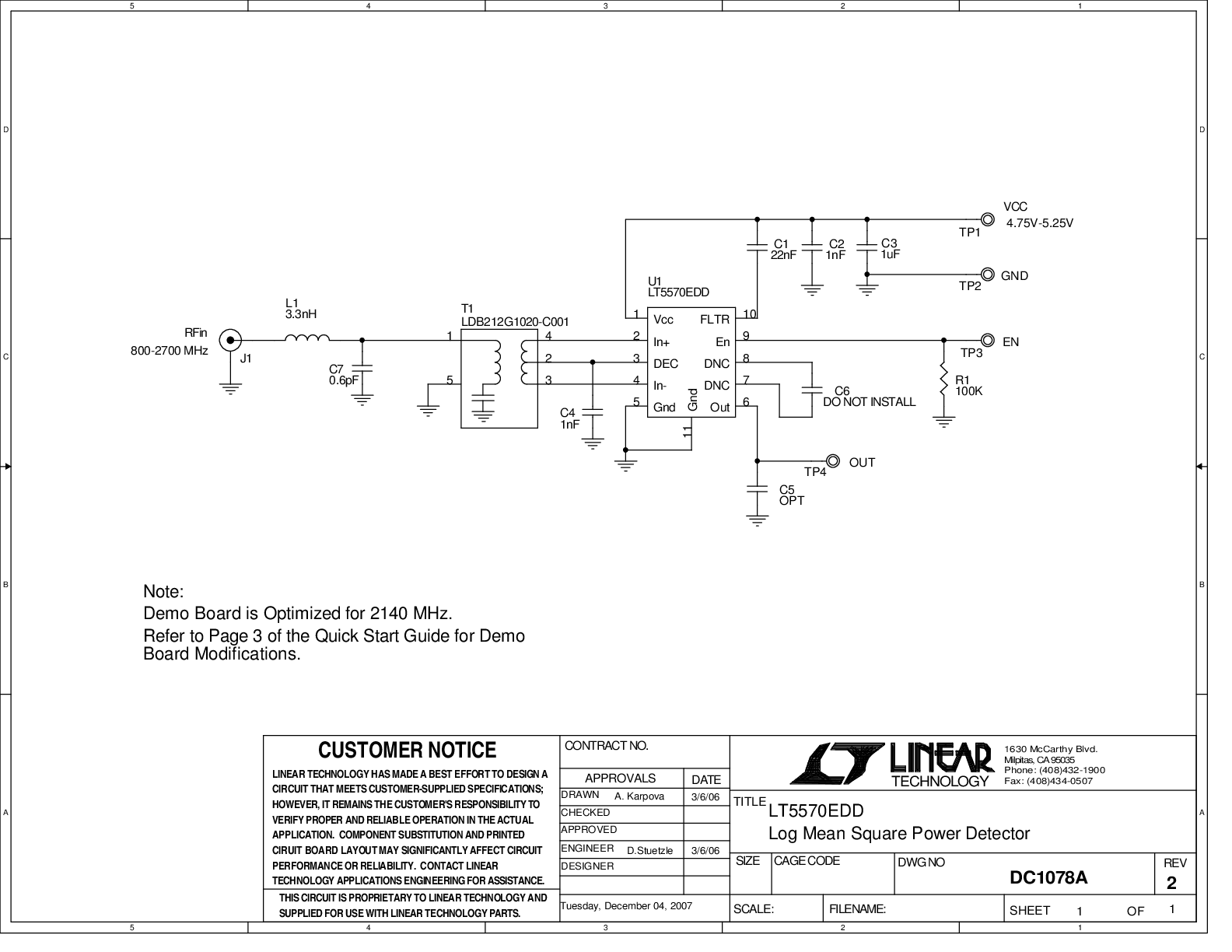

LT5570IDD | RMS Power Detector for 1.85GHz to 2.7GHz Frequency Range
