LT5516: 800MHz to 1.5GHz Direct Conversion Quadrature Demodulator Data Sheet8/22/2007199K
Features and Benefits
- Frequency Range: 800MHz to 1.5GHz

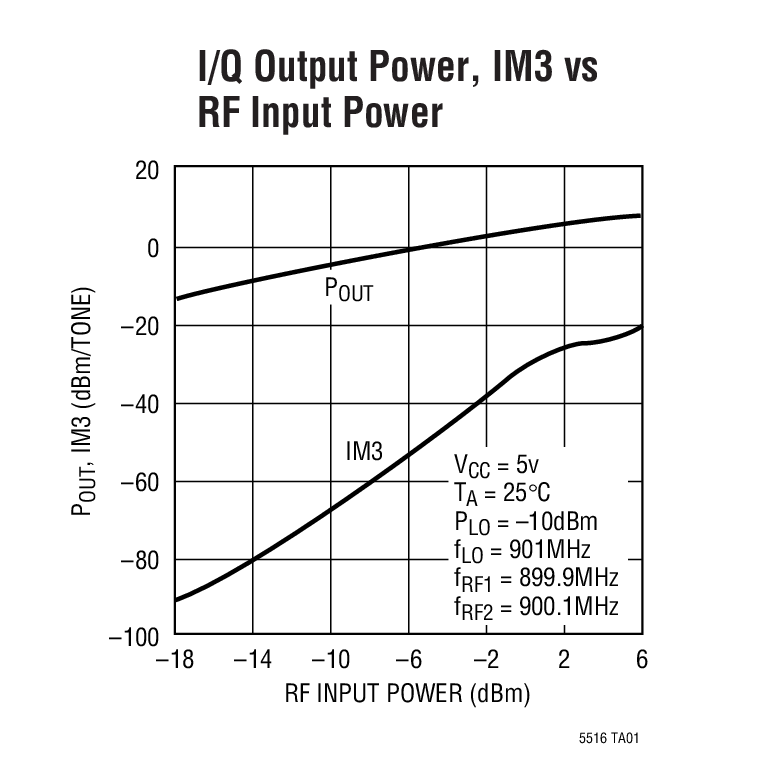

- High IIP3: 21.5dBm at 900MHz
- High IIP2: 52dBm
- Noise Figure: 12.8dB at 900MHz
- Conversion Gain: 4.3dB at 900MHz
- I/Q Gain Mismatch: 0.2dB
- Shutdown Mode

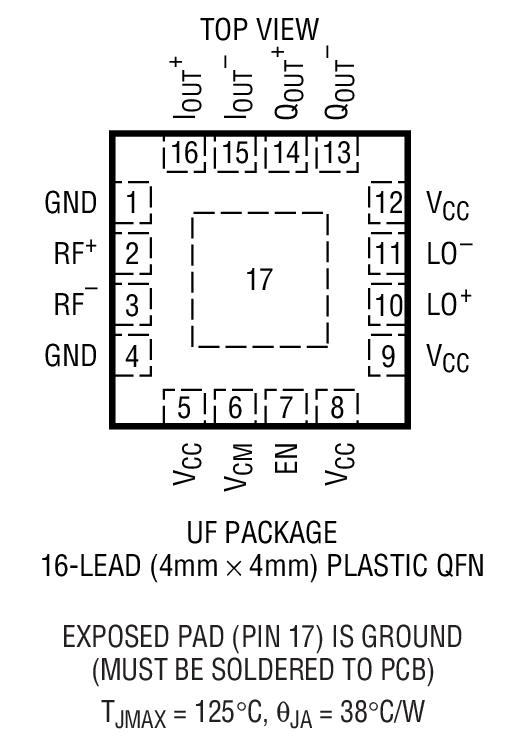

- 16-Lead QFN 4mm x 4mm Package with Exposed Pad
The LT5516 is an 800MHz to 1.5GHz direct conversion quadrature demodulator optimized for high linearity receiver applications. It is suitable for communications receivers where an RF or IF signal is directly converted into I and Q baseband signals with bandwidth up to 260MHz. The LT5516 incorporates balanced I and Q mixers, LO buffer amplifiers and a precision, high frequency quadrature generator.
In an RF receiver, the high linearity of the LT5516 provides excellent spur-free dynamic range, even with fixed gain front end amplification. This direct conversion receiver can eliminate the need for intermediate frequency (IF) signal processing, as well as the corresponding requirements for image filtering and IF filtering. Channel filtering can be performed directly at the outputs of the I and Q channels. These outputs can interface directly to channelselect filters (LPFs) or to a baseband amplifier.
- Cellular/PCS/UMTS Infrastructure
- High Linearity Direct Conversion I/Q Receiver
- High Linearity I/Q Demodulator
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
DC889A: Demo Board for the LT5516 800MHz to 1.5GHz Direct Conversion Quadrature Demodulator.
Documentation & Resources
R409 Reliability Data3/23/201823 K
DC889A - Demo Manual9/24/2009246K
DN381 - Baseband Circuits for an RFID Receiver8/22/200774K
Designing an FPGA-Based RFID Reader6/30/2011178K
Tools & Simulations
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|LT5516EUF#PBF||Material Declaration||Reliability Data||16-Lead QFN (4mm x 4mm x 0.75mm w/ EP)|
|LT5516EUF#TRPBF||Material Declaration||Reliability Data||16-Lead QFN (4mm x 4mm x 0.75mm w/ EP)|
|Wafer Fabrication Data||R409 Reliability Data|
