LT3759

Wide Input Voltage Range Boost/SEPIC/Inverting Controller

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 6
1ku List Price Starting From $2.84
Features
  • Wide VIN Range: 1.6V to 42V
  • Positive or Negative Output Voltage Programming with a Single Feedback Pin
  • PGOOD Output Voltage Status Report
  • Accurate 50mV SENSE Threshold Voltage
  • Programmable Soft-Start
  • Programmable Operating Frequency (100kHz to 1MHz) with One External Resistor
  • Synchronizable to an External Clock
  • Low Shutdown Current < 1μA
  • INTVCC Regulator Supplied from VIN or DRIVE
  • Programmable Input Undervoltage Lockout with Hysteresis
Additional Details
show more Icon

The LT3759 is a wide input range, current mode, DC/DC controller which is capable of regulating either positive or negative output voltages from a single feedback pin. It can be configured as a boost, SEPIC or inverting converter.

The LT3759 drives a low side external N-channel power MOSFET. An internal LDO regulator draws power from VIN or DRIVE to provide up to a 4.75V supply for the gate driver. The fixed frequency, current-mode architecture results in stable operation over a wide range of supply and output voltages. The operating frequency of LT3759 can be set over a 100kHz to 1MHz range with an external resistor, or can be synchronized to an external clock using the SYNC pin.

The LT3759 features soft-start and frequency foldback functions to limit inductor current during start-up and output short-circuit. A window comparator on the FBX pin reports via the PGOOD pin, providing output voltage status indication. The device is available in a 12-Lead exposed pad MSOP package.

Applications

  • Datacom and Industrial Boost, SEPIC and Inverting Converters
  • Distributed Power Supplies
  • Portable Electronic Equipment
  • Automotive
Part Models 6
1ku List Price Starting From $2.84

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3759EMSE#PBF
  • HTML
  • HTML
LT3759EMSE#TRPBF
  • HTML
  • HTML
LT3759HMSE#PBF
  • HTML
  • HTML
LT3759HMSE#TRPBF
  • HTML
  • HTML
LT3759IMSE#PBF
  • HTML
  • HTML
LT3759IMSE#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0244

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LT3759EMSE#PBF

PRODUCTION

LT3759EMSE#TRPBF

PRODUCTION

LT3759IMSE#PBF

PRODUCTION

LT3759IMSE#TRPBF

PRODUCTION

Apr 18, 2022

- 22_0050

UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices

LT3759EMSE#PBF

PRODUCTION

LT3759EMSE#TRPBF

PRODUCTION

LT3759IMSE#PBF

PRODUCTION

LT3759IMSE#TRPBF

PRODUCTION

Feb 4, 2020

- 20_0129

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LT3759EMSE#PBF

PRODUCTION

LT3759EMSE#TRPBF

PRODUCTION

LT3759HMSE#PBF

PRODUCTION

LT3759HMSE#TRPBF

PRODUCTION

LT3759IMSE#PBF

PRODUCTION

LT3759IMSE#TRPBF

PRODUCTION

Jun 5, 2024

- 24_0003

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0244

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LT3759EMSE#PBF

PRODUCTION

LT3759EMSE#TRPBF

PRODUCTION

LT3759IMSE#PBF

PRODUCTION

LT3759IMSE#TRPBF

PRODUCTION

Apr 18, 2022

- 22_0050

arrow down

UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices

LT3759EMSE#PBF

PRODUCTION

LT3759EMSE#TRPBF

PRODUCTION

LT3759IMSE#PBF

PRODUCTION

LT3759IMSE#TRPBF

PRODUCTION

Feb 4, 2020

- 20_0129

arrow down

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LT3759EMSE#PBF

PRODUCTION

LT3759EMSE#TRPBF

PRODUCTION

LT3759HMSE#PBF

PRODUCTION

LT3759HMSE#TRPBF

PRODUCTION

LT3759IMSE#PBF

PRODUCTION

LT3759IMSE#TRPBF

PRODUCTION

Jun 5, 2024

- 24_0003

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

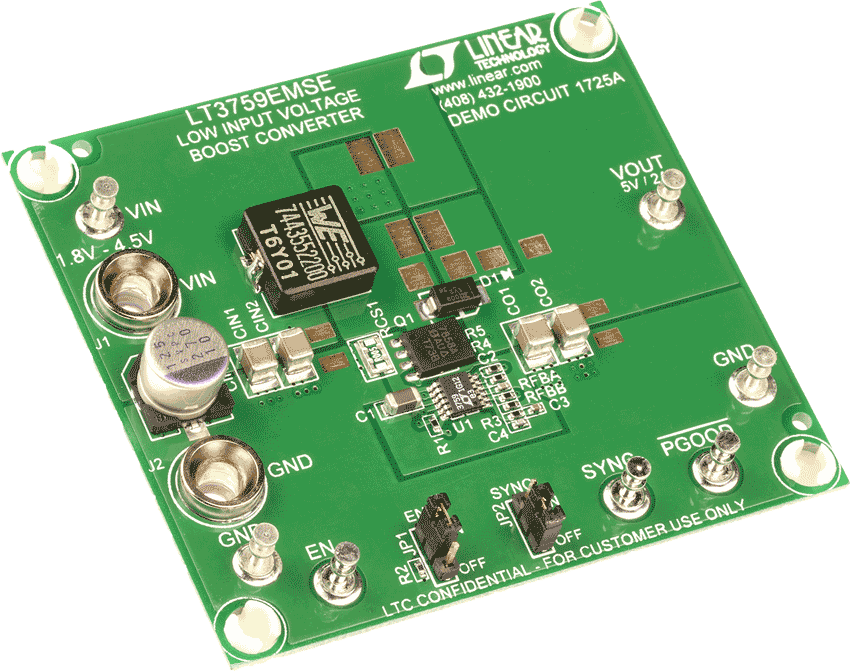

DC1725A

LT3759EMSE Boost Demo Board | VIN = 1.8V to 4.5V, VOUT = 5V @ 2A

zoom

DC1725A

LT3759EMSE Boost Demo Board | VIN = 1.8V to 4.5V, VOUT = 5V @ 2A

LT3759EMSE Boost Demo Board | VIN = 1.8V to 4.5V, VOUT = 5V @ 2A

Product Detail

Demonstration circuit 1725A features LT3759 in a 485kHz boost converter, designed for a 5V/2A output from a 1.8V to 4.5V input. The LT3759 is a current mode DC/DC Boost/SEPIC/Inverting controller operating over an input range of 1.6V to 42V. Thanks to a novel FBX pin architecture, the LT3759 allows both positive and negative output feedback voltages.

reference details image

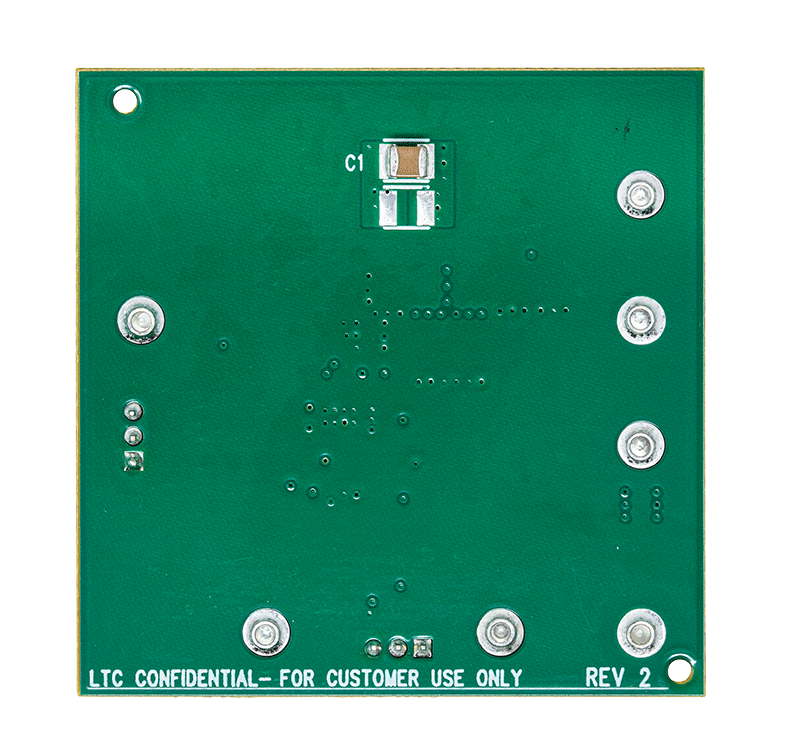

DC1787A

LT3759EMSE SEPIC Demo Board | VIN = 2.8V to 36V, VOUT = 12V @ 1A

zoom

DC1787A

LT3759EMSE SEPIC Demo Board | VIN = 2.8V to 36V, VOUT = 12V @ 1A

LT3759EMSE SEPIC Demo Board | VIN = 2.8V to 36V, VOUT = 12V @ 1A

Product Detail

Demonstration circuit 1787A is a wide input voltage range SEPIC converter featuring the LT3759 controller. It converts a 2.8V~36V input to a 12V output, with 1A load current capability for VIN ≥ 4V. The converter operates at a 300 kHz nominal switching frequency, with 91% peak efficiency. The DC1787A can be easily modified to generate other output voltages, and can also be optimized for efficiency and size with narrower input voltage ranges.



Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
