Overview

Features and Benefits

  • PWM Dimming Provides Up to 3000:1 Dimming Ratio
  • CTRL_SEL Dimming Provides Up to 3000:1 Dimming Ratio Between Any Current
  • Three-State Current Control for Color Mixing
  • ±6% Current Regulation Accuracy
  • 6V to 36V Input Voltage Range
  • Average Current Mode Control
  • 2μs Maximum Recovery Time Between Any Current Regulation State
  • <1μA Shutdown Current
  • Output Voltage Regulation and Open-LED Protection
  • Thermally Enhanced 4mm × 5mm QFN and 28-Pin FE Package

Product Details

The LT3743 is a fixed frequency synchronous step-down DC/DC controller designed to drive high current LEDs. The average current mode controller will maintain inductor current regulation over a wide output voltage range of 0V to (VIN – 2V). LED dimming is achieved through analog dimming on the CTRL_L, CTRL_H and CTRL_T pins and with PWM dimming on the PWM and CTRL_SEL pins. Through the use of externally switched load capacitors, the LT3743 is capable of changing regulated LED current levels within several μs, providing accurate, high speed PWM dimming between two current levels. The switching frequency is programmable from 200kHz to 1MHz through an external resistor on the RT pin.

Additional features include voltage regulation and overvoltage protection set with a voltage divider from the output to the FB pin. Overcurrent protection is provided and set by the CTRL_H pin.

Applications

  • DLP Projectors
  • High Power Architectural Lighting
  • Laser Diodes

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

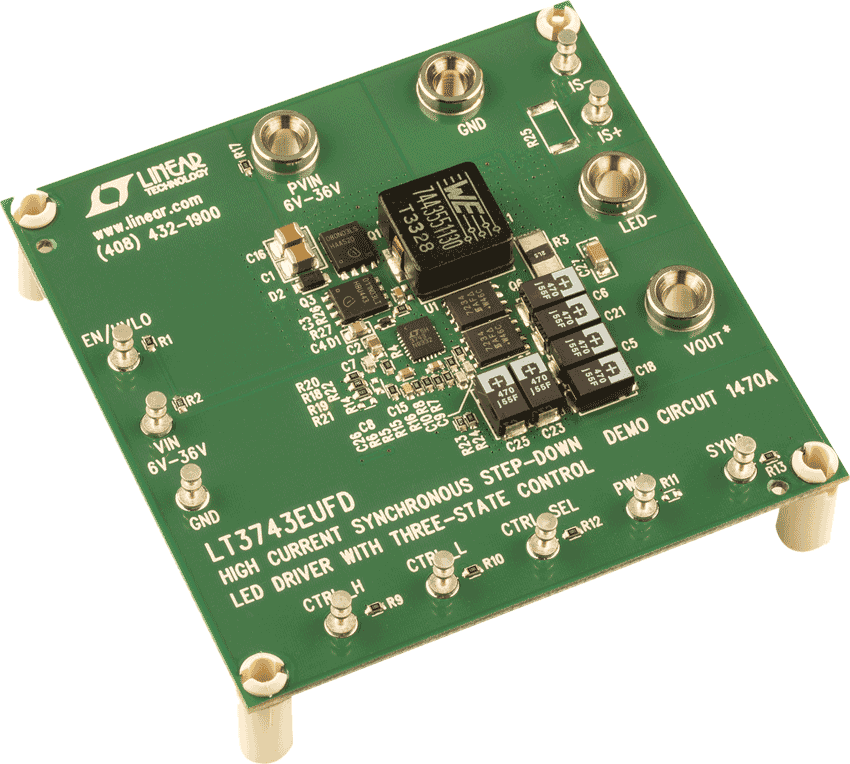

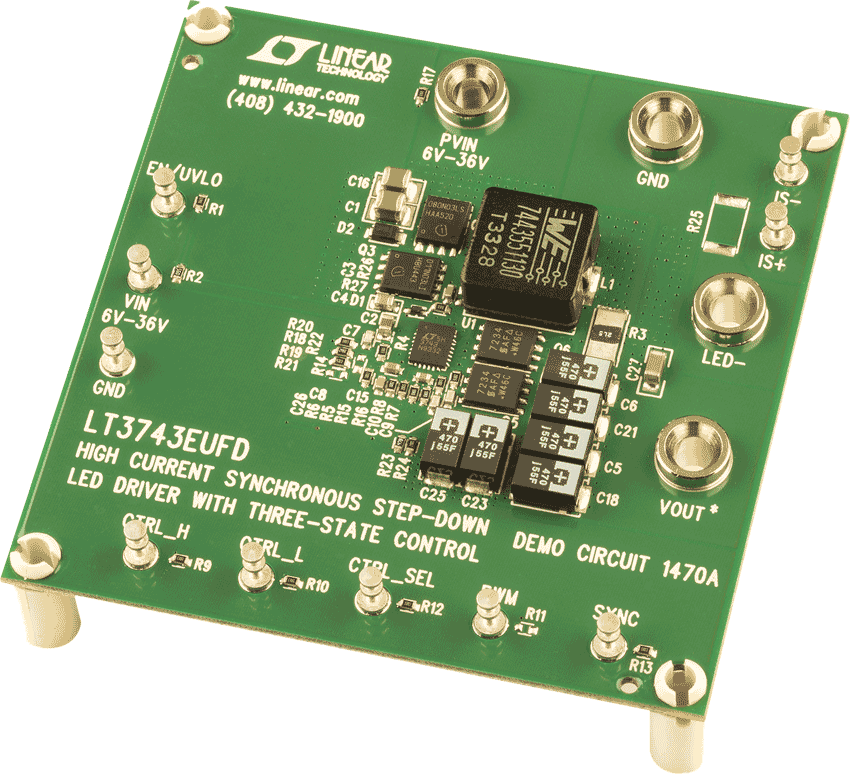

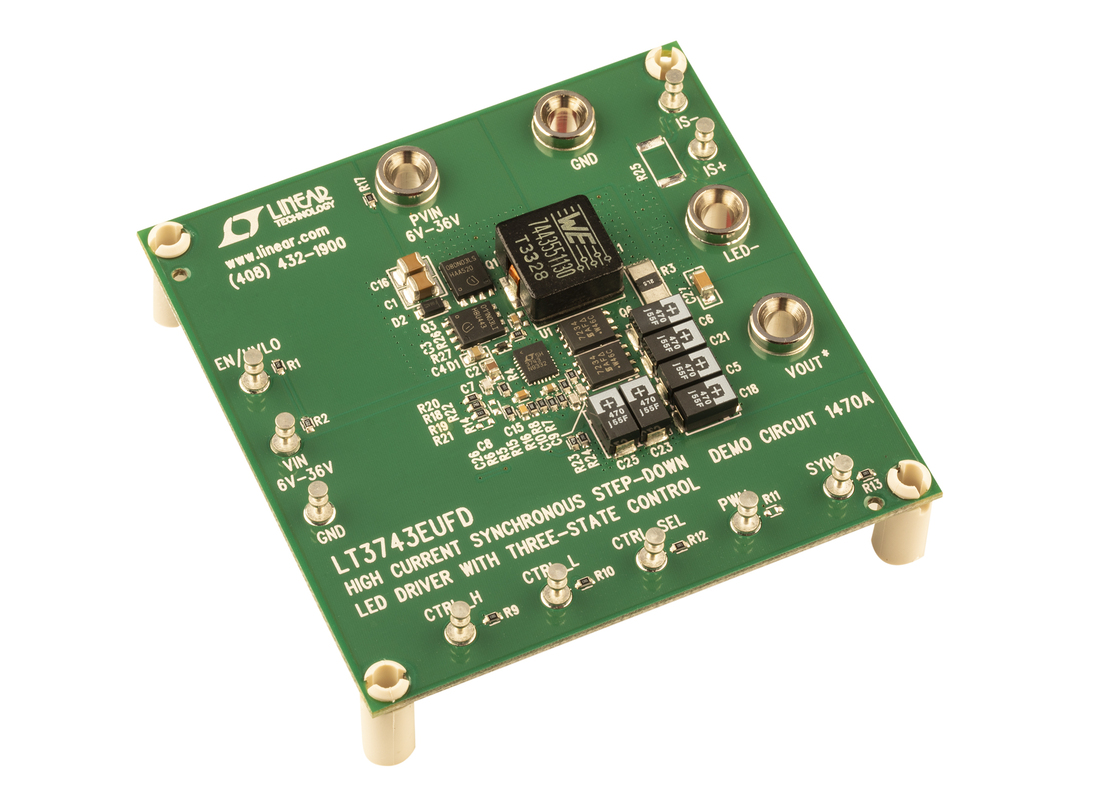

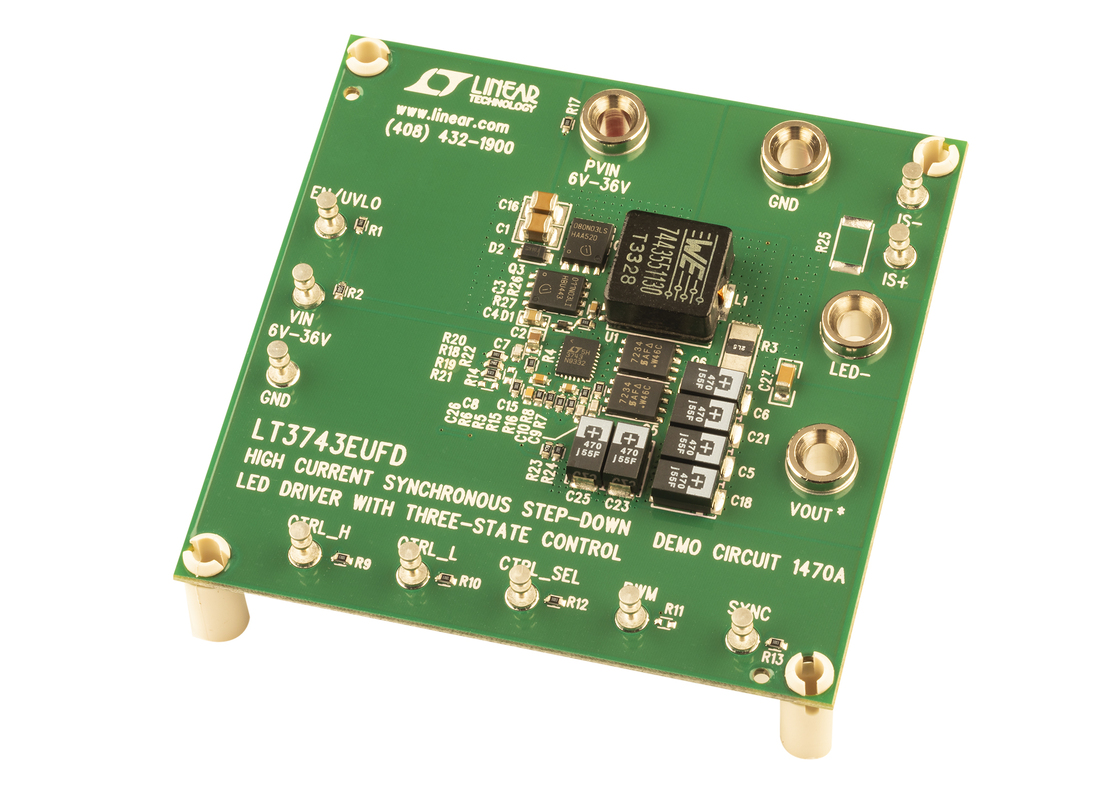

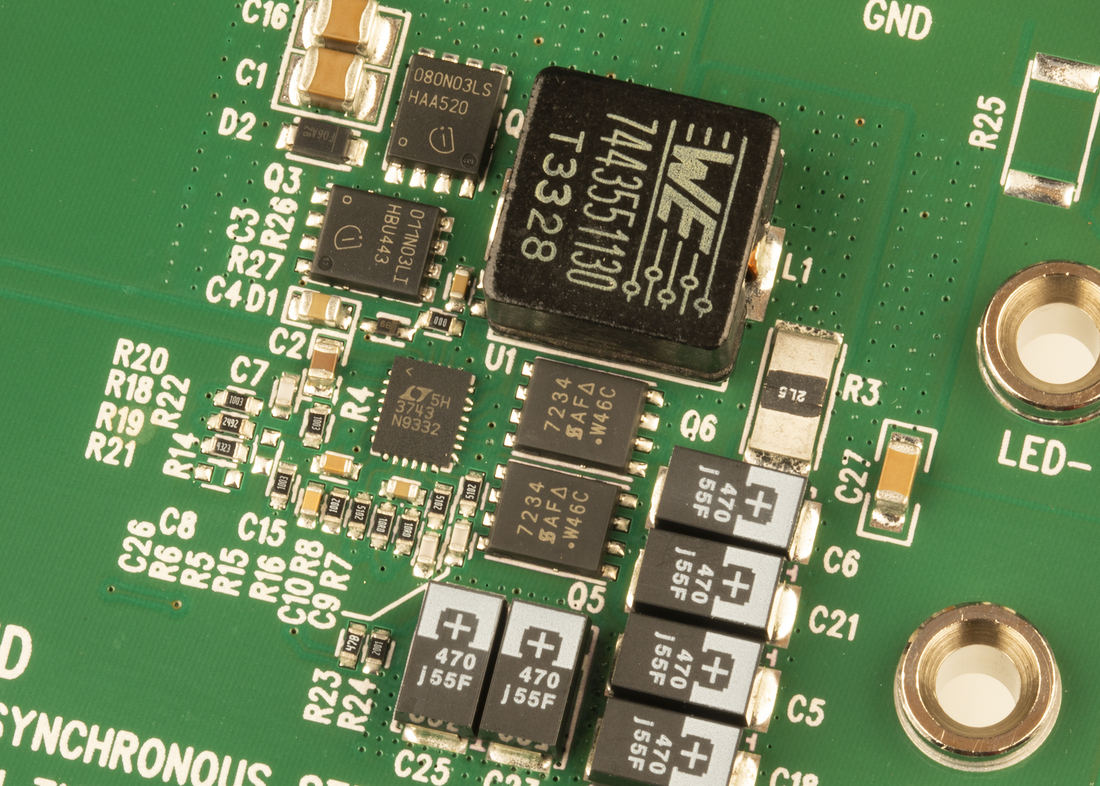

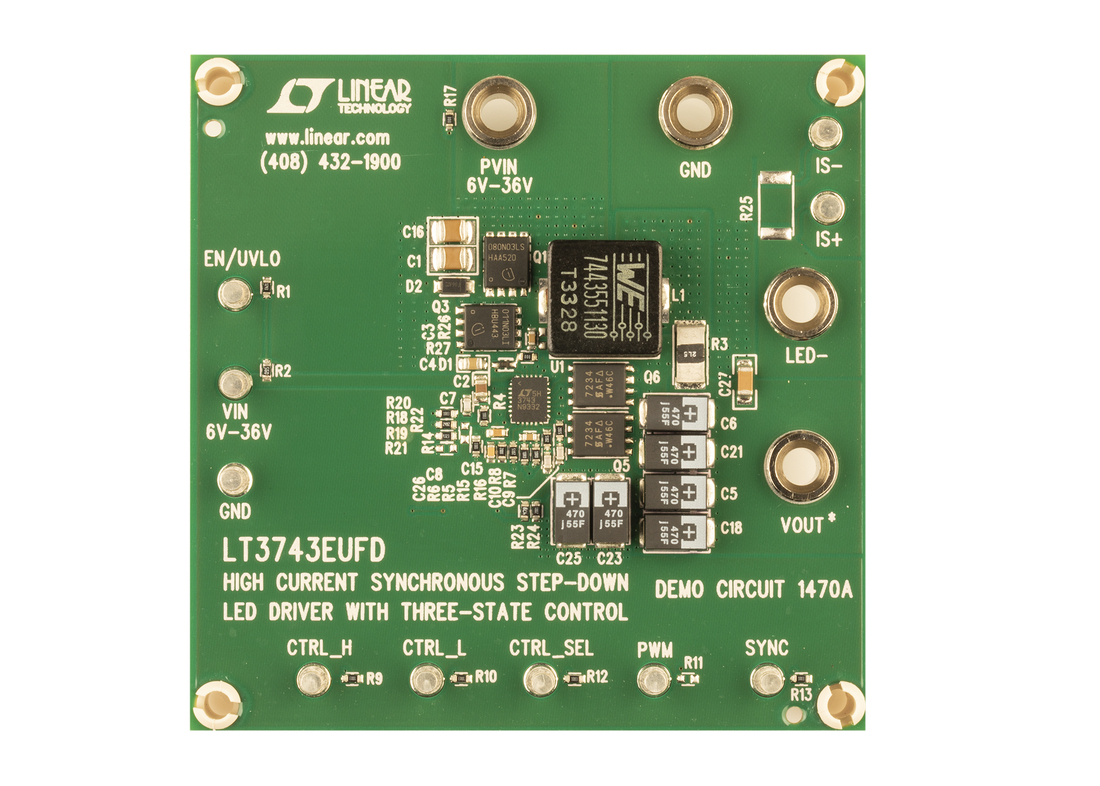

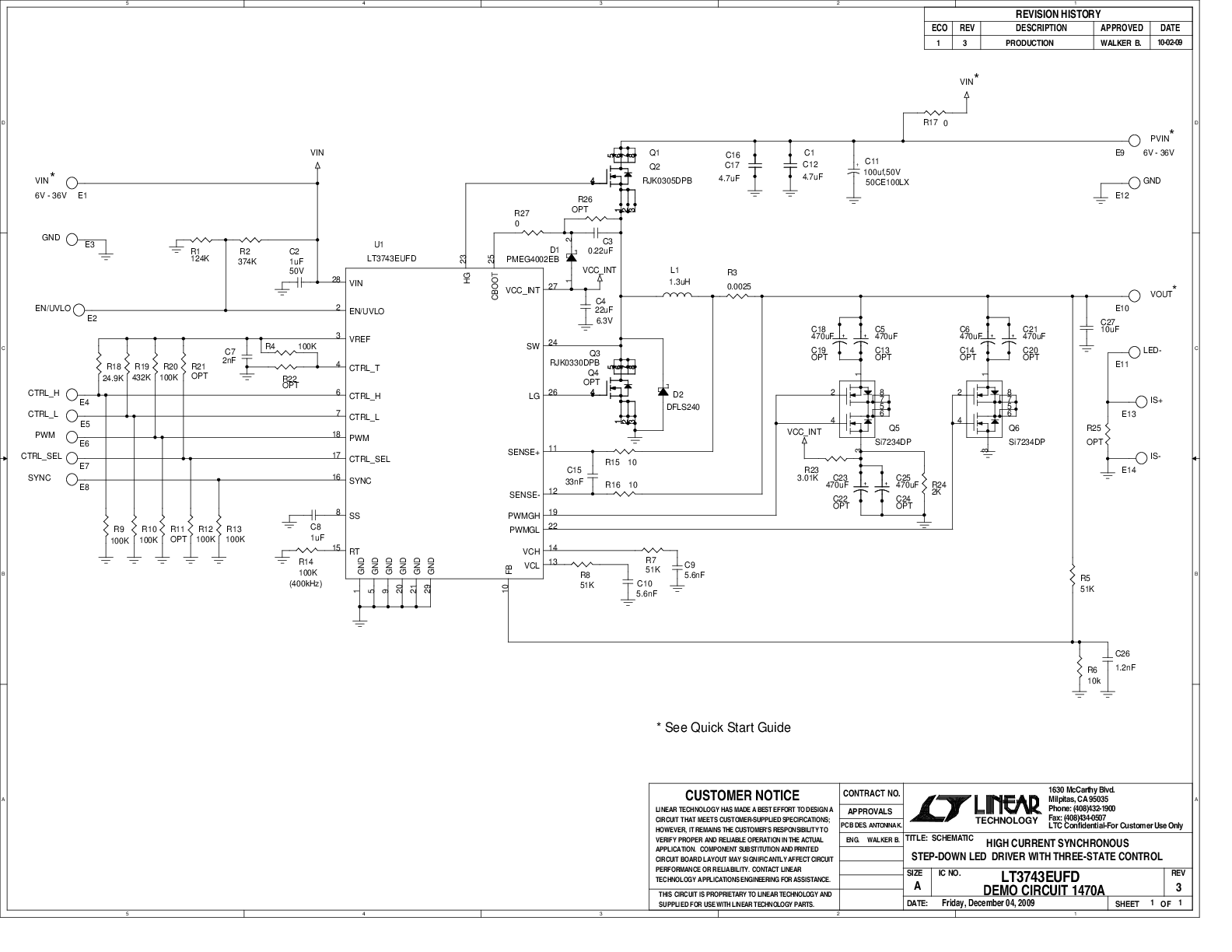

Evaluation Kits (1)

Tools & Simulations

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

LTspice

Models for the following parts are available in LTspice:

LT3743

Product Recommendations

LT3743 Companion Parts

Recommended Related Parts

Recommended Suggested Oscillator

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
LT3743EFE#PBF Material Declaration Reliability Data 28-Lead TSSOP w/ EP
LT3743EFE#TRPBF Material Declaration Reliability Data 28-Lead TSSOP w/ EP
LT3743EUFD#PBF Material Declaration Reliability Data 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)
LT3743EUFD#TRPBF Material Declaration Reliability Data 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)
LT3743IFE#PBF Material Declaration Reliability Data 28-Lead TSSOP w/ EP
LT3743IFE#TRPBF Material Declaration Reliability Data 28-Lead TSSOP w/ EP
LT3743IUFD#PBF Material Declaration Reliability Data 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)
LT3743IUFD#TRPBF Material Declaration Reliability Data 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)
Wafer Fabrication Data R548 Reliability Data
