Overview

Features and Benefits

  • Up to 3000:1 True Color PWM Dimming
  • Wide Input Voltage Range
    • Operation from 3V to 30V
    • Transient Protection to 40V
  • Rail-to-Rail LED Current Sense from 0V to 45V
  • 45V, 750mA Internal Switch
  • Internal Schottky Diode
  • Constant-Current and Constant-Voltage Regulation
  • Boost, SEPIC, Buck-Boost Mode or Buck Mode Topology
  • Open LED Protection and Open LED Status Pin
  • Programmable Undervoltage Lockout with Hysteresis
  • Fixed Frequency: 400kHz (LT3519), 1MHz (LT3519-1), 2.2MHz (LT3519-2)
  • Internal Compensation
  • CTRL Pin Provides Analog Dimming
  • Low Shutdown Current: <1μA

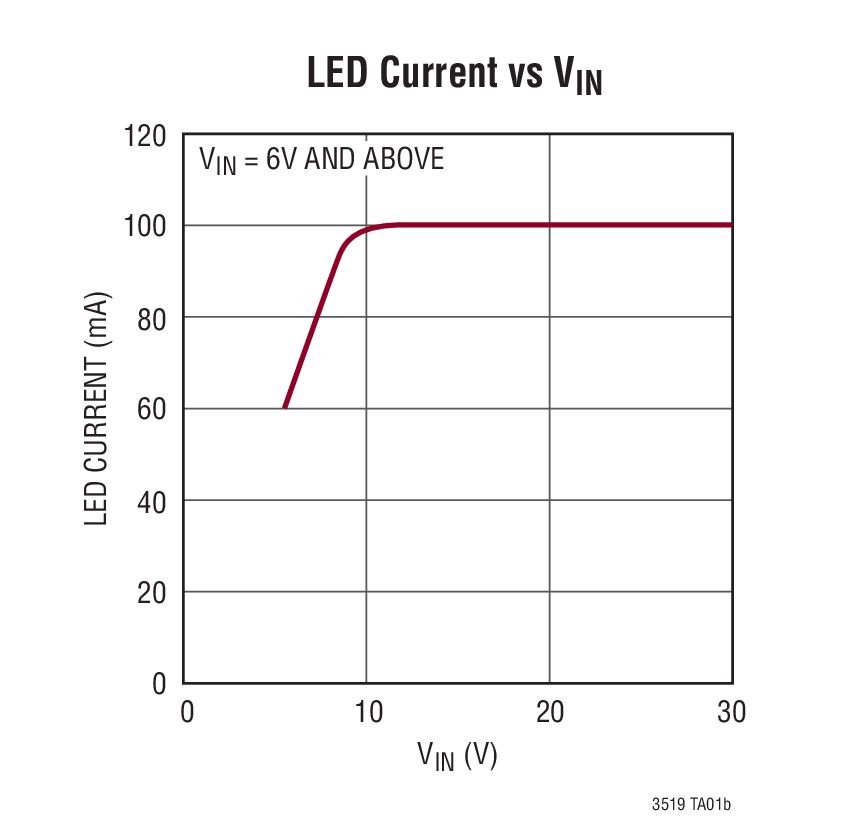

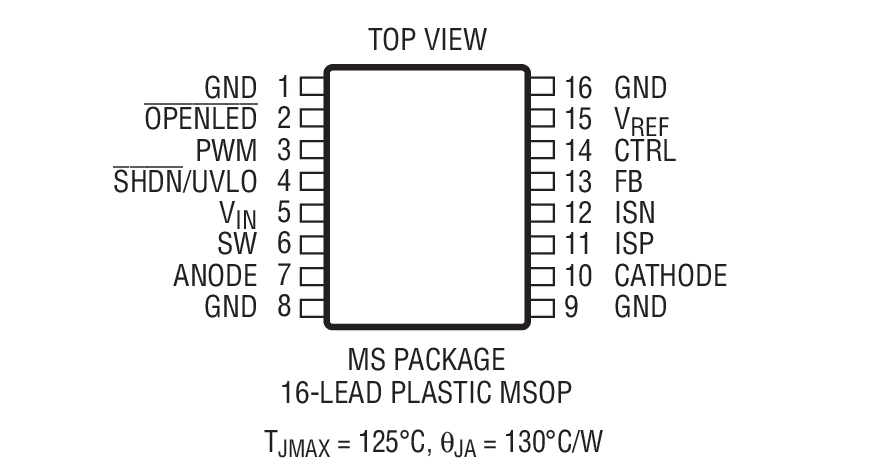

  • 16-Lead MSOP Package

Product Details

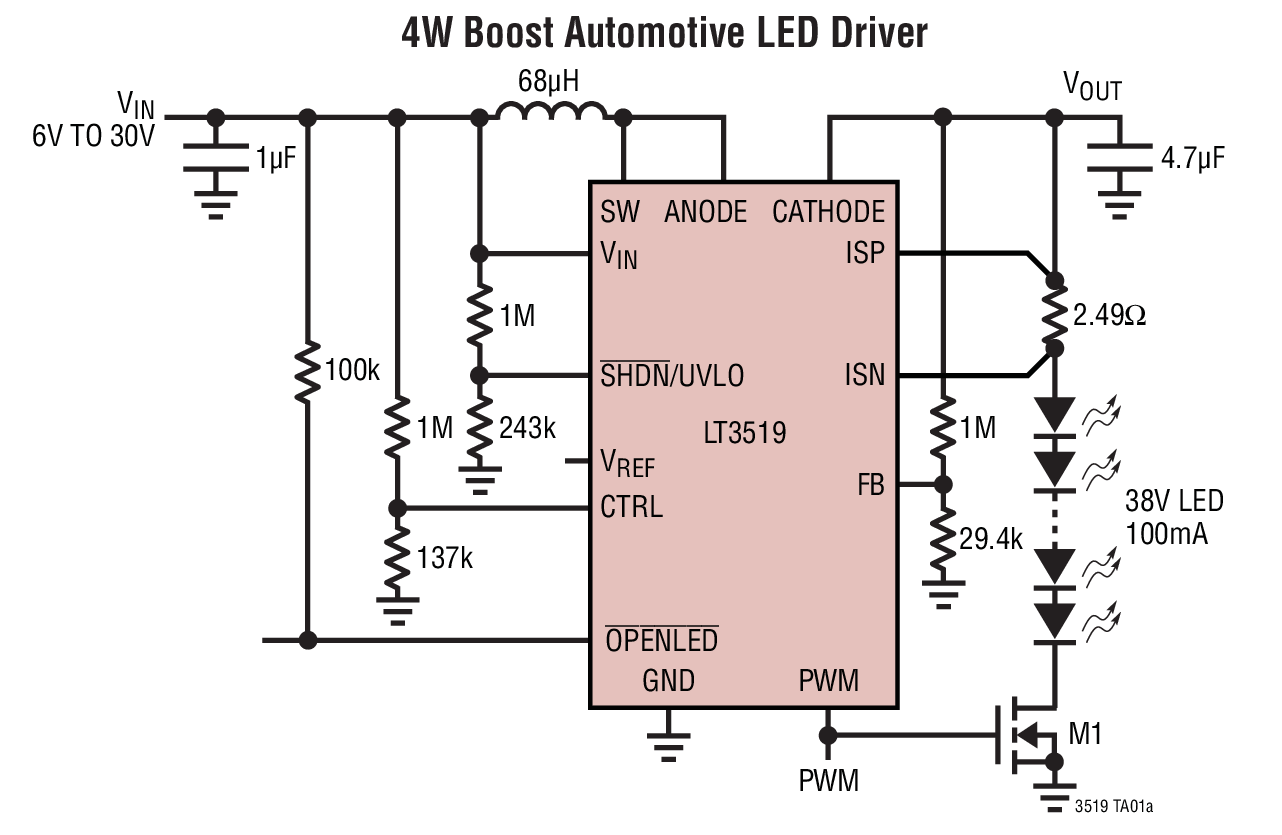

The LT3519/LT3519-1/LT3519-2 are fixed frequency step-up DC/DC converters designed to drive LEDs. They feature an internal 45V, 750mA low side switch and Schottky diode. Combining a traditional voltage feedback and a unique rail-to-rail current sense feedback allows these converters to operate as a constant-voltage source or constant-current source. Internal compensation simplifies applications. These devices feature rail-to-rail LED current sense pins that provide the most flexibility in choosing a converter configuration to drive the LEDs. The LED current is externally programmable with a sense resistor. The external PWM provides up to 3000:1 PWM dimming and the CTRL input provides analog dimming.

Applications

  • Automotive
  • Industrial
  • Constant Current Source
  • Current Limited Constant Voltage Source

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

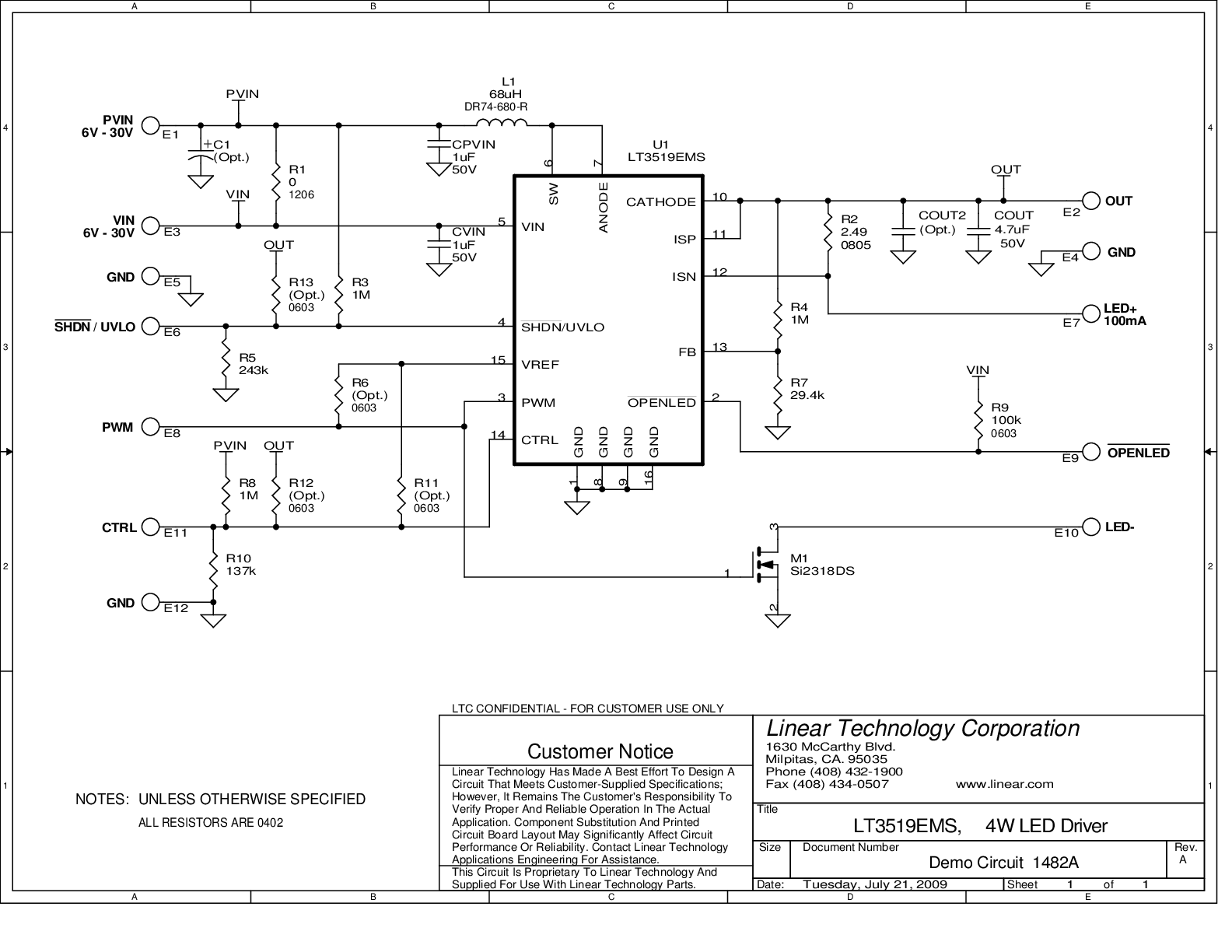

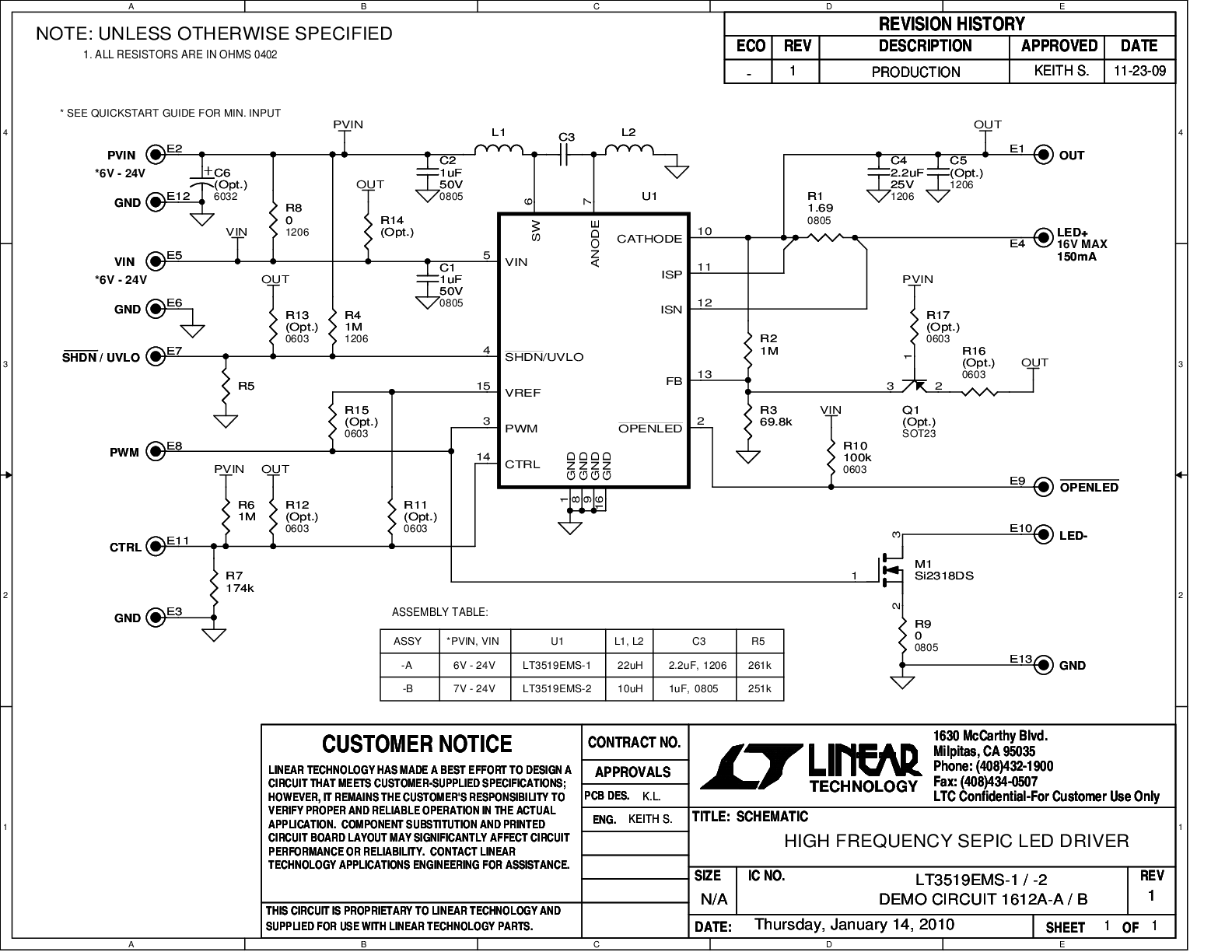

Evaluation Kits (3)

Tools & Simulations

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

LTspice

Models for the following parts are available in LTspice:

LT3519
LT3519-1
LT3519-2

Product Recommendations

LT3519 Companion Parts

Recommended Related Parts

Recommended Suggested Oscillator

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
LT3519EMS#PBF Material Declaration Reliability Data 16-Lead MSOP
LT3519EMS#TRPBF Material Declaration Reliability Data 16-Lead MSOP
LT3519EMS-1#PBF Material Declaration Reliability Data 16-Lead MSOP
LT3519EMS-1#TRPBF Material Declaration Reliability Data 16-Lead MSOP
LT3519EMS-2#PBF Material Declaration Reliability Data 16-Lead MSOP
LT3519EMS-2#TRPBF Material Declaration Reliability Data 16-Lead MSOP
LT3519IMS#PBF Material Declaration Reliability Data 16-Lead MSOP
LT3519IMS#TRPBF Material Declaration Reliability Data 16-Lead MSOP
LT3519IMS-1#PBF Material Declaration Reliability Data 16-Lead MSOP
LT3519IMS-1#TRPBF Material Declaration Reliability Data 16-Lead MSOP
LT3519IMS-2#PBF Material Declaration Reliability Data 16-Lead MSOP
LT3519IMS-2#TRPBF Material Declaration Reliability Data 16-Lead MSOP
Wafer Fabrication Data R518 Reliability Data
