LT3517

Full-Featured LED Driver with 1.5A Switch Current

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 12
1ku List Price Starting From $3.25
Features
  • 5000:1 True Color PWM Dimming Ratio
  • 1.5A, 45V Internal Switch
  • 100mV High Side Current Sense
  • Open LED Protection
  • Adjustable Frequency: 250kHz to 2.5MHz
  • Wide Input Voltage Range:
    • Operation from 3V to 30V
    • Transient Protection to 40V
  • Operates in Boost, Buck Mode and Buck-Boost Mode
  • Gate Driver for PMOS LED Disconnect
  • Constant-Current and Constant-Voltage Regulation
  • CTRL Pin Provides 10:1 Analog Dimming
  • Low Shutdown Current: <1μA
  • Available in (4mm × 4mm) 16-Lead QFN and 16-Pin TSSOP Packages
Additional Details
show more Icon

The LT3517 is a current mode DC/DC converter with an internal 1.5A, 45V switch specifically designed to drive LEDs. The LT3517 operates as a LED driver in boost, buck mode and buck-boost mode. It combines a traditional voltage loop and a unique current loop to operate as a constant-current source or constant-voltage source. Programmable switching frequency allows optimization of the external components for efficiency or component size. The switching frequency of LT3517 can be synchronized to an external clock signal. The LED current is externally programmable with a 100mV sense resistor. The external PWM input provides up to 5000:1 LED dimming. The CTRL pin provides further 10:1 dimming ratio.

The LT3517 is available in the tiny footprint 16-lead QFN (4mm × 4mm) and the 16-pin TSSOP packages. The LT3517 provides a complete solution for both constant-voltage and constant-current applications.

Applications

  • Display Backlighting
  • Automotive and Avionic Lighting
  • Illumination
  • Scanners
Part Models 12
1ku List Price Starting From $3.25

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3517EFE#PBF
  • HTML
  • HTML
LT3517EFE#TRPBF
  • HTML
  • HTML
LT3517EUF#PBF
  • HTML
  • HTML
LT3517EUF#TRPBF
  • HTML
  • HTML
LT3517HFE#PBF
  • HTML
  • HTML
LT3517HFE#TRPBF
  • HTML
  • HTML
LT3517HUF#PBF
  • HTML
  • HTML
LT3517HUF#TRPBF
  • HTML
  • HTML
LT3517IFE#PBF
  • HTML
  • HTML
LT3517IFE#TRPBF
  • HTML
  • HTML
LT3517IUF#PBF
  • HTML
  • HTML
LT3517IUF#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3517EFE#PBF

PRODUCTION

LT3517EFE#TRPBF

PRODUCTION

LT3517HFE#PBF

PRODUCTION

LT3517HFE#TRPBF

PRODUCTION

LT3517IFE#PBF

PRODUCTION

LT3517IFE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3517EFE#PBF

PRODUCTION

LT3517EFE#TRPBF

PRODUCTION

LT3517HFE#PBF

PRODUCTION

LT3517HFE#TRPBF

PRODUCTION

LT3517IFE#PBF

PRODUCTION

LT3517IFE#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

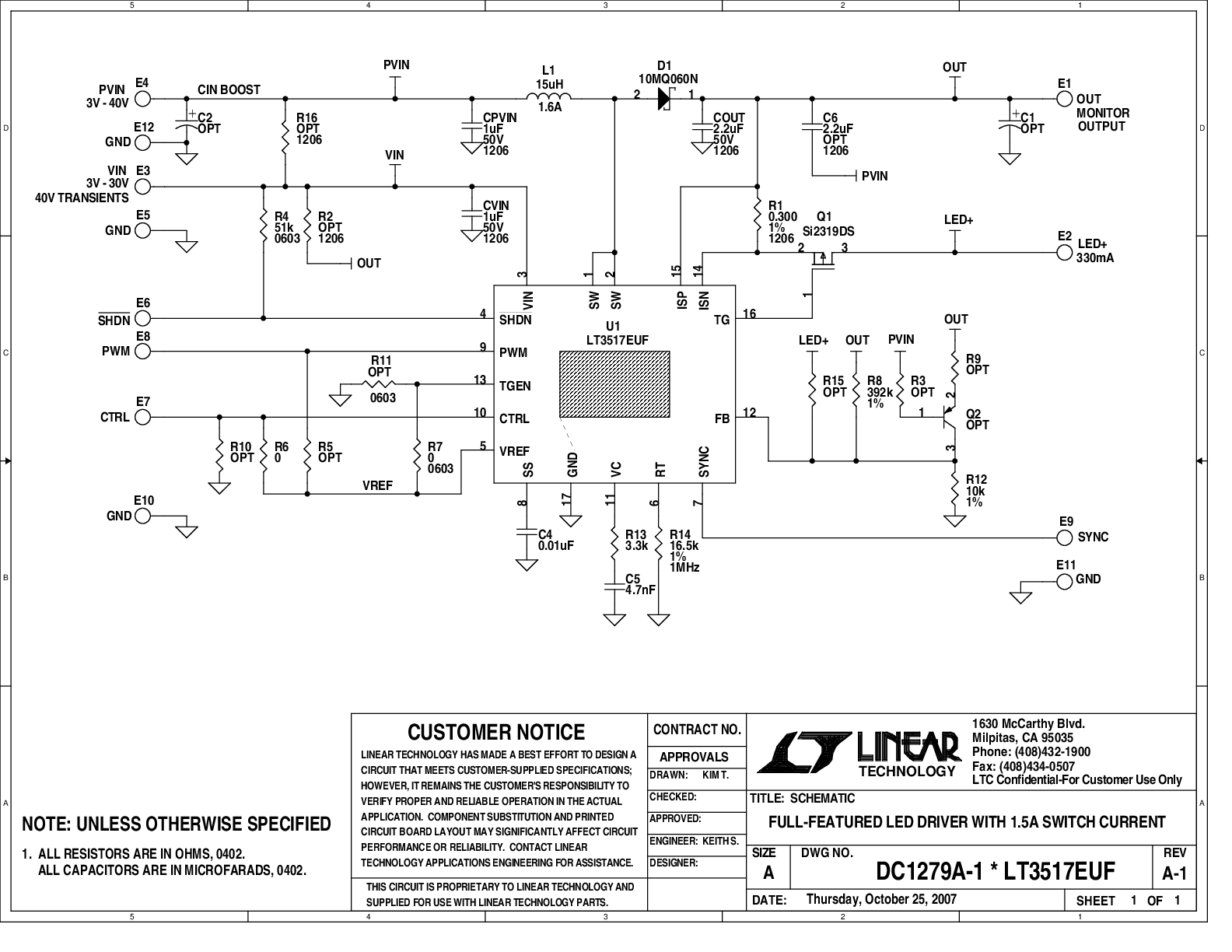

DC1279A

LT3517EUF | Boost LED Driver, 3V ≤ PVIN ≤ 40V, VLED up to 40V @ 330mA

zoom

DC1279A

LT3517EUF | Boost LED Driver, 3V ≤ PVIN ≤ 40V, VLED up to 40V @ 330mA

LT3517EUF | Boost LED Driver, 3V ≤ PVIN ≤ 40V, VLED up to 40V @ 330mA

Product Detail

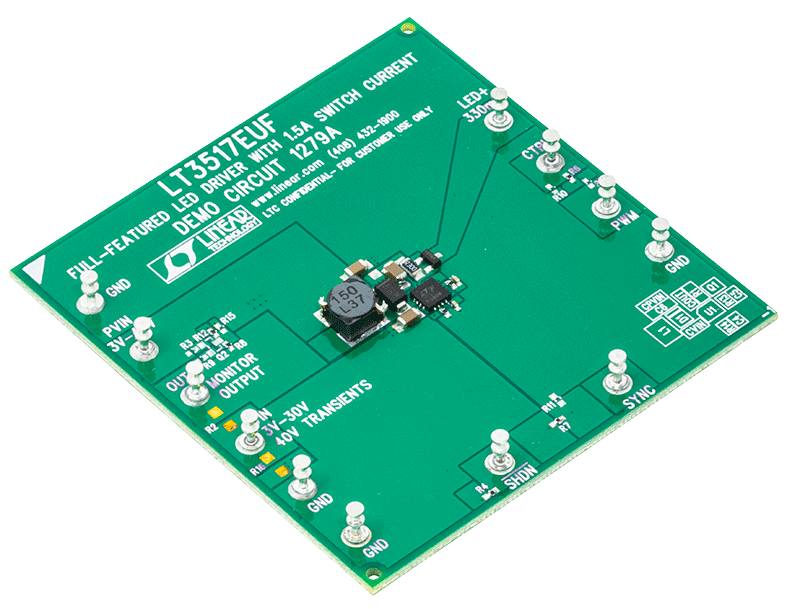

Demonstration Circuit 1279 is a full-featured, multitopology LED driver with 1.5A switch current featuring the LT3518. The board is optimized to drive a 330mA LED string with a total LED voltage between the input voltage and 40V in a boost topology. The input voltage range (VIN) is 3V to 30V, and the supply pin that powers the switcher (PVIN) has an input voltage range of 3V to 40V.
