LT3500

Monolithic 2A Step-Down Regulator Plus Linear Regulator/Controller

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LT3500 Demo Circuit - Monolithic 2A Step-Down Regulator Plus LDO (24V to 5V @ 1A & 3.3V @ 1A) Download 3.00KB LTspice LT3500 - PMIC and Multifunction Download 3.42 KB
Part Models 12
1ku List Price Starting From $3.89
Features
  • Wide Input Range: 3V to 36V Operating, 40V Maximum
  • Short-Circuit Protected Over Full Input Range
  • 2A Output Current Capability
  • Adjustable/Synchronizable Fixed Frequency Operation from 250kHz to 2.2MHz
  • Soft-Start/Tracking Capability
  • Output Adjustable Down to 0.8V
  • Adjustable Linear Regulator/Driver with 13mA Output Capability
  • Power Good Comparator with Complimentary Outputs
  • Low Shutdown Current: 12μA
  • Thermally Enhanced 3mm × 3mm DFN or 16-Pin MSOP Package
Additional Details
show more Icon

The LT3500 is a current mode PWM step-down DC/DC converter with an internal 2.3A switch. The wide input range of 3V to 40V makes the LT3500 suitable for regulating power from a wide variety of sources, including automotive batteries, 24V industrial supplies and unregulated wall adapters.

Resistor-programmable 250kHz to 2.2MHz frequency range and synchronization capability enable optimization between efficiency and external component size. Cycle-by-cycle current limit, frequency foldback and thermal shutdown provide protection against a shorted output. The soft-start feature controls the ramp rate of the output voltage, eliminating input current surge during start-up, and also provides output tracking.

The LT3500 contains an internal NPN transistor with feedback control which can be configured as a linear regulator or as a linear regulator controller.

The LT3500’s low current shutdown mode (<12μA) enables easy power management in battery-powered systems.

Applications

  • Automotive Battery Regulation
  • Industrial Control
  • Wall Transformer Regulation
  • Distributed Power Regulation
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LT3500 Demo Circuit - Monolithic 2A Step-Down Regulator Plus LDO (24V to 5V @ 1A & 3.3V @ 1A) Download 3.00KB LTspice LT3500 - PMIC and Multifunction Download 3.42 KB
Part Models 12
1ku List Price Starting From $3.89
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT3500

Documentation

4
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • Data Sheet
  • User Guide
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 01/21/2011
English

LT3500: Monolithic 2A Step-Down Regulator Plus Linear Regulator/Controller Data Sheet

Open PDF File

redirect
322.00K
download

Download PDF

PDF Vector

PDF

UPDATED 01/26/2009
Japanese

LT3500: リニア･レギュレータ/コントローラ付きモノリシック2A降圧レギュレータ データシート

Open PDF File

redirect
2.00M
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R530 Reliability Data redirect icon

20.92 K

download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/24/2009
English
DC1069A - Demo Manual redirect icon

257.00K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3500EDD#PBF 12-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3500EDD#TRPBF 12-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3500EMSE#PBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3500EMSE#TRPBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3500HDD#PBF 12-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3500HDD#TRPBF 12-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3500HMSE#PBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3500HMSE#TRPBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3500IDD#PBF 12-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3500IDD#TRPBF 12-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3500IMSE#PBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3500IMSE#TRPBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LT3500EMSE#PBF

PRODUCTION

LT3500EMSE#TRPBF

PRODUCTION

LT3500HMSE#PBF

PRODUCTION

LT3500HMSE#TRPBF

PRODUCTION

LT3500IMSE#PBF

PRODUCTION

LT3500IMSE#TRPBF

PRODUCTION

pdf

PCN24_0003_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Feb 4, 2020

- 20_0132

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LT3500EMSE#PBF

PRODUCTION

LT3500EMSE#TRPBF

PRODUCTION

LT3500HMSE#PBF

PRODUCTION

LT3500HMSE#TRPBF

PRODUCTION

LT3500IMSE#PBF

PRODUCTION

LT3500IMSE#TRPBF

PRODUCTION

pdf

PCN20_0132_Form

external-icon

xls

Material_Report

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LT3500EMSE#PBF

PRODUCTION

LT3500EMSE#TRPBF

PRODUCTION

LT3500HMSE#PBF

PRODUCTION

LT3500HMSE#TRPBF

PRODUCTION

LT3500IMSE#PBF

PRODUCTION

LT3500IMSE#TRPBF

PRODUCTION

pdf

PCN24_0003_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Feb 4, 2020

- 20_0132

arrow down

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LT3500EMSE#PBF

PRODUCTION

LT3500EMSE#TRPBF

PRODUCTION

LT3500HMSE#PBF

PRODUCTION

LT3500HMSE#TRPBF

PRODUCTION

LT3500IMSE#PBF

PRODUCTION

LT3500IMSE#TRPBF

PRODUCTION

pdf

PCN20_0132_Form

external-icon

xls

Material_Report

Download
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

Digital Power System Managers1
LTC2974
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement

Dual-Supply Monitors1
LTC2960
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

36V Nano-Current Two-Input Voltage Monitor

Silicon Oscillators1
LTC6909
popup image
Cart

PRODUCTION

1 to 8 Output, Multiphase Silicon Oscillator with Spread Spectrum Modulation

Surge Stopper, Overvoltage, and Overcurrent Protection1
LT4363
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

High Voltage Surge Stopper with Current Limit

Evaluation Kit

Evaluation Kits 1

reference details image

DC1069A

LT3500EDD | 36V (40V Transient) 2.2MHz Step-Down Switching Regulator

zoom

DC1069A

LT3500EDD | 36V (40V Transient) 2.2MHz Step-Down Switching Regulator

download icon

Download

 print icon

Print
DC1069A
LT3500EDD | 36V (40V Transient) 2.2MHz Step-Down Switching Regulator
Buy Now View Details

Product Detail

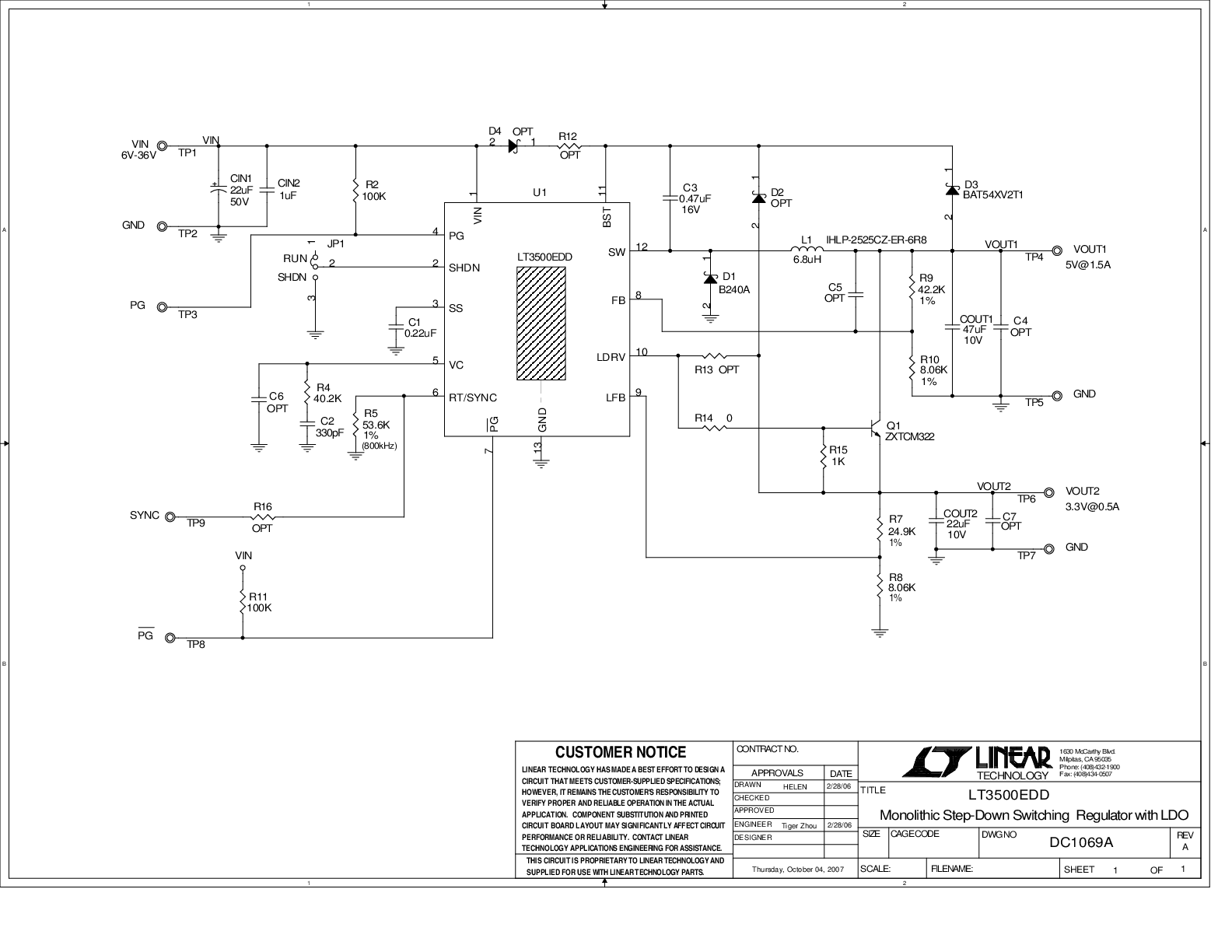

Demo circuit 1069A is a monolithic step-down switching regulator with LDO featuring LT3500. The demo circuit is designed for 5.0V and 3.3V outputs from a 6V to 36V input. The LDO output is configured as a post-regulator of the switching regulator output. The total current capability is up to 2A. The switching regulator can be synchronized to an external clock input or be resistor-programmed to a 250kHz to 2.2MHz internal oscillator. Programmable frequency allows for optimization between efficiency and external component size.

Cycle-by-cycle current limit, frequency foldback and thermal shutdown provide protections against a shorted output. The soft-start feature controls the ramp rate of the output voltage, eliminates input current surge during startup, and also provides output tracking.

Resources

pdf icon

PDF

DC1069A - Schematic Download

29.00K

pdf icon

ZIP

DC1069A - Design File Download

638.00K

pdf icon

PDF

DC1069A - Demo Manual Download

257.00K

Show More Arrow image

Evaluation Kits1

evaluation kit item images

DC1069A

LT3500EDD | 36V (40V Transient) 2.2MHz Step-Down Switching Regulator
Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LT3500 Demo Circuit - Monolithic 2A Step-Down Regulator Plus LDO (24V to 5V @ 1A & 3.3V @ 1A) Download

3.00K

spice tool Lt Spice

LT3500 - PMIC and Multifunction Download

3.42 K
