Overview
Features and Benefits
- Highly Integrated IC Reduces Solution Size
- Uses Small Transformers:
- 5.8mm × 5.8mm × 3mm
- Fast Photoflash Charge Times:
- 4.6s for LT3468 (0V to 320V, 100µF, VIN = 3.6V)
- 5.7s for LT3468-2 (0V to 320V, 100µF, VIN = 3.6V)
- 5.5s for LT3468-1 (0V to 320V, 50µF, VIN = 3.6V)
- Controlled Input Current:
- 500mA (LT3468)
- 375mA (LT3468-2)
- 225mA (LT3468-1)
- Supports Operation from Single Li-Ion Cell, or Any Supply from 2.5V up to 16V
- Adjustable Output Voltage
- No Output Voltage Divider Needed
- Charges Any Size Photoflash Capacitor
- Low Profile (<1mm) SOT-23 Package
Product Details
The LT3468/LT3468-1/LT3468-2 are highly integrated ICs designed to charge photoflash capacitors in digital and film cameras. A patented control technique* allows for the use of extremely small transformers. Each device contains an on-chip high voltage NPN power switch. Output voltage detection* is completely contained within the device, eliminating the need for any discrete zener diodes or resistors. The output voltage can be adjusted by simply changing the turns ratio of the transformer. The LT3468 has a primary current limit of 1.4A, the LT3468-2 has a 1A limit, and the LT3468-1 has a 0.7A limit. These different current limit levels result in well controlled input currents of 500mA for the LT3468, 375mA for the LT3468-2 and 225mA for the LT3468-1. Aside from the differing current limit, the three devices are otherwise equivalent.
The CHARGE pin gives full control of the part to the user. Driving CHARGE low puts the part in shutdown. The DONE pin indicates when the part has completed charging. The LT3468 series of parts are available in tiny low profile (1mm) SOT-23 packages.
Applications
- Digital / Film Camera Flash
- PDA / Cell Phone Flash
- Emergency Strobe
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (6)
Documentation & Resources
-
R303 Reliability Data3/23/2018
-

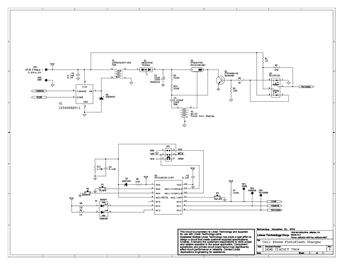

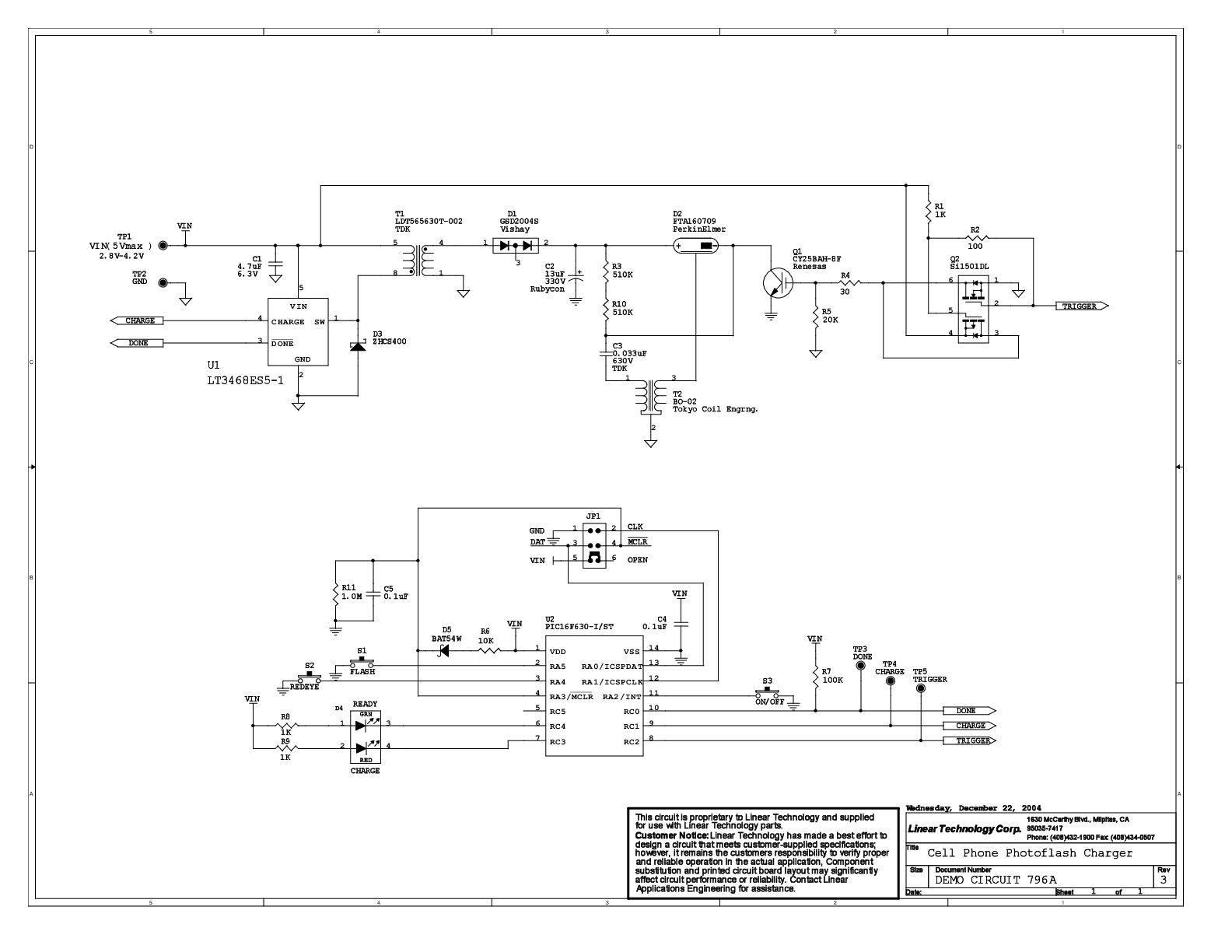

DC796A - Demo Manual9/24/2009
-

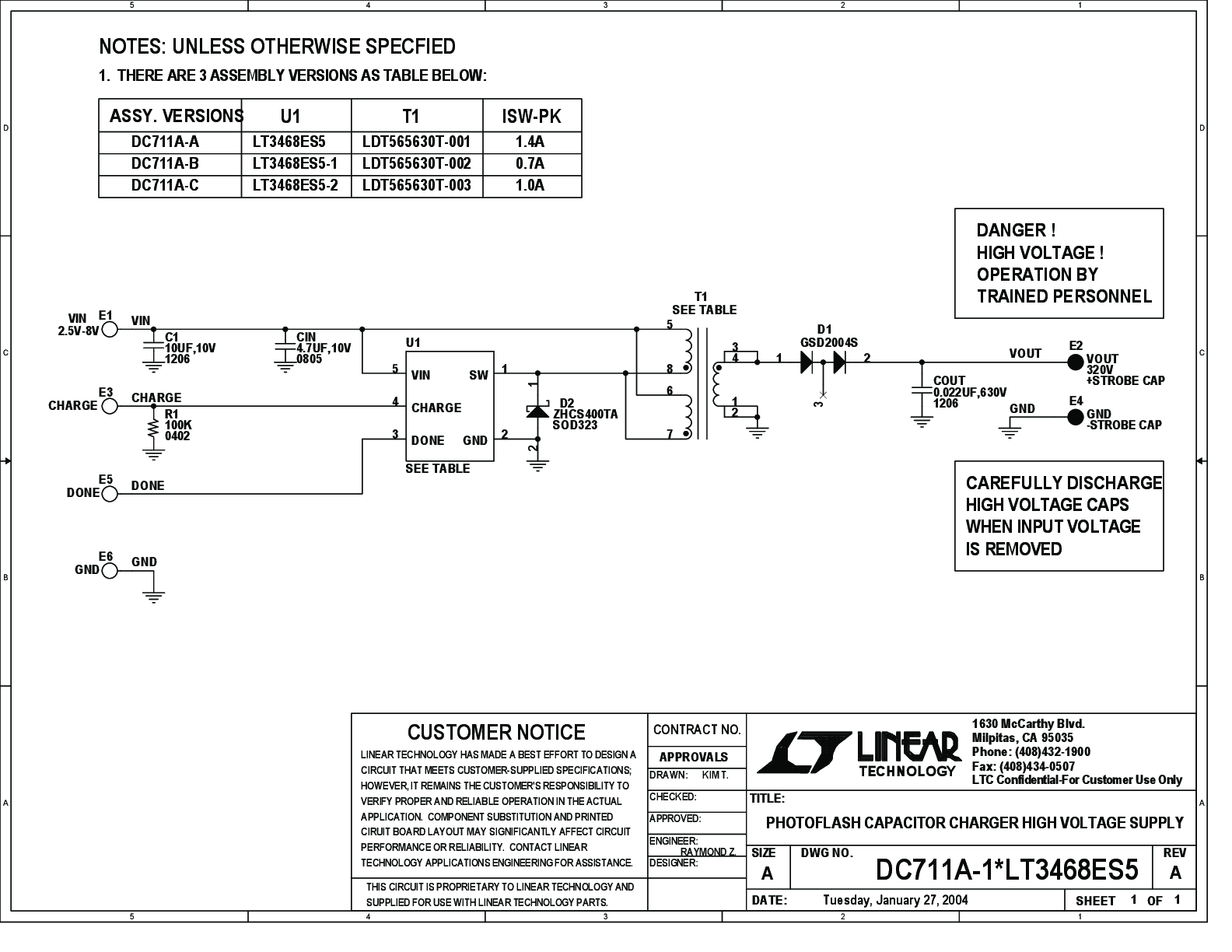

DC711A - Demo Manual9/24/2009
-

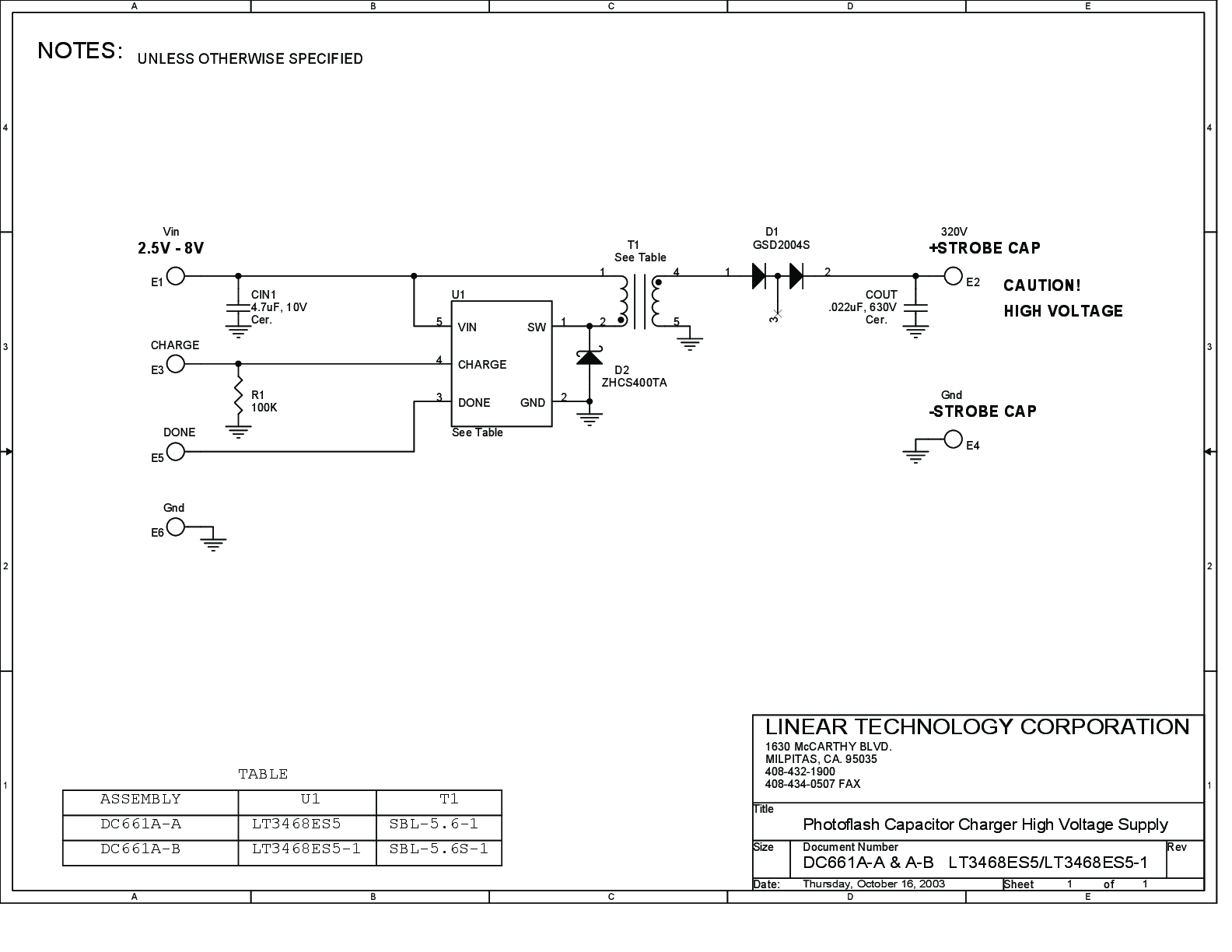

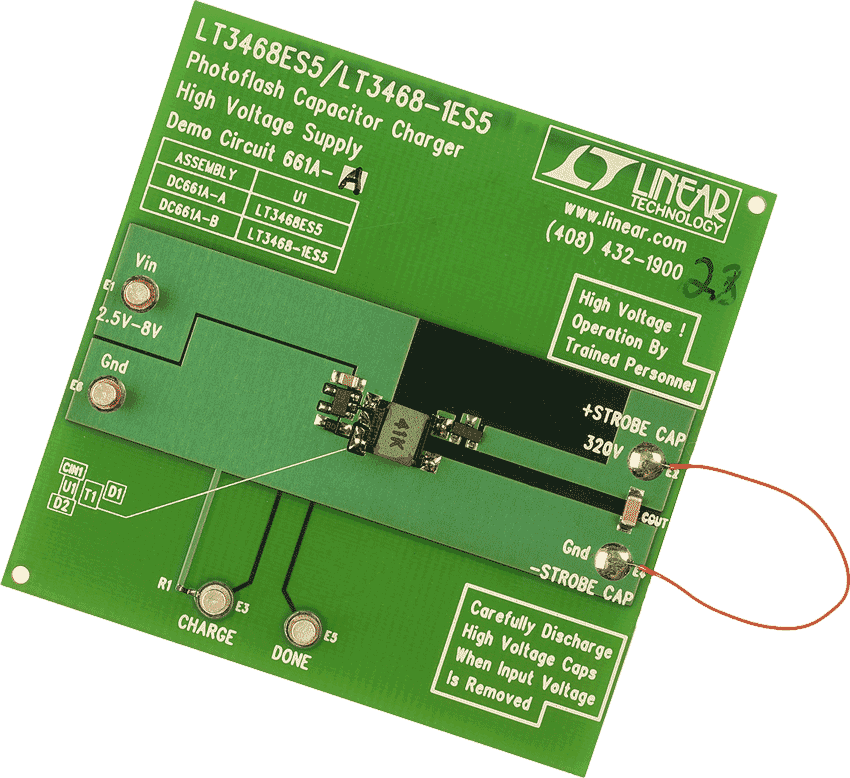

DC661A - Demo Manual9/24/2009
-
Photoflash Capacitor Chargers Keep Up with Shrinking Cameras12/1/2005 LT Journal
-
Photoflash Capacitor Chargers Fit into Tight Spots12/1/2003 LT Journal
Tools & Simulations
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
LTspice Simulations
Models for the following parts are available in LTspice:
LT3468
LT3468-1
LT3468-2
