Features and Benefits
- Inherently Matched LED Current
- Drives Up to Six LEDs from a 3.6V Supply
- No External Schottky Diode Required
- 1.2MHz Switching Frequency (LT3465)
- 2.4MHz Switching Frequency Above AM Broadcast Band (LT3465A)
- VIN Range: 2.7V to 16V
- VOUT(MAX) = 30V
- Automatic Soft-Start (LT3465)
- Open LED Protection

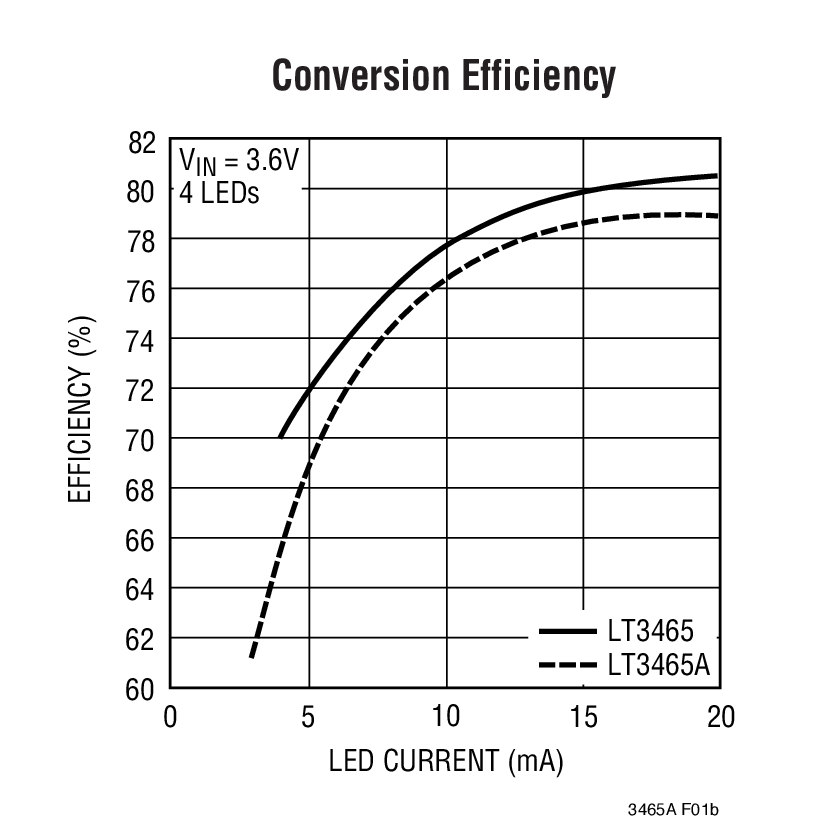

- High Efficiency: 81% (LT3465) 79% (LT3465A) Typical
- Requires Only 0.22µF Output Capacitor
- Low Profile (1mm) SOT-23 Packaging
The LT3465/LT3465A are step-up DC/DC converters designed to drive up to six LEDs in series from a Li-Ion cell. Series connection of the LEDs provides identical LED currents and eliminates the need for ballast resistors. These devices integrate the Schottky diode required externally on competing devices. Additional features include output voltage limiting when LEDs are disconnected, onepin shutdown and dimming control. The LT3465 has internal soft-start.
The LT3465 switches at 1.2MHz, allowing the use of tiny external components. The faster LT3465A switches at 2.4MHz. Constant frequency switching results in low input noise and a small output capacitor. Just 0.22µF is required for 3-, 4- or 5-LED applications.

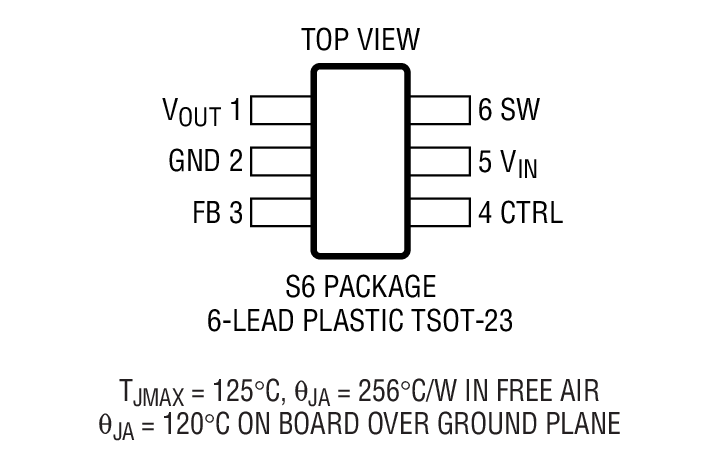

The LT3465 and LT3465A are available in low profile (1mm) 6-lead SOT-23 (ThinSOT™) packages.
- Cellular Phones
- PDAs, Handheld Computers
- Digital Cameras
- MP3 Players
- GPS Receivers
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

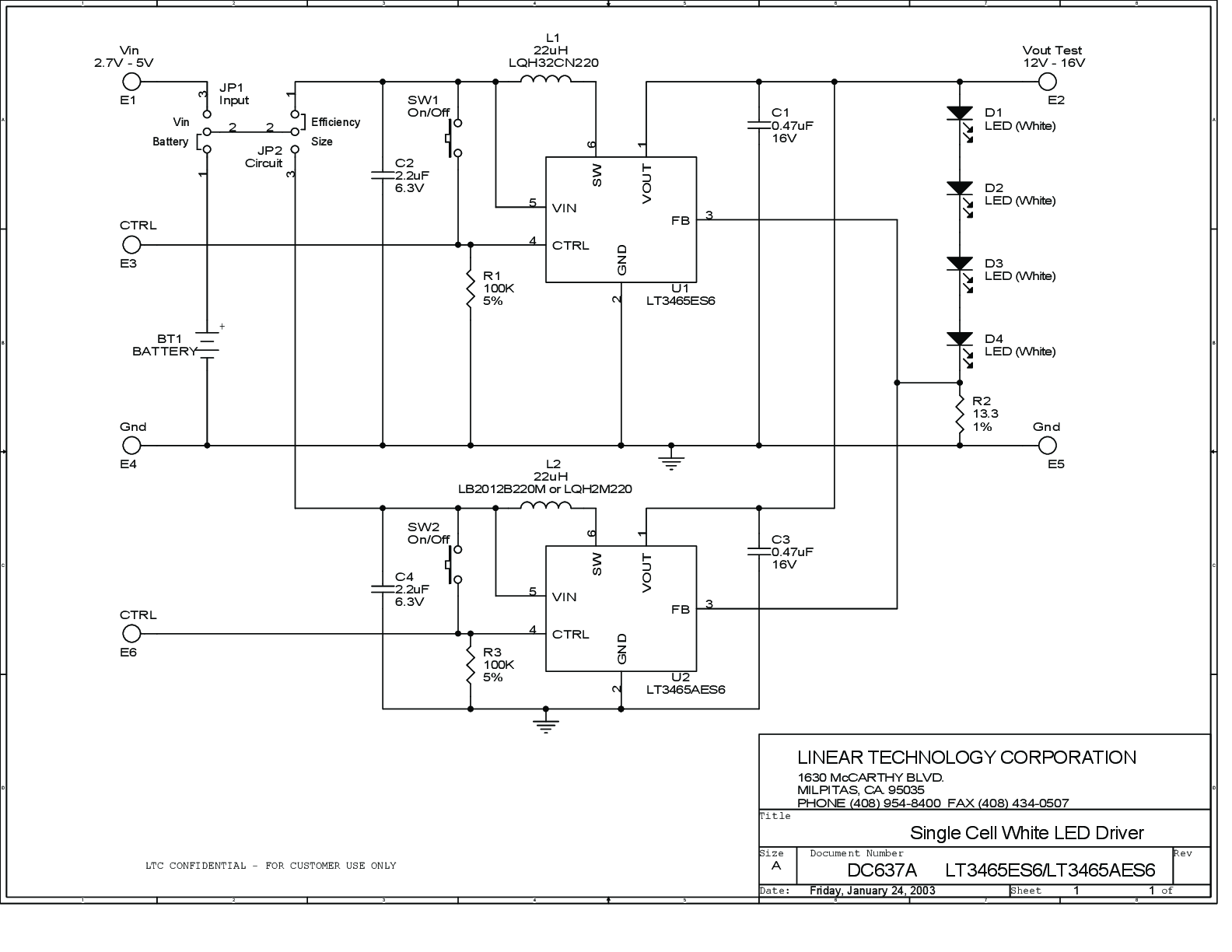

Evaluation Kits (1)
Documentation & Resources
Tools & Simulations
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
Models for the following parts are available in LTspice:
LT3465 Companion Parts
Recommended Related Parts
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|LT3465AES6#TRMPBF||Material Declaration||Reliability Data||6-Lead TSOT-23|
|LT3465AES6#TRPBF||Material Declaration||Reliability Data||6-Lead TSOT-23|
|LT3465ES6#TRMPBF||Material Declaration||Reliability Data||6-Lead TSOT-23|
|LT3465ES6#TRPBF||Material Declaration||Reliability Data||6-Lead TSOT-23|
|Wafer Fabrication Data||R458 Reliability Data|
