LT3024

RECOMMENDED FOR NEW DESIGNS

Dual 100mA/500mA Low Dropout, Low Noise, Micropower Regulator

Part Models: 8
1ku List Price: Starting From $3.31

Viewing:

Overview

Low Noise: 20µV_RMS (10Hz to 100kHz)
Low Quiescent Current: 30µA/Output
Wide Input Voltage Range: 1.8V to 20V
Output Current: 100mA/500mA
Very Low Shutdown Current: <0.1µA
Low Dropout Voltage: 300mV at 100mA/500mA
Adjustable Outputs from 1.22V to 20V
Stable with 1µF/3.3µF Output Capacitor
Stable with Aluminum, Tantalum or Ceramic Capacitors
Reverse-Battery Protected
No Reverse Current
No Protection Diodes Needed
Overcurrent and Overtemperature Protected
Thermally Enhanced 16-Lead TSSOP and 12-Lead (4mm x 3mm) DFN Packages

The LT3024 is a dual, micropower, low noise, low dropout regulator. With an external 0.01µF bypass capacitor, output noise drops to 20µV_RMS over a 10Hz to 100kHz bandwidth. Designed for use in battery-powered systems, the low 30µA quiescent current per output makes it an ideal choice. In shutdown, quiescent current drops to less than 0.1µA. Shutdown control is independent for each output, allowing for flexibility in power management. The device is capable of operating over an input voltage range of 1.8V to 20V. The device can supply 100mA of output current from Output 2 with a dropout voltage of 300mV. Output 1 can supply 500mA of output current with a dropout voltage of 300mV. Quiescent current is well controlled in dropout.

The LT3024 regulator is stable with output capacitors as low as 1µF for the 100mA output and 3.3µF for the 500mA output. Small ceramic capacitors can be used without the series resistance required by other regulators.

Internal protection circuitry includes reverse-battery protection, current limiting, thermal limiting and reverse current protection. The device is available as an adjustable device with a 1.22V reference voltage. The LT3024 regulator is available in the thermally enhanced 16-lead TSSOP and 12-lead, low profile (4mm x 3mm x 0.75mm) DFN packages.

Applications

Cellular Phones
Pagers
Battery-Powered Systems
Frequency Synthesizers
Wireless Modems

Part Models: 8
1ku List Price: Starting From $3.31

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT3024EDE#PBF	12-Lead DFN (4mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3024EDE#TRPBF	12-Lead DFN (4mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3024EFE#PBF	16-Lead TSSOP w/ EP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3024EFE#TRPBF	16-Lead TSSOP w/ EP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3024IDE#PBF	12-Lead DFN (4mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3024IDE#TRPBF	12-Lead DFN (4mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3024IFE#PBF	16-Lead TSSOP w/ EP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3024IFE#TRPBF	16-Lead TSSOP w/ EP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Apr 6, 2022 - 22_0068 Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL
		PCN22_0068_Form Material_Report Delta Qualification Matrix
LT3024EFE#PBF	PRODUCTION
LT3024EFE#TRPBF	PRODUCTION
LT3024IFE#PBF	PRODUCTION
LT3024IFE#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice 1

LT3024 Demo Circuit - Dual Low Noise Regulators (3.7-20V to 3.3V @ 500mA & 2.5V @ 100mA)

Models for the following parts are available in LTspice:

LT3024

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

LT3024EDE Demo Board | Dual, Micropower Low Noise LDO Linear Regulator, 2.3V ≤ VIN ≤ 20V, VOUT1 = 2.5V/3.3V/5V/Adjustable @ 500mA, VOUT2 = 2.5V/3.3V/5V/Adjustable @ 100mA

Buy Now View Details

Product Details

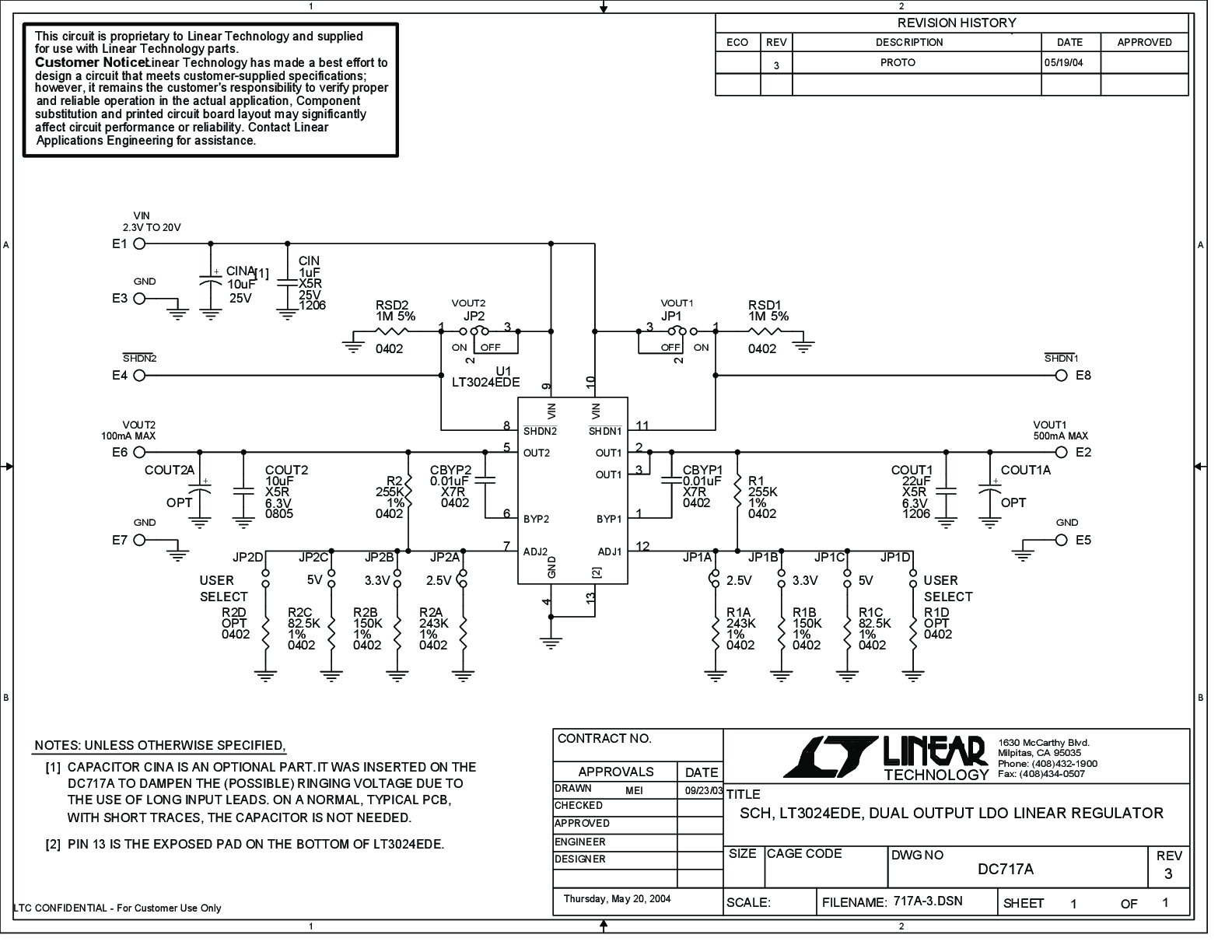

Demonstration circuit 717 is a dual output supply consisting of two linear regulators, based on the LT3024 500mA/100mA low dropout linear regulator in a 4mm x 3mm DFN-12 package. The DC717 has an input voltage range of 2.3V to 20V and a jumper-selectable 2.5V, 3.3V, 5V or user-defined output voltage for each regulator.

The quiescent current is typically only 50uA (for both regulators) at no load. The DC717 uses ceramic capacitors, showcasing the LT3024's ability to maintain stability with ceramic output capacitors.

Resources

DC717A - Demo Manual
9/24/2009

DC717A - Schematic
9/24/2009

DC717A - Design File
9/24/2009
