LT3011
LT3011
RECOMMENDED FOR NEW DESIGNS50mA, 3V to 80V Low Dropout Micropower Linear Regulator with PWRGD
- Part Models
- 10
- 1ku List Price
- Starting From $2.70
Viewing:
Overview
- Wide Input Voltage Range: 3V to 80V
- Low Quiescent Current: 46μA
- Low Dropout Voltage: 300mV
- Output Current: 50mA
- PWRGD Flag with Programmable Delay
- No Protection Diodes Needed
- Adjustable Output from 1.24V to 60V
- 1μA Quiescent Current in Shutdown
- Stable with 1μF Output Capacitor
- Stable with Ceramic, Tantalum, and Aluminum Capacitors
- Reverse-Battery Protection
- No Reverse Current Flow from Output to Input
- Thermal Limiting
- Thermally Enhanced 12-Lead MSOP and 10-Pin (3mm × 3mm) DFN Packages
The LT3011 is a high voltage, micropower, low dropout linear regulator. The device is capable of supplying 50mA of output current with a dropout voltage of 300mV. Designed for use in battery-powered high voltage systems, the low quiescent current (46μA operating and 1μA in shutdown) is well controlled in dropout, making the LT3011 an ideal choice.
The LT3011 includes a PWRGD flag to indicate output regulation. The delay between regulated output level and flag indication is programmable with a single capacitor. The LT3011 also has the ability to operate with very small output capacitors; it is stable with only 1μF on the output. Small ceramic capacitors can be used without the addition of any series resistance (ESR) as is common with other regulators. Internal protection circuitry includes reverse battery protection, current limiting, thermal limiting, and reverse current protection.
The LT3011 features an adjustable output with a 1.24V reference voltage. The device is available in the thermally enhanced 12-lead MSOP and the low profile (0.75mm) 10-pin (3mm × 3mm) DFN package, both providing excellent thermal characteristics.
Applications
- Low Current High Voltage Regulators
- Regulator for Battery-Powered Systems
- Telecom Applications
- Automotive Applications
Documentation
Data Sheet 1

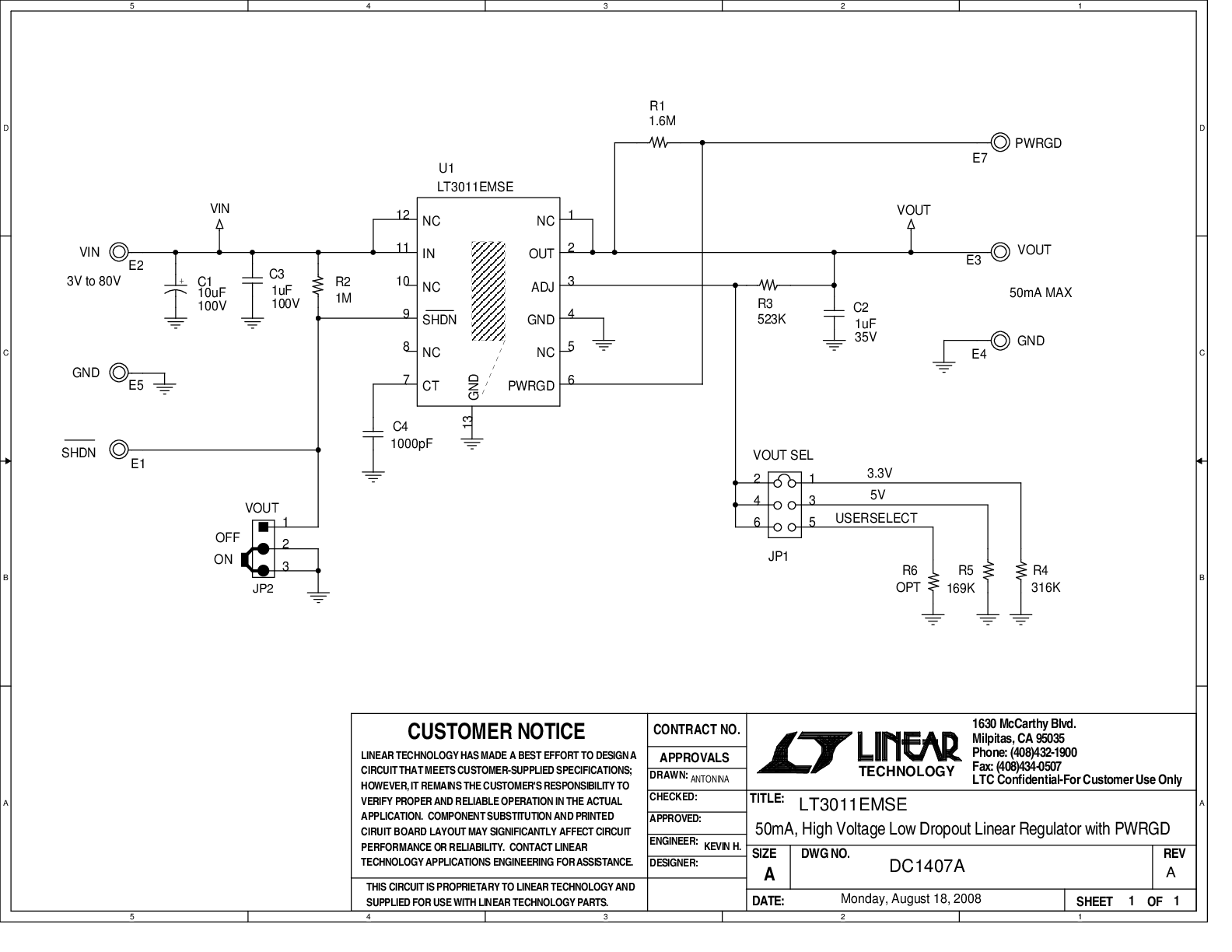

User Guide 1
Brochure 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LT3011EDD#PBF | 10-Lead DFN (3mm x 3mm w/ EP) | ||
| LT3011EDD#TRPBF | 10-Lead DFN (3mm x 3mm w/ EP) | ||
| LT3011EMSE#PBF | 12-Lead MSOP w/ EP | ||
| LT3011EMSE#TRPBF | 12-Lead MSOP w/ EP | ||
| LT3011HMSE#PBF | 12-Lead MSOP w/ EP | ||
| LT3011HMSE#TRPBF | 12-Lead MSOP w/ EP | ||
| LT3011IDD#PBF | 10-Lead DFN (3mm x 3mm w/ EP) | ||
| LT3011IDD#TRPBF | 10-Lead DFN (3mm x 3mm w/ EP) | ||
| LT3011IMSE#PBF | 12-Lead MSOP w/ EP | ||
| LT3011IMSE#TRPBF | 12-Lead MSOP w/ EP |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Jun 5, 2024 - 24_0003 Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2) |
||
| LT3011EMSE#PBF | PRODUCTION | |
| LT3011EMSE#TRPBF | PRODUCTION | |
| LT3011HMSE#PBF | PRODUCTION | |
| LT3011HMSE#TRPBF | PRODUCTION | |
| LT3011IMSE#PBF | PRODUCTION | |
| LT3011IMSE#TRPBF | PRODUCTION | |
|
Feb 4, 2020 - 20_0129 Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC |
||
| LT3011EMSE#PBF | PRODUCTION | |
| LT3011EMSE#TRPBF | PRODUCTION | |
| LT3011HMSE#PBF | PRODUCTION | |
| LT3011HMSE#TRPBF | PRODUCTION | |
| LT3011IMSE#PBF | PRODUCTION | |
| LT3011IMSE#TRPBF | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
