LT1991

Precision, 100µA Gain Selectable Amplifier

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LT1991 - Specialty Amplifiers, eval-adum540x - Digital Isolation Technology, LTC2057 - Operational Amplifiers (Op Amps) Download 2.54 KB LTspice LT1991 - Specialty Amplifiers Download 0.74 KB
Part Models 20
1ku List Price Starting From $1.88
Features
  • Pin Configurable as a Difference Amplifier, Inverting and Noninverting Amplifier
  • Difference Amplifier
    • Gain Range 1 to 13
    • CMRR >75dB
  • Noninverting Amplifier
    • Gain Range 0.07 to 14
  • Inverting Amplifier
    • Gain Range -0.08 to -13
  • Gain Error <0.04%
  • Gain Drift < 3ppm/°C
  • Wide Supply Range: Single 2.7V to Split ±18V
  • Micropower: 100µA Supply Current
  • Precision: 50µV Maximum Input Offset Voltage
  • 560kHz Gain Bandwidth Product
  • Rail-to-Rail Output
  • Space Saving 10-Lead MSOP and DFN Packages
Additional Details
show more Icon

The LT1991 combines a precision operational amplifier with eight precision resistors to form a one-chip solution for accurately amplifying voltages. Gains from -13 to 14 with a gain accuracy of 0.04% can be achieved using no external components. The device is particularly well suited for use as a difference amplifier, where the excellent resistor matching results in a common mode rejection ratio of greater than 75dB.

The amplifier features a 50µV maximum input offset voltage and a gain bandwidth product of 560kHz. The device operates from any supply voltage from 2.7V to 36V and draws only 100µA supply current on a 5V supply. The output swings to within 40mV of either supply rail.

The resistors have excellent matching, 0.04% over temperature for the 450k resistors. The matching temperature coefficent is guaranteed less than 3ppm/°C. The resistors are extremely linear with voltage, resulting in a gain nonlinearity of less than 10ppm.

The LT1991 is fully specified at 5V and ±15V supplies and from -40°C to 85°C. The device is available in space saving 10-lead MSOP and low profile (0.8mm) 3mm × 3mm DFN packages.

Applications

  • Handheld Instrumentation
  • Medical Instrumentation
  • Strain Gauge Amplifiers
  • Differential to Single-Ended Conversion
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LT1991 - Specialty Amplifiers, eval-adum540x - Digital Isolation Technology, LTC2057 - Operational Amplifiers (Op Amps) Download 2.54 KB LTspice LT1991 - Specialty Amplifiers Download 0.74 KB
Part Models 20
1ku List Price Starting From $1.88
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT1991

Documentation

12
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • Design Note
  • Data Sheet
  • User Guide
  • Application Note
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 05/23/2012
English

LT1991: Precision, 100µA Gain Selectable Amplifier Data Sheet

Open PDF File

redirect
763.00K
download

Download PDF

PDF Vector

PDF

UPDATED 07/10/2012
Japanese

LT1991: 高精度、100μA、利得を選択可能なアンプ データシート

Open PDF File

redirect
989.00K
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R423 Reliability Data redirect icon

19.02 K

download

Download PDF

Design Note

6

PDF Vector

PDF

UPDATED 08/05/2014
English
DN348 - Precise Gain Without External Resistors redirect icon

77.00K

download

Download PDF

PDF Vector

PDF

UPDATED 10/25/2004
Chinese
DN348 - 在未采用外部电阻器的情况下获取精准增益 redirect icon

288.00K

download

Download PDF

PDF Vector

PDF

UPDATED 05/23/2005
Japanese
DN348 外付け抵抗なしで精密利得を実現 redirect icon

61.00K

download

Download PDF

PDF Vector

HTML

UPDATED 08/08/2008
English
Design Note 448: 12-bit DAC in TSOT-23 Includes Bidirectional REF Pin for Connection to Op Amp or External High Precision Reference redirect icon

PDF Vector

HTML

UPDATED 08/08/2008
Chinese
设计要点 448：采用 TSOT-23 封装的 12 位 DAC 包括双向 REF 引脚以连接运算放大器或外部高精度基准 redirect icon

PDF Vector

HTML

UPDATED 08/08/2008
Japanese
DN-448: オペアンプまたは外部高精度リファレンスに接続するための双方向REFピンを備えたTSOT-23の12ビットDAC redirect icon

User Guide

1

PDF Vector

PDF

UPDATED 09/24/2009
English

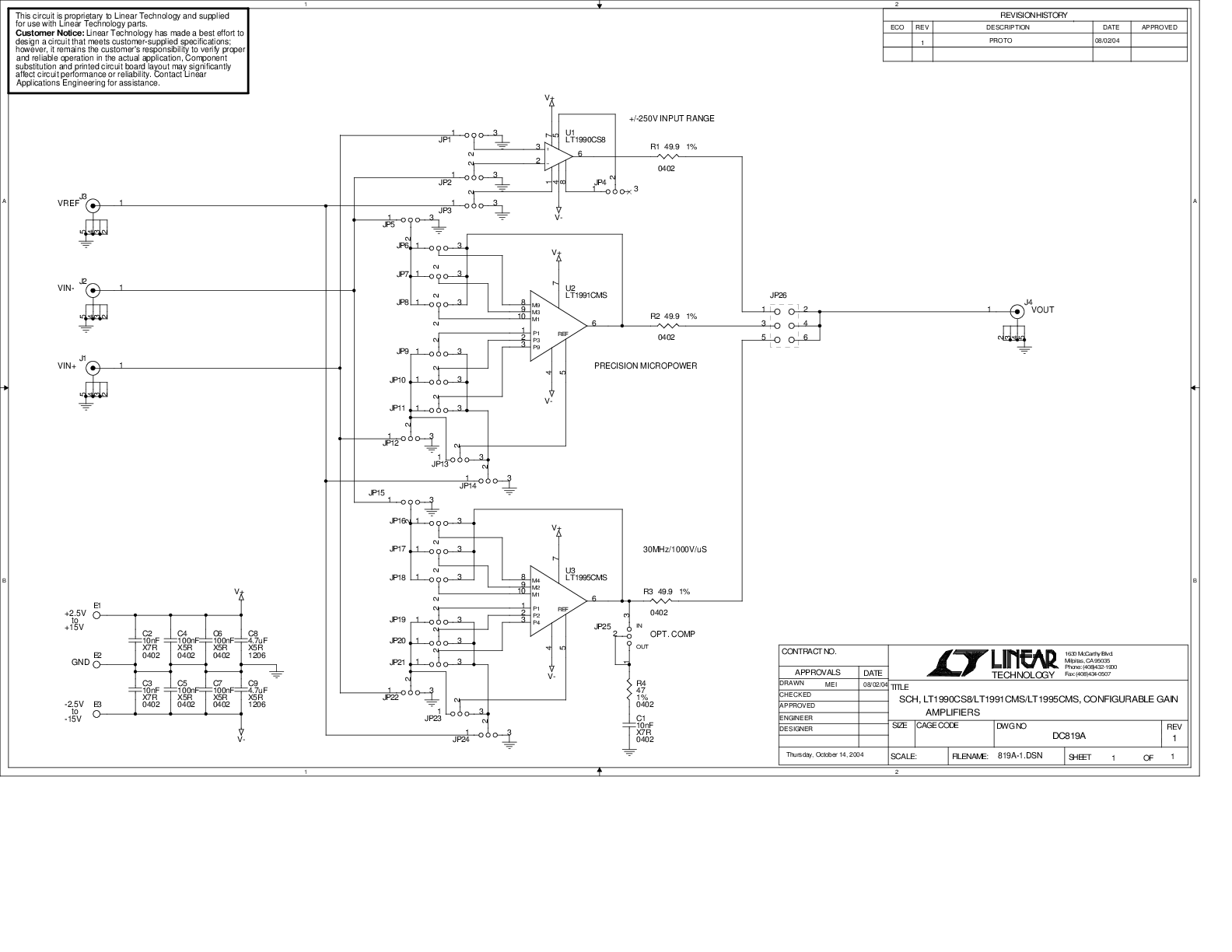

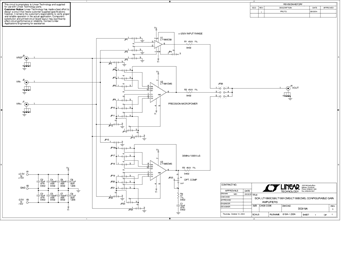

DC819A - Demo Manual redirect icon
