Overview
Features and Benefits
- 700MHz Gain Bandwidth
- ±200mA Minimum IOUT
- Adjustable Quiescent Current

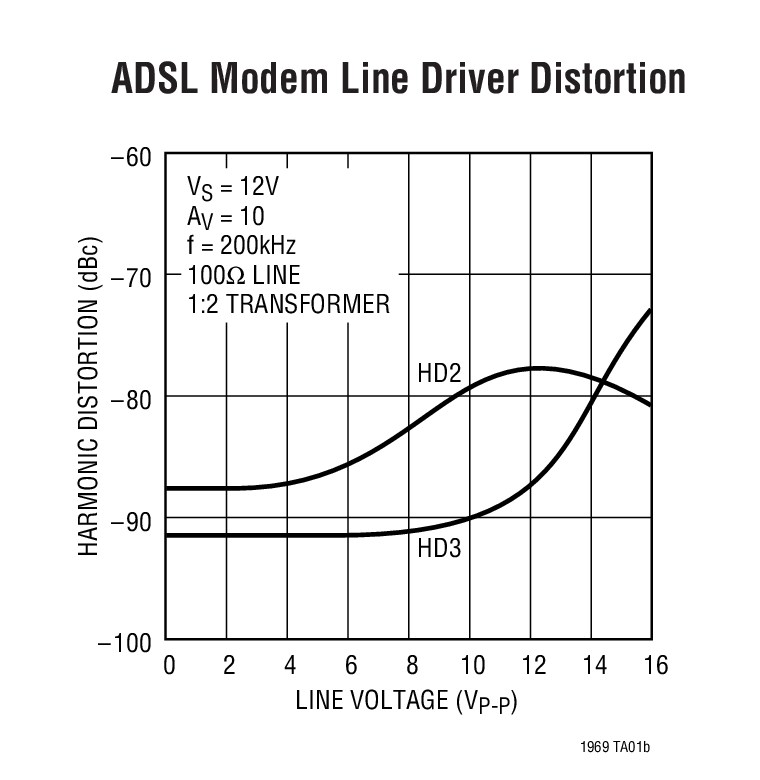

- Low Distortion: −72dBc at 1MHz, 4VP-P , 25Ω, AV = 2
- Stable in AV ≥ 10, Simple Compensation for AV < 10
- ±4.3V Minimum Output Swing, VS = ±6V, RL = 25Ω
- Stable with 1000pF Load
- 6nV/√Hz Input Noise Voltage
- 2pA/√Hz Input Noise Current
- 4mV Maximum Input Offset Voltage
- 4µA Maximum Input Bias Current
- 400nA Maximum Input Offset Current
- ±4.5V Minimum Input CMR, VS = ±6V
- Specified at ±6V, ±2.5V
Product Details
The LT1969 is an adjustable current version of the popular LT1886, a 200mA minimum output current, dual op amp with outstanding distortion performance. The adjustable current feature is highly desirable in applications where minimum power dissipation is required while still being able to provide adequate line termination.
At nominal supply current, the amplifiers are gain of 10 stable and can easily be compensated for lower gains. The LT1969 features balanced high impedance inputs with 4µA input bias current and 4mV maximum input offset voltage. Single supply applications are easy to implement and have lower total noise than current feedback amplifier implementations.
The output drives a 25Ω load to ±4.3V with ±6V supplies. On ±2.5V supplies, the output swings ±1.5V with a 100Ωload. The amplifier is stable with a 1000pF capacitive load making it useful in buffer and cable driver applications.

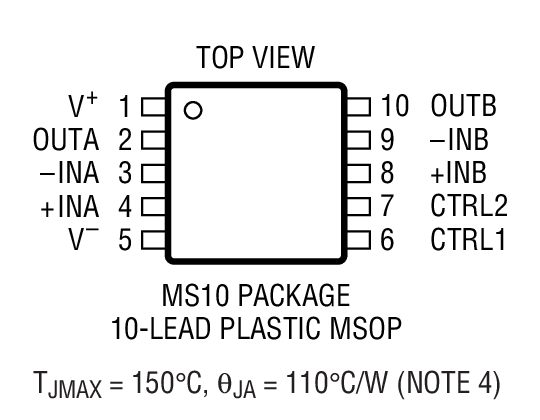

The LT1969 is manufactured using an advanced low voltage complementary bipolar process and is available in a thermally enhanced MS10 package
Applications

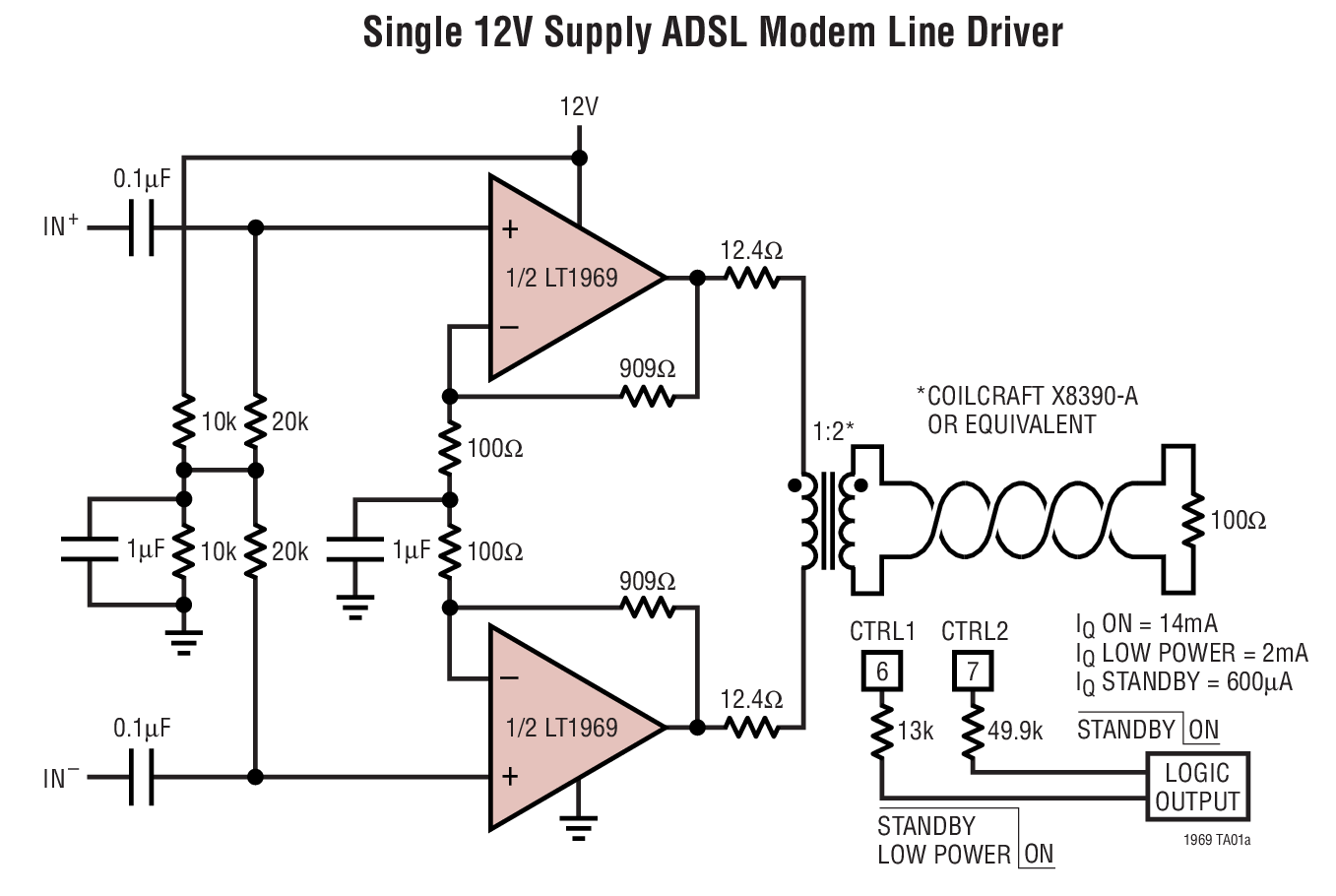

- DSL Modems
- xDSL PCI Cards
- USB Modems
- Line Drivers
Product Lifecycle
Last Time Buy
All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.
Documentation & Resources
-
R378 Reliability Data3/22/2018
-
Reduce Power Consumption of DSL Modems with the LT1969 Line Driver12/1/2001 LT Journal
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LT1969CMS#PBF | Material Declaration | Reliability Data | 10-Lead MSOP | |
| LT1969CMS#TRPBF | Material Declaration | Reliability Data | 10-Lead MSOP | |
| Wafer Fabrication Data | R378 Reliability Data |
