LT1937: White LED Step-Up Converter in SC70 and ThinSOT Data Sheet8/28/2007362K
Features and Benefits
- Inherently Matched LED Current
- High Efficiency: 84% Typical
- Drives Up to Four LEDs from a 3.2V Supply
- Drives Up to Six LEDs from a 5V Supply
- 36V Rugged Bipolar Switch
- Fast 1.2MHz Switching Frequency
- Uses Tiny 1mm Tall Inductors
- Requires Only 0.22µF Output Capacitor
- Low Profile SC70 and ThinSOT™ Packaging
The LT1937 is a step-up DC/DC converter specifically designed to drive white LEDs with a constant current. The device can drive two, three or four LEDs in series from a Li-Ion cell. Series connection of the LEDs provides identical LED currents resulting in uniform brightness and eliminating the need for ballast resistors. The LT1937 switches at 1.2MHz, allowing the use of tiny external components. The output capacitor can be as small as 0.22µF, saving space and cost versus alternative solutions. A low 95mV feedback voltage minimizes power loss in the current setting resistor for better efficiency.
The LT1937 is available in low profile SC70 and ThinSOT packages.
- Cellular Phones
- PDAs, Handheld Computers
- Digital Cameras
- MP3 Players
- GPS Receivers
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (2)

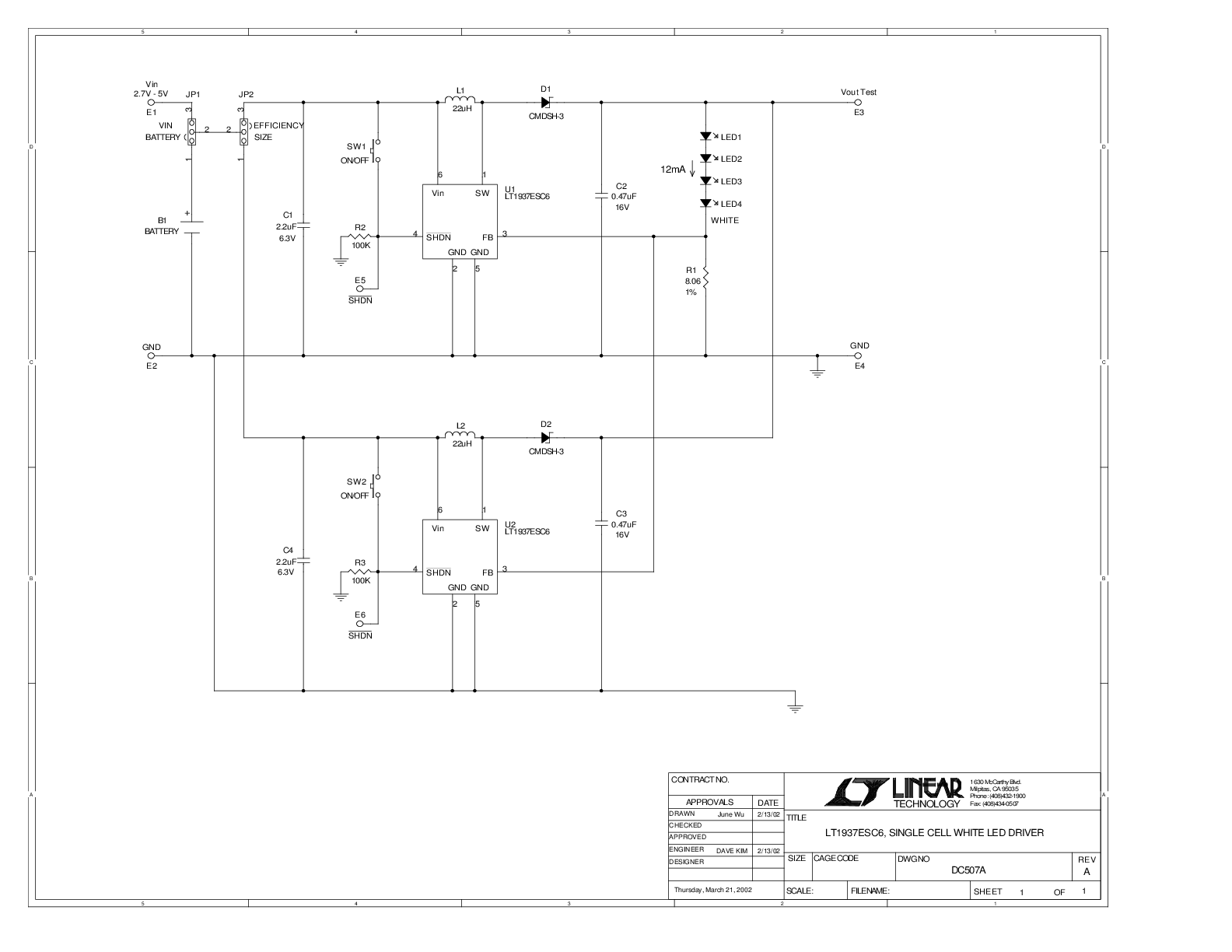

DC507A: Demo Board for the LT1937 White LED Step-Up Converter in SC70 and ThinSOT.

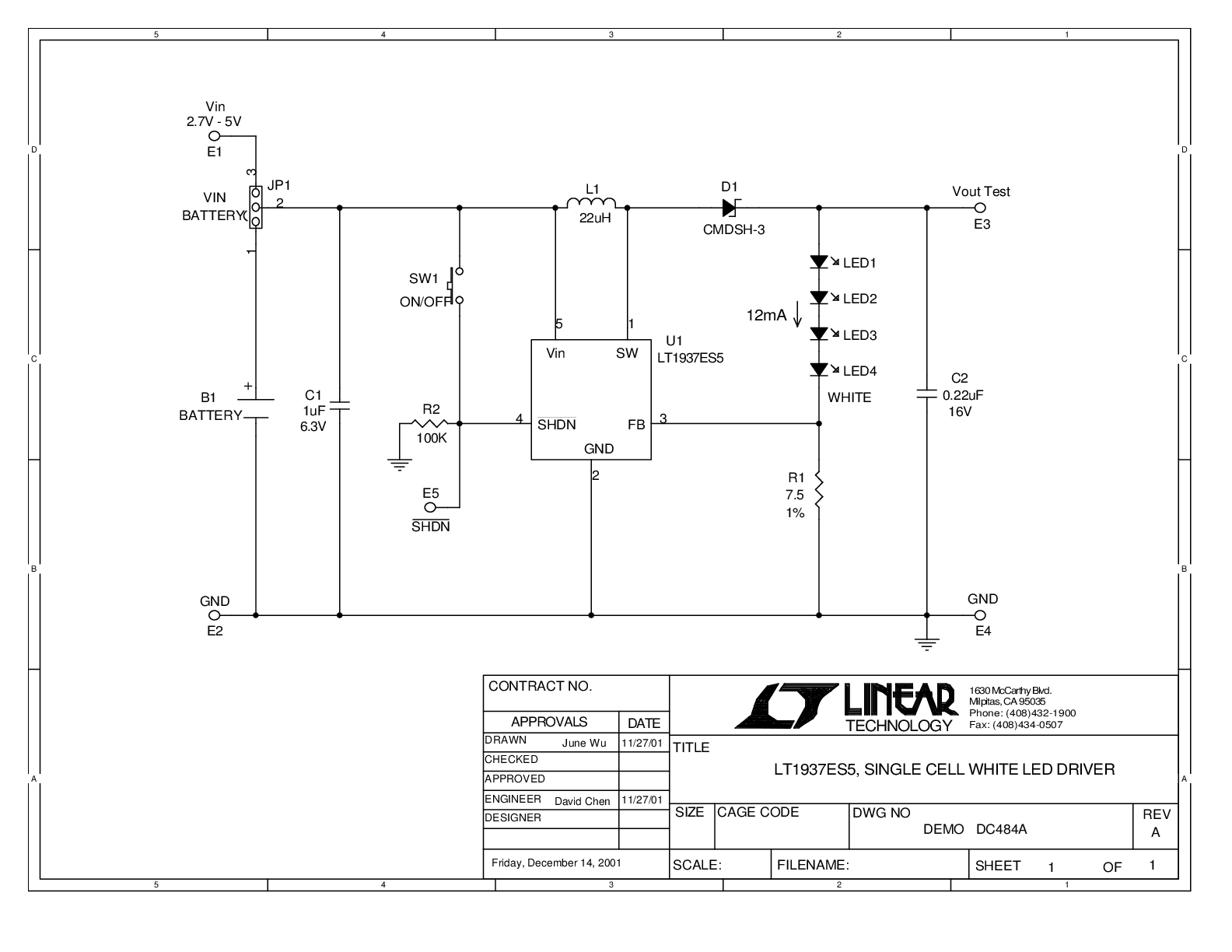

DC484A: Demo Board for the LT1937 White LED Step-Up Converter in SC70 and ThinSOT.
Documentation & Resources
R303 Reliability Data3/23/2018232 K
DC507A - Demo Manual9/24/2009474K
DC484A - Demo Manual9/24/2009472K
White LED Driver in Tiny SC70 Package Achieves 84% Efficiency8/1/2002 LT Journal
Tools & Simulations
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
Models for the following parts are available in LTspice:
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|LT1937ES5#TRMPBF||Material Declaration||Reliability Data||5-Lead TSOT-23|
|LT1937ES5#TRPBF||Material Declaration||Reliability Data||5-Lead TSOT-23|
|LT1937ESC6#TRMPBF||Material Declaration||Reliability Data||6-Lead SC70|
|LT1937ESC6#TRPBF||Material Declaration||Reliability Data||6-Lead SC70|
|Wafer Fabrication Data||R303 Reliability Data|
