Overview

Features and Benefits

  • 700MHz Gain Bandwidth
  • ±200mA Minimum IOUT

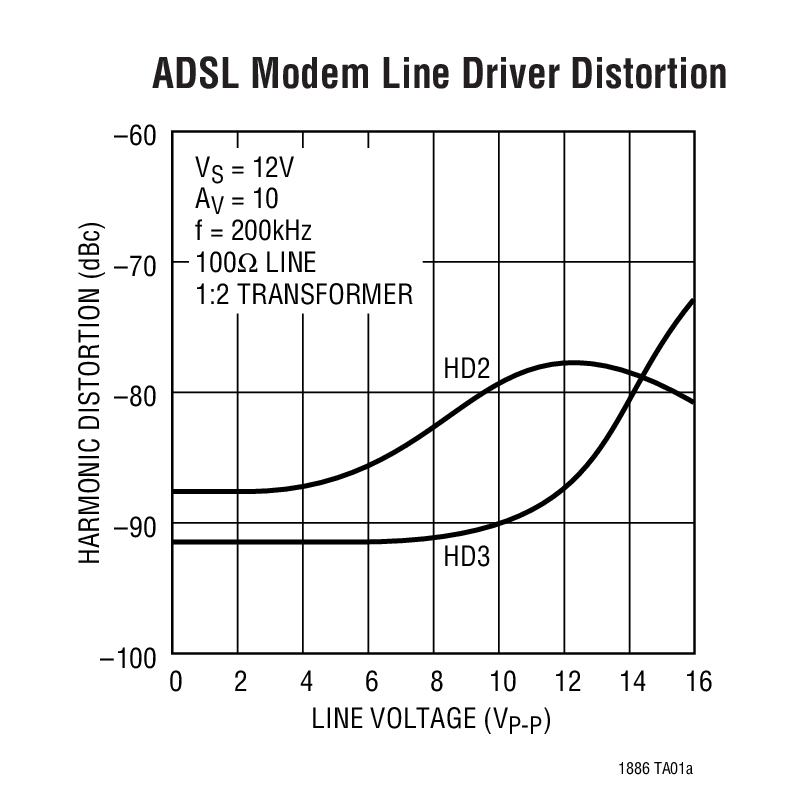

  • Low Distortion: –72dBc at 1MHz, 4VP-P, 25OΩ, AV = 2
  • Stable in AV ≥ 10, Simple Compensation for AV < 10
  • ±4.3V Minimum Output Swing, VS = ±6V, RL = 25Ω
  • 7mA Supply Current per Amplifier
  • 200V/µs Slew Rate
  • Stable with 1000pF Load
  • 6nV/√Hz Input Noise Voltage
  • 2pA/√Hz Input Noise Current
  • 4mV Maximum Input Offset Voltage
  • 4µA Maximum Input Bias Current
  • 400nA Maximum Input Offset Current
  • ±4.5V Minimum Input CMR, VS = ±6V
  • Specified at ±6V, ±2.5V

Product Details

The LT1886 is a 200mA minimum output current dual op amp with outstanding distortion performance. The amplifiers are gain-of-ten stable, but can be easily compensated for lower gains. The LT1886 features balanced, high impedance inputs with 4µA maximum input bias current, and 4mV maximum input offset voltage. Single supply applications are easy to implement and have lower total noise than current feedback amplifier implementations.

The output drives a 25Ω load to ±4.3V with ±6V supplies. On ±2.5V supplies the output swings ±1.5V with a 100Ω load. The amplifier is stable with a 1000pF capacitive load which makes it useful in buffer and cable driver applications.

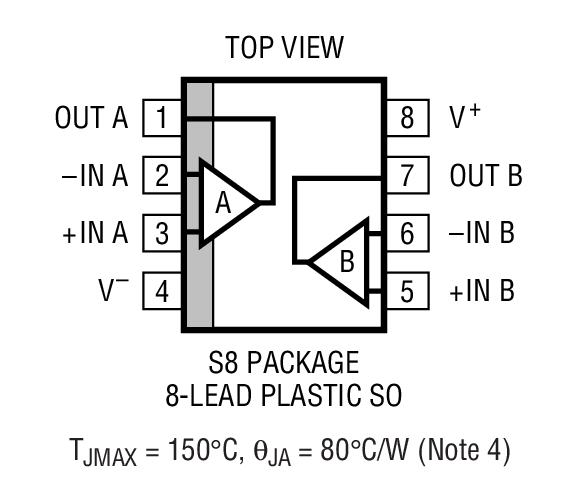

The LT1886 is manufactured on our advanced low voltage complementary bipolar process and is available in a thermally enhanced SO-8 package.

Applications

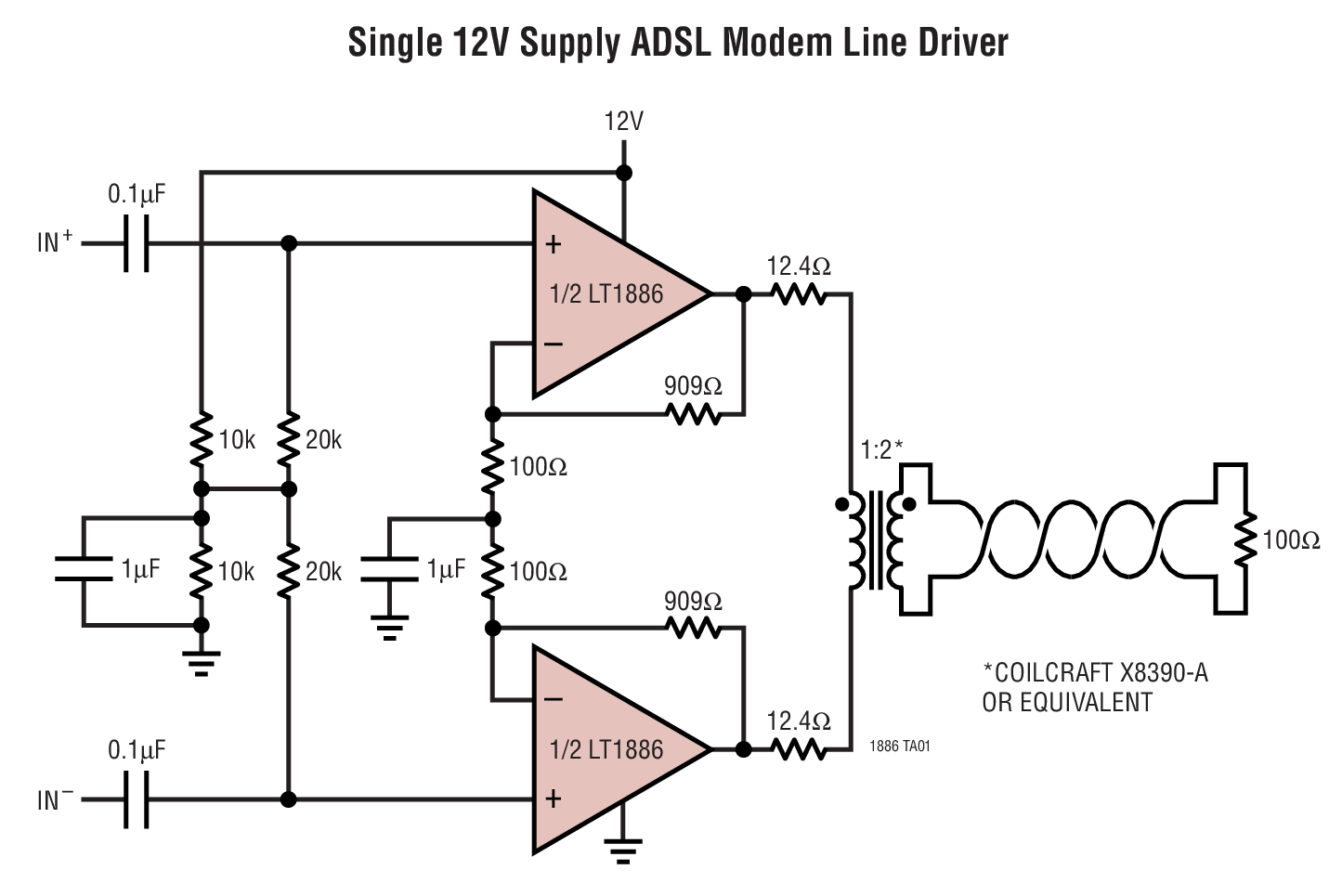

  • DSL Modems
  • xDSL PCI Cards
  • USB Modems
  • Line Drivers

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Tools & Simulations

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

LTspice

Models for the following parts are available in LTspice:

LT1886
