LT1792

PRODUCTION

Low Noise, Precision, JFET Input Op Amp

Part Models: 12
1ku List Price: Starting From $3.19

Viewing:

Overview

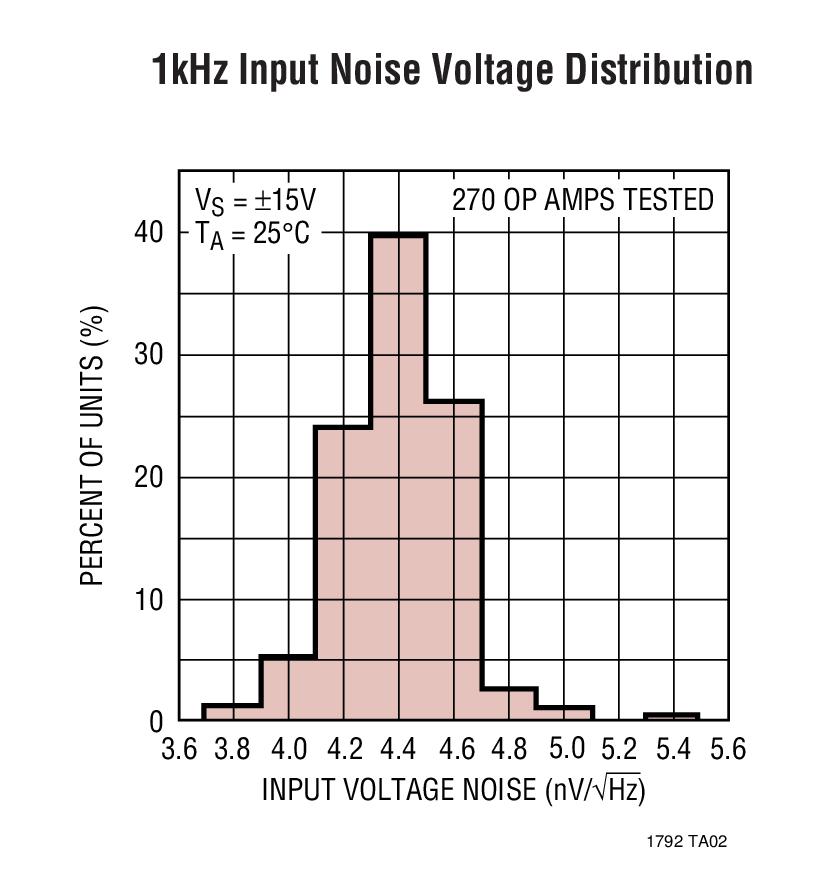

100% Tested Low Voltage Noise: 6nV/√Hz Max
A Grade 100% Temperature Tested
Voltage Gain: 1.2 Million Min
Offset Voltage Over Temp: 800µV Max
Gain-Bandwidth Product: 5.6MHz Typ
Guaranteed Specifications with ±5V Supplies

The LT1792 achieves a new standard of excellence in noise performance for a JFET op amp. The 4.2nV/√Hz voltage noise combined with low current noise and picoampere bias currents make the LT1792 an ideal choice for amplifying low level signals from high impedance capacitive transducers.

The LT1792 is unconditionally stable for gains of 1 or more, even with load capacitances up to 1000pF. Other key features are 600µV VOS and a voltage gain of over 4 million. Each individual amplifier is 100% tested for voltage noise, slew rate and gain bandwidth.

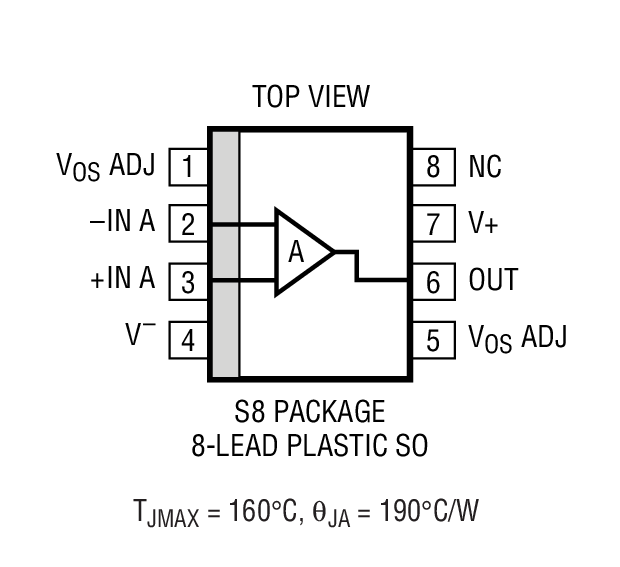

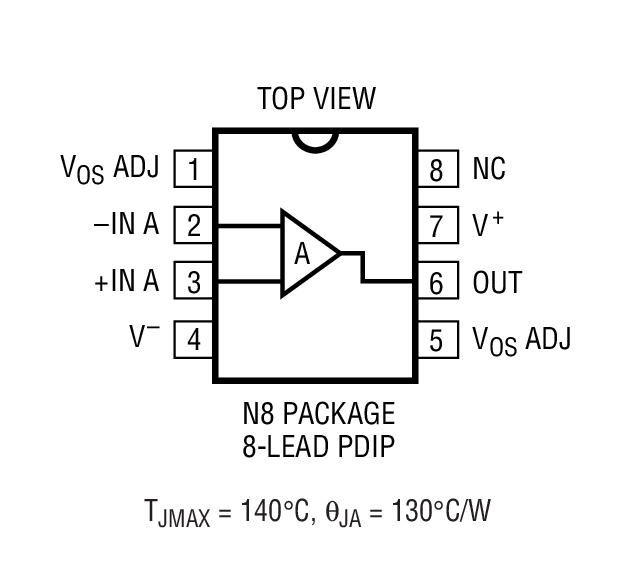

The design of the LT1792 has been optimized to achieve true precision performance with an industry standard pinout in the SO-8 package. Specifications are also provided for ±5V supplies.

Applications

Photocurrent Amplifiers

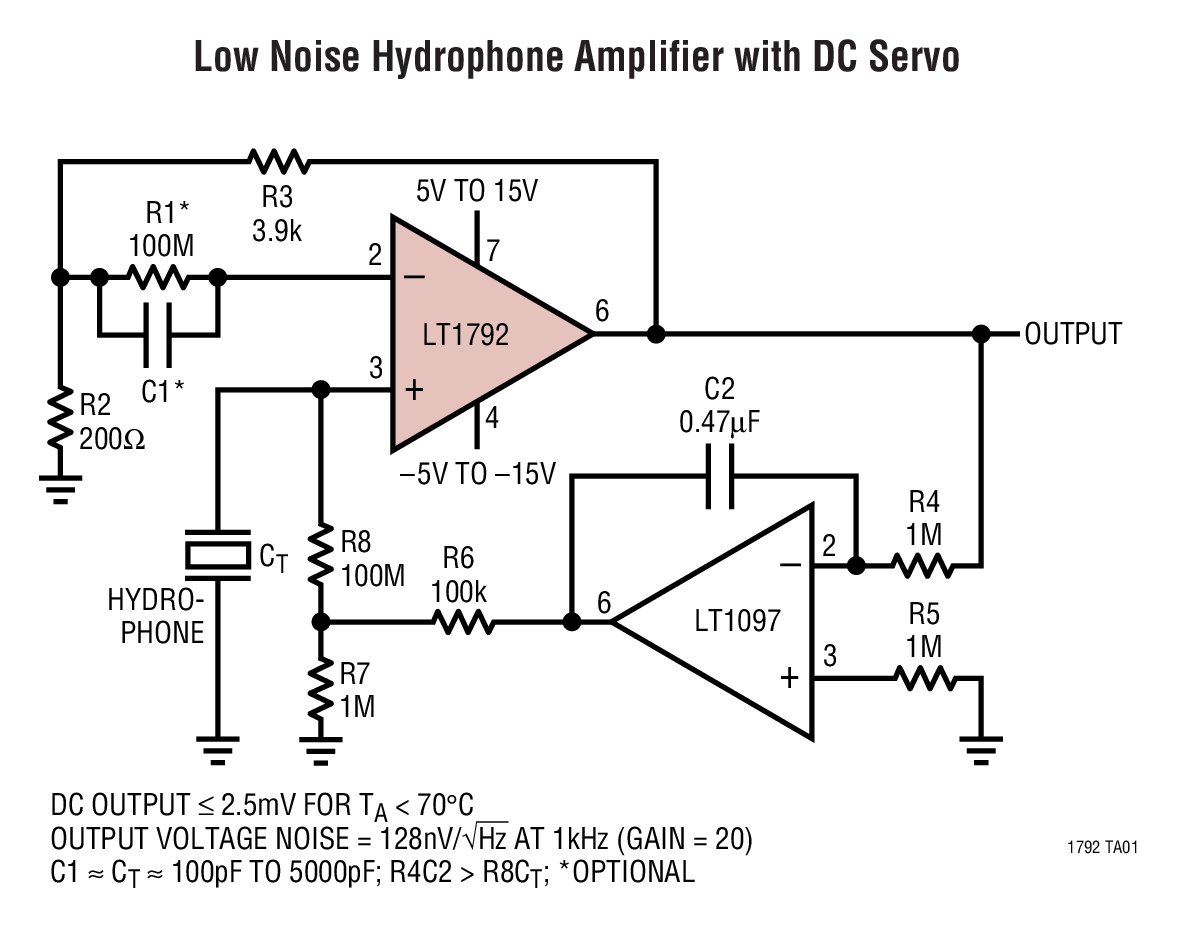

Hydrophone Amplifiers
High Sensitivity Piezoelectric Accelerometers
Low Voltage and Current Noise Instrumentation Amplifier Front Ends
Two and Three Op Amp Instrumentation Amplifiers
Active Filters

Part Models: 12
1ku List Price: Starting From $3.19
