LT1677

PRODUCTION

Low Noise, Rail-to-Rail Precision Op Amp

Part Models: 6
1ku List Price: Starting From $2.64

Viewing:

Overview

Rail-to-Rail Input and Output
100% Tested Low Voltage Noise:
- 3.2nV/√Hz Typ at 1kHz
- 4.5nV/√Hz Max at 1kHz
Offset Voltage: 60µV Max
Low V_OS Drift: 0.2µV/°C Typ
Low Input Bias Current: 20nA Max
Wide Supply Range: 3V to ±18V
High A_VOL: 7V/µV Min, R_L = 10k
High CMRR: 109dB Min
High PSRR: 108dB Min
Gain Bandwidth Product: 7.2MHz
Slew Rate: 2.5V/µs
Operating Temperature Range: –40°C to 85°C

The LT1677 features the lowest noise performance available for a rail-to-rail operational amplifier: 3.2nV/√Hz wideband noise, 1/f corner frequency of 13Hz and 90nV peak-to-peak 0.1Hz to 10Hz noise. Low noise is combined with outstanding precision: 20µV offset voltage and 0.2µV/°C drift, 130dB common mode and power supply rejection and 7.2MHz gain bandwidth product. The common mode range exceeds the power supply by 100mV.

The voltage gain of the LT1677 is extremely high, 19 million (typical) driving a 10k load.

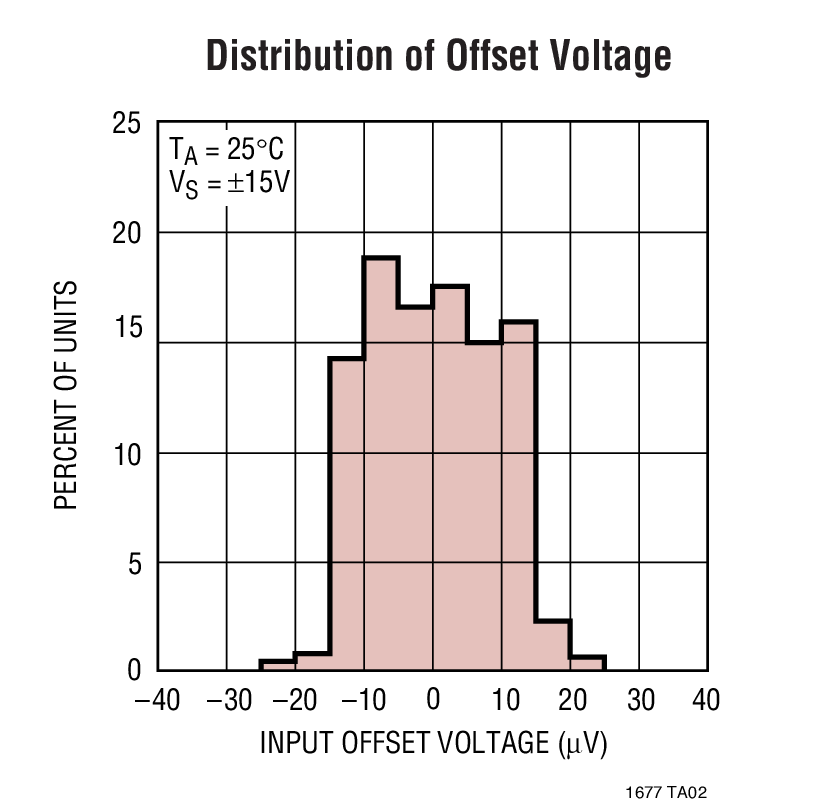

In the design, processing and testing of the device, particular attention has been paid to the optimization of the entire distribution of several key parameters. Consequently, the specifications have been spectacularly improved compared to competing rail-to-rail amplifiers.

Applications

Low Noise Signal Processing
Microvolt Accuracy Threshold Detection
Strain Gauge Amplifiers
Tape Head Preamplifiers
Direct Coupled Audio Gain Stages
Infrared Detectors

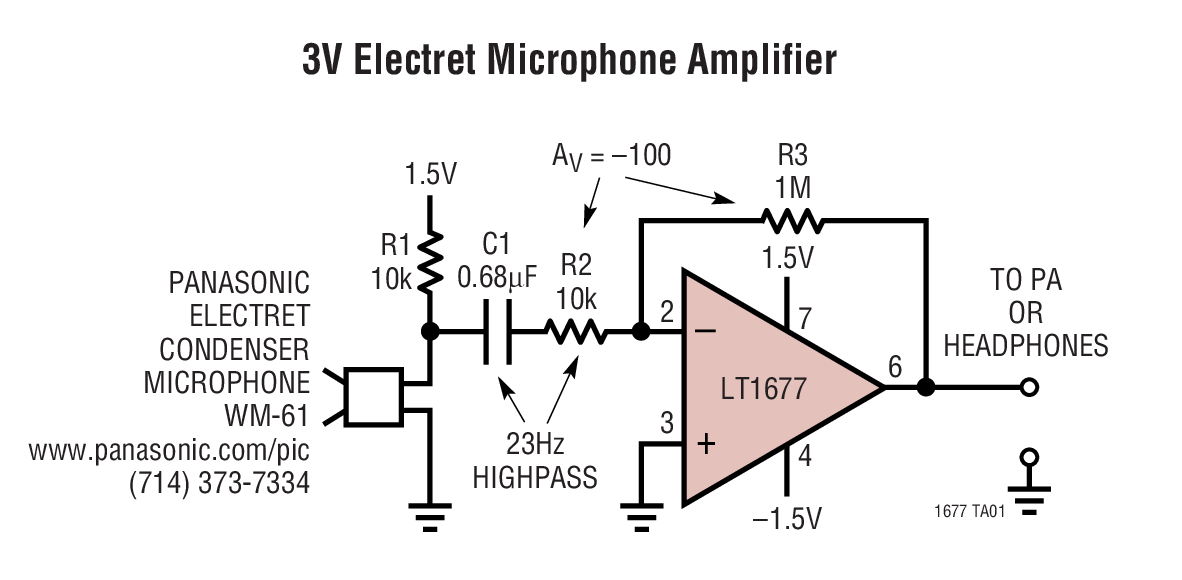

Battery-Powered Microphones

Part Models: 6
1ku List Price: Starting From $2.64

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

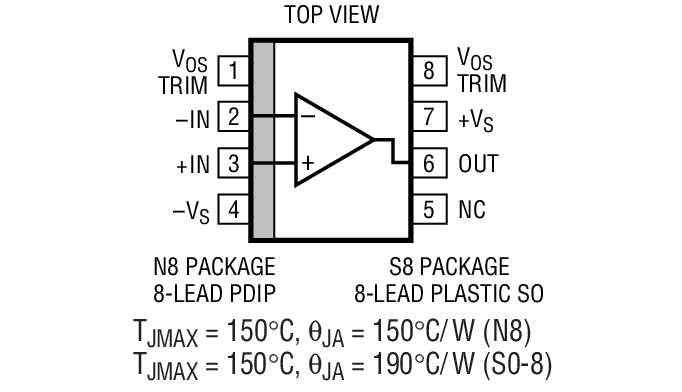

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT1677CN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1677CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1677CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1677IN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1677IS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1677IS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 8, 2024 - 24_0234 Migrating Bottom Trace Code Marking to Top Side Laser Marking for PDIP Package
		PCN24_0234_Form Material_Report Marking Comparison
LT1677CN8#PBF	PRODUCTION
LT1677IN8#PBF	PRODUCTION
Oct 11, 2022 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package
		PCN22_0241_Form Material_Report Qualification Results Summary
LT1677CN8#PBF	PRODUCTION
Aug 6, 2022 - 22_0172 Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]
		PCN22_0172_Form Material_Report Delta Qualification Matrix
LT1677CN8#PBF	PRODUCTION
LT1677IN8#PBF	PRODUCTION
Oct 24, 2024 - 24_0246 Migrating Bottom Trace Code Marking to Top Side Laser Marking for SOIC_N Package
		PCN24_0246_Form Material_Report Marking Comparison Delta Qualification Matrix
LT1677CS8#PBF	PRODUCTION
LT1677CS8#TRPBF	PRODUCTION
LT1677IS8#PBF	PRODUCTION
LT1677IS8#TRPBF	PRODUCTION
Oct 12, 2022 - 22_0254 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 1 of 2)
		PCN22_0254_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LT1677CS8#PBF	PRODUCTION
LT1677CS8#TRPBF	PRODUCTION
LT1677IS8#PBF	PRODUCTION
LT1677IS8#TRPBF	PRODUCTION
Jun 11, 2021 - 21_0060 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0060_Form Material_Report Delta Qualification Matrix
LT1677CS8#PBF	PRODUCTION
LT1677CS8#TRPBF	PRODUCTION
LT1677IS8#PBF	PRODUCTION
LT1677IS8#TRPBF	PRODUCTION
Dec 18, 2023 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package
		PCN22_0241_Form Material_Report Qualification Results Summary
LT1677IN8#PBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Oscillators 1
LTC6990	PRODUCTION	TimerBlox: Voltage Controlled Silicon Oscillator

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

LT1677

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
