Overview

Features and Benefits

  • Single-Ended to Differential Conversion
  • Low Noise: 1.4nV/√Hz
  • 20µVRMS Total Wideband Noise in Filter with 2MHz fC
  • Dynamic Range: 104dB SNR at ±5V
  • Total Supply Voltage: 2.7V to 12V
  • Rail-to-Rail Outputs
  • DC Accurate: Op Amp VOS 0.5mV (Typ)
  • Trimmed Bandwidth for Accurate Filters
  • MSOP-8 Surface Mount Package
  • No External Clock Required

Product Details

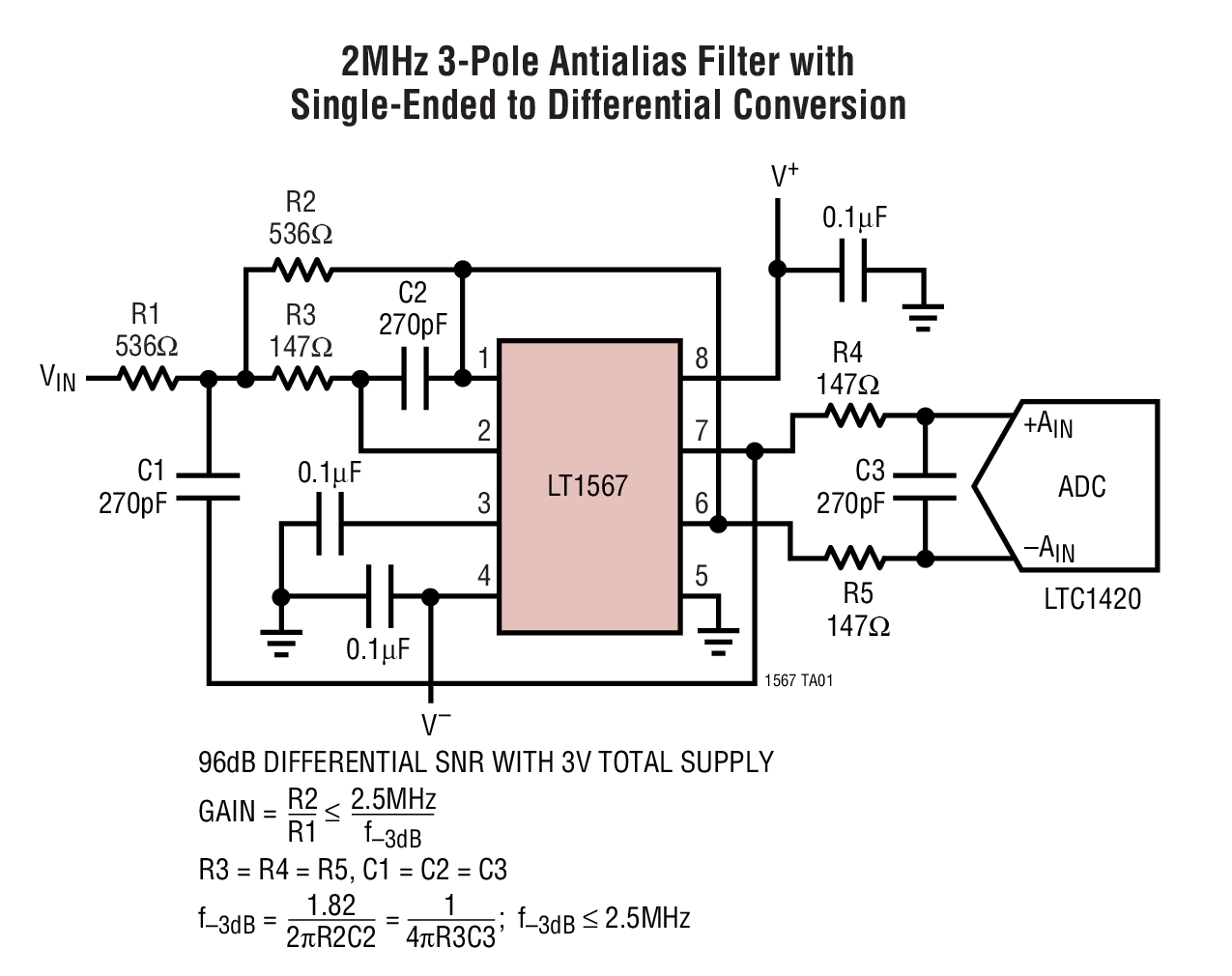

The LT1567 is an analog building block optimized for very low noise high frequency filter applications. It contains two wideband rail-to-rail operational amplifiers, one of them internally configured as a unity-gain inverter. With the addition of a few passive components, the LT1567 becomes a flexible second order filter section with cutoff frequency (fC) up to 5MHz, ideal for antialiasing or for channel filtering in high speed data communications systems. A spreadsheet-based design tool is available for designing lowpass and bandpass filters using the LT1567.

In addition to low noise and high speed, the LT1567 features single-ended to differential conversion for direct driving of high speed differential input A/D converters. The LT1567 operates from a total power supply voltage of 2.7V to 12V and supports signal-to-noise ratios above 100dB.

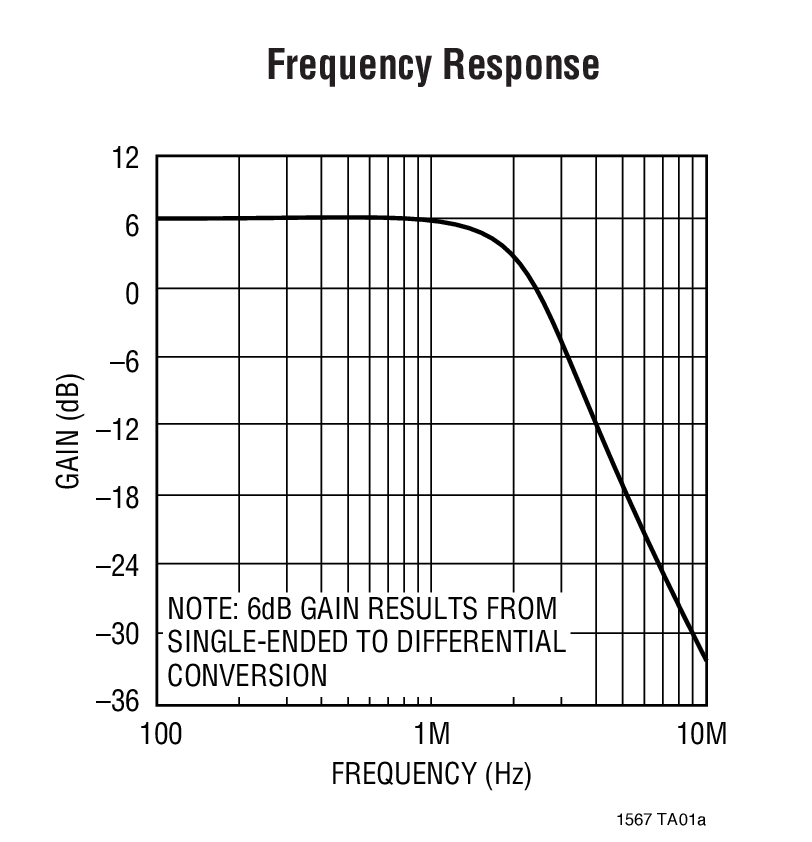

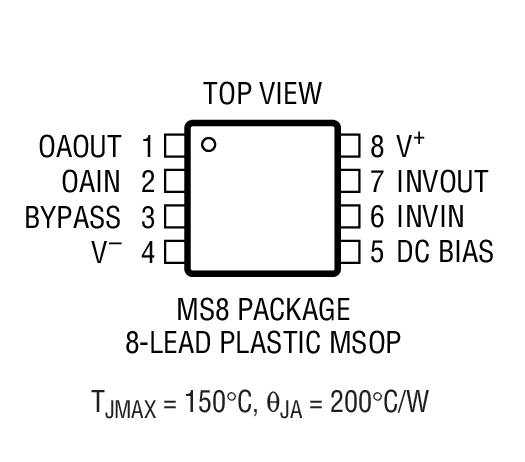

The LT1567 is available in an 8-lead MSOP package.

Applications

  • Low Noise, High Speed Filters to 5MHz
  • Low Noise Differential Circuits
  • Communication Channel or Roofing Filters
  • Antialias or Reconstruction Filtering
  • Video Signal Processing
  • Single-Ended to Differential Conversion

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Documentation & Resources

  • View All (4)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Technical Articles (1)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    To launch ready-to-run LTspice demonstration circuits for this part:

    Step 1: Download and install LTspice on your computer.

    Step 2: Click on the link in the section below to download a demonstration circuit.

    Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

    LTspice

    LTspice Simulations

    LT1567 Demo Circuit - Single-Ended Input to Differential Output Amplifier
    LT1567 Demo Circuit - Differential Input-to-Single-Ended Output Amplifier

    Models for the following parts are available in LTspice:

    LT1567

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LT1567CMS8#PBF Material Declaration Reliability Data 8-Lead MSOP
    LT1567CMS8#TRPBF Material Declaration Reliability Data 8-Lead MSOP
    LT1567IMS8#PBF Material Declaration Reliability Data 8-Lead MSOP
    LT1567IMS8#TRPBF Material Declaration Reliability Data 8-Lead MSOP
    Wafer Fabrication Data R460 Reliability Data

    PCN-PDN Information

    Select a model from the dropdown below to subscribe to PCN/PDN notifications and view past notifications as well.

    Select Model for PCN Information
    • LT1567CMS8#PBF Production
    • LT1567CMS8#TRPBF Production
    • LT1567IMS8#PBF Production
    • LT1567IMS8#TRPBF Production
