Overview

Features and Benefits

  • Rail-to-Rail Input and Output
  • Low Supply Current: 75µA Max
  • 390µV VOS(MAX) for VCM = Vto V+
  • High Common Mode Rejection Ratio: 83dB Min
  • High AVOL: 400V/mV Minimum
  • Wide Supply Range: 2V to ±5V
  • Low Input Bias Current: 6nA Typ
  • 120kHz Gain Bandwidth Product

Product Details

The LT1466L/LT1467L are dual/quad bipolar op amps that combine rail-to-rail input and output operation with precision specifications. Using a patented technique, both input stages of the LT1466L/LT1467L are trimmed: one at the negative supply and the other at the positive supply. The resulting common mode rejection of 83dB minimum is much better than other rail-to-rail input op amps. A minimum open-loop gain of 400V/mV into a 10K load virtually eliminates all gain error. Operation is specified for 3V, 5V and ±5V supplies.

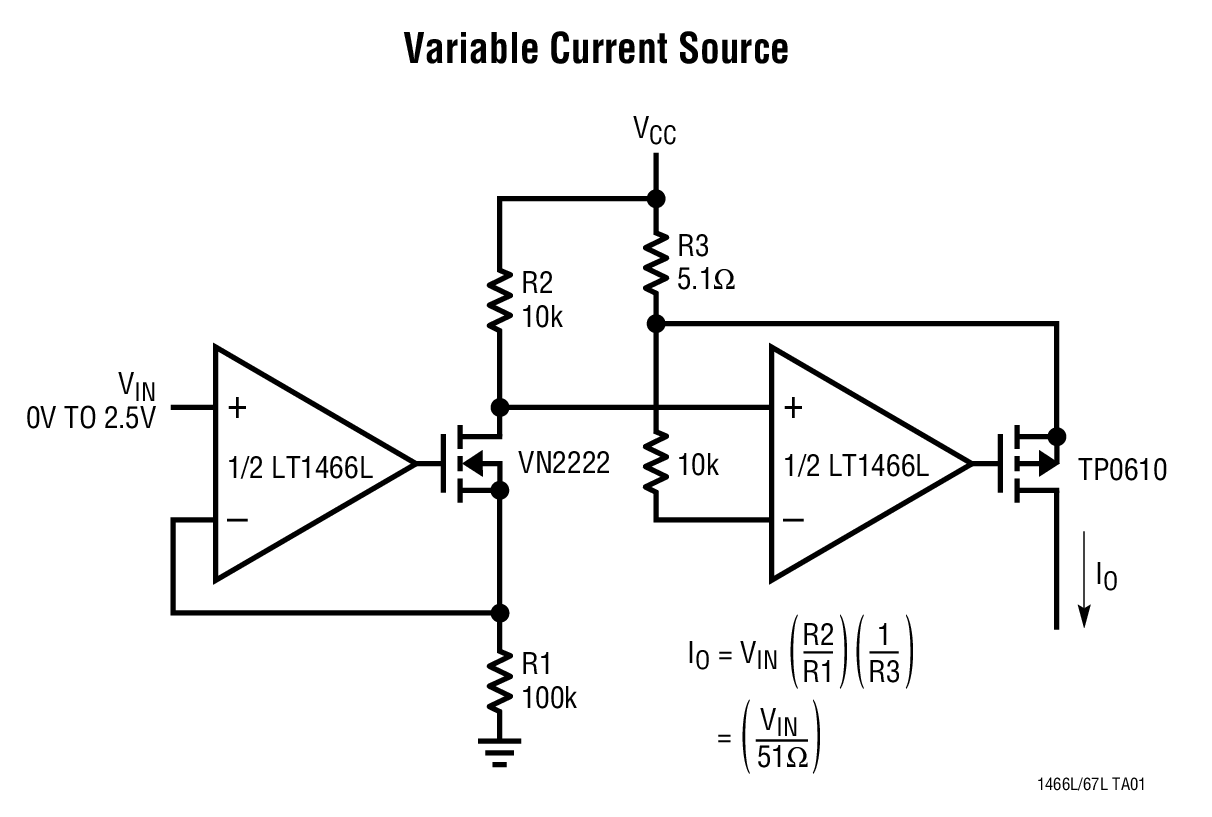

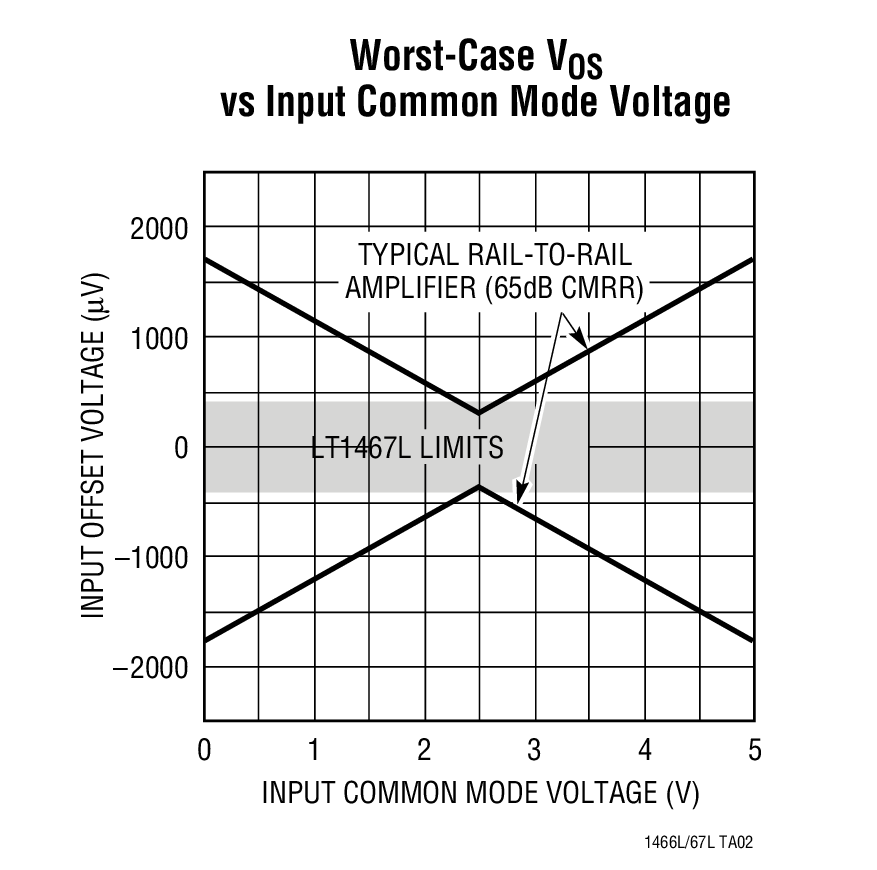

Unlike other rail-to-rail amplifiers, the input offset voltage of 390µV maximum is guaranteed across the entire rail-to-rail input range, not just at half supply. The graph below contrasts the VOS specifications of the LT1466L/LT1467L to a competitive part that is specified only at half supply. As can be seen, the LT1466L/LT1467L's limits are much tighter for inputs near either supply.

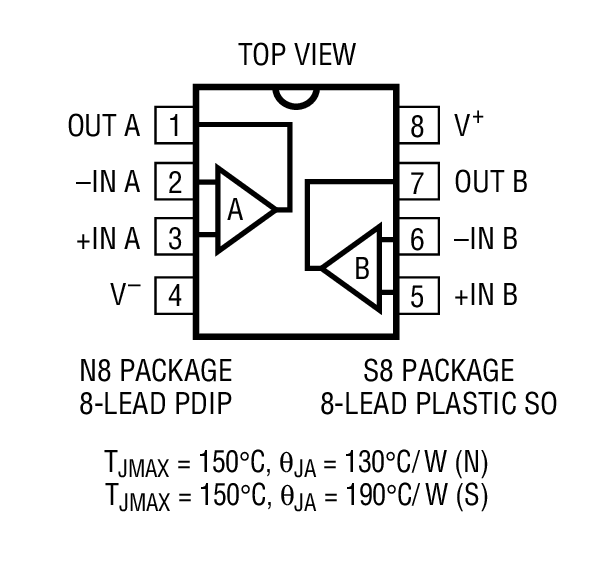

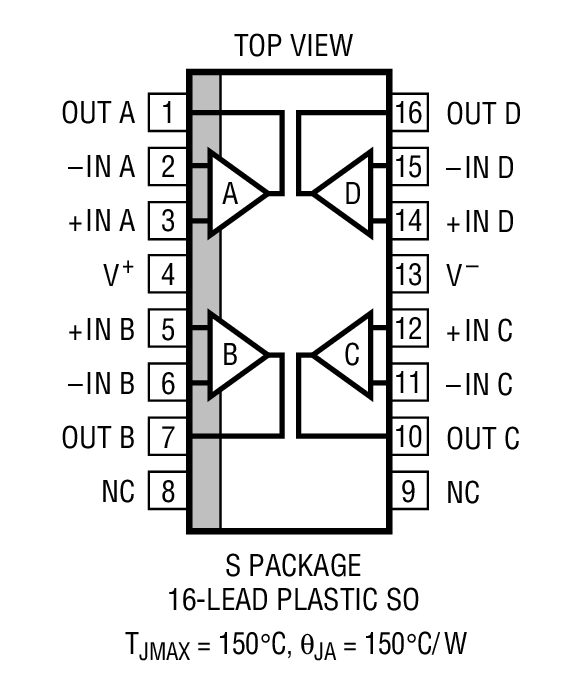

The LT1466L is available in 8-lead PDIP and SO-8 packages with the standard dual pinout. The LT1467L features the standard quad pinout and is available in a 16-lead narrow SO package.

Applications

  • Supply Current Sensing
  • Driving A/D Converters
  • Test Equipment Amplifiers

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Tools & Simulations

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

LTspice

Models for the following parts are available in LTspice:

LT1467
