7.5A, 150kHz Switching Regulators

PRODUCTION

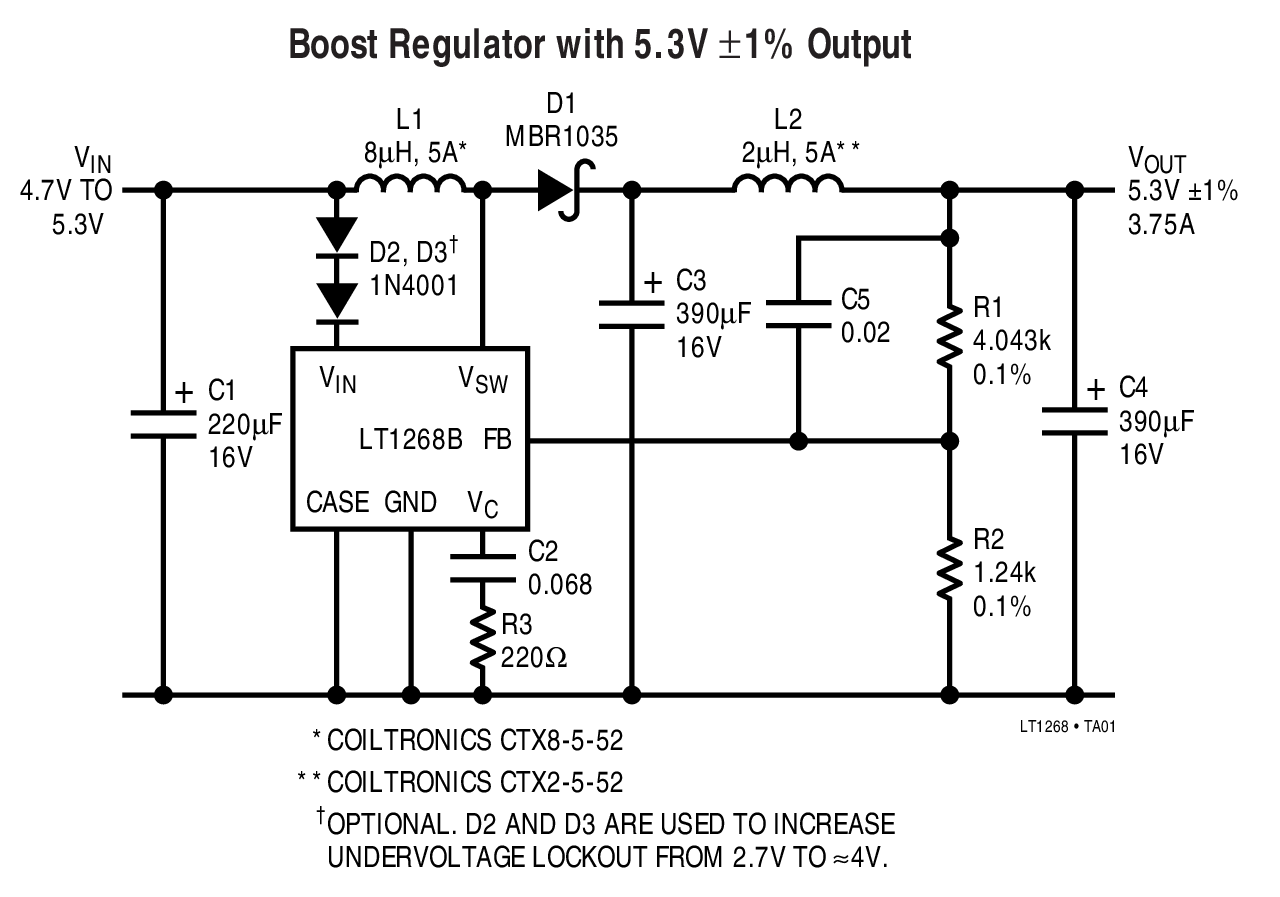

Boost Regulator with 5.3V ±1% Output slide

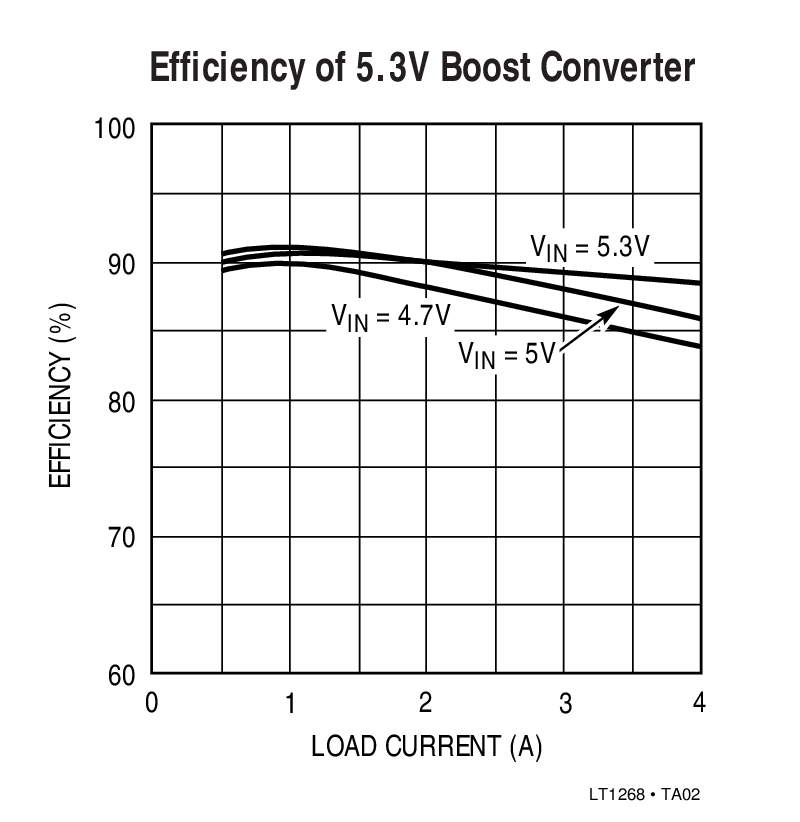

Efficiency of 5.3V Boost Converter slide

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 6

1ku List Price Starting From $9.23

Features

Wide Input Voltage Range: 3.5V to 30V
Low Quiescent Current: 7mA
Internal 7.5A Switch
Very Few External Parts Required
Self-Protected Against Overloads

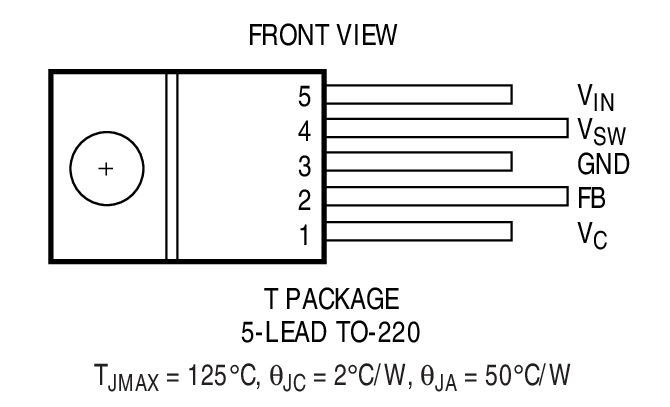

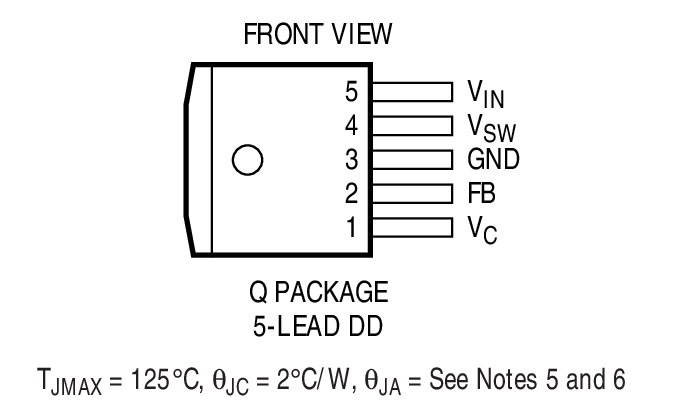

Available in Standard and Surface Mount 5-Pin Packages
Can Be Externally Synchronized (See LT1072 Data Sheet)

Additional Details

The LT1268B and LT1268 are monolithic high power switching regulators. Identical to the popular LT1070, except for switching frequency (150kHz) and higher switch current, they can be operated in all standard switching configurations including buck, boost, flyback, and inverting. A high current, high efficiency switch is included on the die along with all oscillator, control, and protection circuitry. Integration of all functions allows the LT1268 to be built in standard 5-pin power packages. This makes it extremely easy to use and provides “bust proof” operations similar to that obtained with 3-pin linear regulators.

The LT1268 operate with supply voltages from 3.5V to 30V and draw only 7mA quiescent current. By utilizing current mode switching techniques, it provides excellent AC and DC load and line regulation.

The LT1268 use an adaptive anti-sat switch drive to allow very wide ranging load currents with no loss in efficiency. An externally activated shutdown mode reduces total supply current to 100µA typical for standby operation.
